ES-4MXL Corner cleaning machine

home / from a to z / E

4-axis corner cleaning machine

  • For multi-functional machining of 90° inside and outside corners
  • MotionControl ensures a work sequence with optimised cycle times
  • Highly-dynamic axis drive
  • User programmable under Window operating system

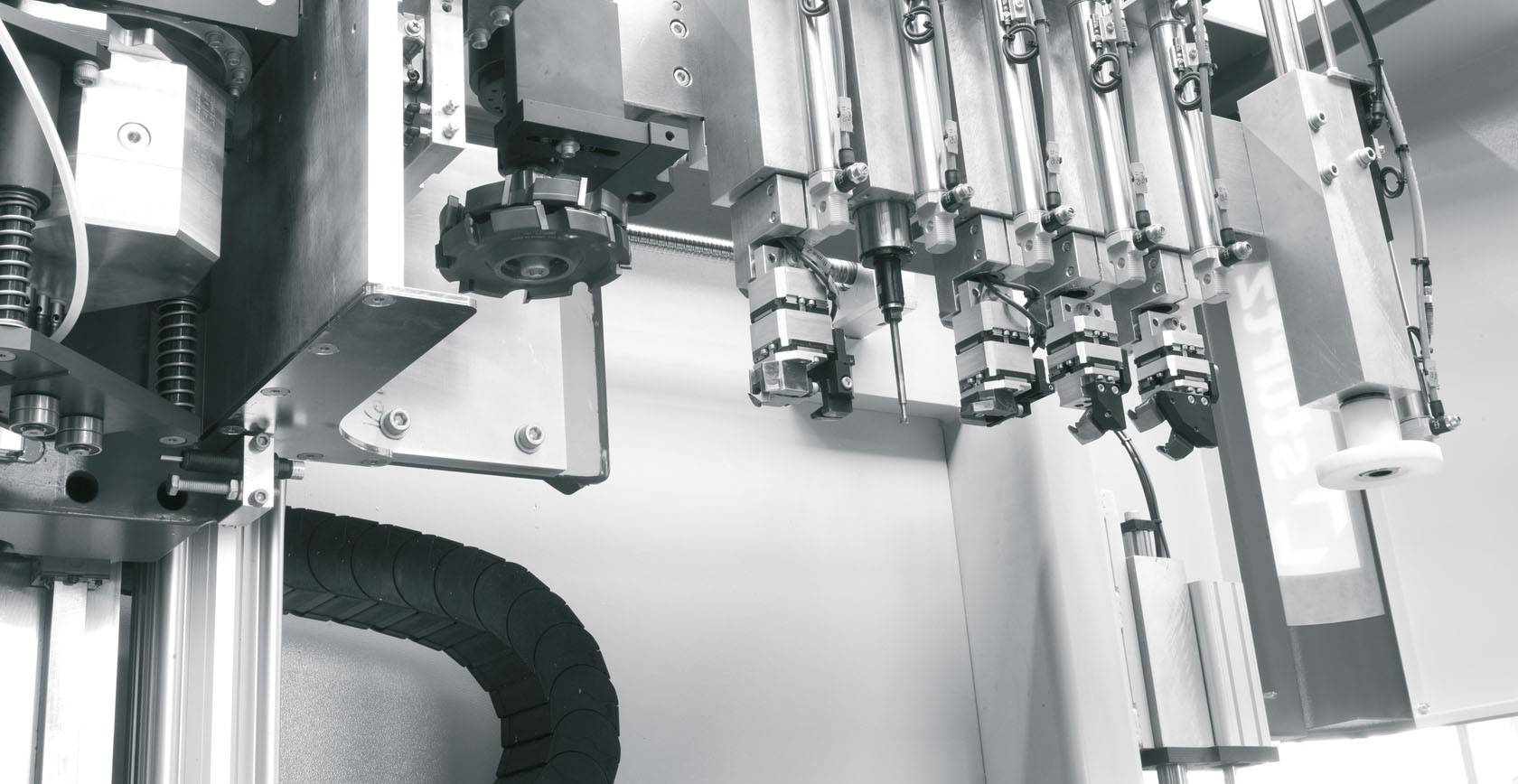

  • Modular tooling with up to 17 tool positions
  • Customer-specific machining solutions are possible, such as arrowhead routing, sash overlap routing, tilt/turn hinge drilling, disk milling cutter units, etc.

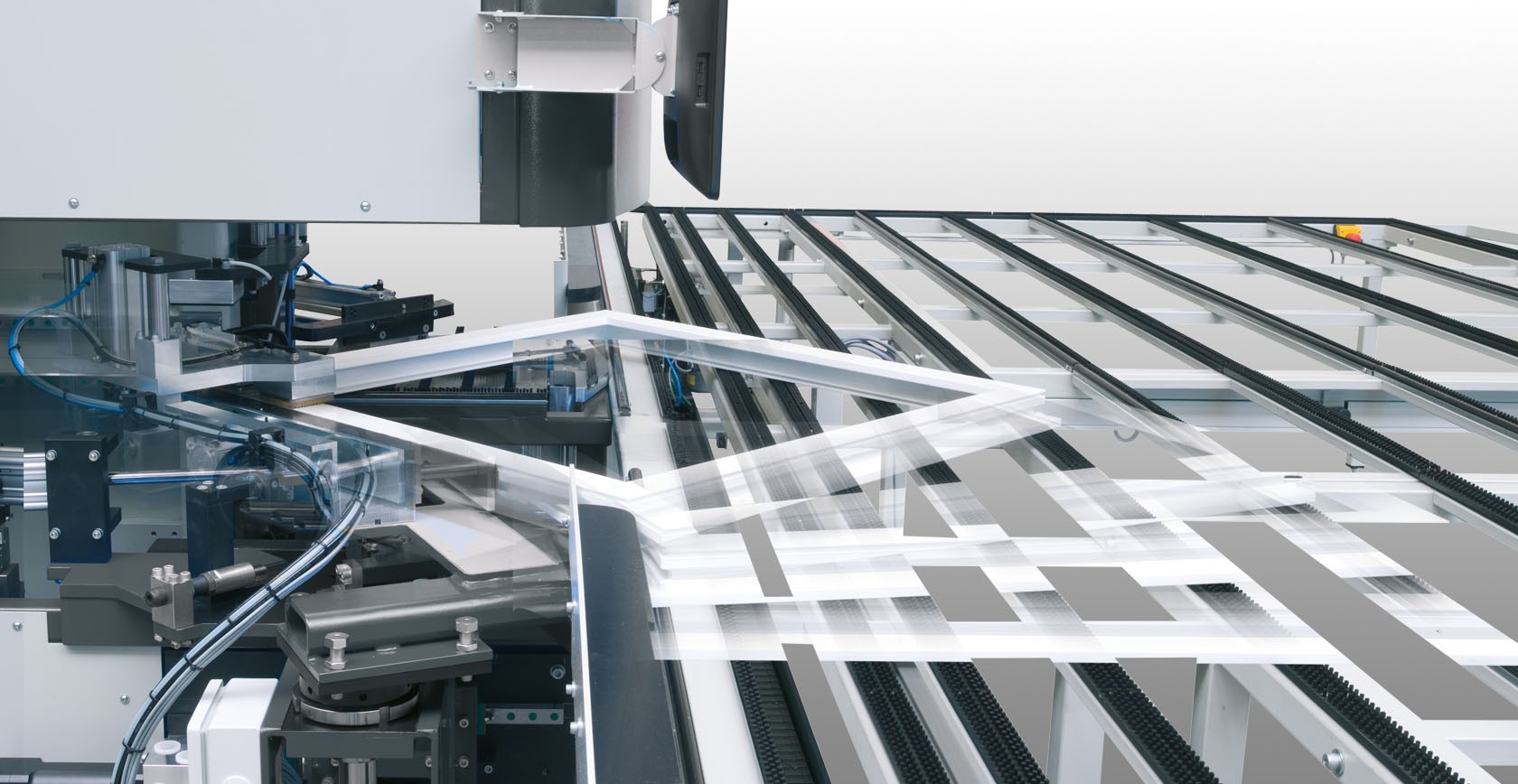

  • The 4MXL can be equipped with an automatic turning station



Options

  • Automatic profile recognition
  • Tilt/turn hinge drilling
  • Mullion or arrowhead routing
  • Sash hinge drilling
  • Min. overall depth, 25 mm
  • Max. depth, 130 mm (optional, 220 mm)
  • Min. facing width, 25 mm
  • Max. facing width, 130 mm
  • Min. element size 290 x 290 mm
  • Max. element size 3,000 x 3,000 mm (in turning mode)

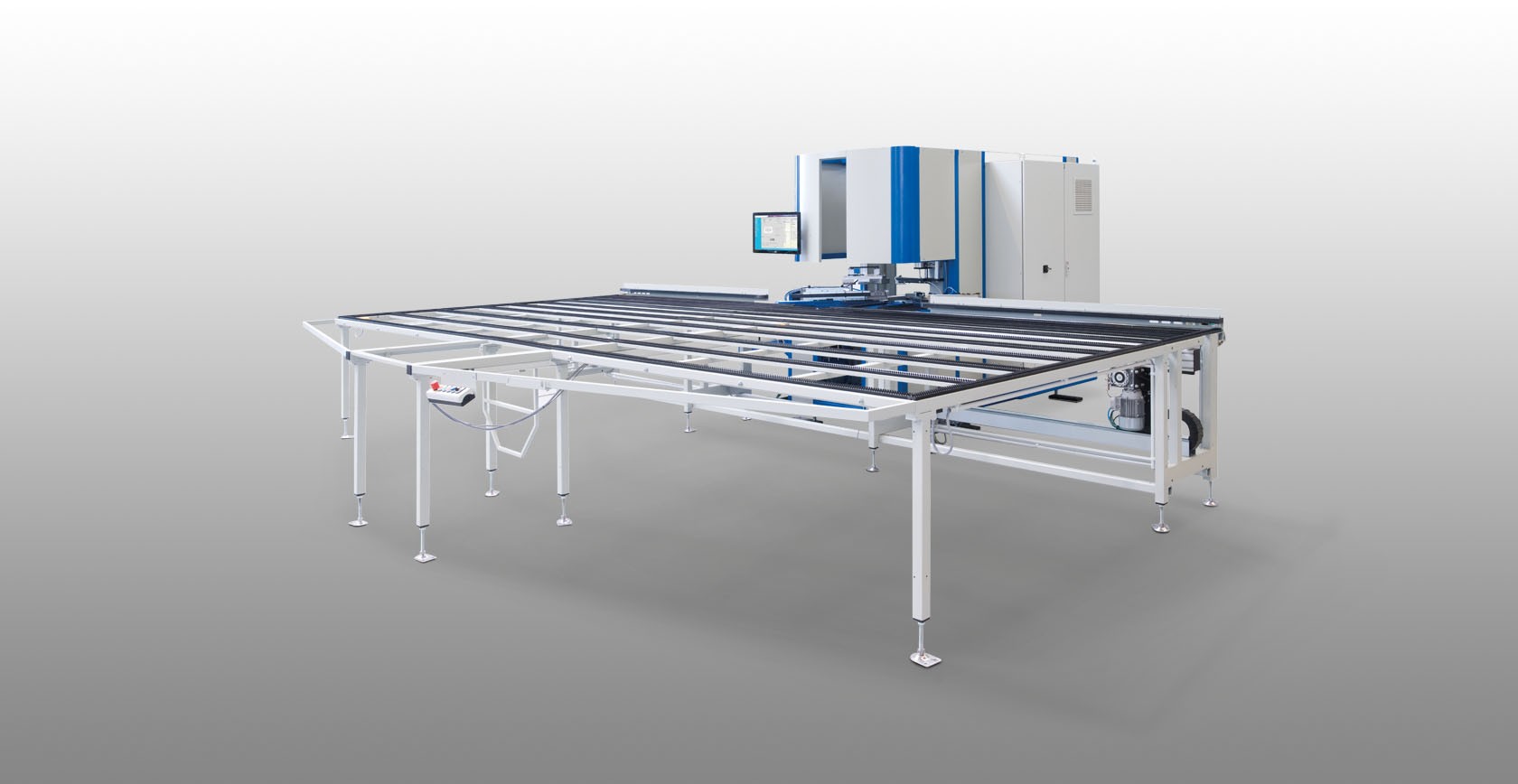

Corner cleaning machine ES-4MXL
Corner cleaning machine ES-4MXL
