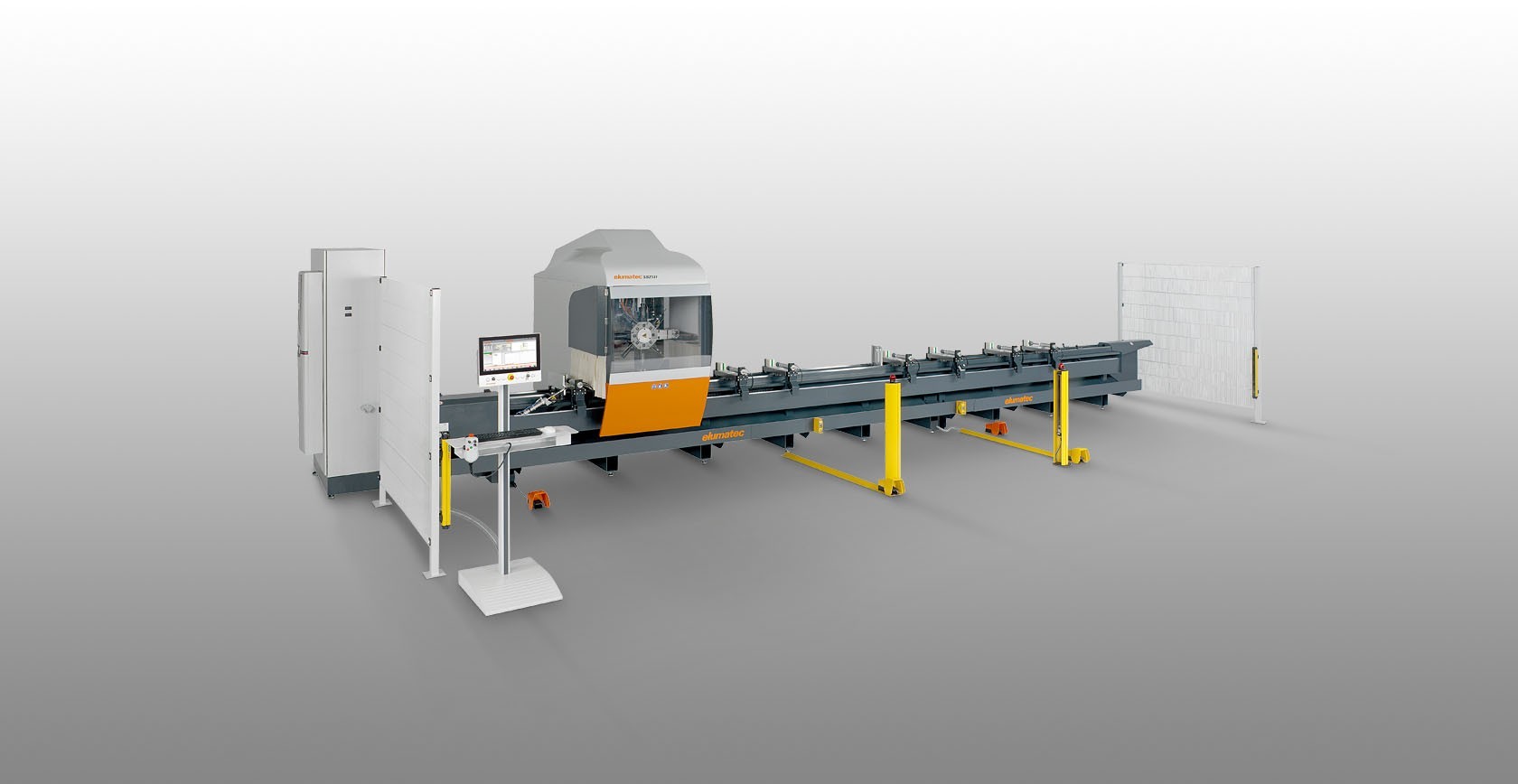

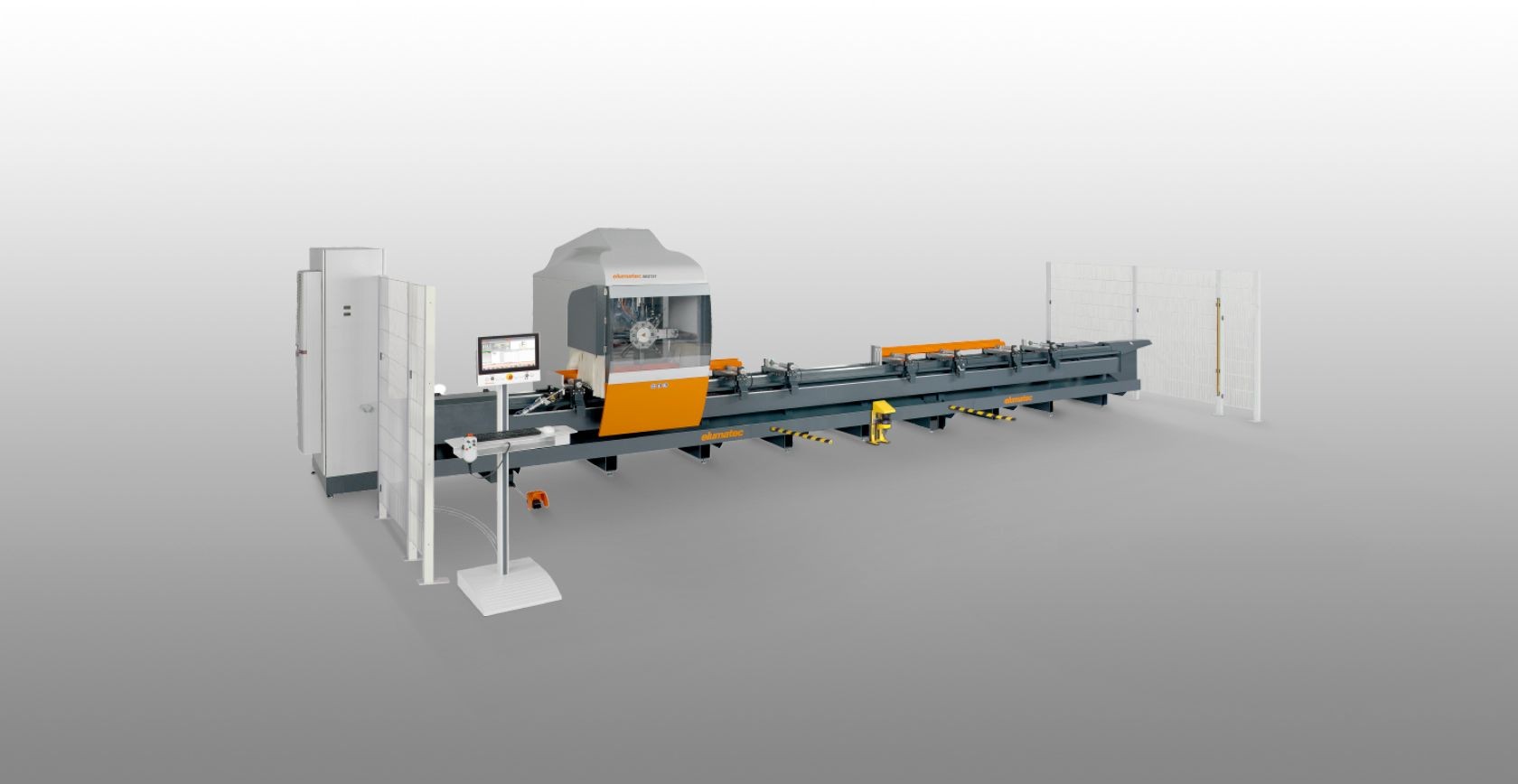

SBZ 131 Profile machining centre

  • 3-axis profile machining centre
  • Designed for economical and efficient machining of aluminium, steel and stainless steel profiles
  • All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces
  • The on-board turret head ensures that tool changing times are kept very short, thereby optimizing machining cycles

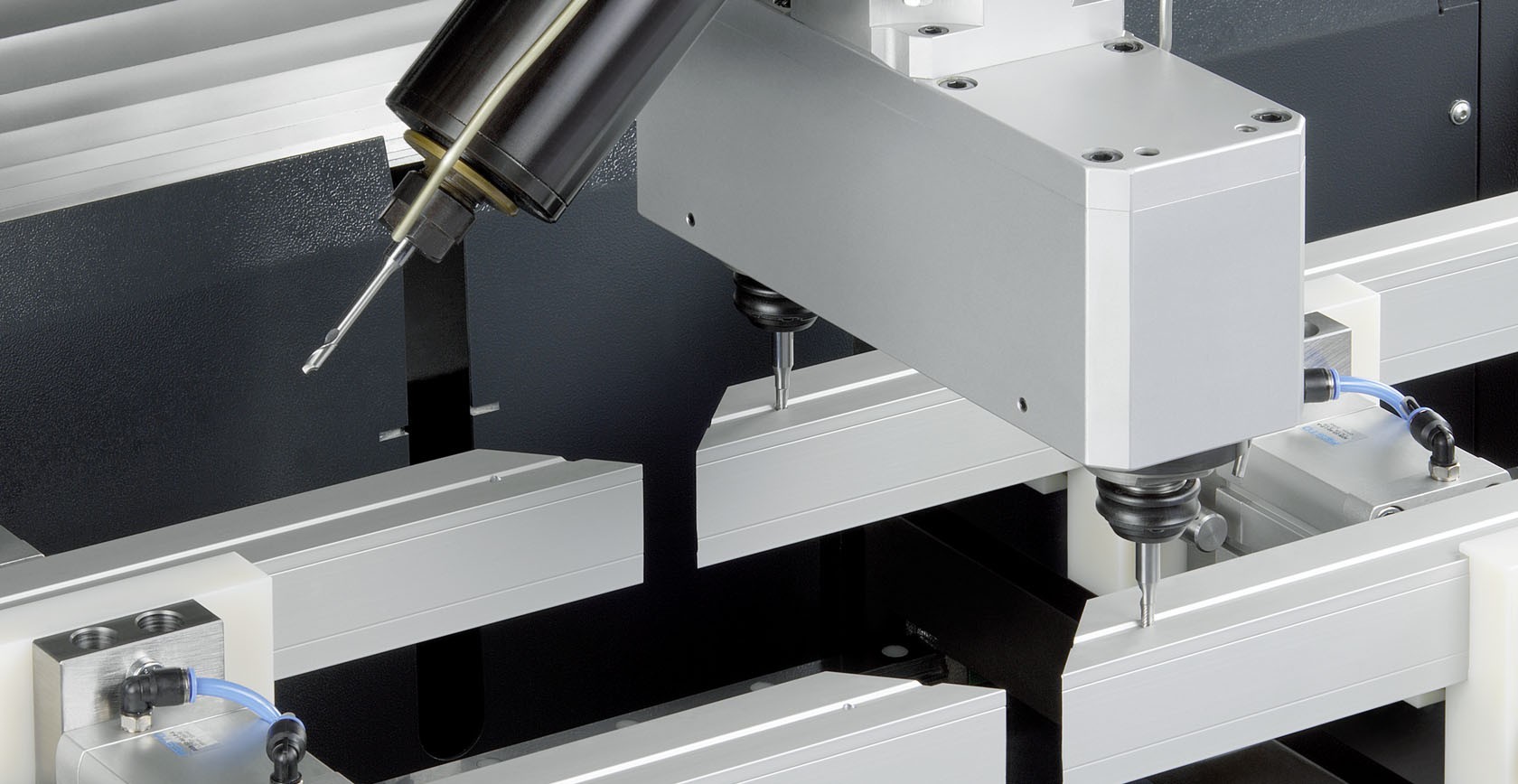

  • The turret head can be equipped with eight tools or four angle routing heads
  • Autonomous clamp positioning enables clamp arrangement during secondary time
  • 3-axis controller
  • The tool spindle is designed as an additional axis

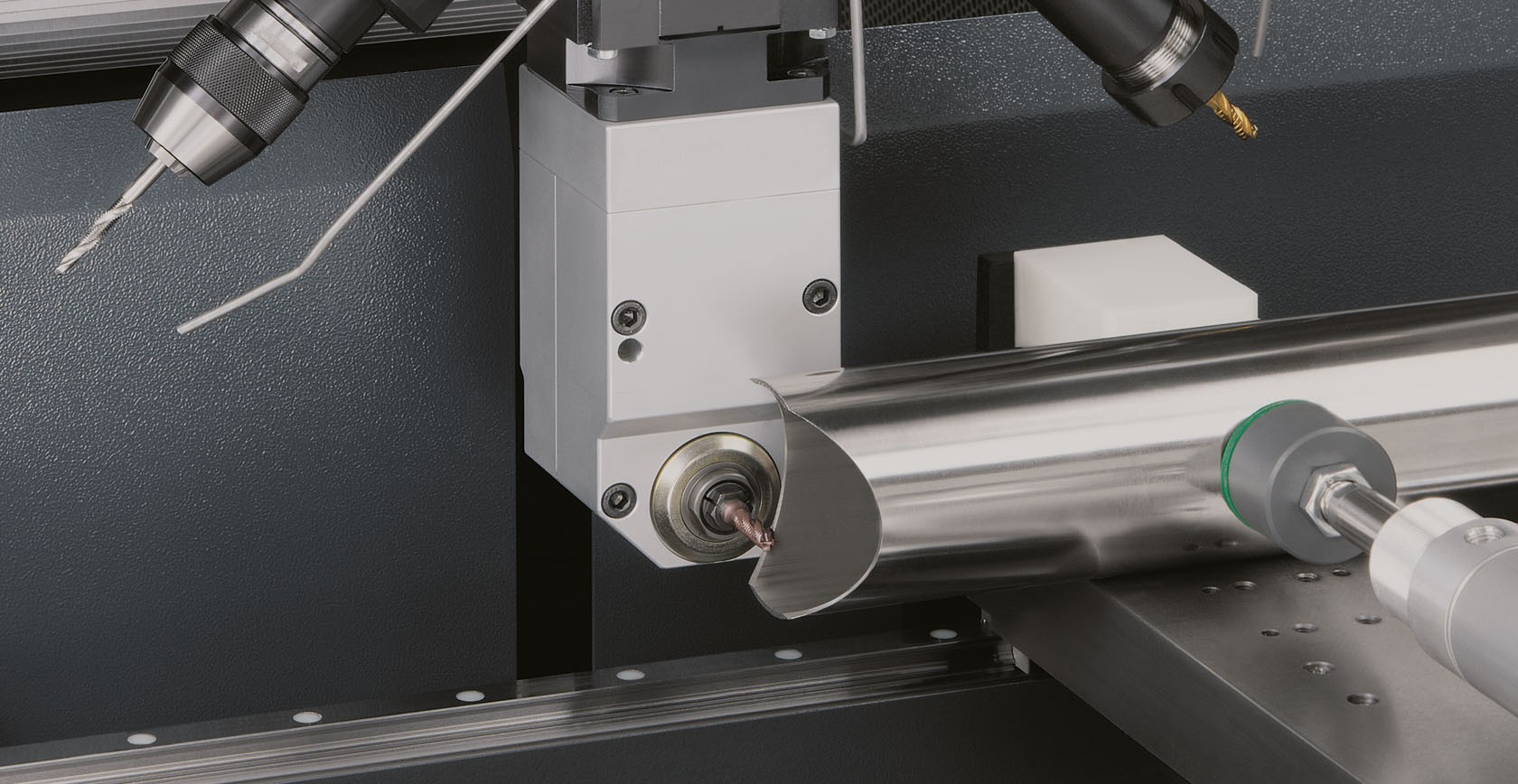

  • Angle heads for lateral and profile end machining
  • 18.5" panel PC, USB ports and network connection
  • Windows operating system
  • eluCam



Machining lengths

SBZ 131 - 4.2 m

  • Max. machining length with profile end machining, 4,080 mm
  • Max. machining length without profile end machining, 4,200 mm



SBZ 131 - 7.2 m

  • Max. machining length with profile end machining, 7,080 mm
  • Max. machining length without profile end machining, 7,200 mm



SBZ 131 - 8.5 m

  • Max. machining length with profile end machining, 8,380 mm
  • Max. machining length without profile end machining, 8,500 mm



SBZ 131 - 10.2 m

  • Max. processing length with profile end machining, 10,080 mm
  • Max. processing length without profile end machining, 10,200 mm



SBZ 131 - 11.5 m

  • Max. machining length with profile end machining, 11,380 mm
  • Max. machining length without profile end machining, 11,500 mm



Options

  • Two separate working zones enable machining in shuttle operation. There is also a central laser scanner on the operator’s side to protect the area for maximum safety.
  • Cycling program with special clamping device and outfeed conveyor
  • Automatic length measurement
  • Angle routing heads
  • High-speed spindle
  • Slow spindle

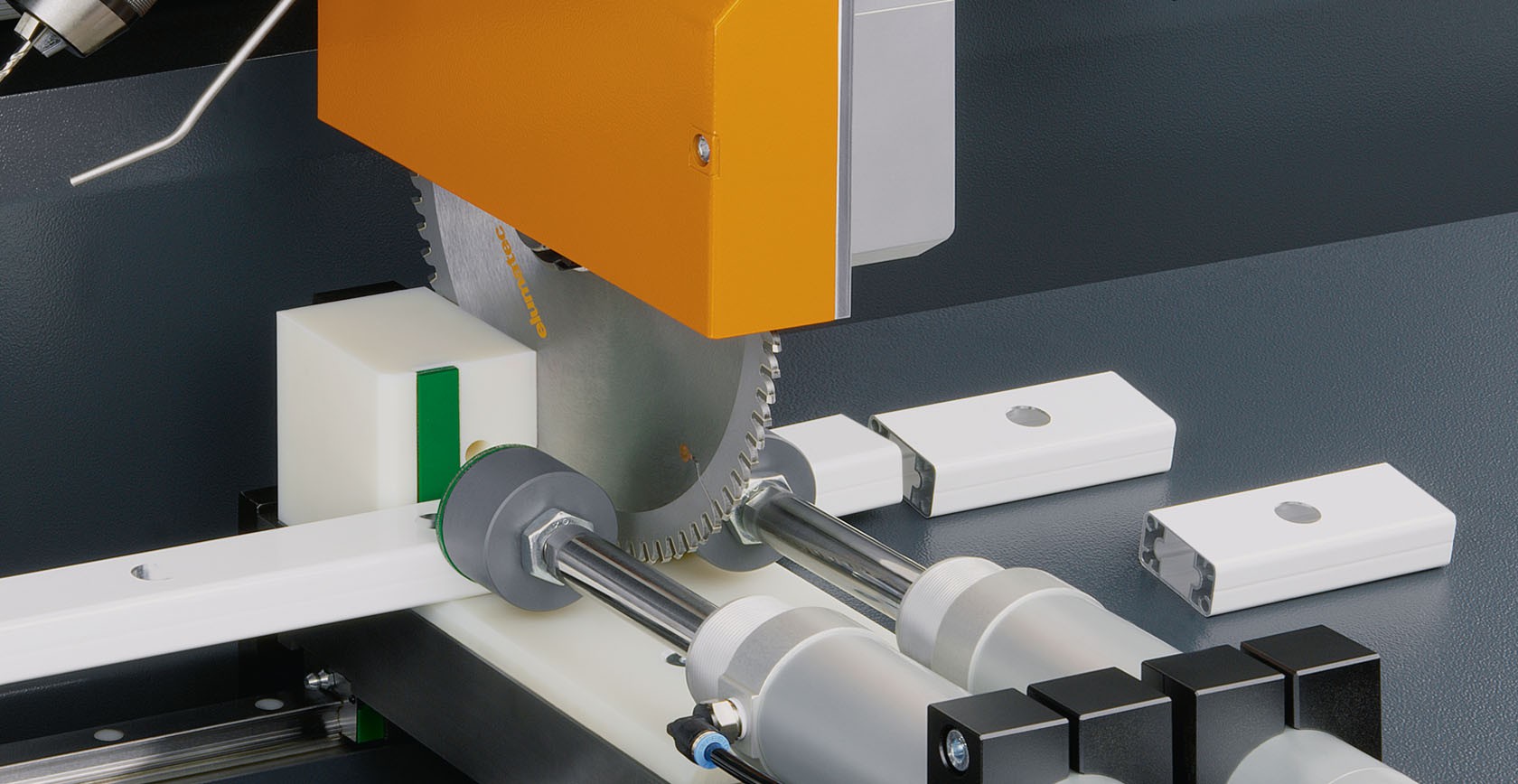

  • Saw head
  • Clamping unit accommodates double profile machining
  • Barcode scanner
  • Tool holders
  • Collet chucks
  • Collets
  • Tools
  • eluCad (office software package for optimised production management)
  • Traverse path X-axis, 4,200 mm, 7,200 mm, 8,500 mm, 10,200 mm, 11,500 mm
    (additional lengths on request) Vmax. 60 m/min.
  • Traverse path Y-axis, 485 mm, Vmax. 60 m/min.
  • Traverse path Z-axis, 340 mm, Vmax. 60 m/min.
  • Max. spindle speed 6,000 rpm, 18,000 rpm with high-speed spindle
  • Autonomous clamp positioning with 700 mm of travel
  • Spindle power output 5.5 kW
  • Tool changer for eight tools on a turret head
  • Compressed air supply 7 bar
  • Power supply 400 V, 3~, 50 Hz, 63 A
  • Air consumption per minute 100 l with spraying
