Frame transport trolley

home / from a to z / R

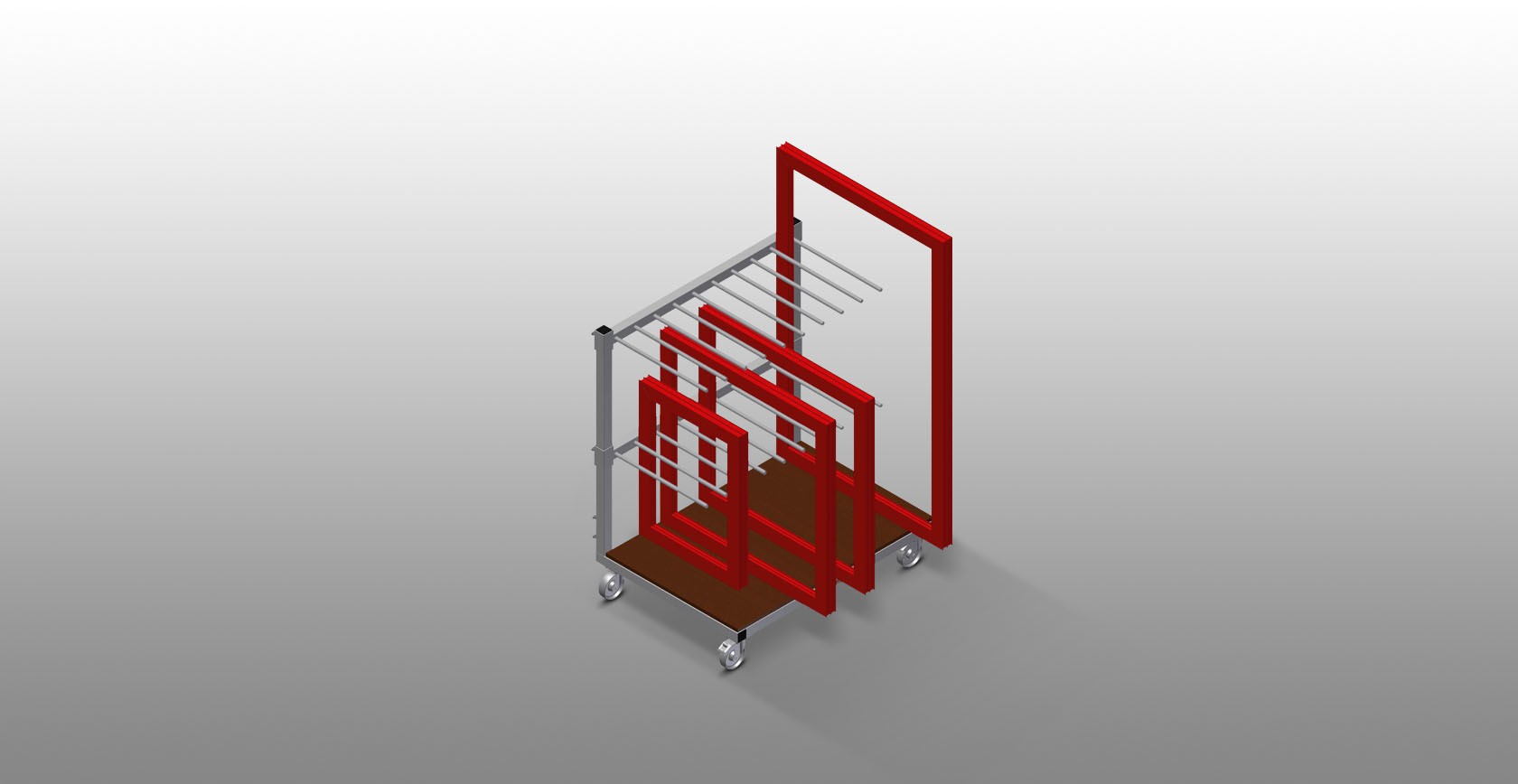

Profile trolley for in-house transportation of frames and sashes. Stable steel construction. Trolley with sorting rack for transportation and storage of frames and sashes. Hardwood supporting surface. Compartment dividers for nine frames. Compartment divider height is adjustable. Four swivel castors, two of which with locking stop.

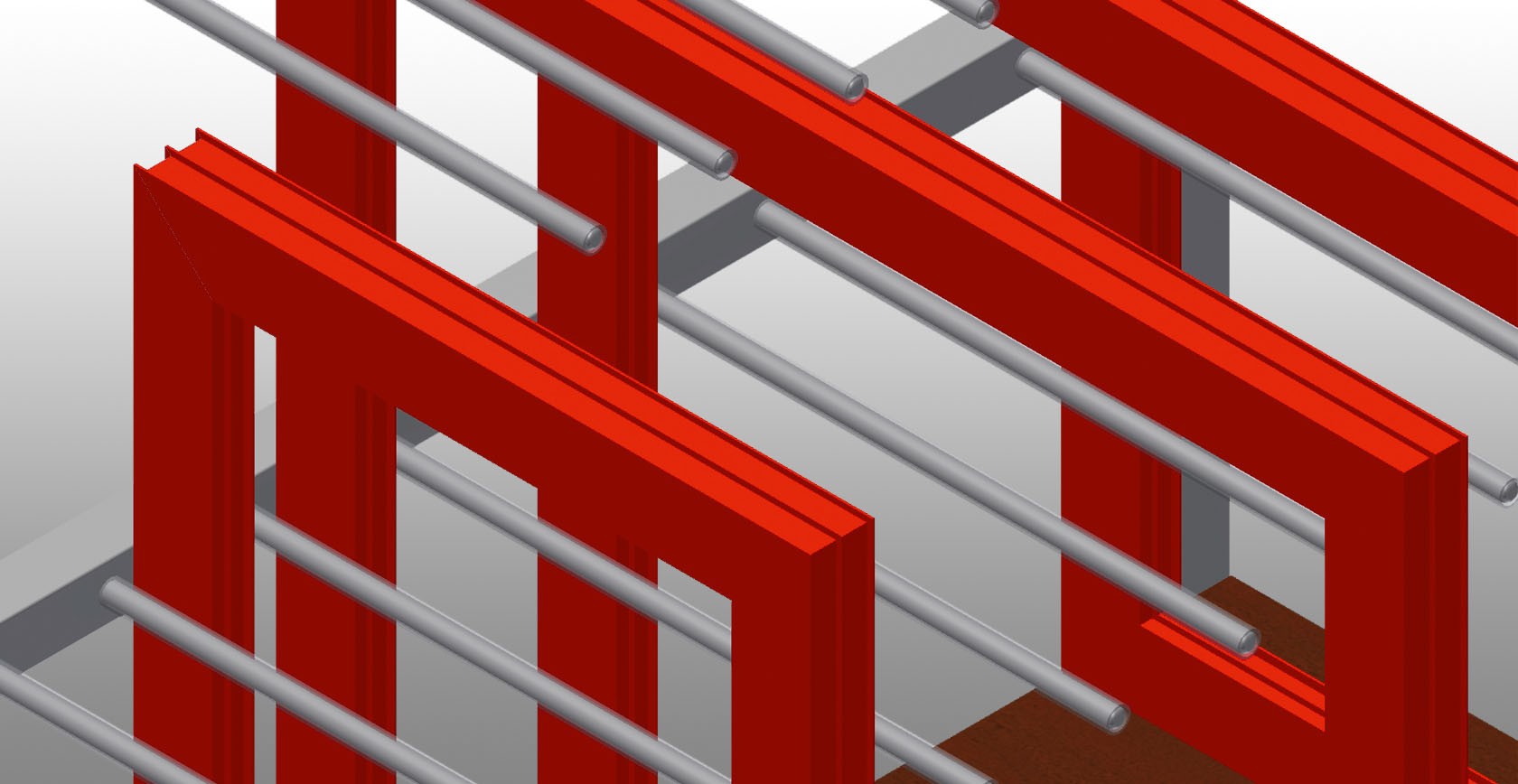

Easy loading and unloading
Direct access to each element
Compartment dividers
Compartment divider height is adjustable, Compartment width 100 mm, Compartment depth 540 mm

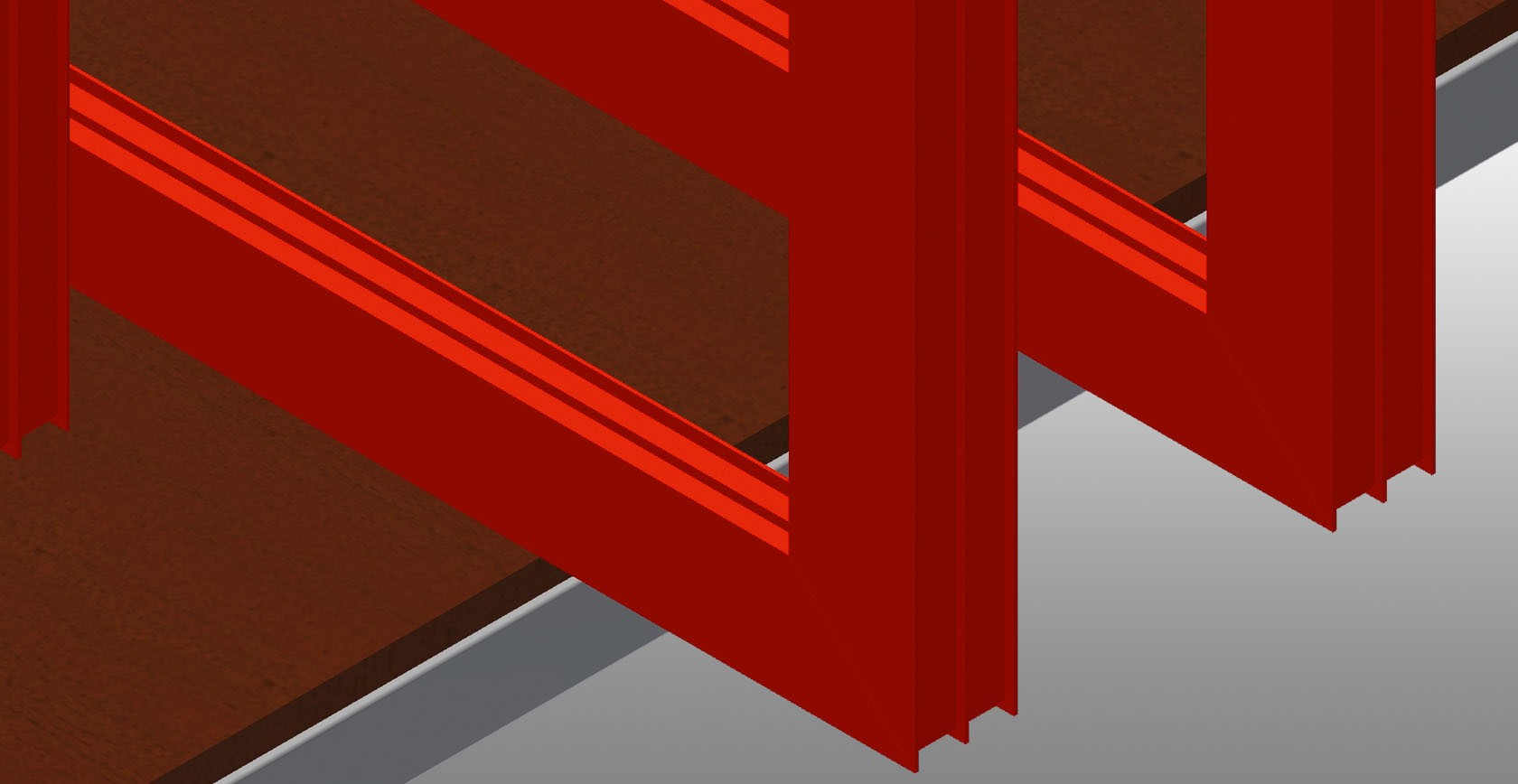

Supporting surface
Lower supporting surface made of hardwood
Casters
Four casters, two of which have a fixing brake, provide a high degree of mobility and easy, safe handling
Plastic protector (Optional)

All supporting surfaces have a non-slip PVC cladding which protects surfaces from damage during storage

RF Easy loading and unloading elumatec
RF Compartment dividers elumatec
RF Supporting surface elumatec
RF Casters elumatec
RF Plastic protector elumatec
Technical data arrow_drop_down

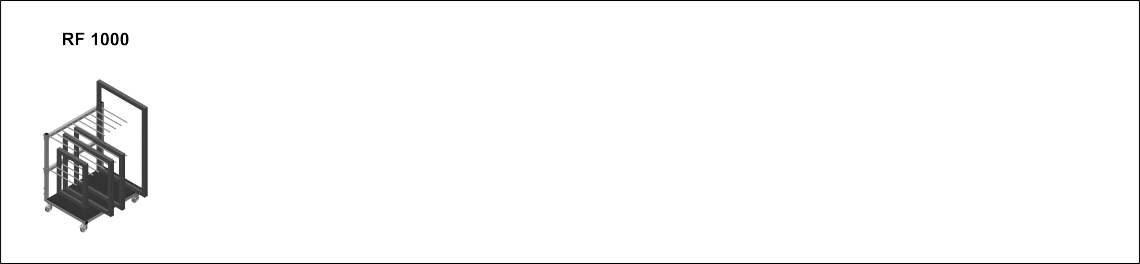

MODELS

DIMENSION AND WEIGHT
Length (mm)
1.180
Width (mm)
850
Height (mm)
1.360
Weight (kg)
65
STORAGE CAPACITY
Compartment dividers
2
Compartments
9
Compartment width (mm)
100
Compartment depth (mm)
540
Support height (mm)
1.150
Load capacity (kg)
400
CHARACTERISTICS
Plastic protection

Swivel castors
4
Swivel castors with locking stop
2
Swivel castors diameter (mm)
125
Included
Available

Other Products

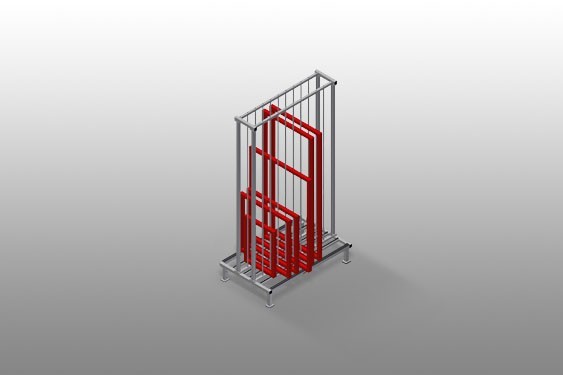

RFR elumatec
