KT 3000 Tilting table

Assembly table for vertical and horizontal assembly

  • Stable steel construction
  • Important when switching from vertical to horizontal transportation and vice versa
  • Ideal for vertical and horizontal assembly
  • Pneumatic tilting
  • Table supporting surface with plastic slide bars
  • Roller support can be lowered pneumatically
  • 4-fold compressed air supply



Options

  • Also available with brush strips on request
  • Also available with felt strips on request (for wooden profiles)
  • Also available with rubber strips on request (for aluminium profiles)
  • Pull-out table supporting surface at top for KT/KTH 3000
  • Profile protectors for support rollers
  • Mobility unit for KT/KTH/MS/VE
  • Rail, 2.0 m
  • Length 3,000 mm
  • Width 1,820 mm
  • Vertical height 1,900 mm
  • Roller conveyor width 200 mm
  • Weight 300 kg
  • Load 200 kg
  • Compressed air supply 7 bar
  • Air consumption approx. 35 l/min.

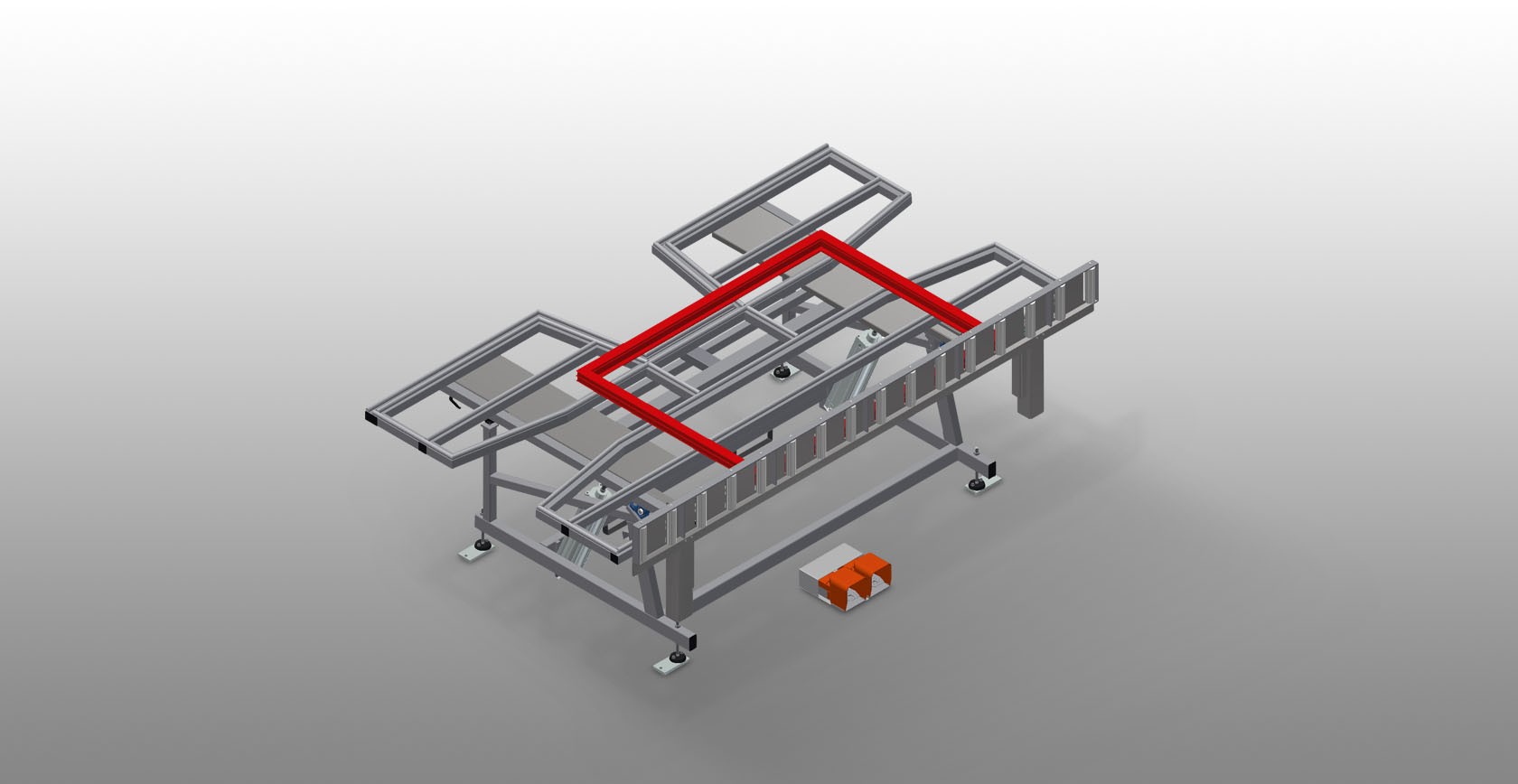

KT 3000 Tilting table Tilting table KT 3000 Elumatec
KT 3000 Tilting table Supporting surfaces Elumatec
KT 3000 Tilting table Roller support Elumatec
KT 3000 Tilting table Foot switch Elumatec
KT 3000 Tilting table 4-fold compressed air connection Elumatec
KT 3000 Tilting table Brush strip Elumatec
KT 3000 Tilting table Felt strip Elumatec
KT 3000 Tilting table Rubber strips Elumatec
KT 3000 Tilting table Profile protectors for support rollers Elumatec

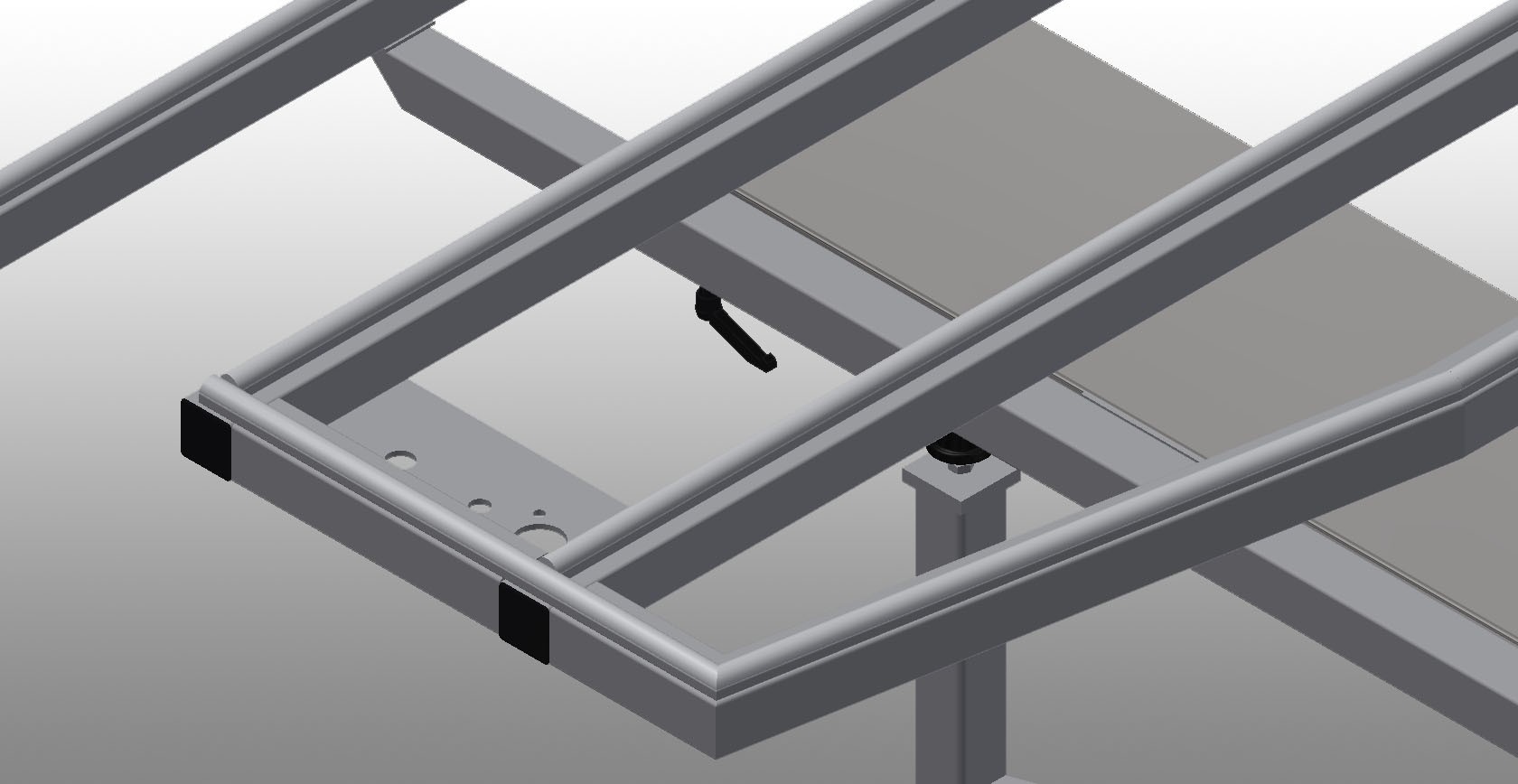

KT 3000 Tilting table Pull-out profile support Elumatec

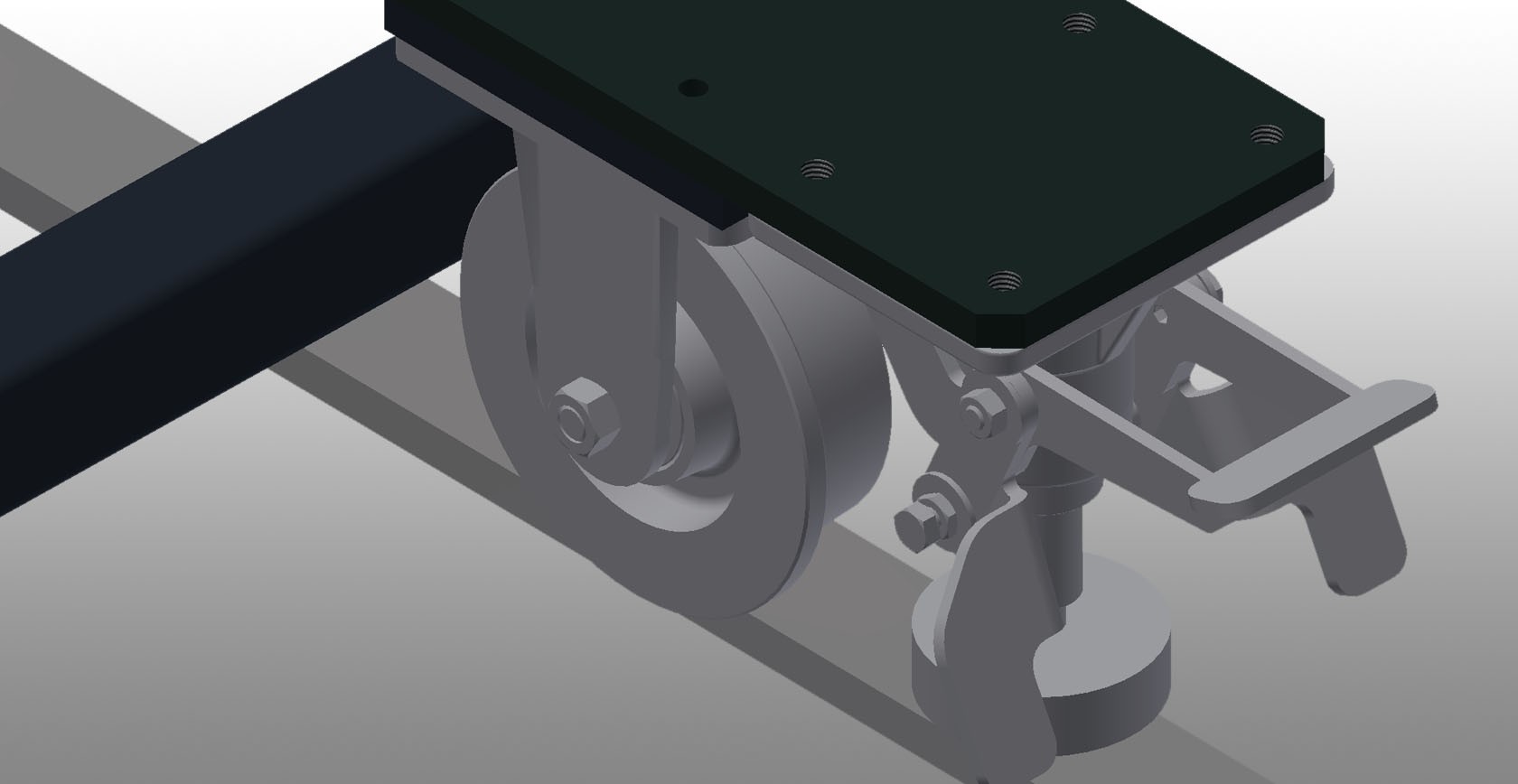

KT 3000 Tilting table Mobility unit Elumatec
KT 3000 Tilting table Rails Elumatec
