ALU PVC STEEL

DG 79 Double mitre saw

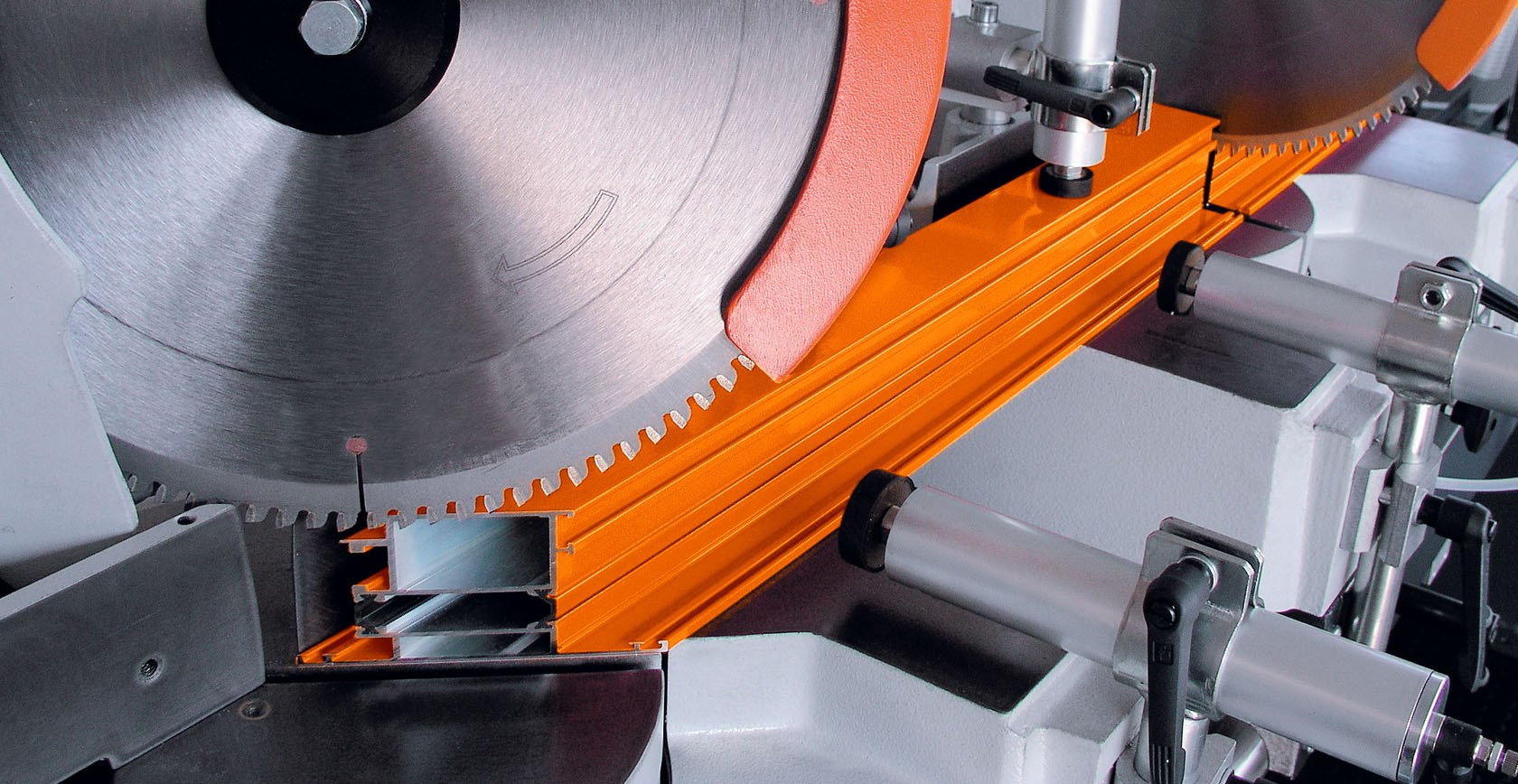

  • The solid cast construction with integrated turn table ensures optimal profile support for cutting to length with angular accuracy
  • Continuous pivoting range adjustment of the saw heads from 0° to 45° to the left and right. This makes external and internal dimension cuts possible

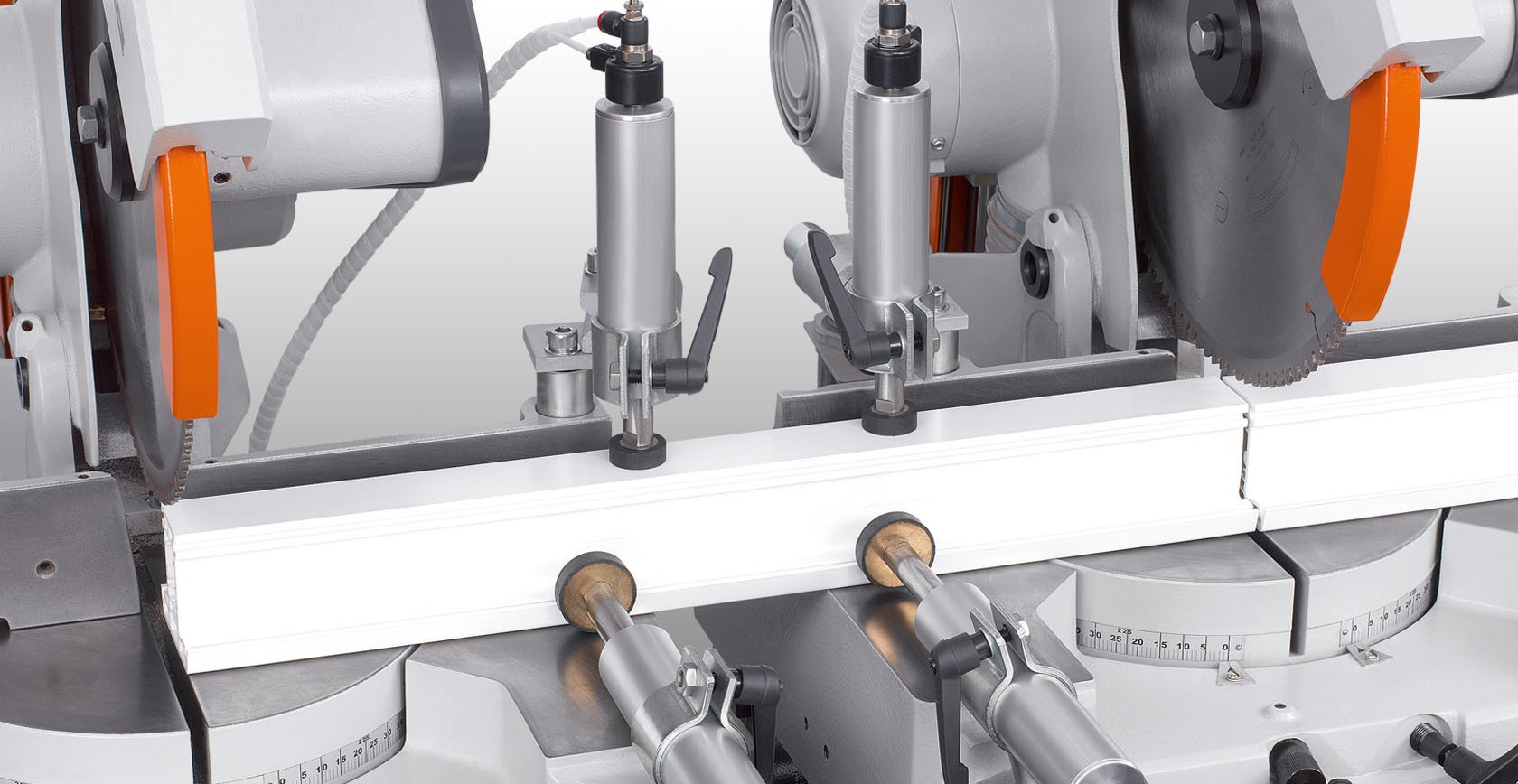

  • Vertical and horizontal pneumatic material clamping units ensures optimal profile fixation
  • Equipped with saw blades as standard
  • Equipped with digital display E 111 as standard
  • Pulsed coolant system



Cutting length variants

  • 3,000 mm
  • 4,500 mm
  • 6,000 mm



Options

  • DG 79 M machine bed made of steel sheet
    (cutting length 3,000 mm, 4,500 mm)
  • Workpiece supports
  • Transom stop
  • Extraction system
  • Material clamping units
  • Roller conveyors
  • Saw blades
  • High performance cutting fluid



Controller variants

  • Manual cutting length adjustment with digital display E 111
  • Positioning control E 355
  • Minimum cutting length at 90° 520 mm
  • Minimum cutting length pivoted at 45° 520 mm
  • Positive location points at 15°, 30°, and 45°
  • Pivoting range from 0° to 45° continuously adjustable
  • Hydro-pneumatic saw feed
  • For cutting range, see cutting diagram
  • Saw blade diameter 380 mm
  • Saw blade speed 2,800 rpm
  • Power supply 230/400 V, 3~, 50 Hz
  • Power output per motor 3 kW
  • Compressed air supply 7 bar
