VE 4000


Inspection and glazing unit

Inspection and glazing unit for glazing and final inspection in individual and serial assembly line production

  • Stable steel construction
  • Quick and precise assembly of windows, doors and elements
  • Precision ensured through parallel clamping bar pressing technique
  • For glazing and functional checks
  • For connecting frames and sashes
  • Height continuously adjustable
  • Two pressing bars which fold down and can be moved pneumatically
  • Easy operation by means of foot switch
  • 4-fold compressed air supply



Options

  • Lead-in rollers, cmpl., right
  • Lead-in rollers, cmpl., left
  • Profile protectors for support rollers
  • Tilt adjustment of 0° - 8°

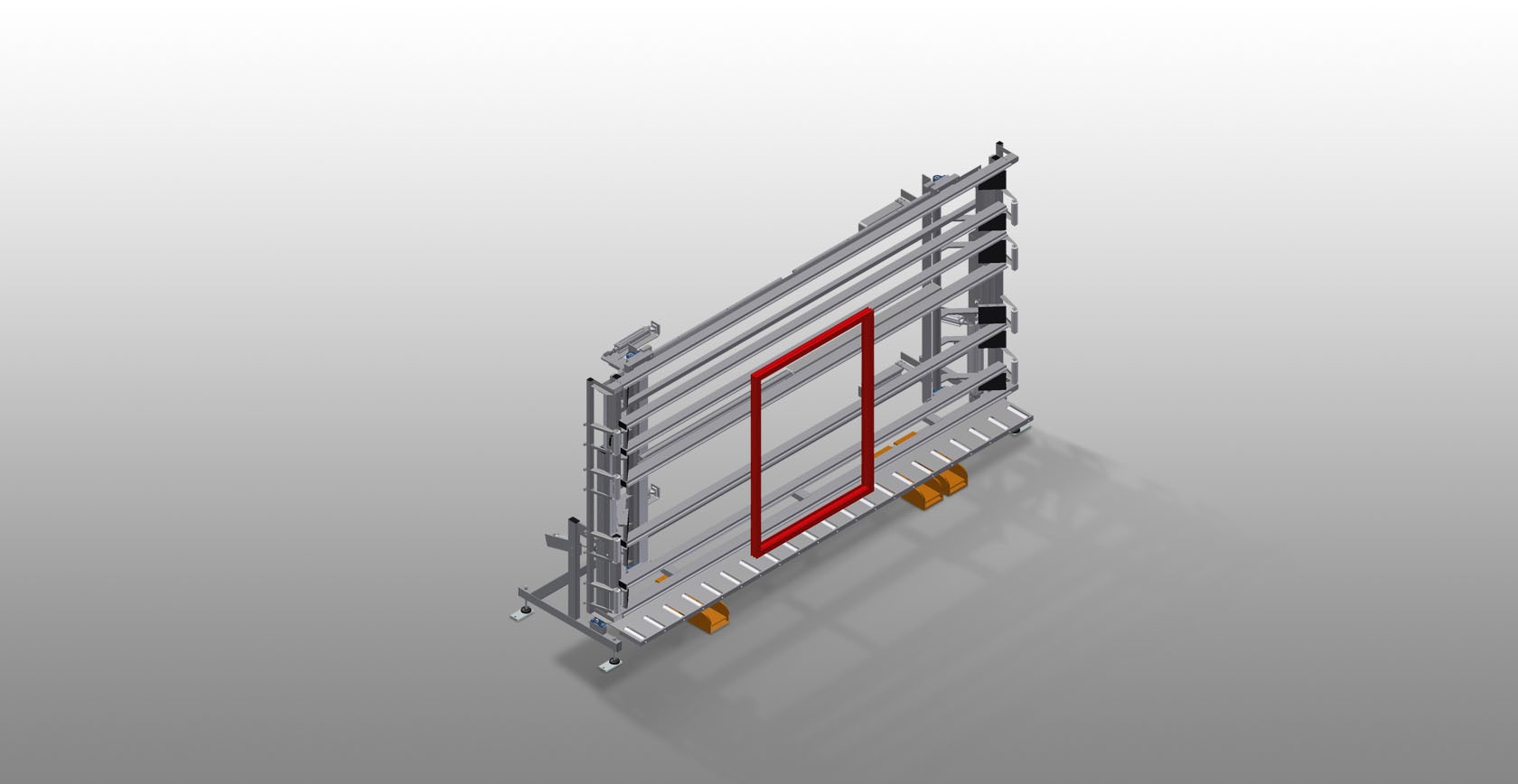

VE 4000 Inspection and glazing unit VE 4000 Elumatec
VE 4000 Pressing bar Elumatec
VE 4000 Back support Elumatec
VE 4000 Supports Elumatec
VE 4000 Foot switch Elumatec
VE 4000 Profile protectors Elumatec

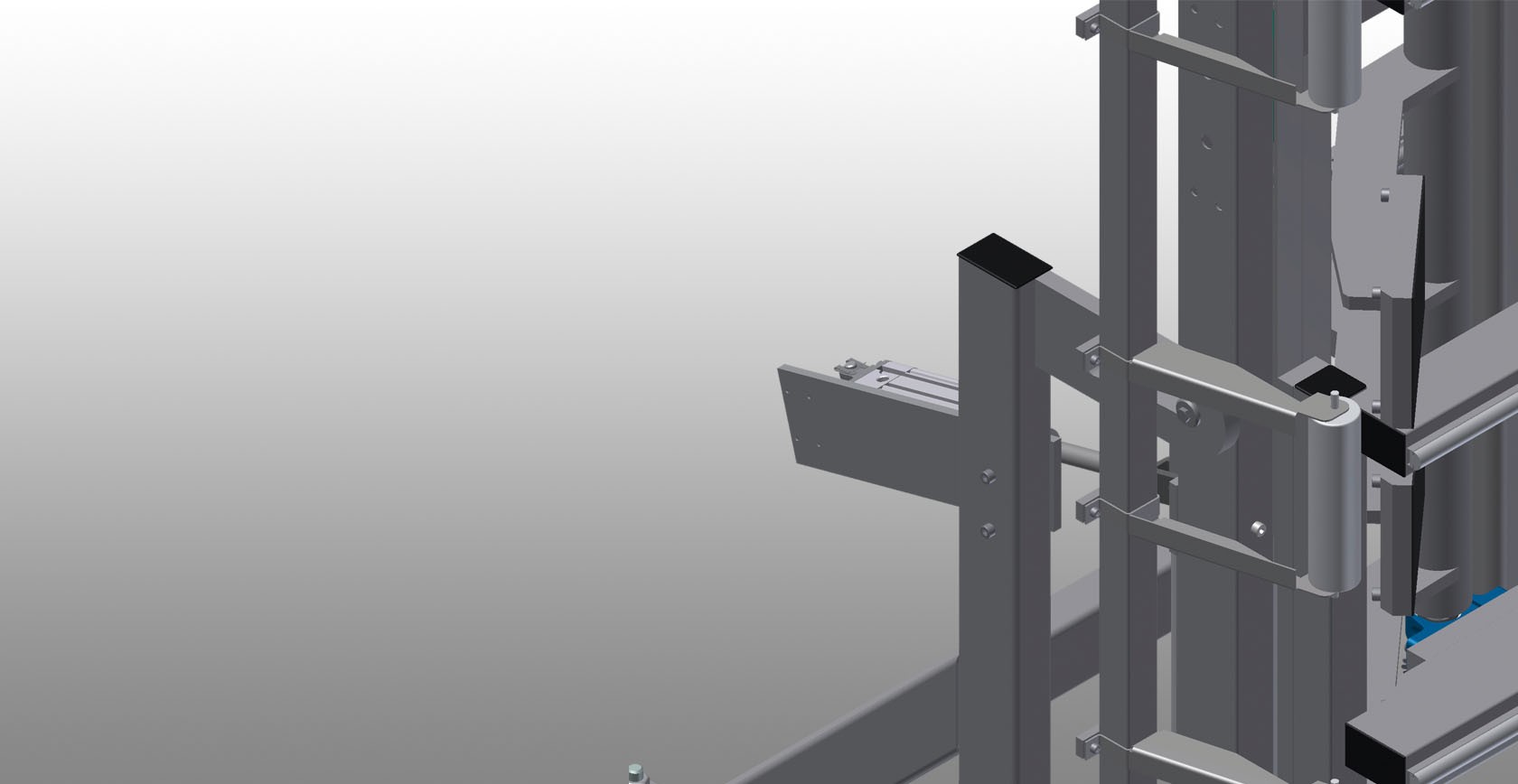

VE 4000 Tilt adjustment of 0° – 8° Elumatec
VE 4000 Lead-in rollers, cmpl., right Elumatec

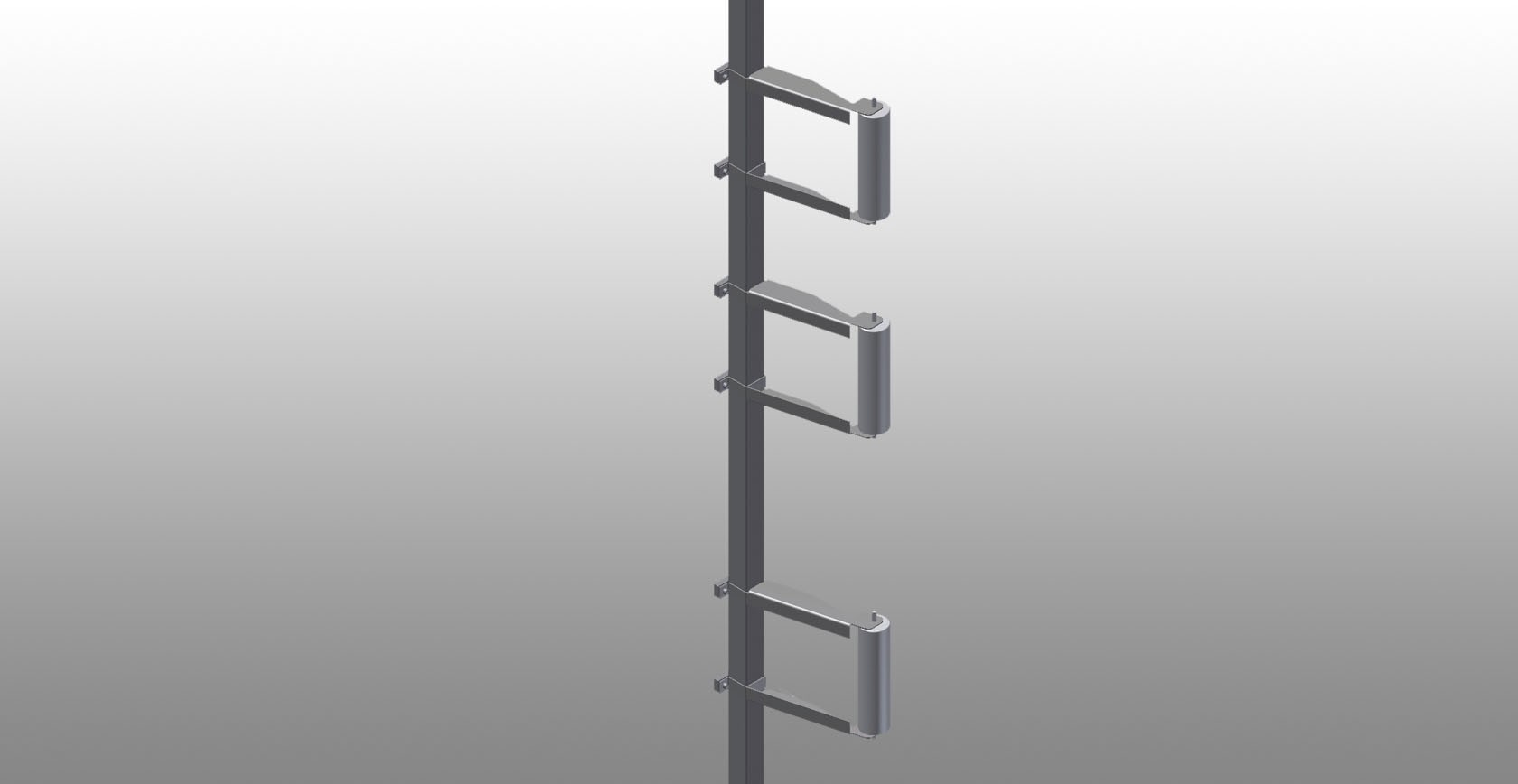

VE 4000 Lead-in rollers, cmpl., left Elumatec
Technical data arrow_drop_down
  • Length 5,440 mm
  • Width 1,180 mm
  • Height 2,600 mm
  • Max. clamping width 4,000 mm
  • Min. clamping width 390 mm
  • Height adjustment 500 mm
  • Clamping bar height 2,300 mm
  • Clamping bar width 200 mm
  • Lower roller conveyor width 200 mm
  • Weight 580 kg
  • Load 200 kg
  • Compressed air supply 7 bar
  • Air consumption 35 l/min.
