RMT 1400 Roller shutter box assembly table

  • Stable steel construction
  • Tilting assembly table with draw-in unit
  • Basic dimensions 1,400 x 2,000 mm, when pulled out 2,000 x 2,800 mm
  • Pull-out work platform consisting of two supporting beams, clad with brush strip
  • Minimum size of work platform 2,000 x 1,000 mm
  • Maximum size of work platform 2,800 x 2,000 mm
  • Two supporting beams form a frame, the height of which can be adjusted pneumatically and continuously from 1,000 to 2,000 mm
  • Lifting and tilting unit with foot valve
  • Fixed roller conveyor with lifting unit, 100 mm
  • Lifting unit for transferring / receiving from the roller conveyor
  • Roller conveyor open at front for drawing in to transfer roller conveyor
  • Mobility unit with flanged rollers and pneumatic fixing brake with operation from side



Optional

  • Table supporting surface with felt profile strip for RMT 1400
  • Auxiliary clamp with hand valve
  • Working height 950 mm
  • Roller conveyor length 1,600 mm
  • Roller diameter 50 mm
  • Roller length 150 mm
  • Tilt of supporting surface 8°
  • Depth of support table 200 mm
  • Length of support table 2,000 mm
  • Weight 450 kg
  • Load 300 kg
  • Length 2,000 mm
  • Width 1,620 mm

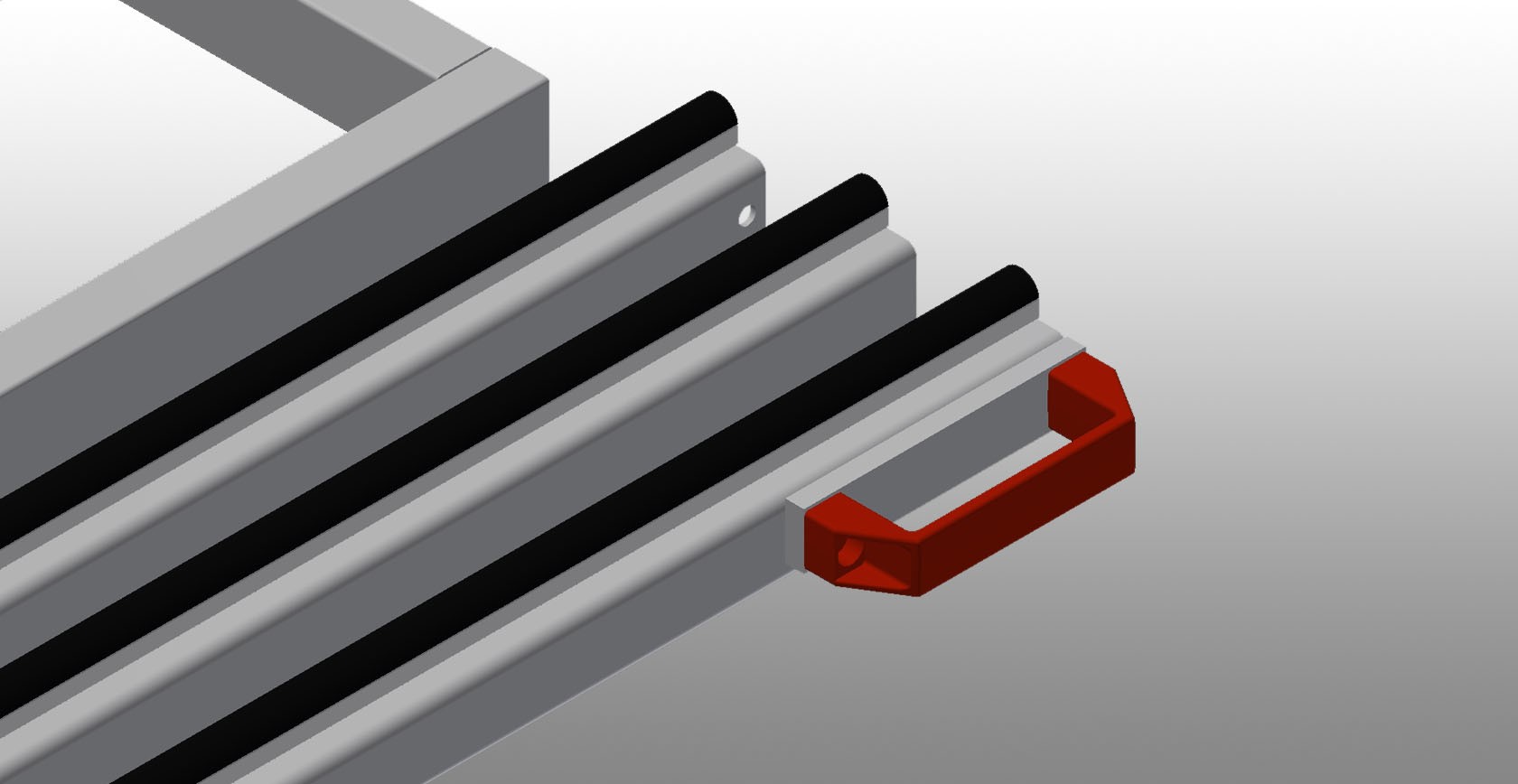

RMT 1400 Roller shutter box assembly table Supporting surface Elumatec
RMT 1400 Roller shutter box assembly table Roller support Elumatec
RMT 1400 Roller shutter box assembly table Foot switch Elumatec
RMT 1400 Roller shutter box assembly table Worktable Elumatec
RMT 1400 Roller shutter box assembly table Mobility unit Elumatec
RMT 1400 Roller shutter box assembly table Felt strip Elumatec
RMT 1400 Roller shutter box assembly table Auxiliary clamp Elumatec

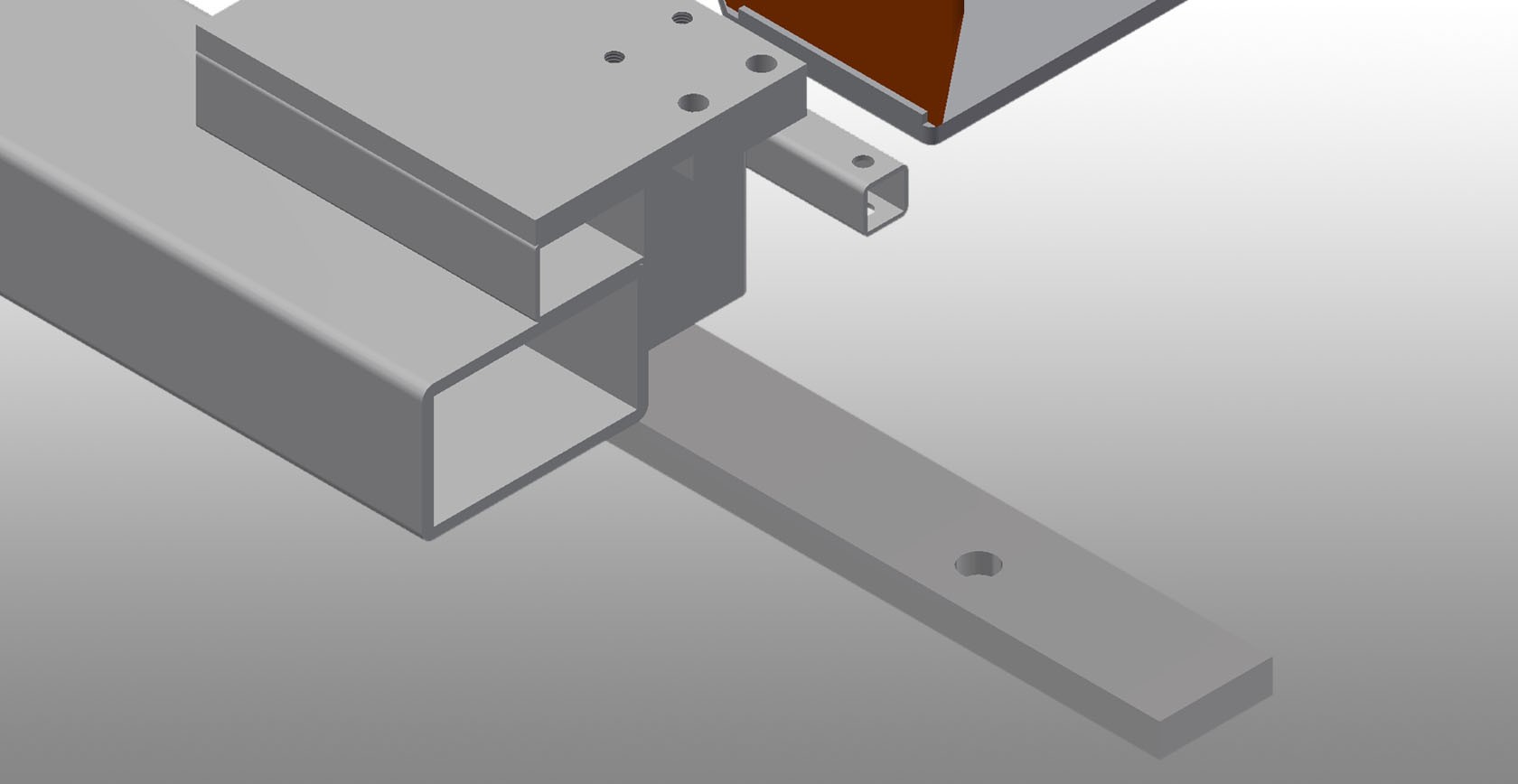

RMT 1400 Roller shutter box assembly table Rail Elumatec

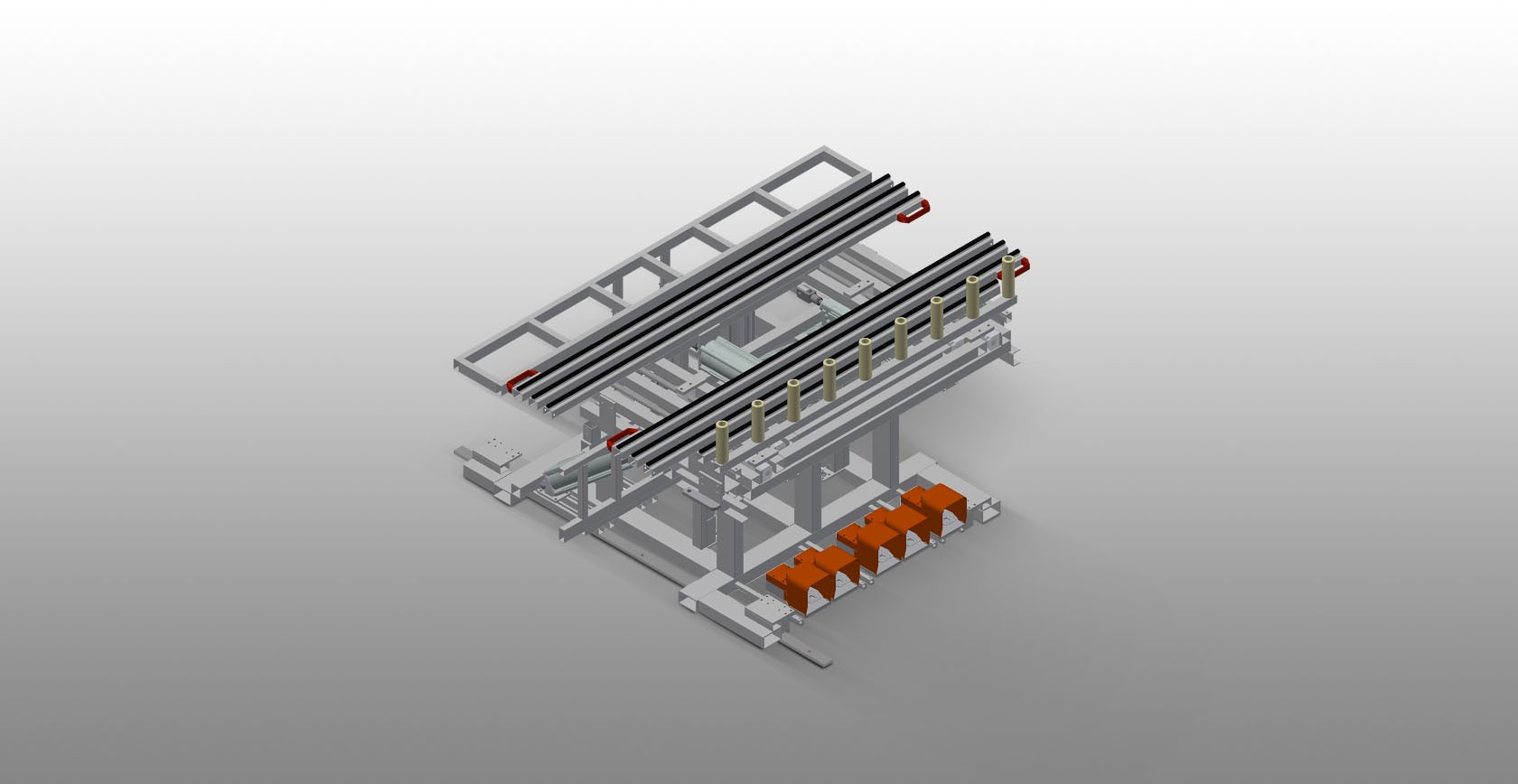

RMT 1400 Roller shutter box assembly table Tilting assembly table with draw-in unit Elumatec
