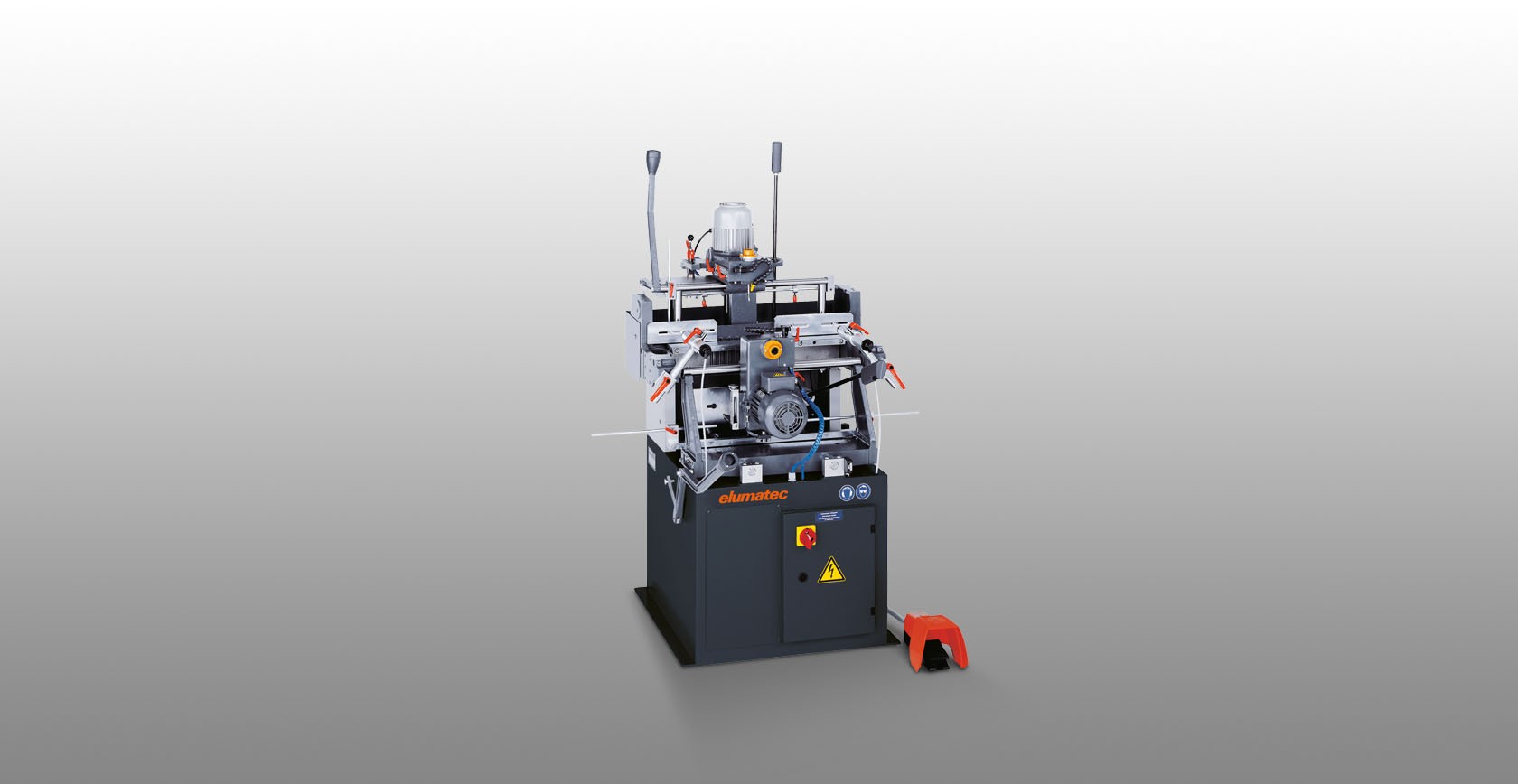

KF 78/23 2-spindle copy router

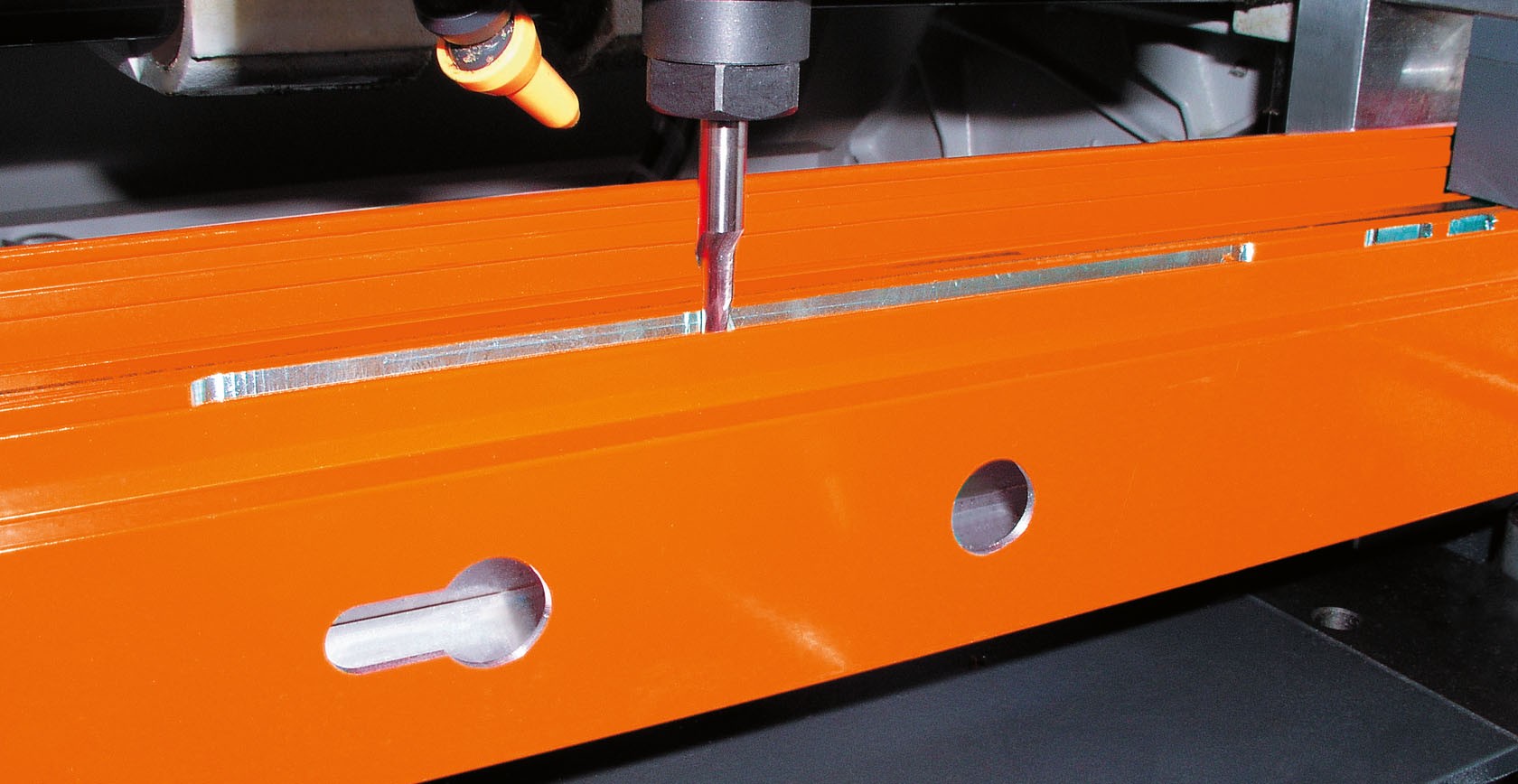

• For routing lock cylinders and handle holes up to a profile thickness of 70 mm

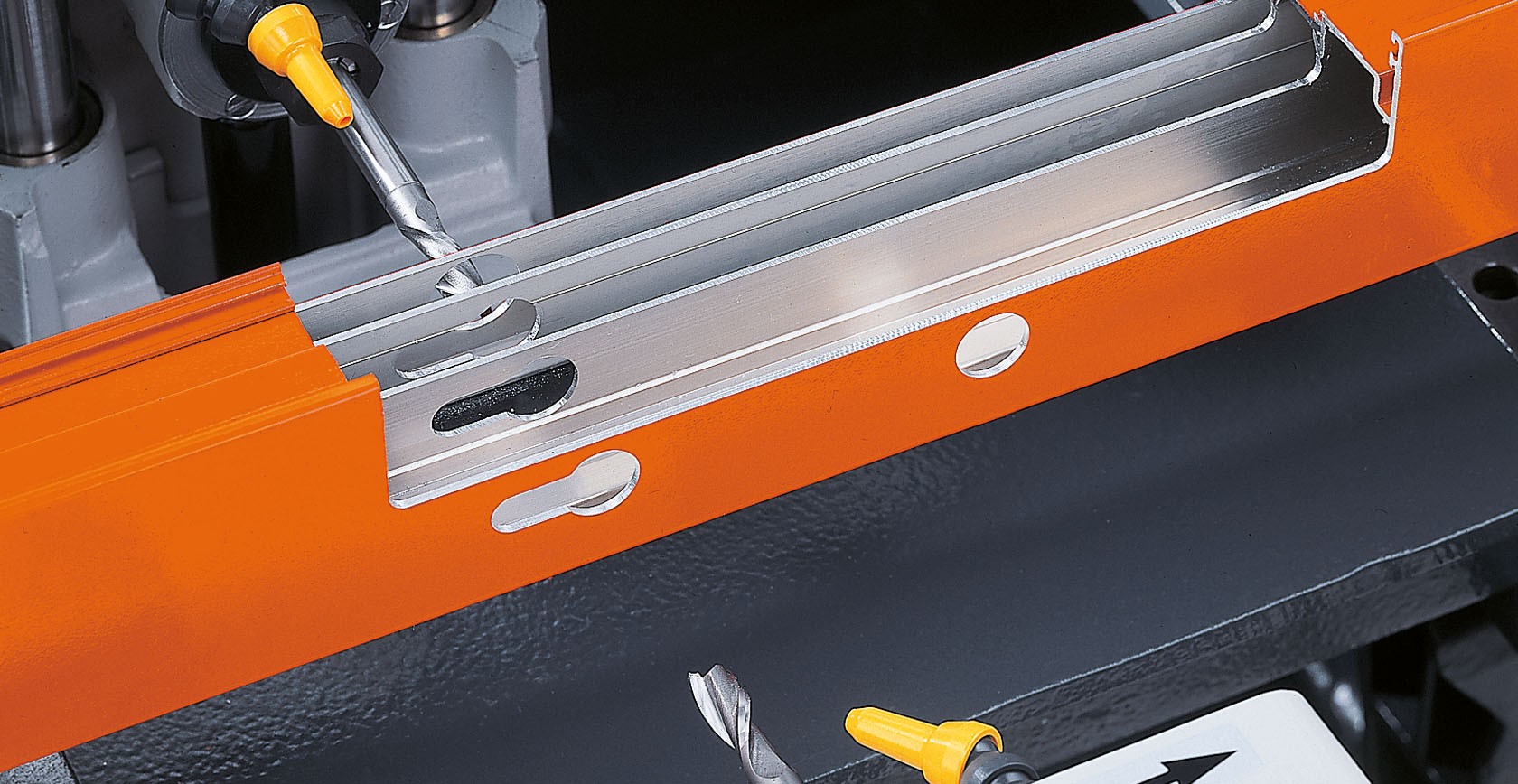

• Routing in two planes (vertical and horizontal) using two copy routing units which operate completely independently
• Copy routing at a ratio of 1:1 using both router spindles
• Routing using stops or copy templates
• Plastic-coated table protects profile surfaces
• Pneumatic clamping, horizontal
• Pulsed coolant system

Options

• Copy templates
• Copy template blanks
• Collets
• Stands and guide bars
• Workpiece supports and stops
• Cutting tools
• High performance cutting fluid

Horizontal cutting range:

• Cutting range using a stop 300 x 100 mm
• Cutting range using a copy template 270 x 70 mm
• Travel 80 mm
•

Vertical cutting range:

• Cutting range using a stop 290 x 100 mm
• Cutting range using a copy template 230 x 70 mm
• Travel 120 mm

• Spindle speed 12,000 rpm
• Clamping range for profiles 150 x 150 mm
• Power supply 230/400 V, 3~, 50 Hz
• Power output 0.74 kW
• Compressed air supply 7 bar
• Air consumption per working cycle 12 l without spraying, 24 l with spraying
• Length 940 mm, depth 1,150 mm, height 1,600 mm, weight 260 kg
