RFR
10/01
Frame rack
home
/
from a to z
/
R
Rack for storage of frame elements
Stable steel construction
Rack for storage of frames
The individual elements are available for direct access
Specially designed for integration in assembly lines
Access is possible from both sides
Floor support equipped with knob profile
Compartment separating bars covered with protective tubing
Supporting surface with rollers for even easier loading and unloading
Request quote
picture_as_pdf
generate pdf
info_outline
ask information

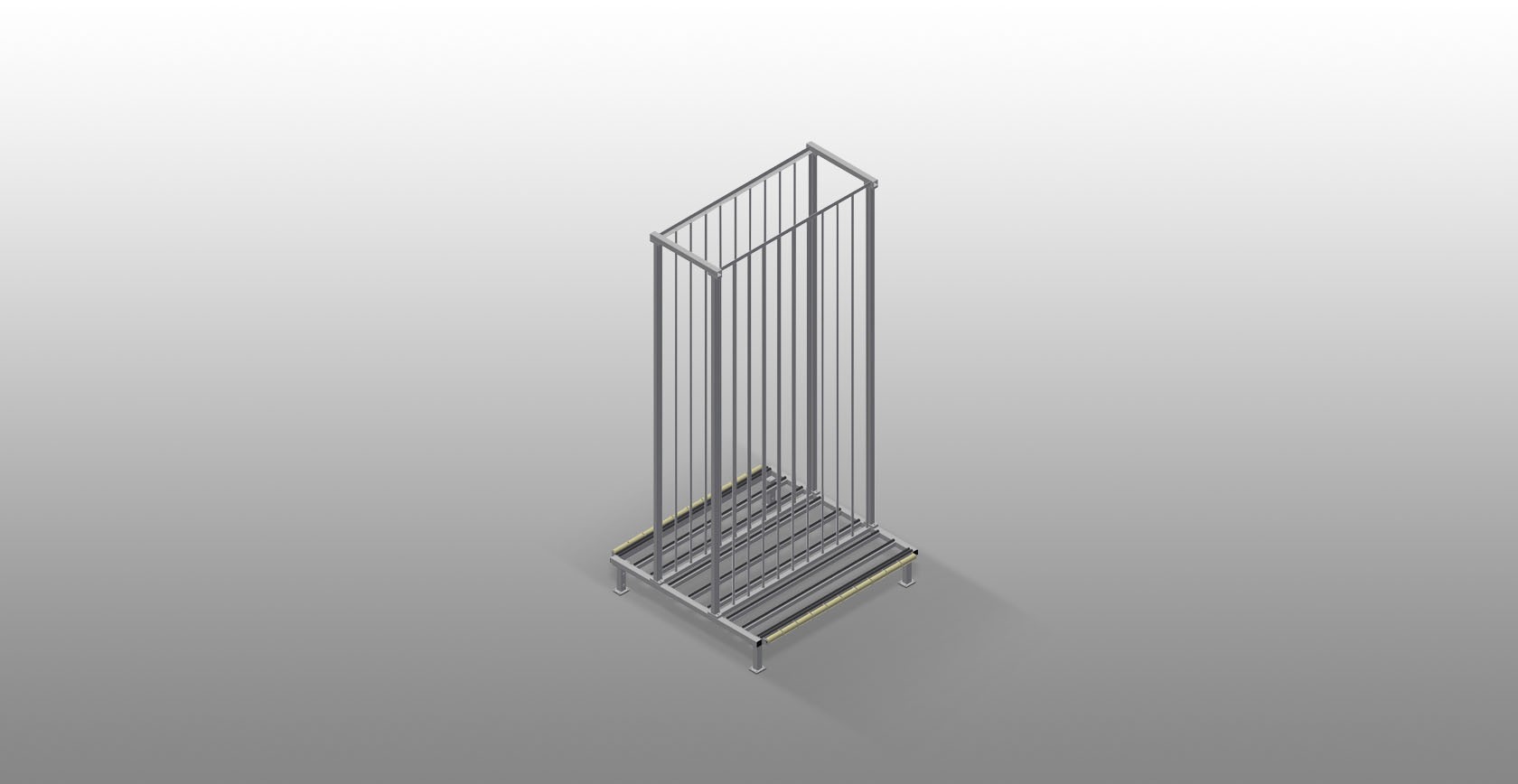

Frame rack RFR 10/01

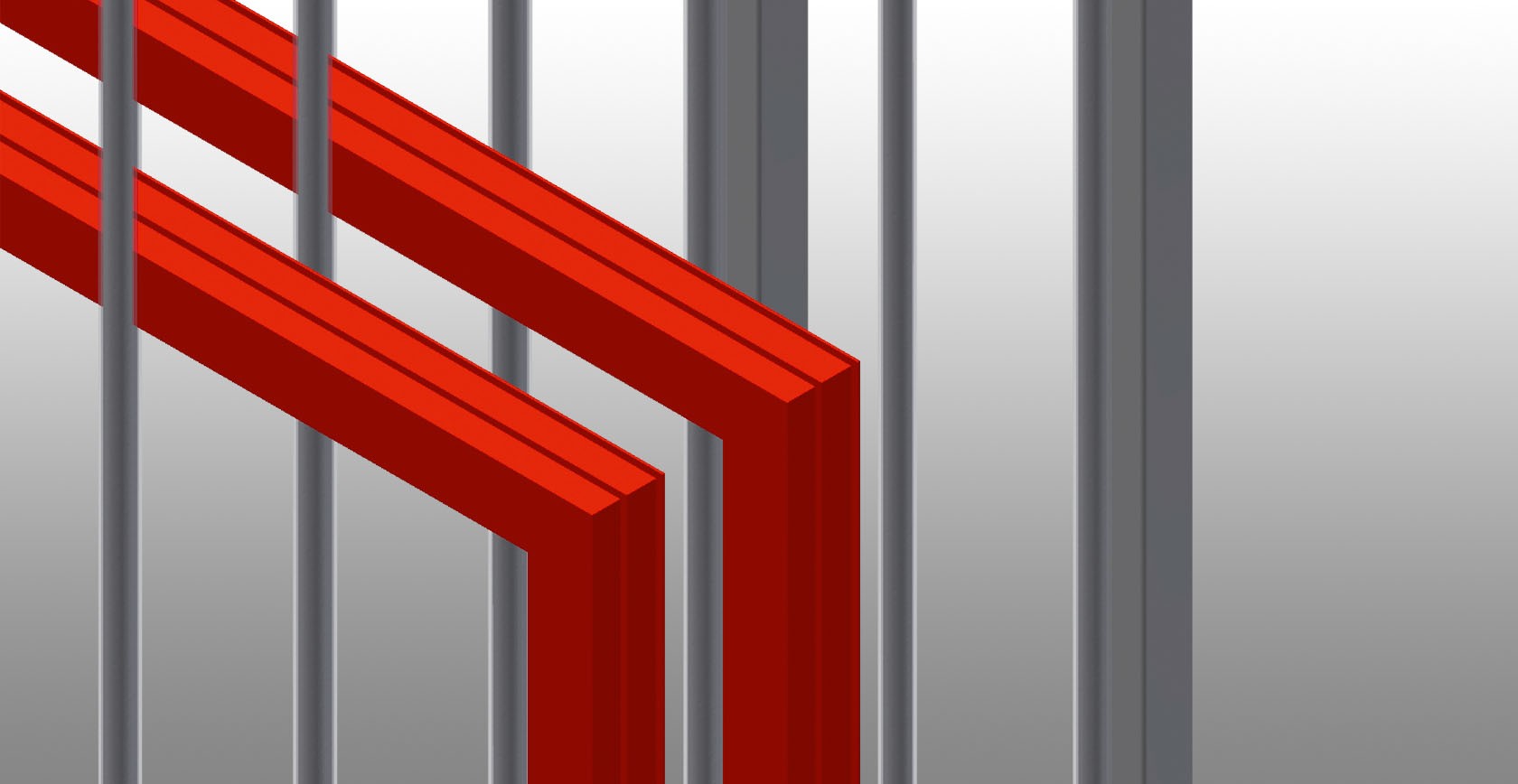

Compartments
All supporting surfaces have a non-slip PVC cladding which protects surfaces from damage during storage
Supports
Lower supporting surfaces with knob profile to protect profiles from damage

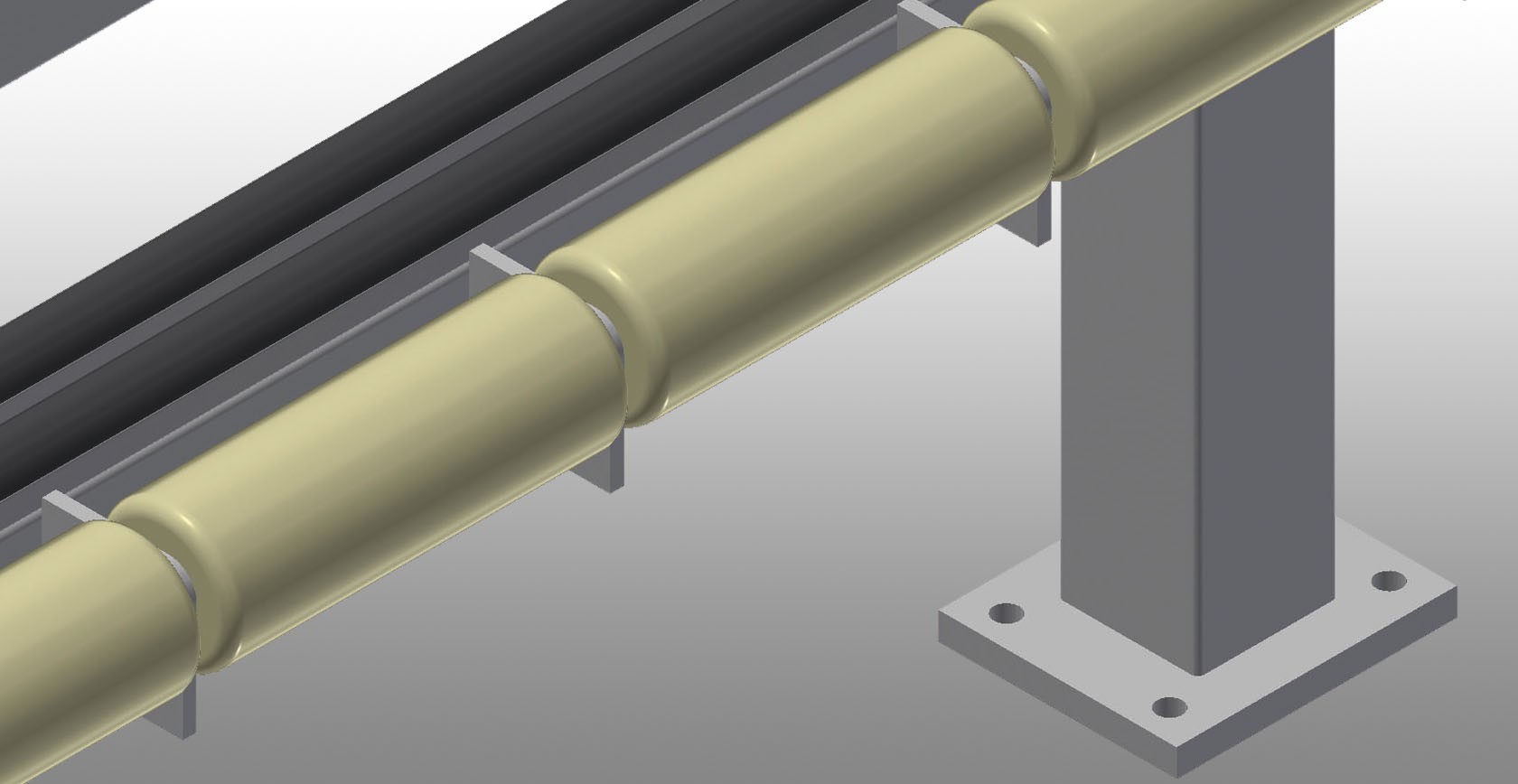

Rollers
Rollers are mounted to every compartment for even easier loading and unloading of heavy or large elements
Technical data
arrow_drop_down
Length 1,650 mm
Width 1,620 mm
Height 3,375 mm
Ten compartments
Compartment width 130 mm
Compartment height 3,010 mm
Weight 250 kg
Load 800 kg
