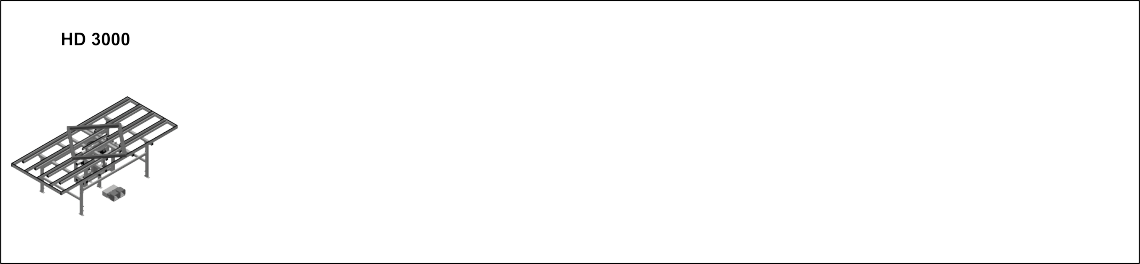

HD 3000 Lift and turn table

home / from a to z / H

Lift and turn table for assembly and gasket insertion

Stable steel construction
Ideal for assembly and gasket insertion
Adjustable height
Inner table height pneumatically adjustable
Inner table can be rotated; with pneumatic fixing brake
Inner table equipped with rubber strips
Outer table with plastic slide bars
4-fold compressed air supply

Option

Outer table also available with rubber profiles on request (for aluminium profiles)

Length 3,000 mm
Weight 240 kg
Width 1,300 mm
Load 200 kg
Adjustable height 850 – 1,000 mm
Compressed air supply 7 bar
Travel of pneum. inner table 150 mm
Air consumption approx. 35 l/min.

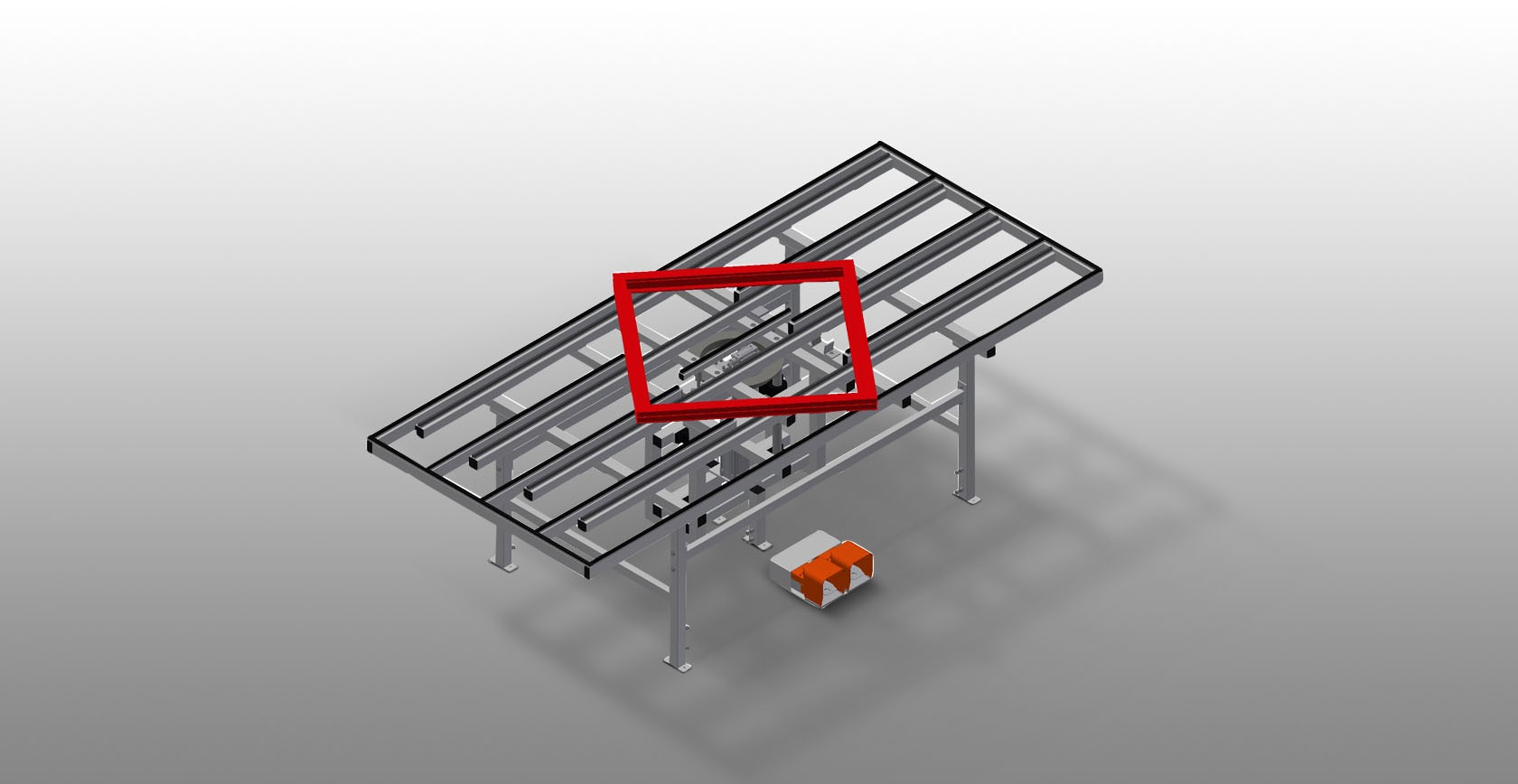

Lift and turn table HD 3000

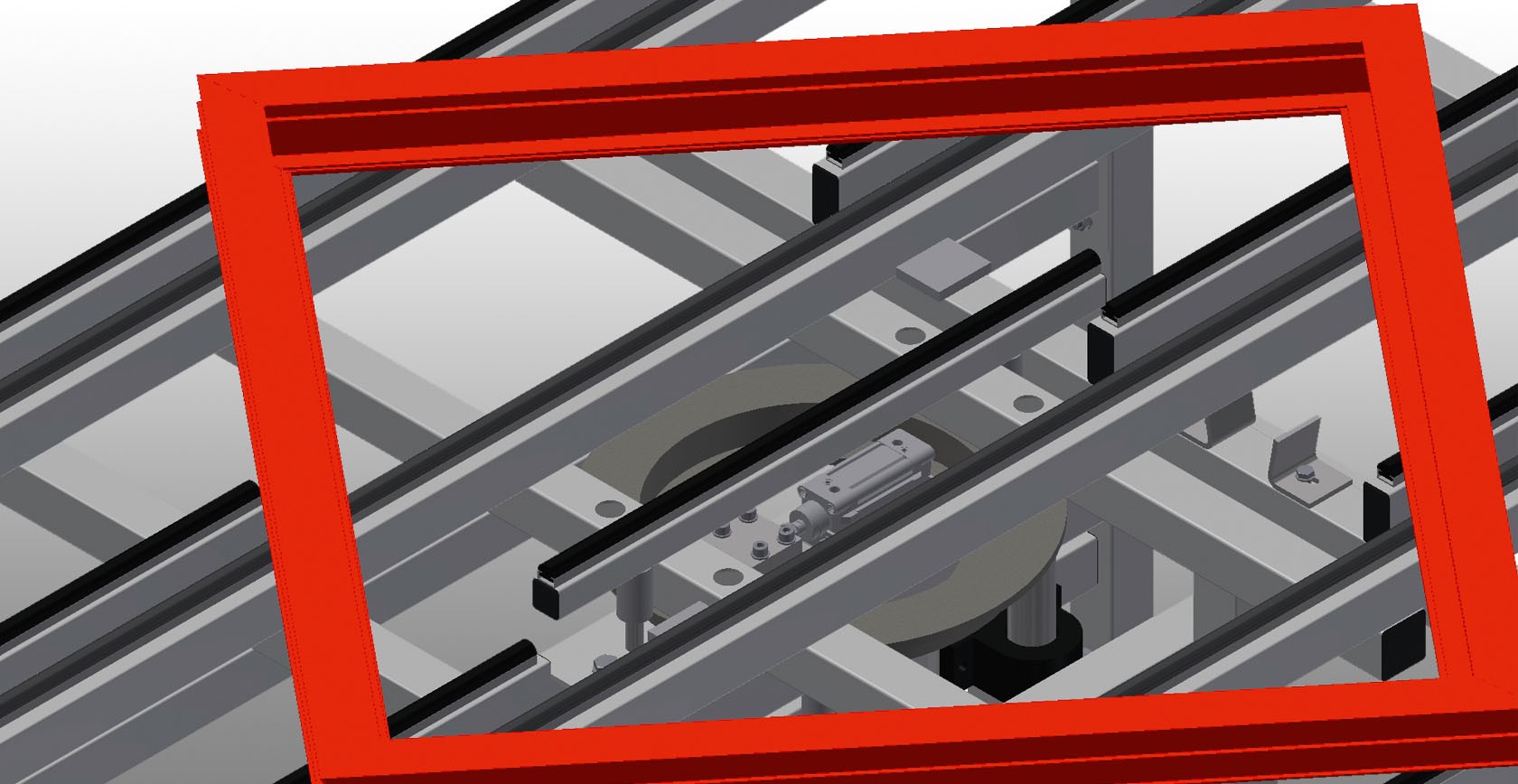

Lift and turn mechanism

Practical for hardware assembly as well as for final assembly and gasket insertion. Inner table height pneumatically adjustable. Inner table can be rotated; with pneumatic fixing brake

Foot switch

Control via foot valve

4-fold compressed air connection

4-fold compressed air connection for connecting compressed-air tools

Outer table with rubber strips

Outer table rubber-knob profile for HD 3000. Outer table also available with rubber strips on request.

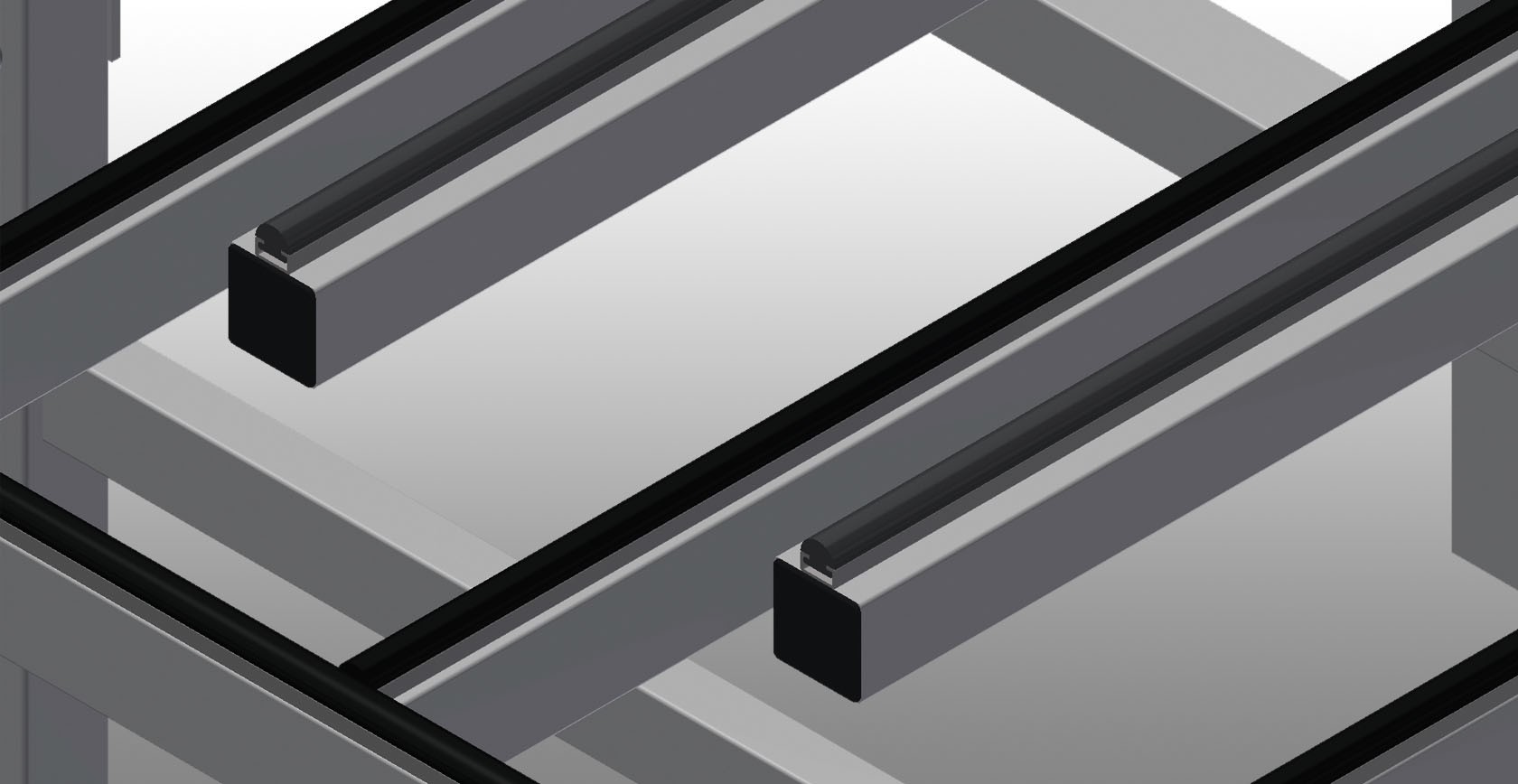

Supporting surfaces

Outer table with plastic slide bars. Inner table equipped with rubber strips.
