VE
3000/60
Inspection and glazing unit
home
/
from a to z
/
V
Inspection and glazing unit for glazing and final inspection
Stable steel construction
Quick and precise assembly of windows, doors and elements
Precision ensured through parallel clamping bar pressing technique
For glazing and functional checks
For connecting frames and sashes
With manually operated pressing bars
Pneumatic centring
Easy operation by means of foot switch
Storage area for tools
4-fold compressed air supply
Option
Height adjustment
Request quote
picture_as_pdf
generate pdf
info_outline
ask information

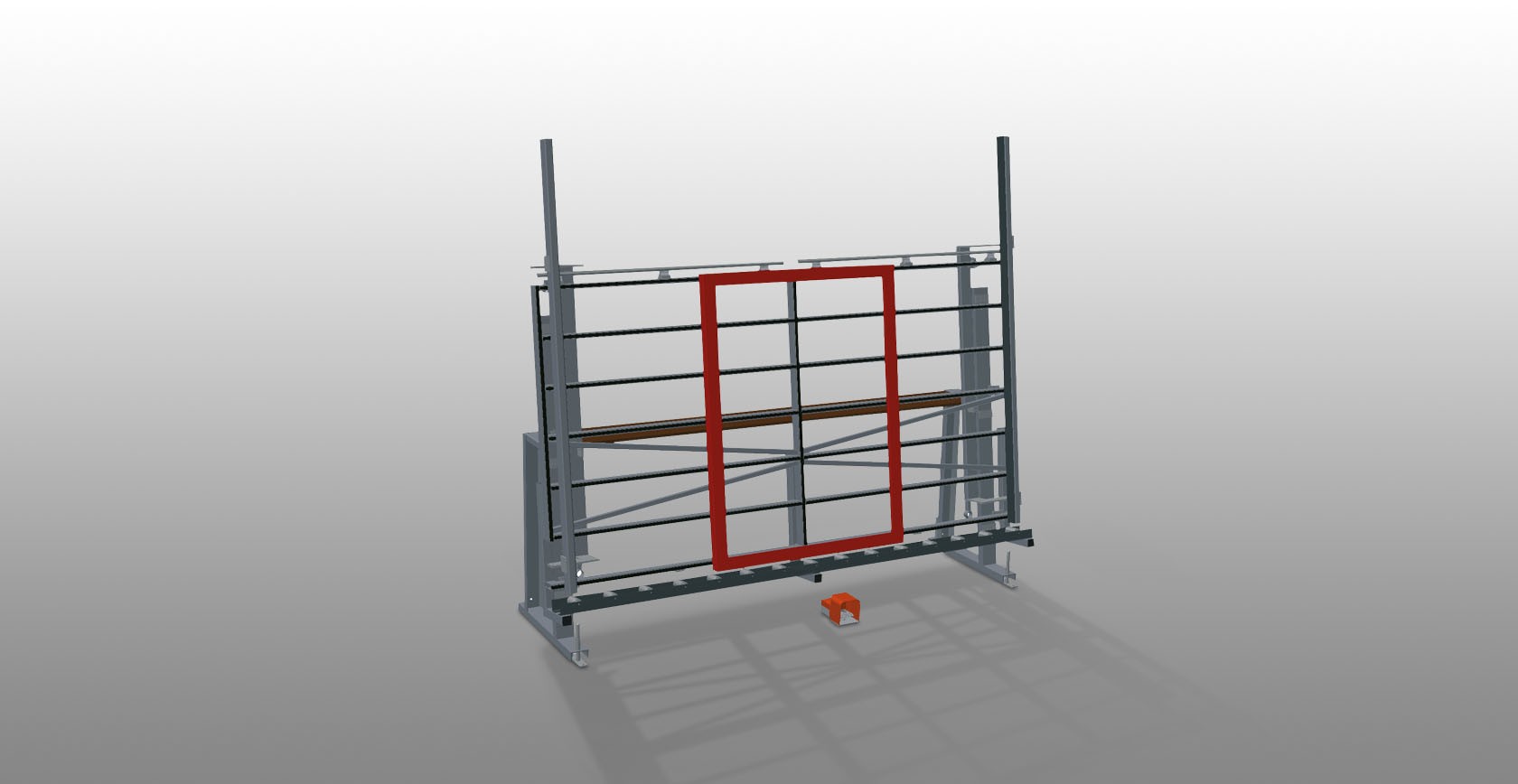

Inspection and glazing unit VE 3000/60

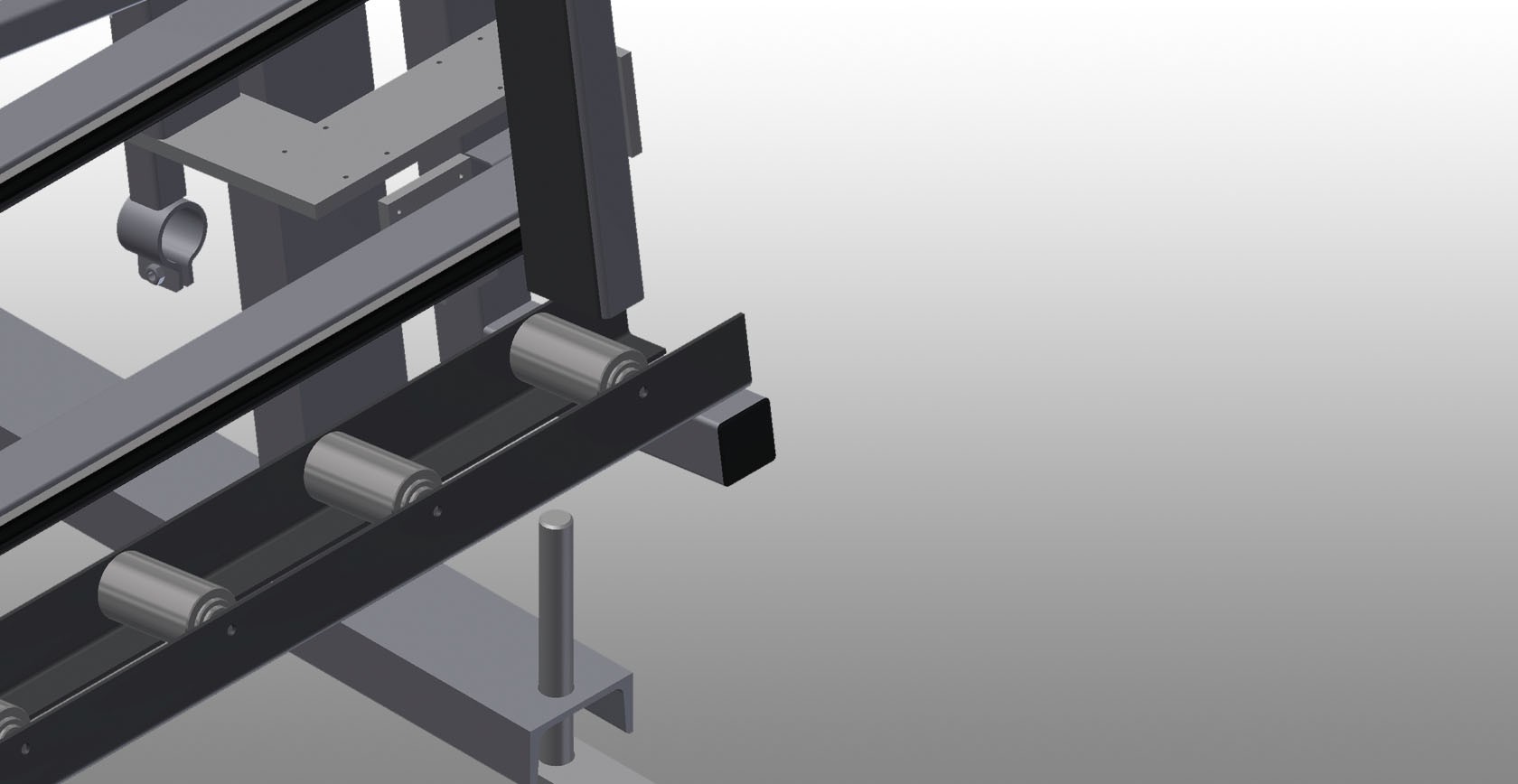

Pressing bar
Pneumatic centring. Precision ensured through parallel clamping bar pressing technique
Back support
Rear back support with plastic slide bars
Supports
Lower roller conveyor with support rollers, L = 120 mm
Foot switch
All functions are controlled via foot valves
4-fold compressed air connection
4-fold compressed air connection for connecting compressed-air tools

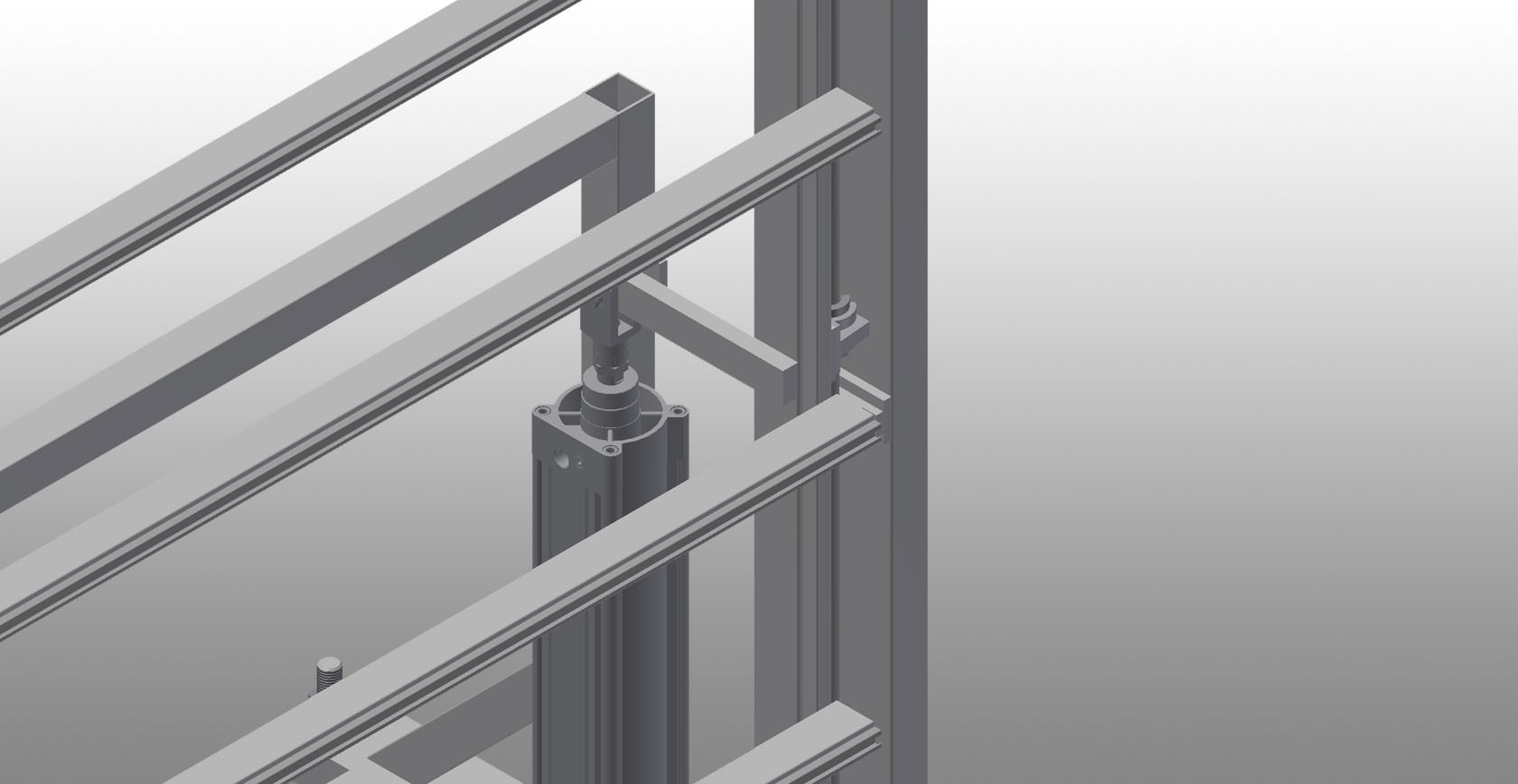

Height adjustment VE 3000/60 (Optional)
Height continuously adjustable, L = 500 mm
Technical data
arrow_drop_down
Length 3,050 mm
Width 900 mm
Height 2,600 mm
Max. clamping width 2,800 mm
Min. clamping width 390 mm
Clamping bar height 2,300 mm
Clamping bar width 100 mm
Lower roller conveyor width 120 mm
Weight 370 kg
Load 200 kg
Compressed air supply 7 bar
Air consumption 35 l/min.
