DG244


Double mitre saw

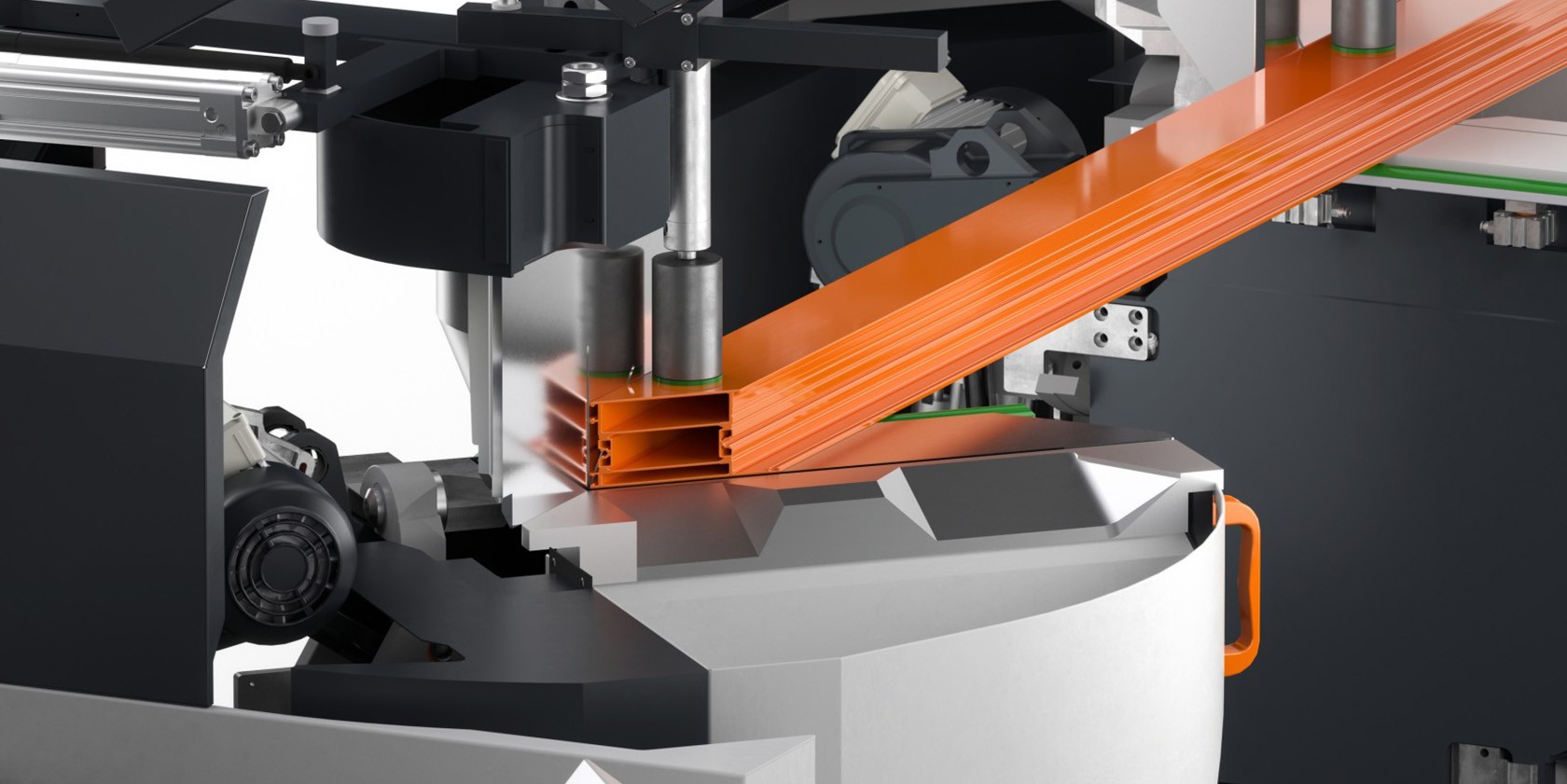

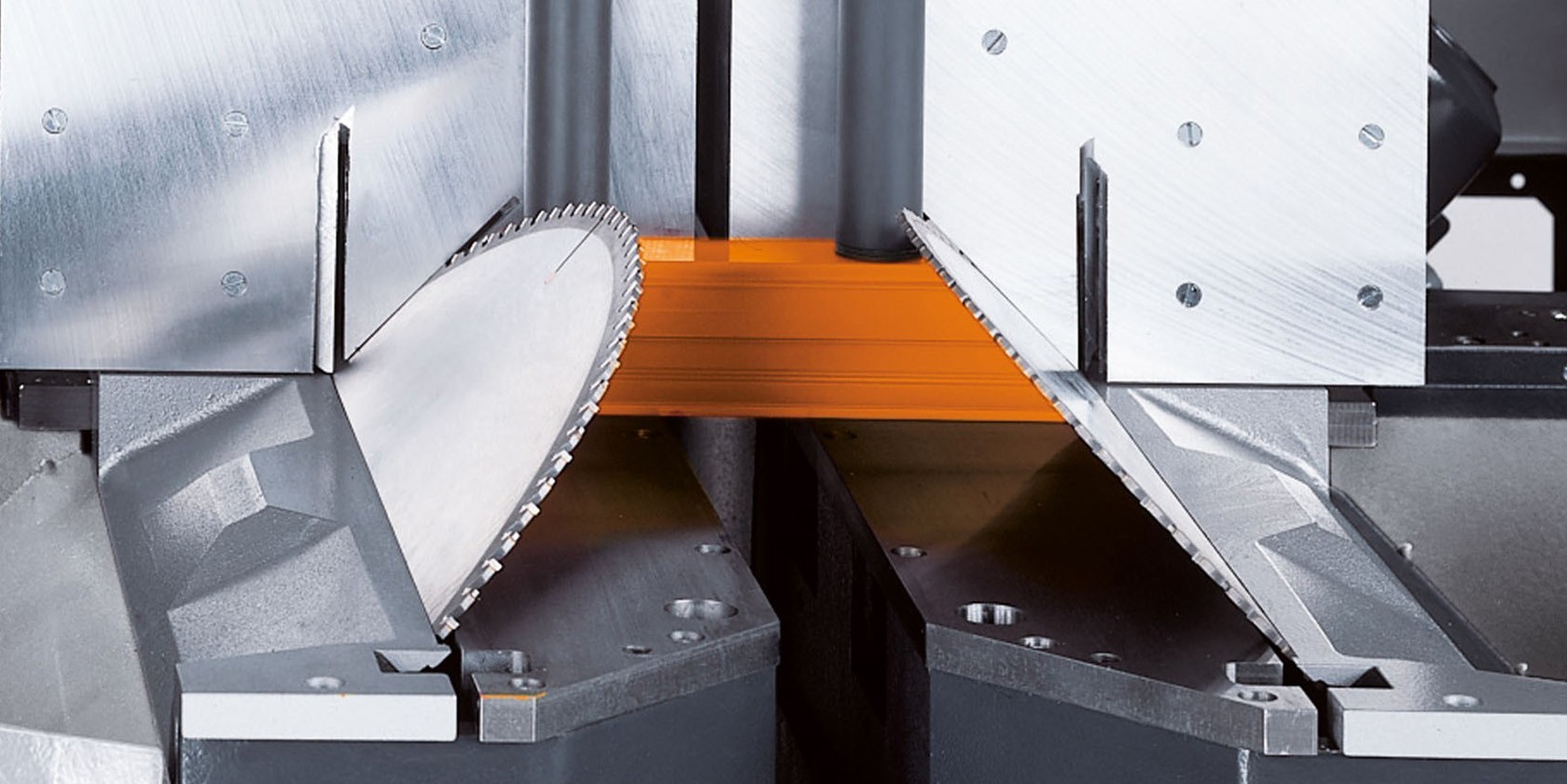

The reliable elumatec principle “Cutting from below”:

  • Provides unhindered access to support table
  • A large saw blade diameter and optimal use of the saw blade offer an ideal cutting capacity for all cutting variations
  • Standard for elumatec: external dimension cuts at all angle positions. This means no length calculations are necessary when cutting profiles of different heights. This is a big advantage when cutting special angles

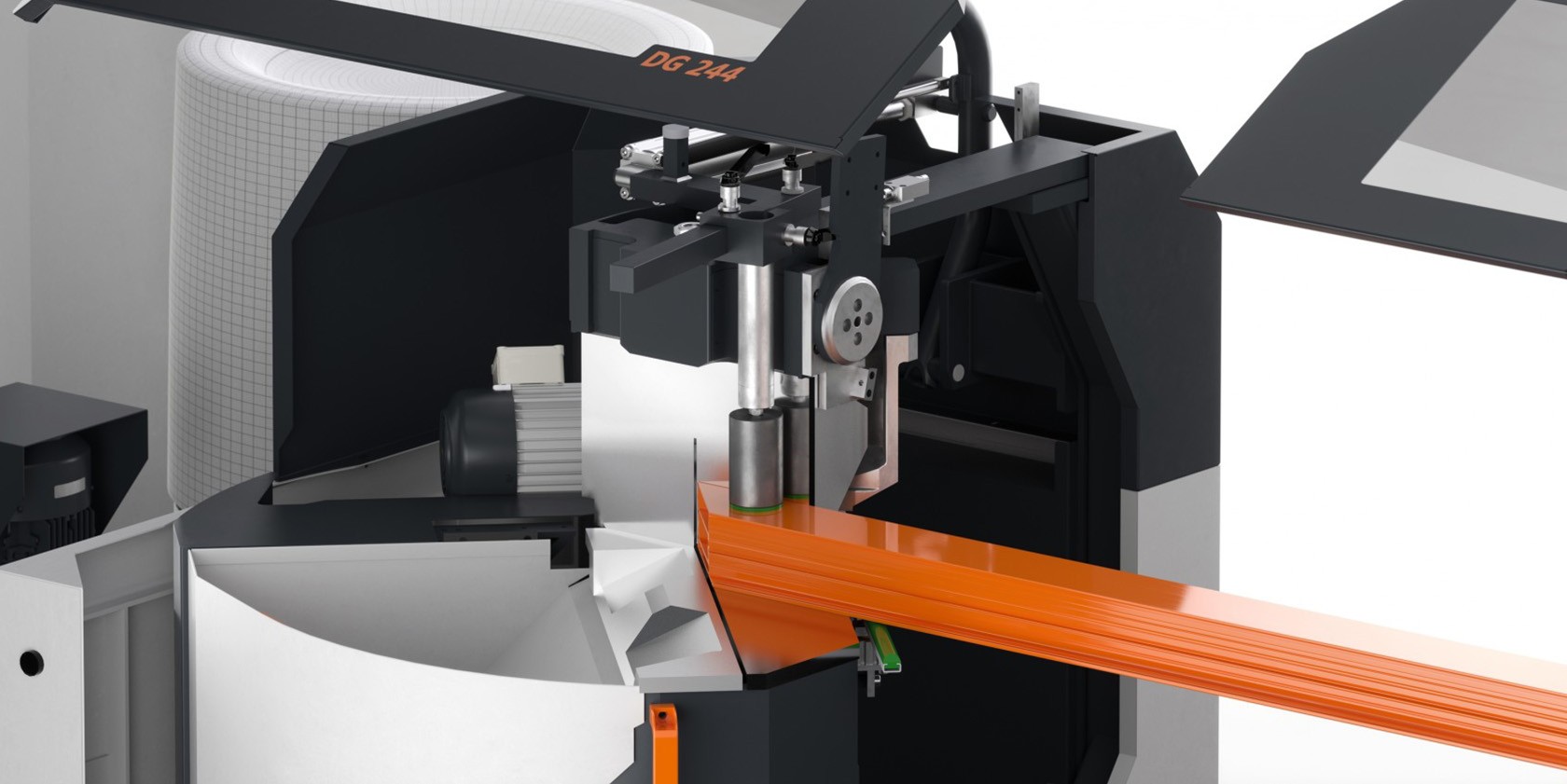

  • The universal pivoting and tilting of both saw units allows cutting of high and wide profiles as well as every type of compound mitre cut. Consequently, many profiles can be cut without support blocks
  • Safety hoods
  • Equipped with saw blades as standard
  • Pulsed coolant system



Cutting length variants

  • 4,500 mm
  • 6,000 mm
  • 7,500 mm



Options

  • DG 244 M machine bed made of steel sheet

 (only for cutting length 4,500 mm and 6,000 mm)

  • Hydro-pneumatic saw feed
  • Saw feed – minimum cutting length 400 mm
  • Profile lifting bars
  • Additional software for E 580: optimisation program, software module for chop and oversize length cuts
  • Mobile or automatically retractable workpiece supports
  • Material clamping units
  • Transom stop and lead-cut stop
  • Label printer
  • Exhaust connectors, extraction system
  • Clock system
  • Roller conveyor
  • Saw blades
  • High performance cutting fluid



Controller variants

  • Positioning control E 390
  • PC control E 580
