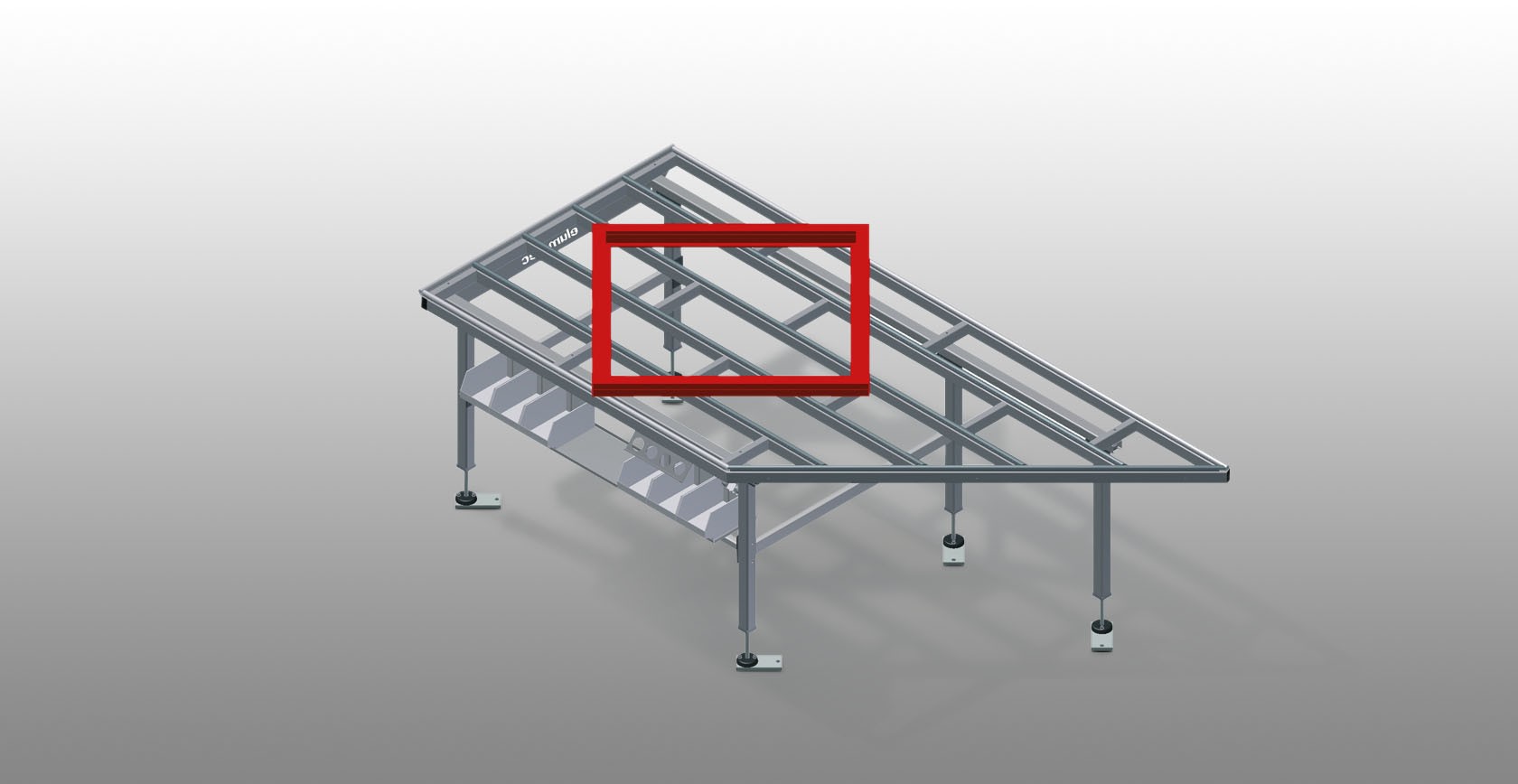

HT 2045 L Horizontal table – Left table, 45°

home / from a to z / H

Horizontal table for all work tasks on frames and sashes

Stable steel construction
Angled work table; can be used as a pass-through in the production line or as a buffer zone
Assembly table for all work tasks on frames and sashes
Table supporting surface with plastic slide bars
Storage tray for setting down tools and accessories
Adjustable height
Simple installation with a modular system design

Options

Also available with brush strips on request
Also available with felt strips on request (for wooden elements)
Also available with rubber strips on request (for aluminium elements)
Roller support
Tool rack
4-fold compressed air supply
Storage area with six plastic trays
Parallelogram support, cmpl., for 90°
Triangular support, cmpl., for in-line use

HORIZONTAL TABLE – RIGHT TABLE, 45° HT 2045 R
See Left table, 45° HT 2045 L

Length 2,850 mm
Height 850 – 1,000 mm
Width 1,300 mm
Weight 100 kg

Request quote

Horizontal table – Left table, 45° HT 2045

Horizontal table – Right table, 45° HT 2045

Storage tray

Storage tray for setting down tools and accessories

Height adjustment

Adjustable height, working height can be set to 850 – 1,000 mm by means of adjustable feet

Brush strip

Supporting surfaces with brush strip

Felt strip

Supporting surfaces with felt profile strip

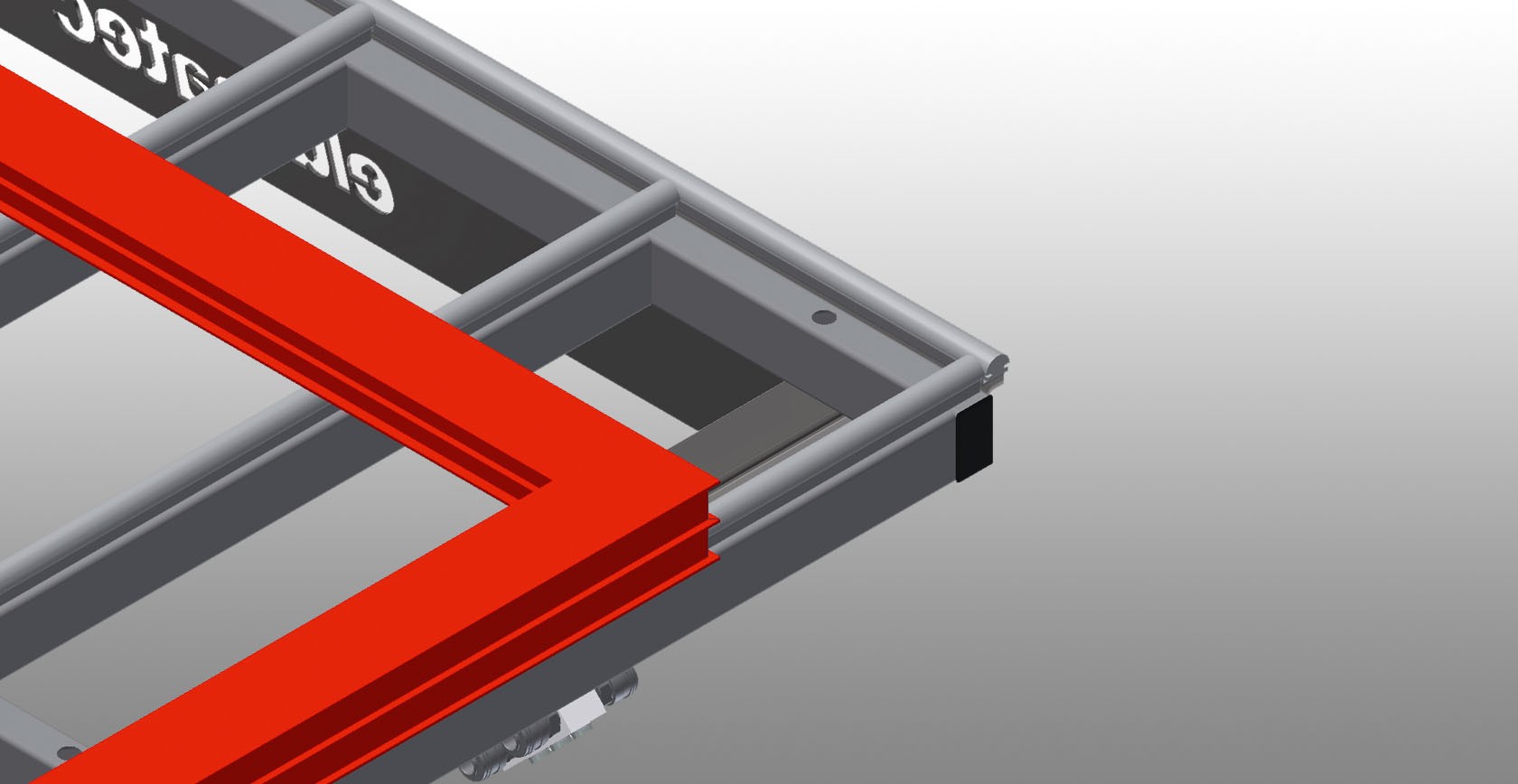

Supporting surfaces

Supporting surfaces with plastic slide bars

Storage area

Storage area with six plastic trays for small accessories, hardware and screws

Tool rack

Tool rack for pneumatic or electrical tools

4-fold compressed air connection

4-fold compressed air connection for connecting compressed-air tools

Roller support, cmpl., for HT 2045/PVC

Hard plastic rollers with polyamide coating, on plain bearings, load per roller: 60 kg, convenient for transport and handling of PVC elements

Roller support, cmpl., for HT 2045/Alum.

Plastic rollers with polyurethane coating, on ball bearings, load per roller: 40 kg, convenient for transport and handling of aluminium elements

Parallelogram support, cmpl., for 90°

Table supporting surface brush strip, Table supporting surface felt profile strip, Table supporting surface rubber-knob profile, Roller support, cmpl. for PVC, Rubber roller support cmpl. for Alum.

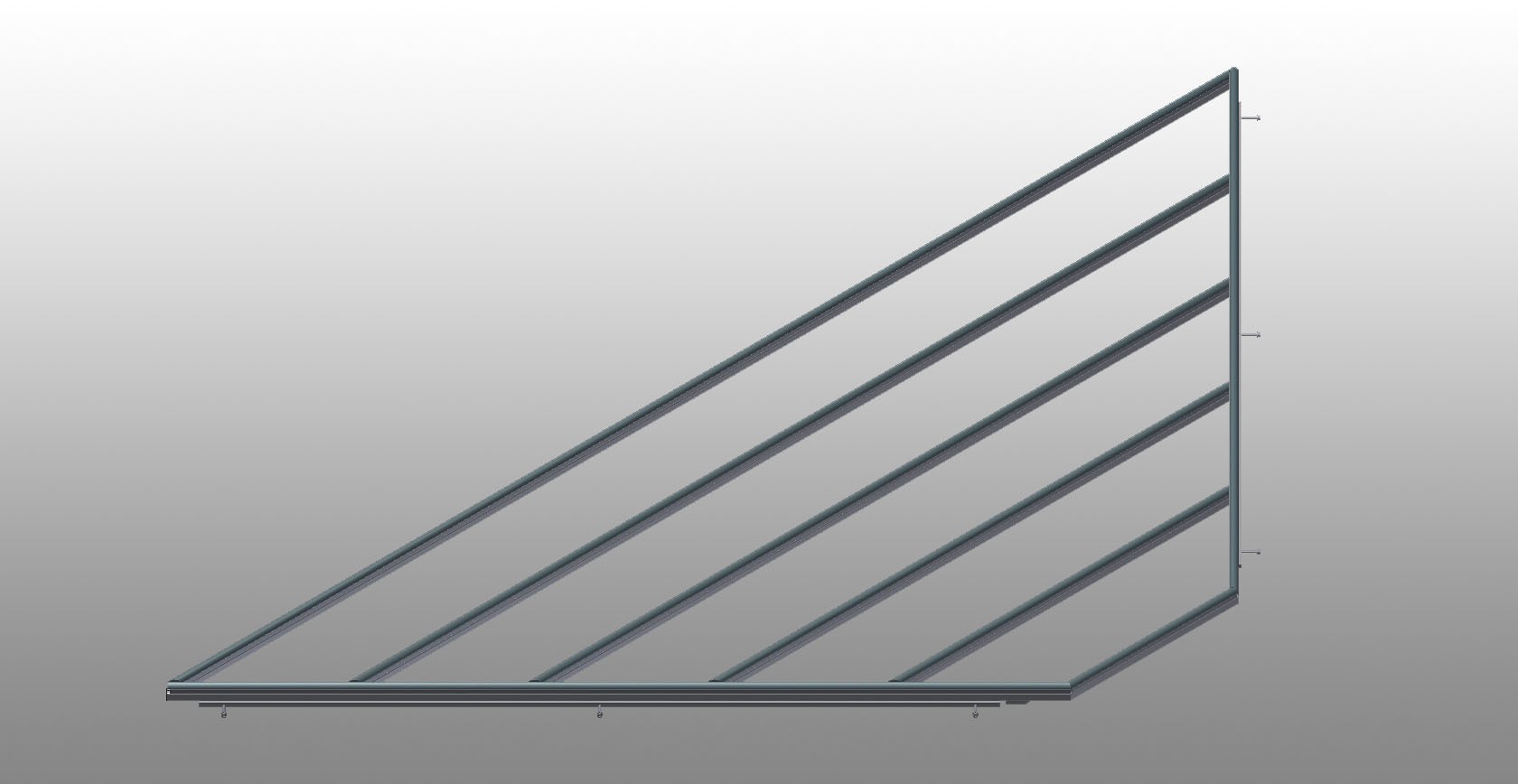

Triangle support, cmpl., for in-line use

Supporting surface brush strip, Supporting surface felt profilestrip, Supporting surface rubber-knob profile, Roller support, cmpl. for PVC, Rubber roller support cmpl. for Alum.
