VR
2000 F
Vertical roller conveyor
home
/
from a to z
/
V

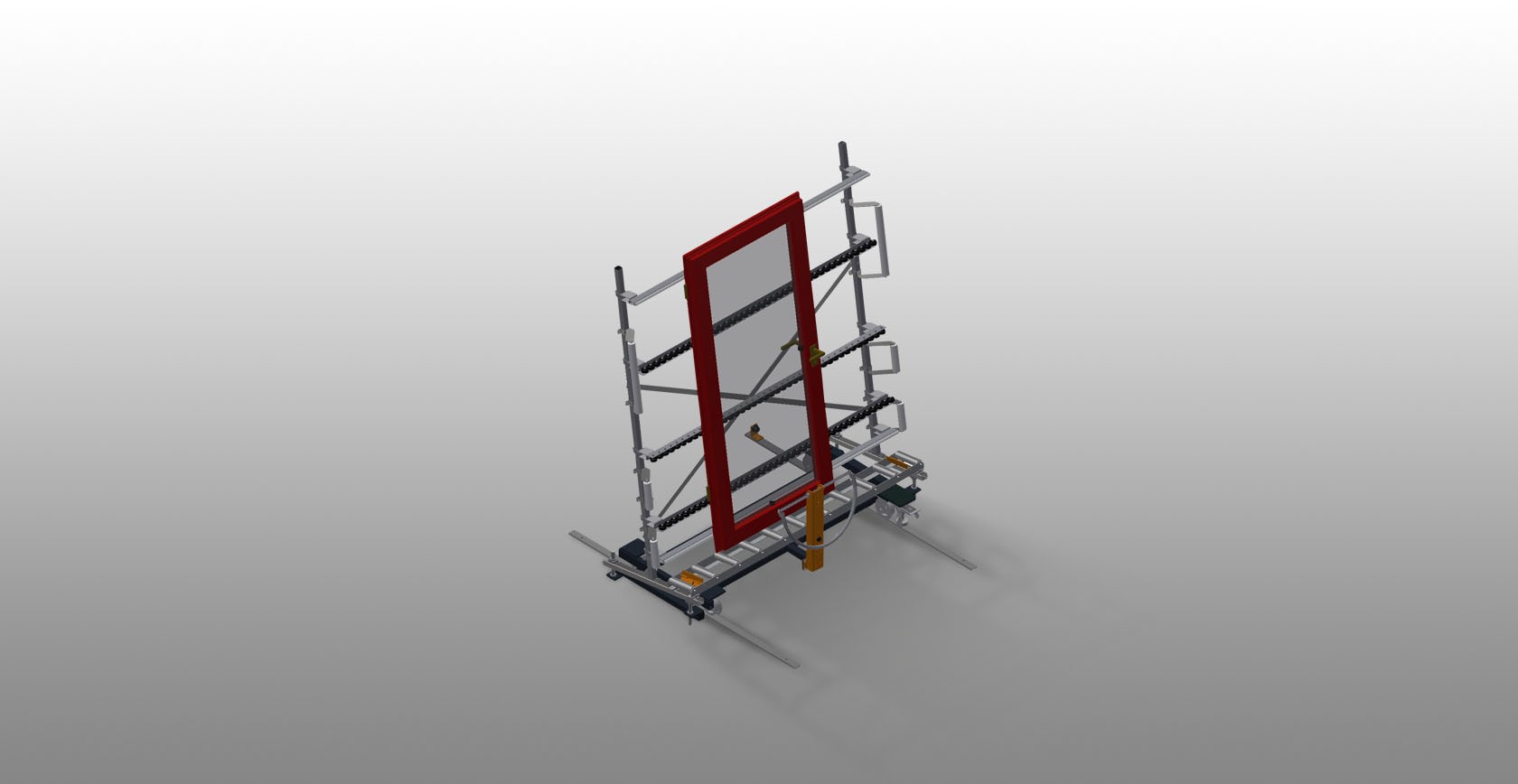

Vertical roller conveyor for transportation of window elements
Stable steel construction
Vertical roller conveyor for smooth transportation to the next work task as well as for transportation to storage and sorting of the finished windows
Easy handling of window elements
Every roller conveyor unit is 2,000 mm long
Plastic slide bars top and bottom
Three mini-roller conveyors with rubber rollers, diameter 50 mm
Basic unit with end rack
Vertical roller conveyor on rails with flanged rollers, mobile
Options
Rail, 2.0 m, left and right
End stop for VR
Lead-in roller for VR
Profile protectors for support rollers (Alum.)
Request quote
picture_as_pdf
generate pdf
info_outline
ask information
Vertical roller conveyor VR 2000 F
Support rollers
Rollers throughout, support roller width 200 mm. Roller conveyor units, 2,000, 3,000 and 4,000 mm long
Mini-roller conveyor
Three mini-roller conveyors with rubber rollers, diameter 50 mm

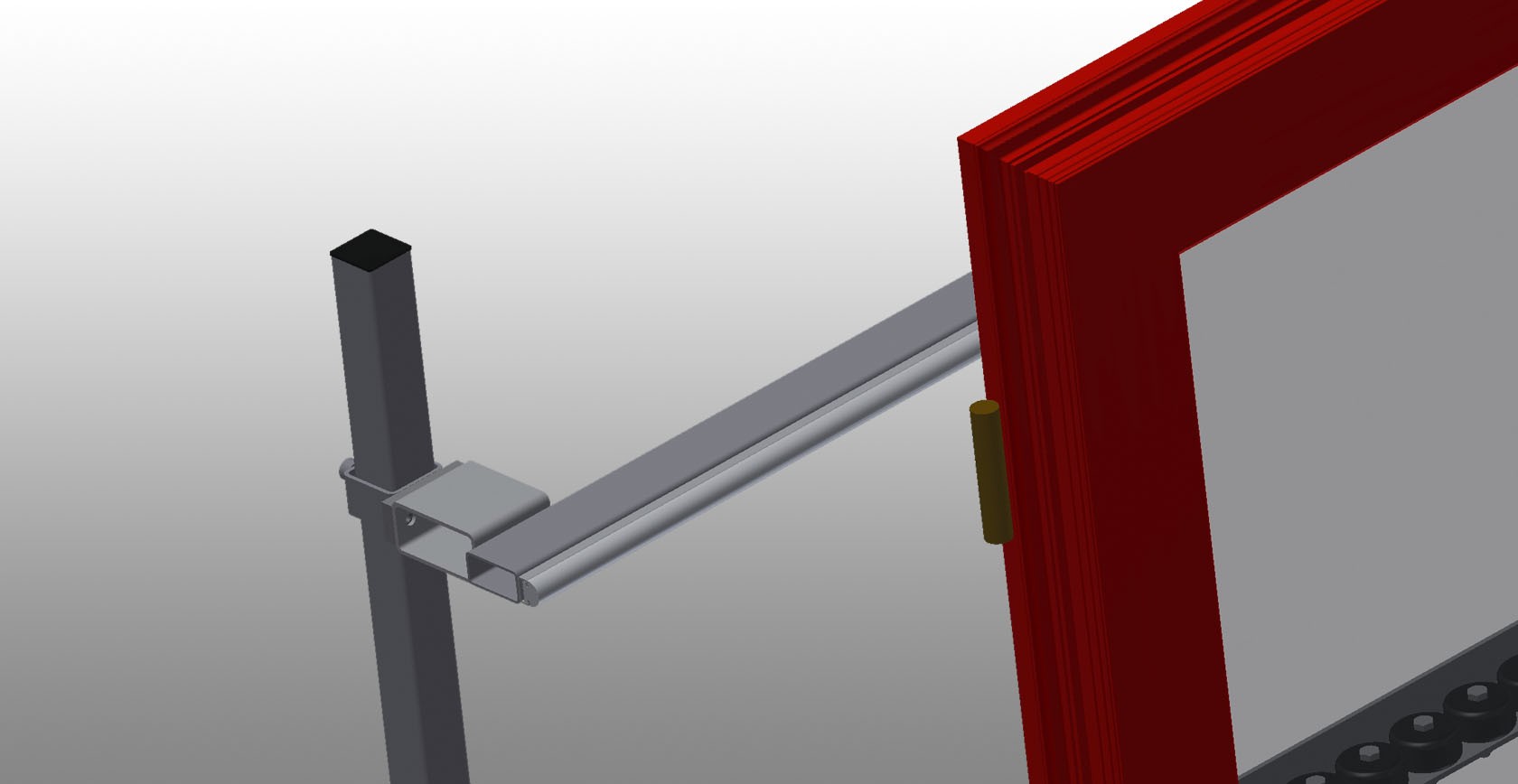

Back support
Rear back support with plastic slide bars, top and bottom
Grip
Grip makes pushing the roller conveyor on the rails easy

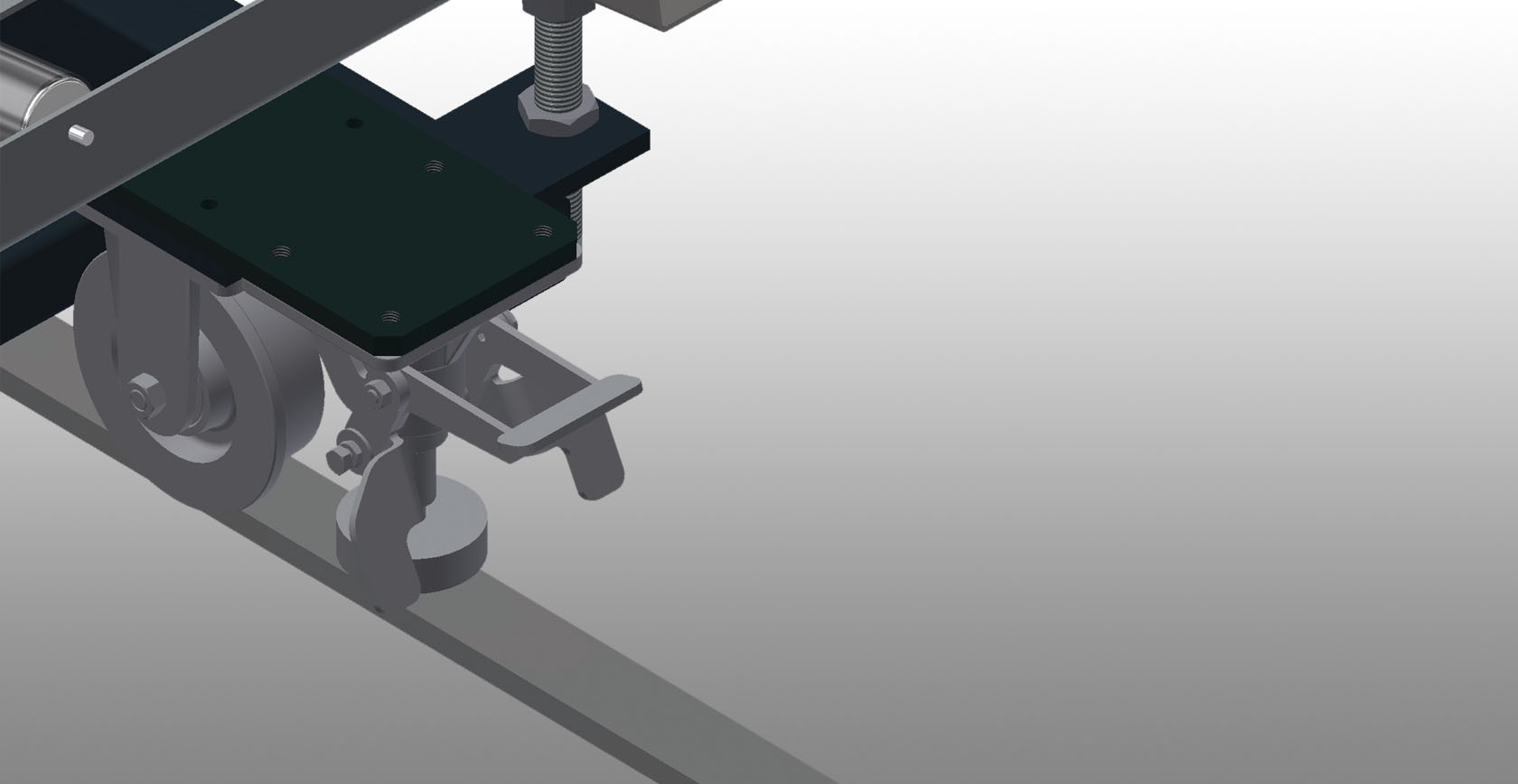

Mobility unit
Mobility unit with flanged rollers and fixing brake
End stop (Optional)
End stop Rb = 200 mm for VR
Lead-in rollers (Optional)
Protective rollers for beginning or end of roller conveyor L = 500 mm (pair) L = 250 mm (pair)
Profile protectors (Optional)
Profile protectors for support rollers 200 mm (Alum./11 x, Alum./16 x and Alum./21 x). Support rollers covered with protective tubing
Additional mini-roller conveyors (Optional)
Additional mini-roller conveyors with rubber rollers top/bottom
Rails (Optional)
Rails, 2.0 m, left and right
Technical data
arrow_drop_down
Length 2,000 mm
Width 1,000 mm
Height 2,490 mm
Support roller width 200 mm
Unit height 2,100 mm
Load 200 kg
Weight 100 kg
