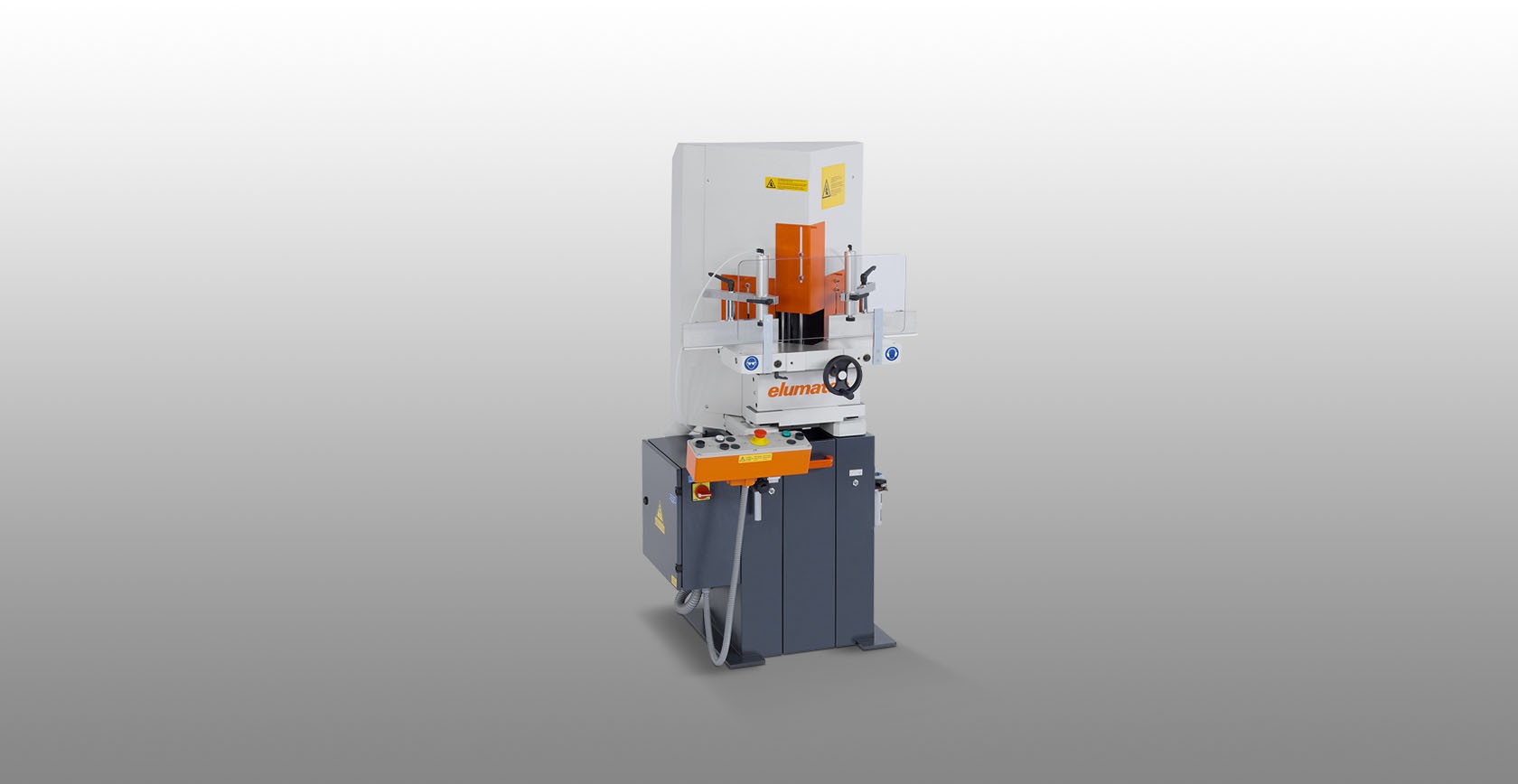

KS 101/30 Vee-notch and notching saw
home
/
from a to z
/
K
Description
Technical data

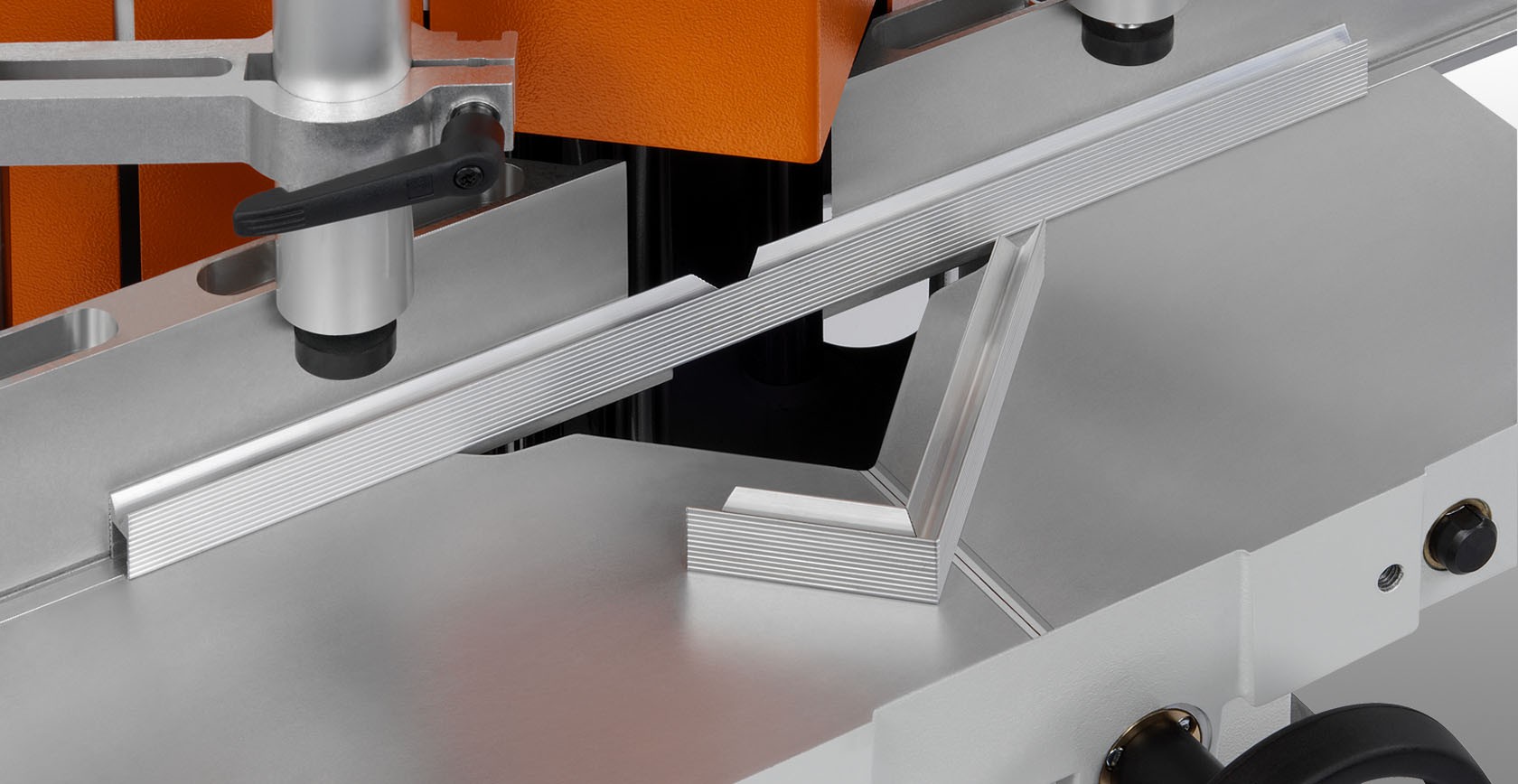

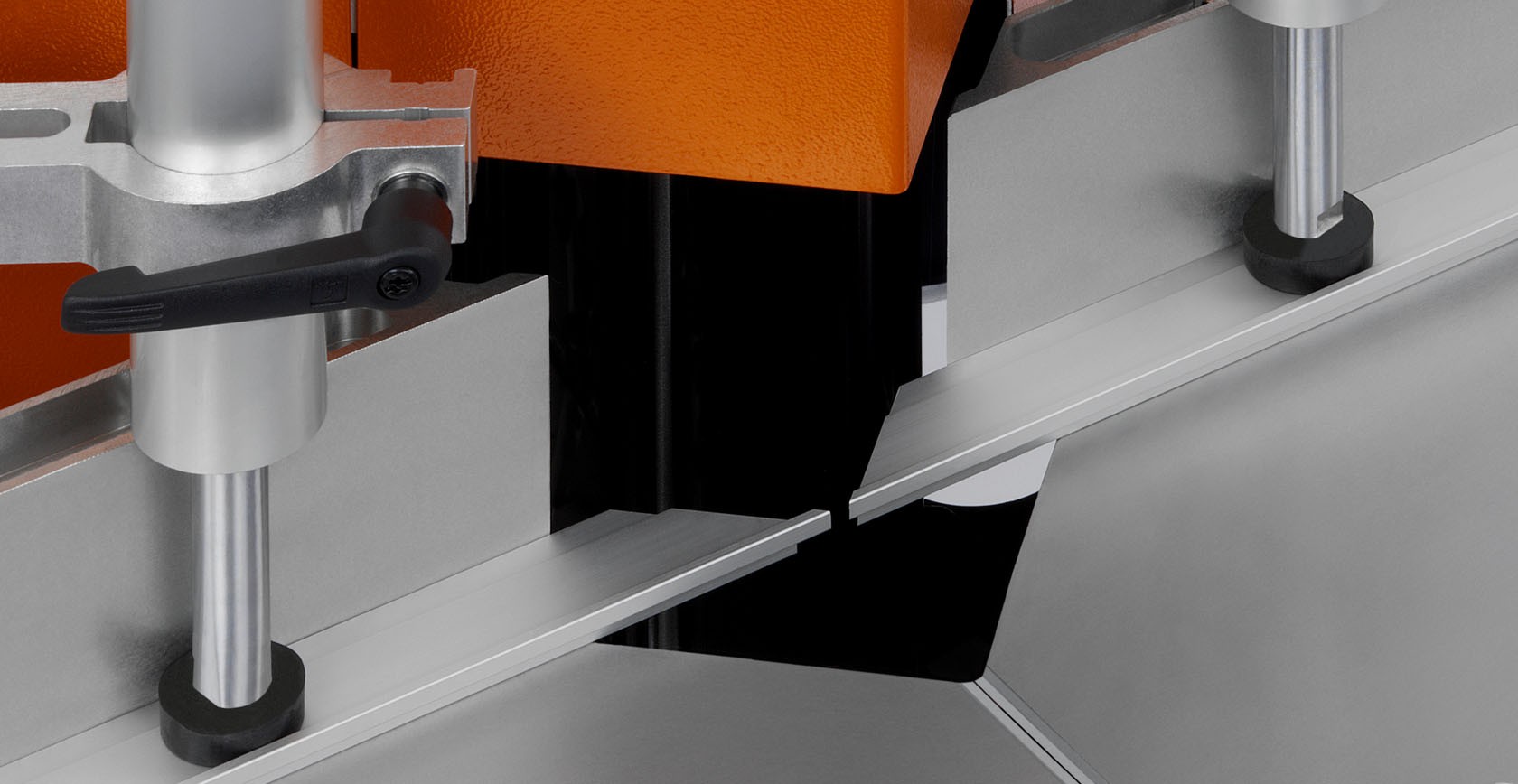

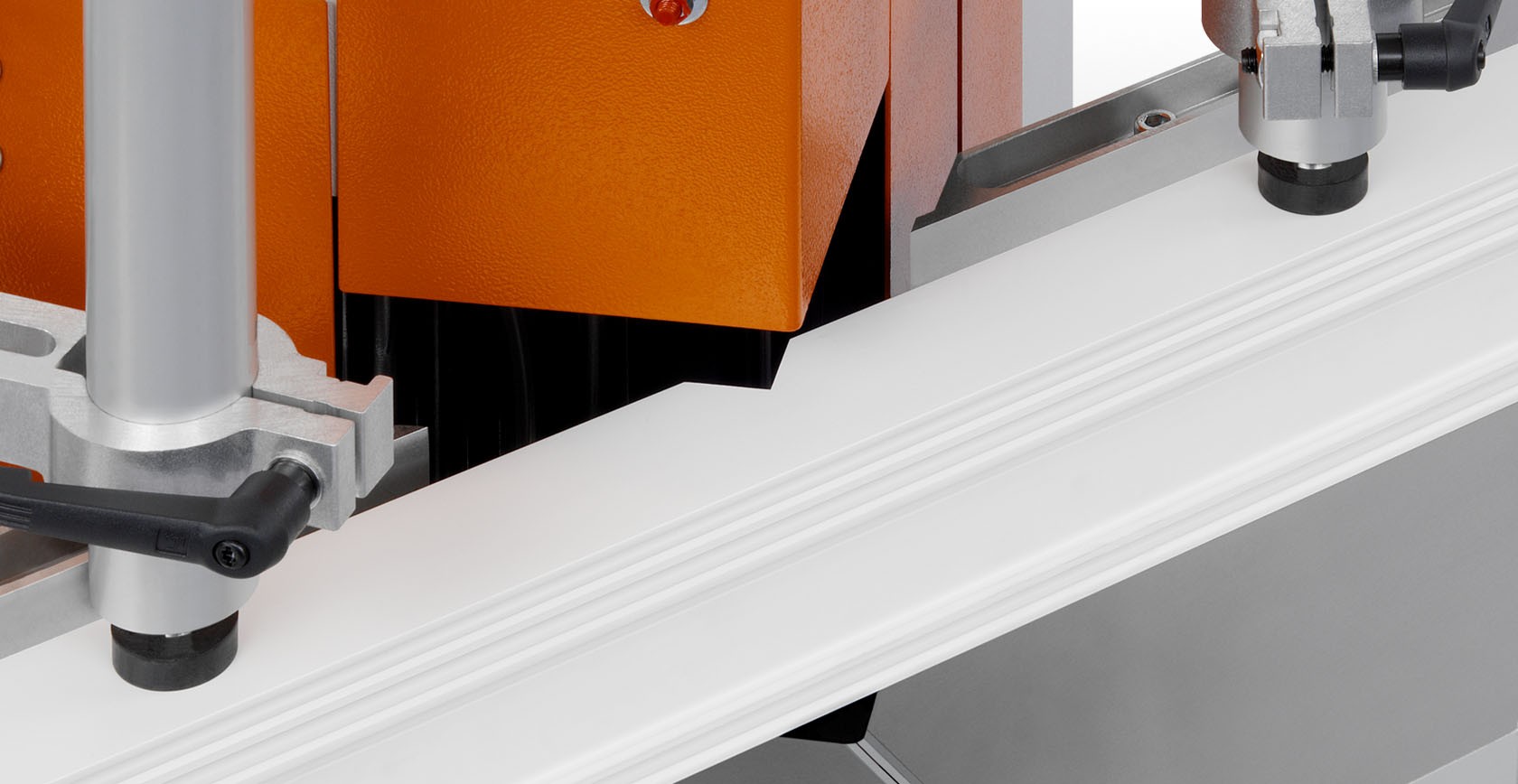

Precision Vee-cuts in aluminium and PVC profiles
Pneumatic continuously adjustable saw blade feed for fast and precise sawing with rapid return
Simple setting of cutting depth
Equipped with connection for swarf extraction hose and swarf container as standard
Equipped with saw blades as standard
Equipped with pulsed coolant system as standard
Options
Material clamping units
Length stop and measuring systems
Roller conveyor
Saw blades
High performance cutting fluid
Cutting range for Vee-cuts: cutting depth 80 mm, profile height 100 mm
Saw blade diameter 300 mm
Saw blade speed 2,800 rpm
Power supply 230/400 V, 3~, 50 Hz
Power output per motor 0.9 kW
Compressed air supply 7 bar
Air consumption per working cycle 20 l without spraying, 44 l with spraying
Length 980 mm, depth 800 mm, height 1,650 mm, weight 240 kg
Request quote
picture_as_pdf
generate pdf
info_outline
ask information
Vee-notch and notching saw KS 101/30
Vee-notch and notching saw KS 101/30
Cutting diagram KS 101/30
Vee-notch and notching saw KS 101/30
Vee-notch and notching saw KS 101/30
Vee-notch and notching saw KS 101/30
Vee-notch and notching saw KS 101/30
open video
Other Products
KF 178/10 3-SPINDLE COPY ROUTER
keyboard_arrow_right
KF 178/10 3-spindle copy router
keyboard_arrow_right
KF 78/23 2-SPINDLE COPY ROUTER
keyboard_arrow_right
KF 78/23 2-spindle copy router
keyboard_arrow_right

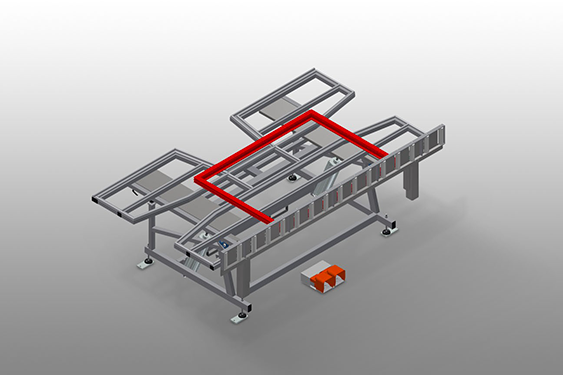

KT 3000 Tilting table
