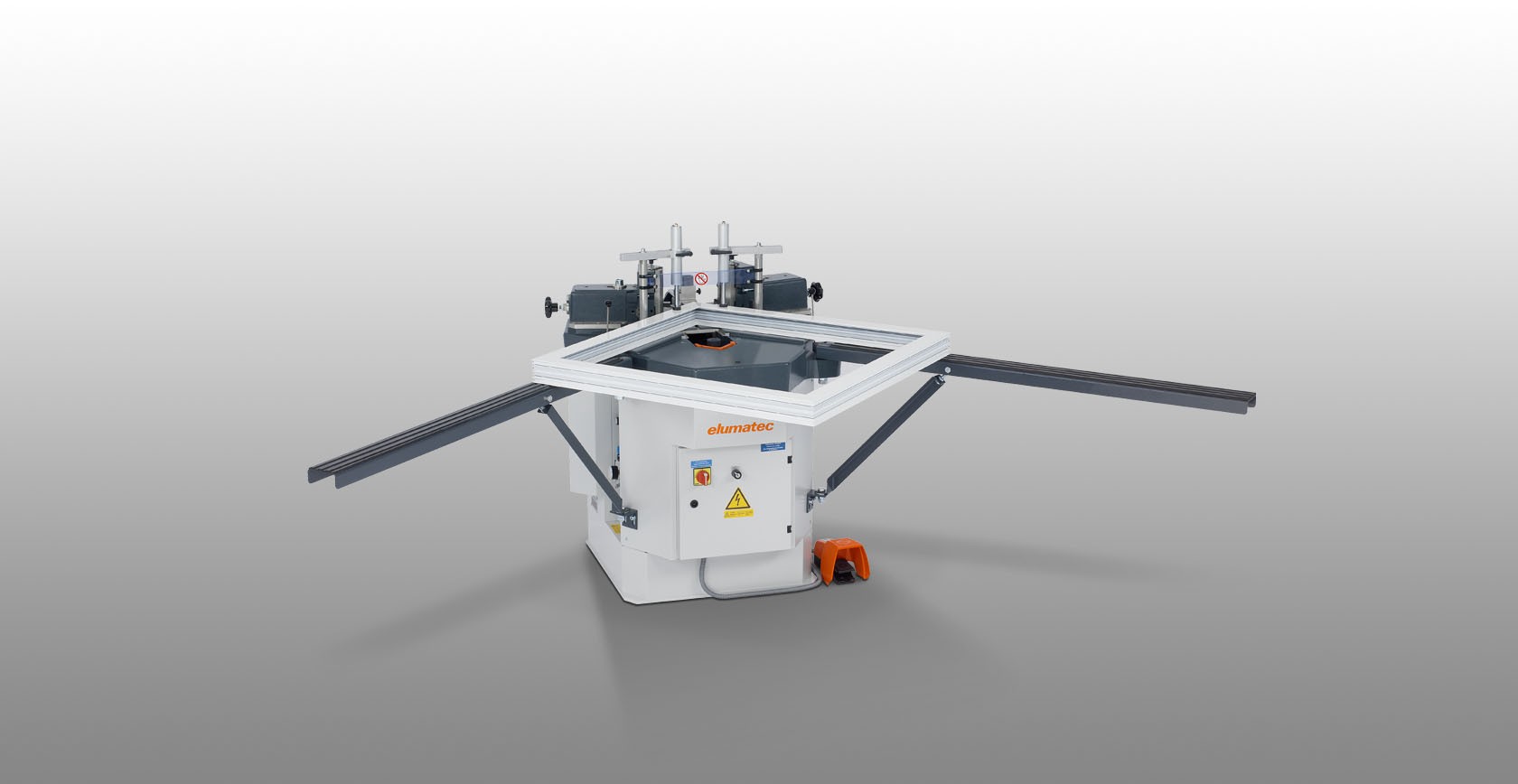

EP 124/20 Corner crimper

home / from a to z / E
  • The ideal machine for curtain wall elements
  • For pressing profiles with large dimensions with the highest quality requirements
  • The machine is easy to adjust and operate and has short changeover times thanks to a simple blade-changing system
  • Extremely high pressing force due to large-volume bellows cylinder (maintenance free)
  • With retractable, hydro-pneumatically controlled counter bearing
  • The specially-designed counter bearing head allows pressing of frames with an inner dimension starting at 150 mm (clear dimension)
  • The pressing depth can be set separately for each tool carriage

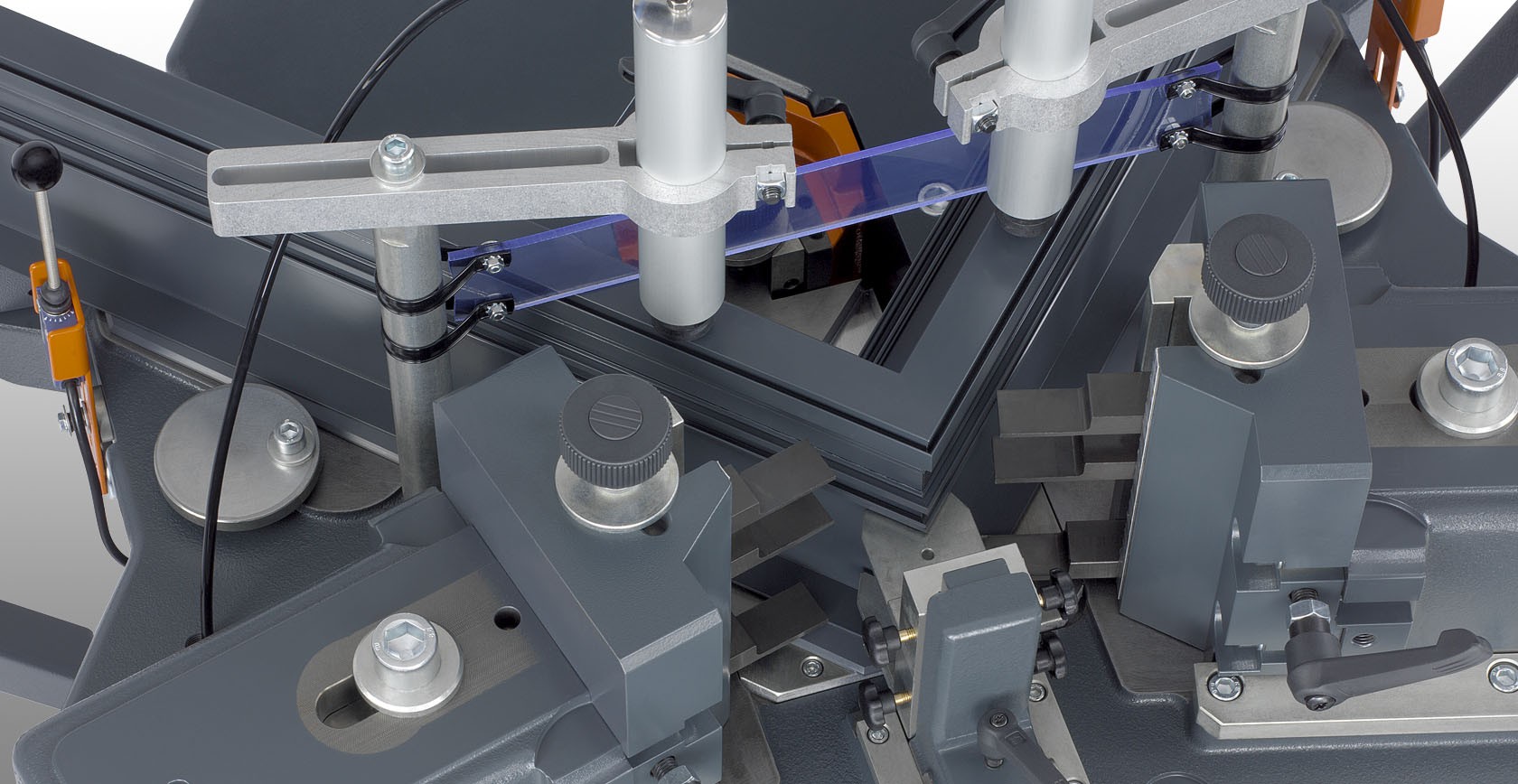

  • An adjustable pressing blade is also available to compensate for the profile chamber offset
    (-5 to 15 mm as standard, 15 to 35 mm as an option)
  • Support arms and pressing blades included as standard

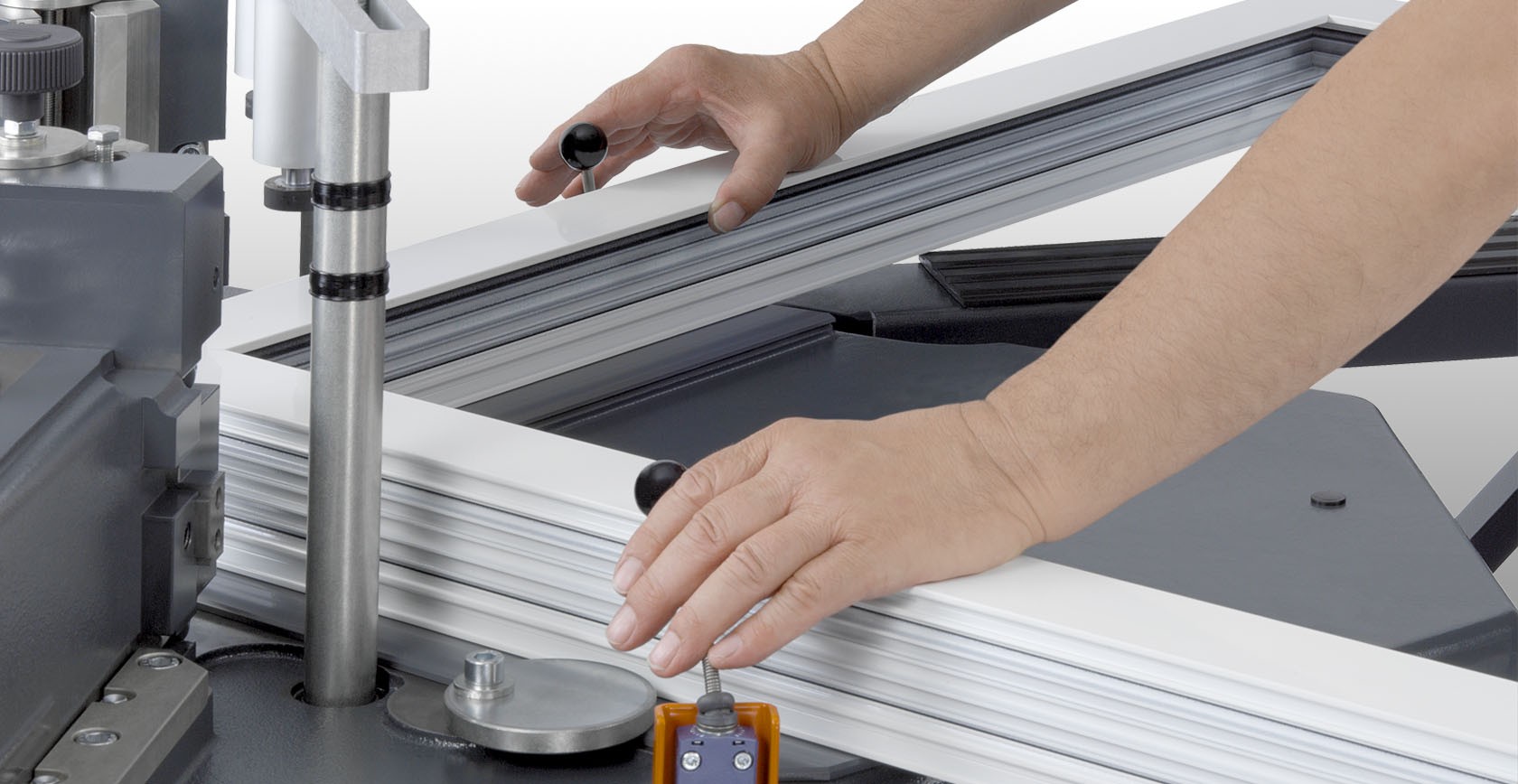

  • 2-hand operation



Options

  • Support table for pre-assembly and depositing
  • Counter bearing
  • Special pressing blade
  • Pressing height 200 mm
  • Pressing force 70 kN (7 t)
  • Pneumatic drive
  • Power supply 230 V, 1~, 50/60 Hz
  • Compressed air supply 7 bar
  • Air consumption per working cycle 35 l
  • Length 1,100 mm, depth 950 mm, height 1,230 mm, weight 534 kg
EP 124/20 Corner crimper
