ALU PVC STEEL

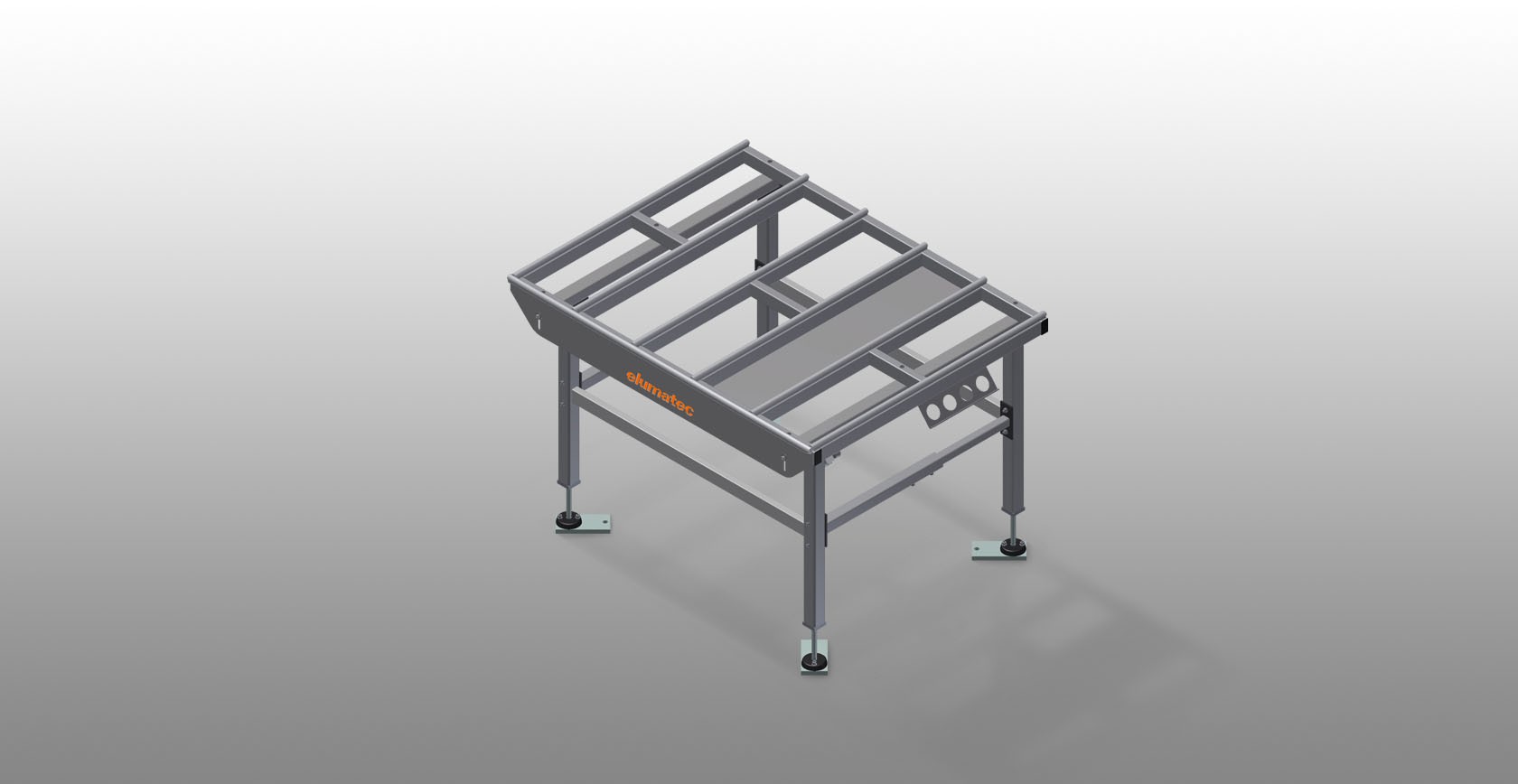

HT 1000 Horizontal table – Individual table

home / from a to z / H

Horizontal table for all work tasks on frames and sashes

Stable steel construction
Table supporting surface with plastic slide bars
Storage tray for setting down tools and accessories
Adjustable height
Simple installation with a modular system design

Options

Also available with brush strips on request
Also available with felt strips on request (for wooden elements)
Also available with rubber strips on request (for aluminium elements)
Roller support
Tool rack
4-fold compressed air supply

Length 1,000 mm
Width 1,300 mm
Height 850 – 1,000 mm
Weight 70 kg

Horizontal table – Individual table HT 1000

Supporting surfaces

Supporting surfaces with plastic slide bars

Storage tray

Storage tray for setting down tools and accessories

Height adjustment

Adjustable height; working height can be set to 850 – 1,000 mm by means of adjustable feet

Brush strip

Supporting surfaces with brush strip for HT 1000

Felt strip

Supporting surfaces with felt strip for HT 1000

Rubber strips

Supporting surfaces with rubber-knob profile for aluminium elements

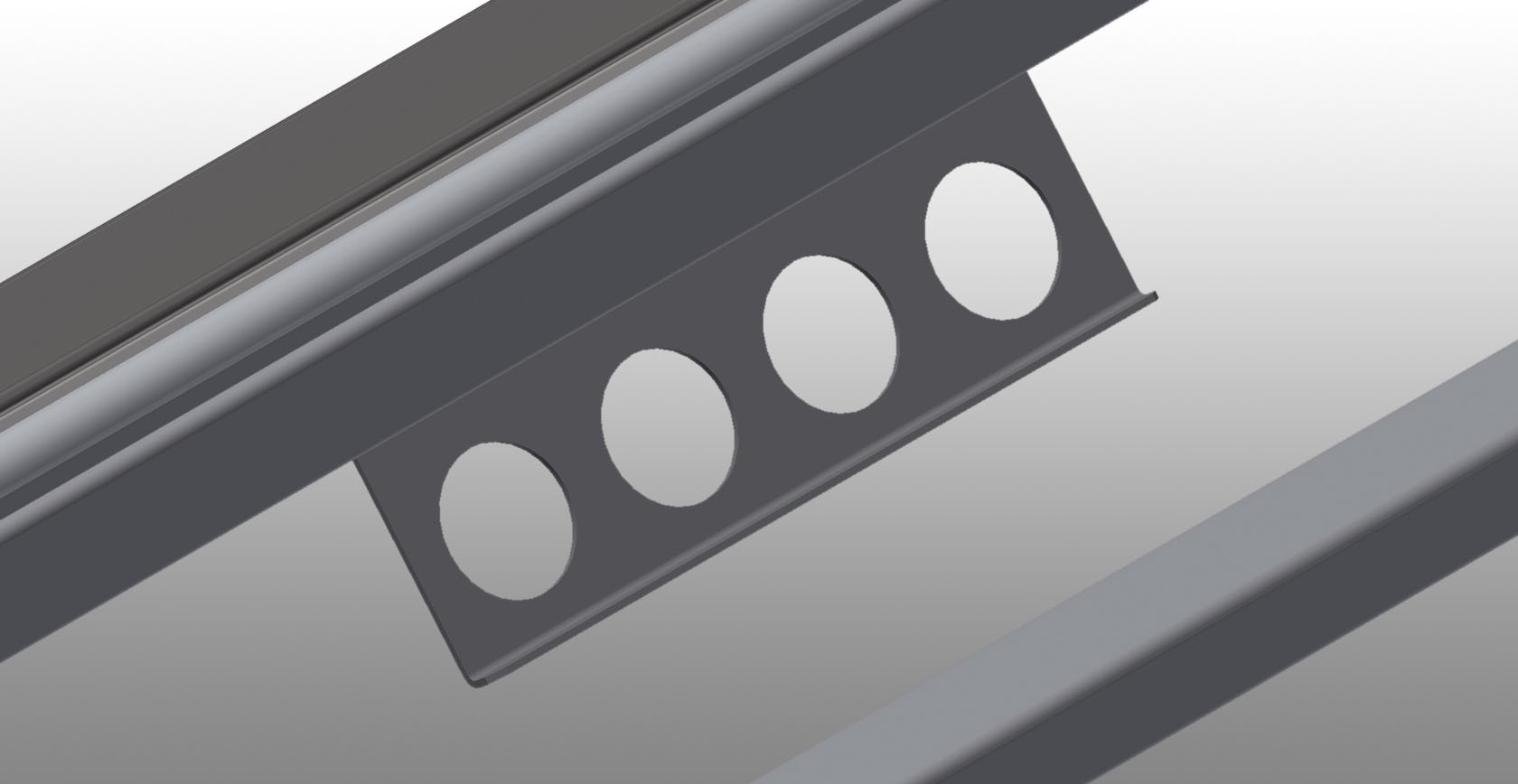

Tool rack

Tool rack for pneumatic or electrical tools

4-fold compressed air connection

4-fold compressed air connection for connecting compressed-air tools

Roller support, cmpl., for HT 1000/PVC

Hard plastic rollers with polyamide coating, on plain bearings, load per roller: 60 kg, convenient for transport and handling of PVC elements

Rubber roller support, cmpl., for HT 1000/Alum.

Plastic rollers with polyurethane coating, on ball bearings, load per roller: 40 kg, convenient for transport and handling of aluminium elements

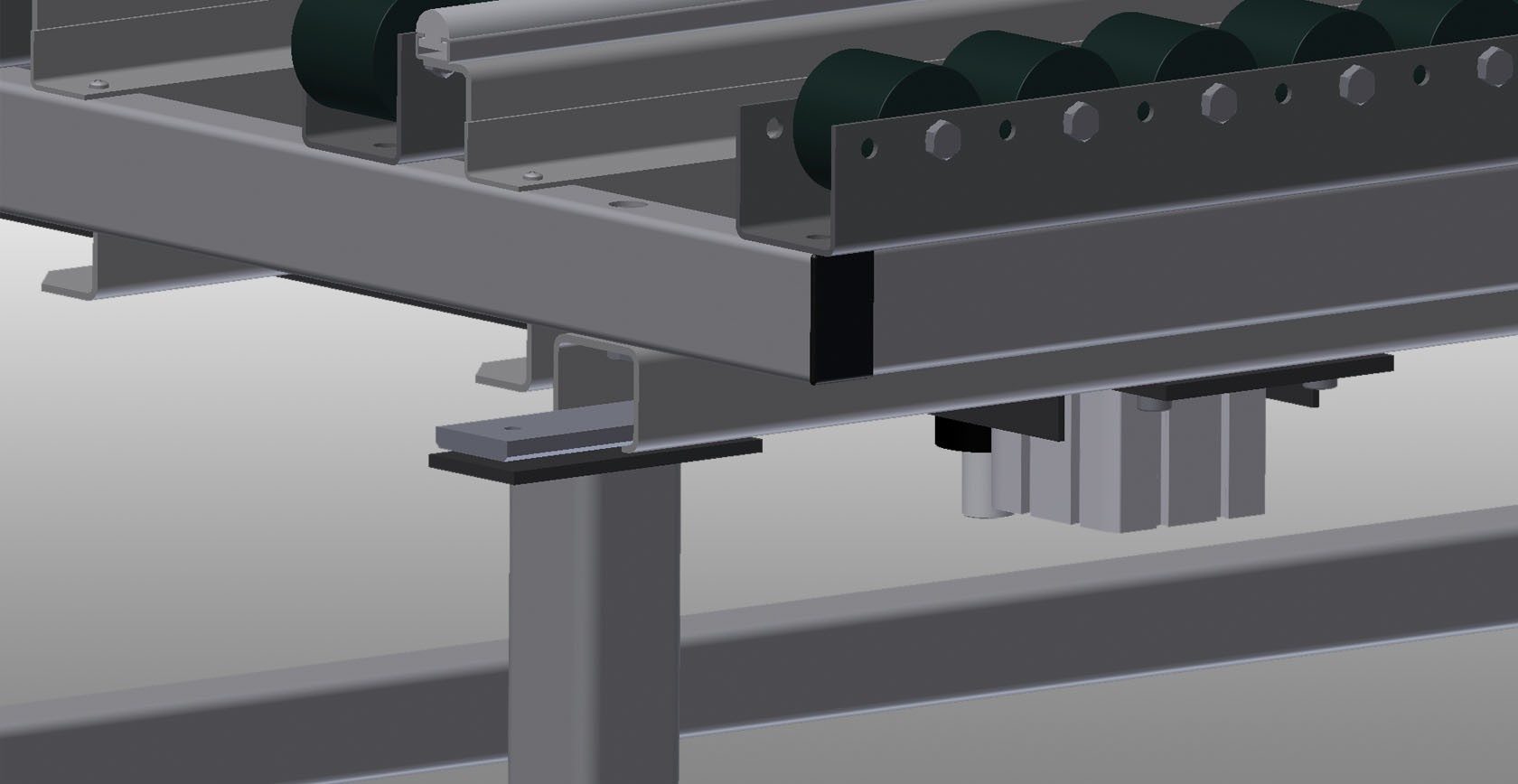

Pneumatic lifting unit

Lifting unit L = 1,000 mm
