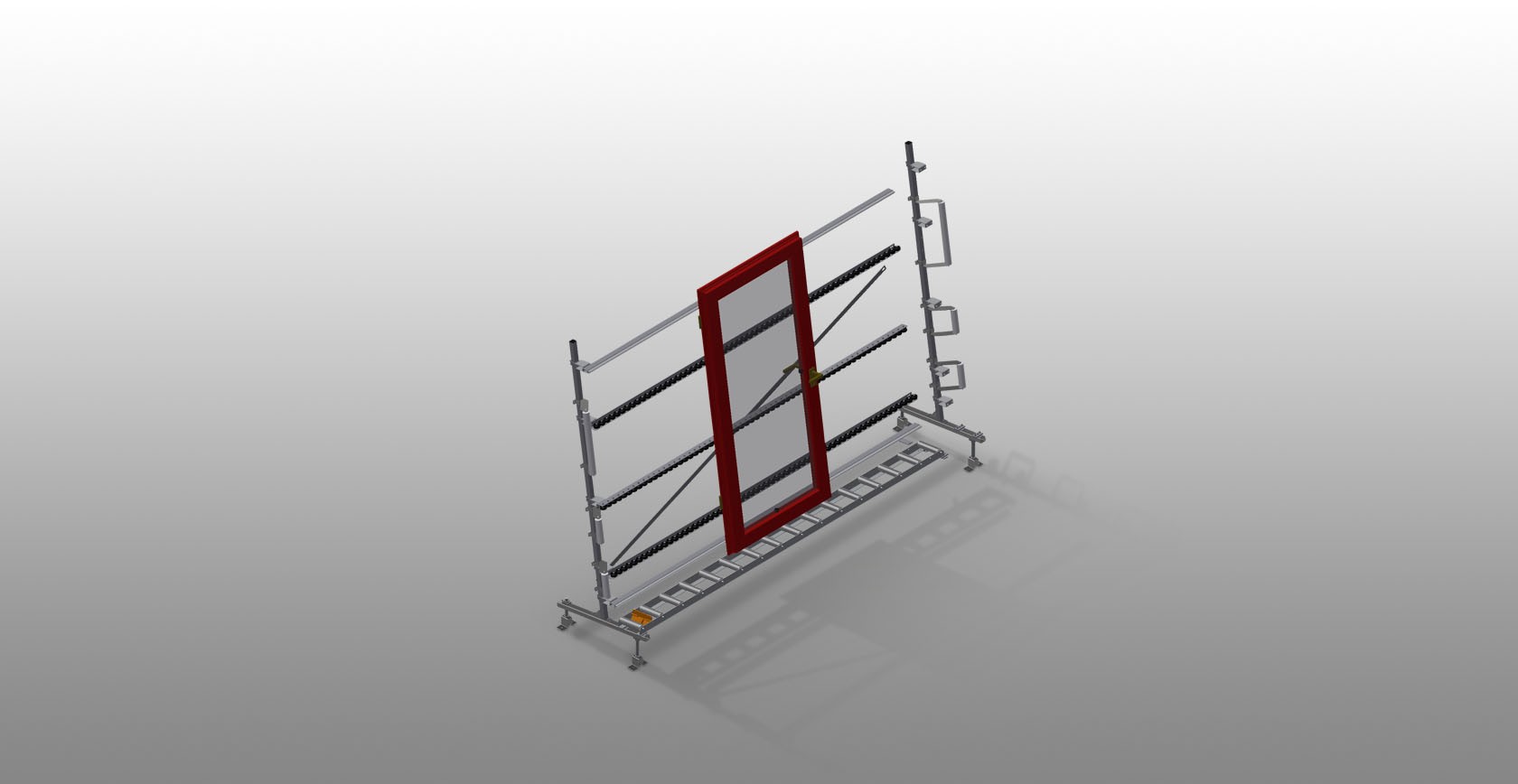

VR 3000 - Vertical roller conveyor

Vertical roller conveyor for transportation and storage of window elements

  • Stable steel construction
  • Expandable using modular system design
  • Vertical roller conveyor for smooth transportation and storage of window elements
  • Easy handling of window elements
  • Every roller conveyor unit is 3,000 mm long
  • Plastic slide bars top and bottom
  • Three mini-roller conveyors with rubber rollers, diameter 50 mm
  • Basic unit without end rack



Options

  • End rack
  • End stop

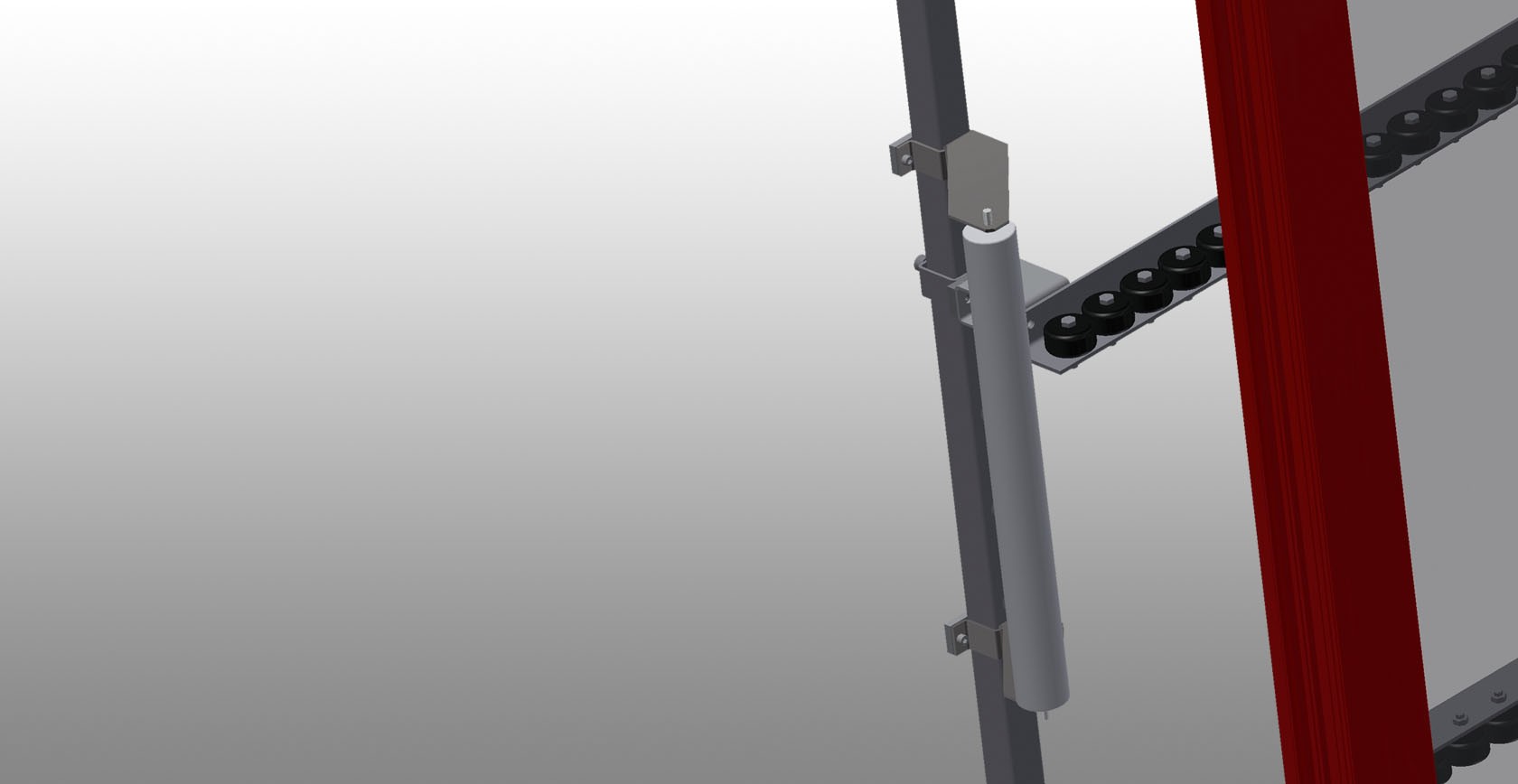

  • Lead-in roller
  • Profile protectors for support rollers (Alum.)
  • Length 3,000 mm
  • Width 900 mm
  • Height 2,400 mm
  • Support roller width 200 mm
  • Unit height 2,100 mm
  • Load 200 kg
  • Weight 120 kg
