SBZ 630 Profile machining centre
home
/
from a to z
/
S
Description
Technical data
Profile machining centre with loading and outfeed magazine
Due to its modular design, the SBZ 630 can be set up either as a dedicated automatic saw, SBZ 630/01, or as a complete profile machining centre, SBZ 630/11, depending on the requirements
When set up as a profile machining centre for aluminium, the machining tasks are carried out in one machining station with the possibility of up to 30 machining units
Cutting to length is then subsequently performed with the 7-axis sawing station
The work sequence can be set up to run from left to right or from right to left
Options
Label printer
Barcode scanner
Loading magazine for ten profile bars with profile widths of up to 130 mm
eluCad (office software package for optimised production management)
Profile lengths and residual pieces from 500 – 7,500 mm
Loading magazine for seven profile bars with profile widths of up to 250 mm
Automatic height, side and rotational axes (350°) of the gripper arm
Automatic horizontal setting of the vertical clamps (5 – 70 mm)
Machining module for up to 30 routing units

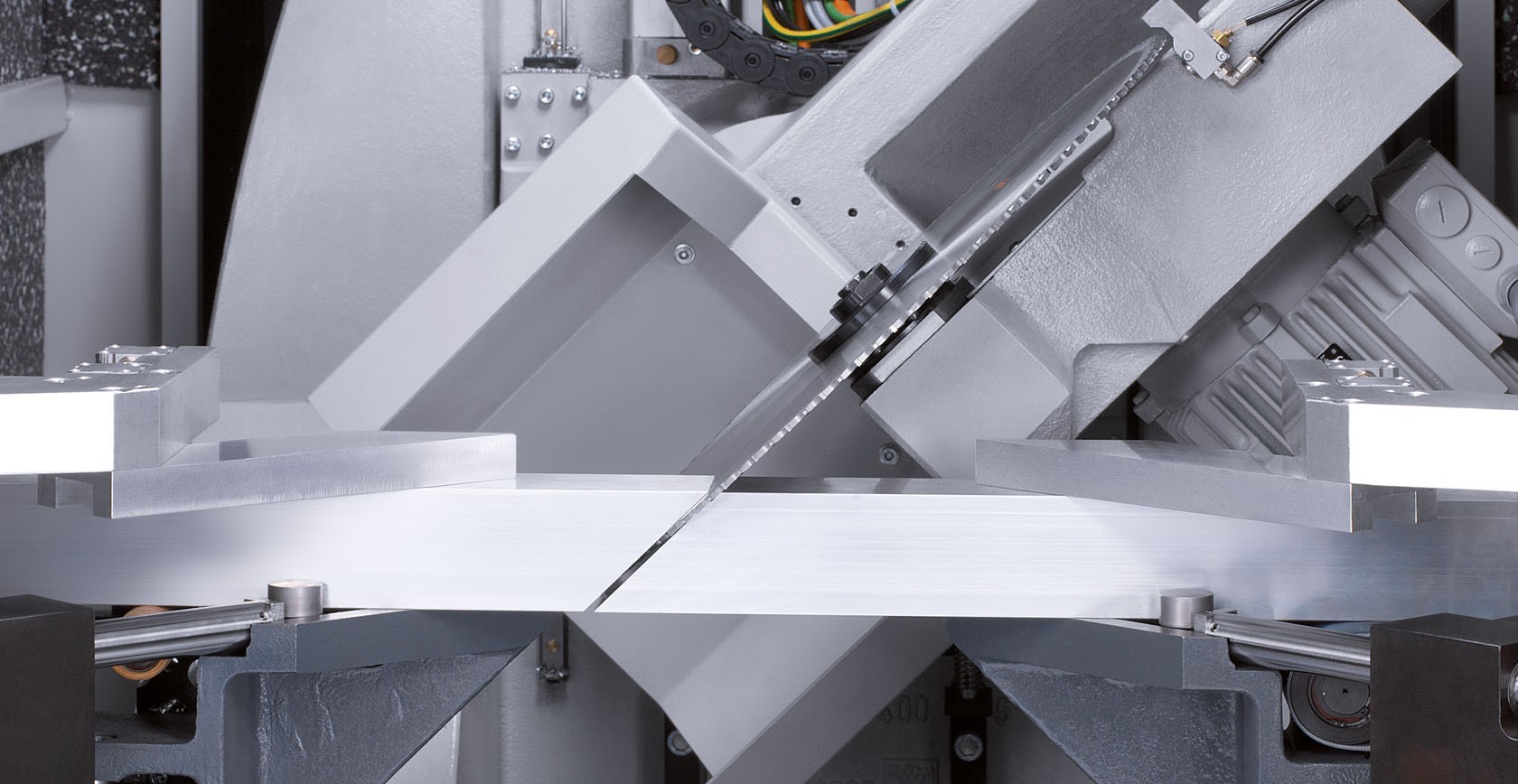

1-blade saw 7 kW for variable saw cuts at 45° – 135° tilted or pivoted
Profile outfeed via outfeed conveyor
Request quote
picture_as_pdf
generate pdf
info_outline
ask information

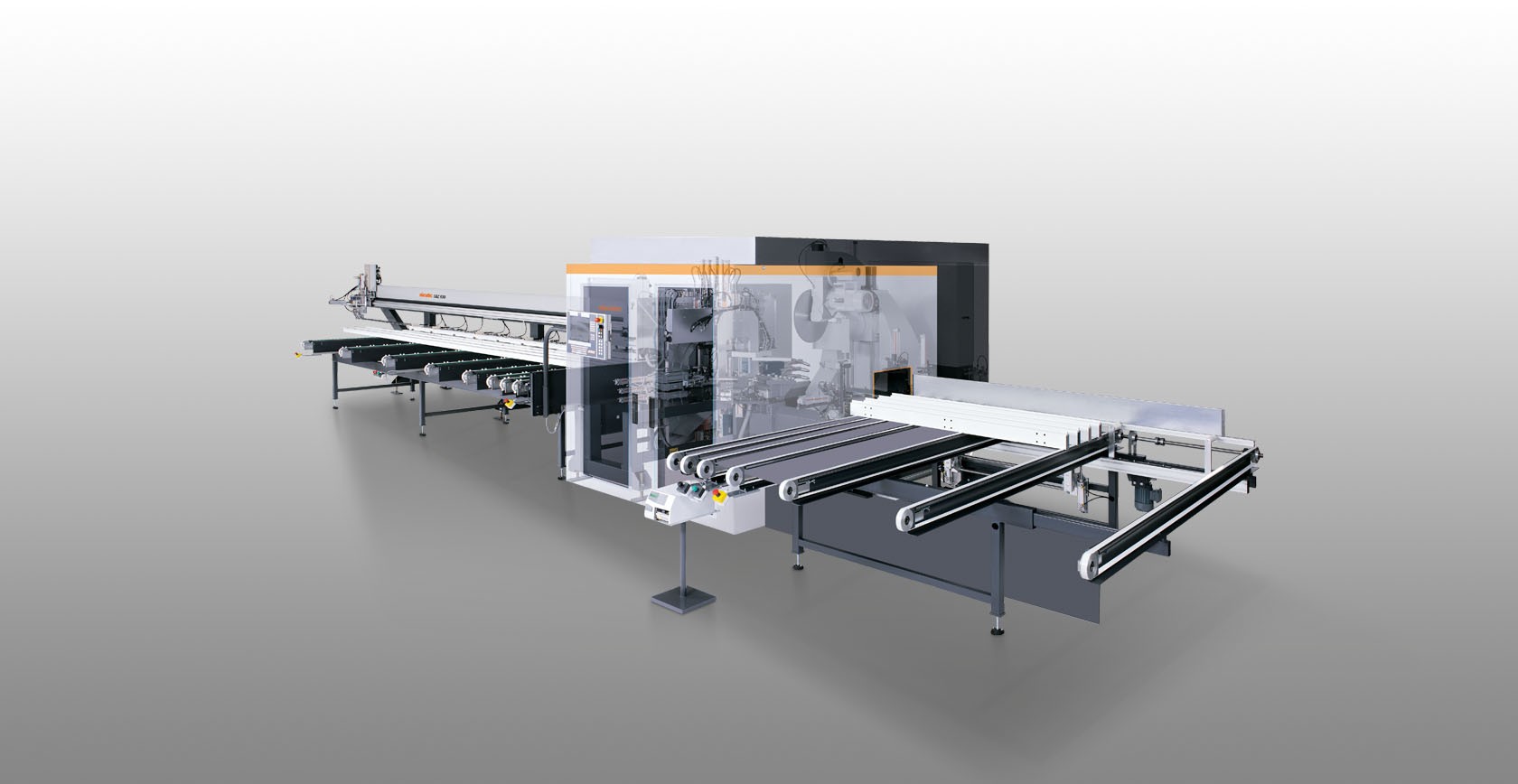

Profile machining centre SBZ 630
SBZ 630/11/L + special accessories
Profile machining centre SBZ 630
Profile machining centre SBZ 630
Profile machining centre SBZ 630
Profile machining centre SBZ 630
