GHS 15 Glas lifting station

home / from a to z / G
  • Easy handling of sheets of glass in combination with glass transport trolley GFW 15
  • With a pneumatic lifting unit controlled with a foot valve, max. travel = 50 mm
  • Lower roller conveyors equipped with 15 x 4 PVC rollers in total
  • Complete with draw-in mechanism for glass transport trolley GFW 15
  • Basic dimensions: 2,100 x 1,250 mm
  • Length 2,100 mm
  • Width 1,250 mm
  • Height 250 mm
  • Travel 50 mm max.
  • Weight 100 kg

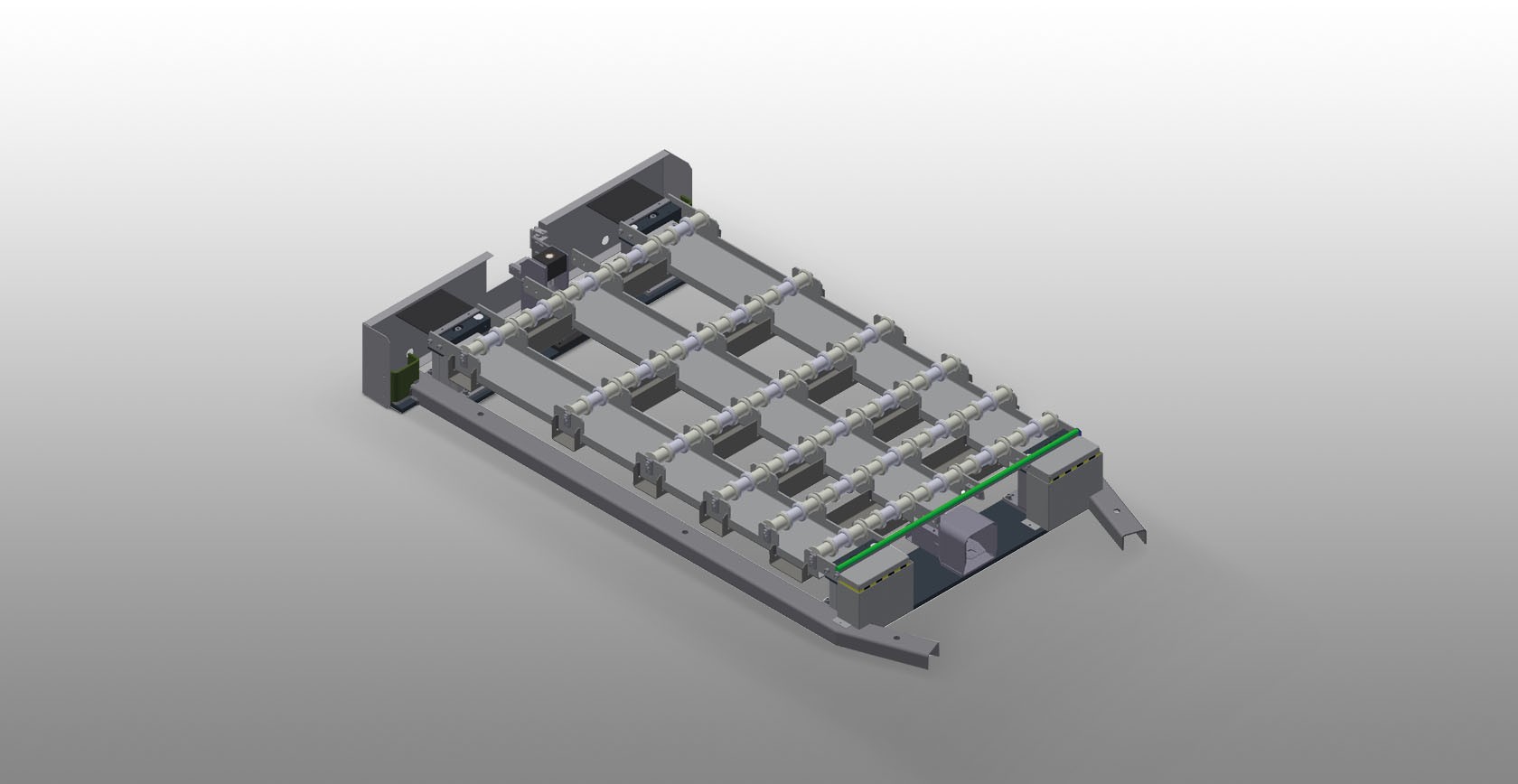

Glass lifting station GHS 15

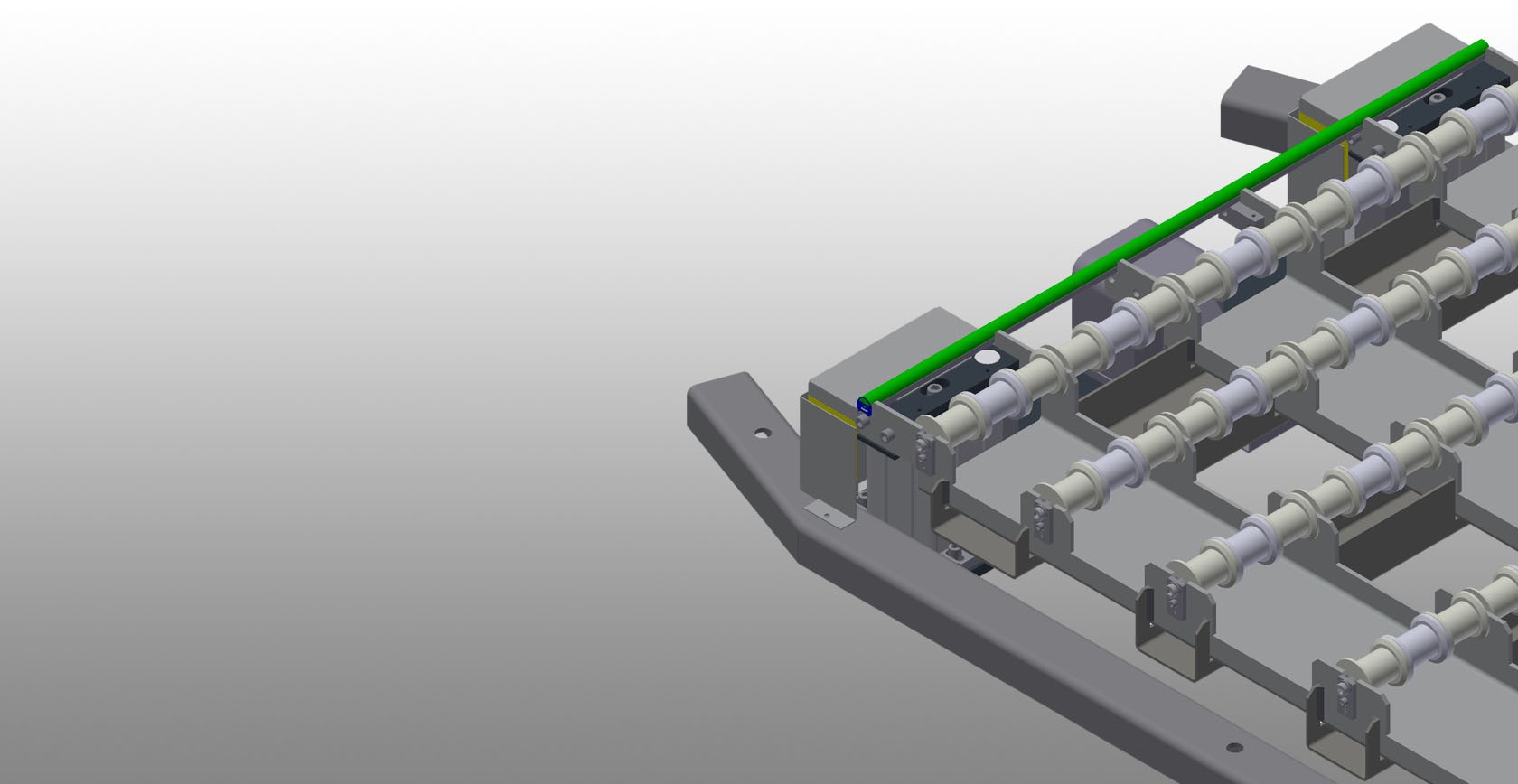

Supports

Lower supporting surfaces with lifting rollers for easier loading and unloading

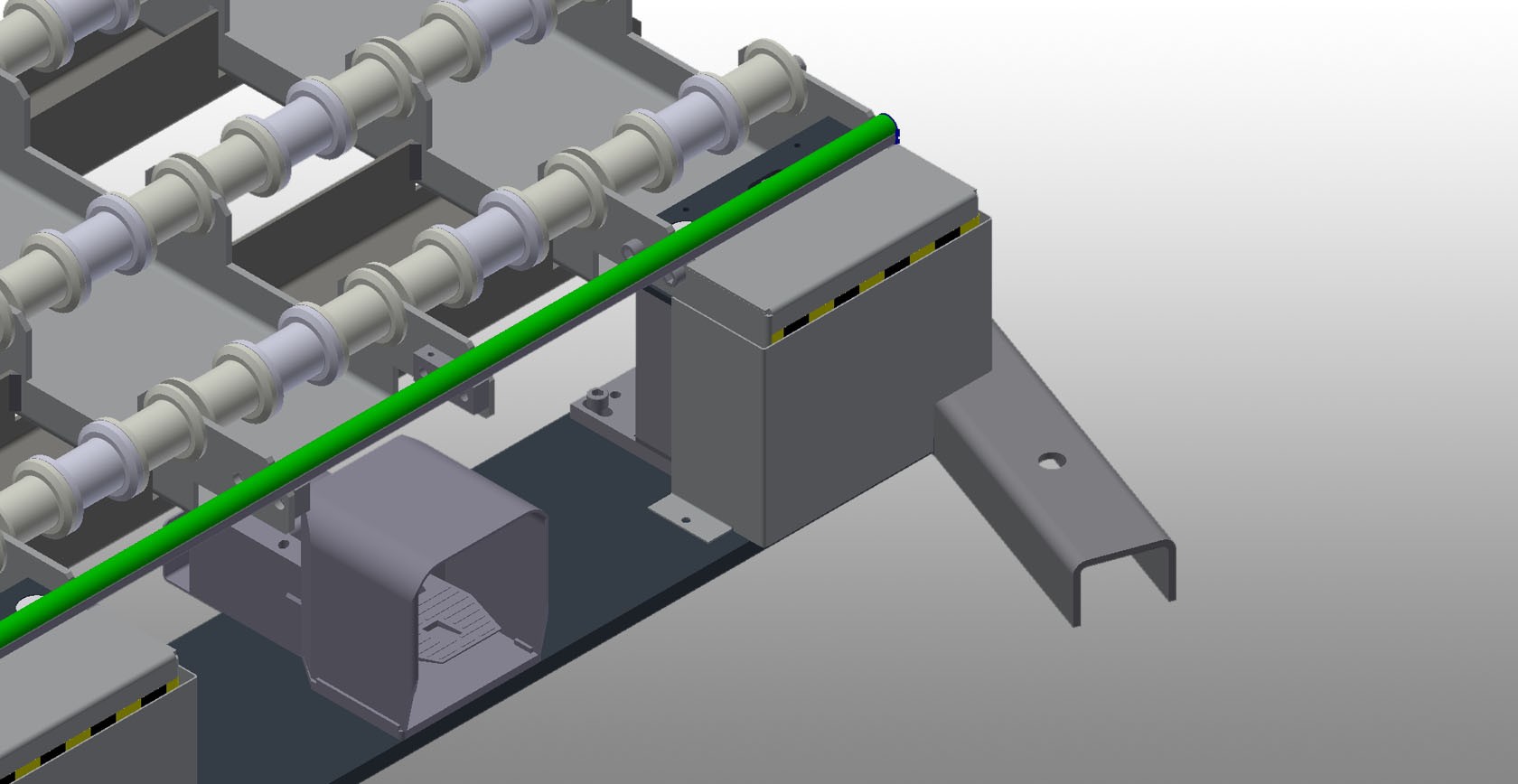

Lifting unit

Lifting unit for transferring sheets of glass to glass transport trolley GFW 15, controlled with a foot valve, max. travel = 50 mm

Glass lifting station GHS 15 + Glass transport trolley GFW 15
Glass lifting station GHS 15 + Glass transport trolley GFW 15
