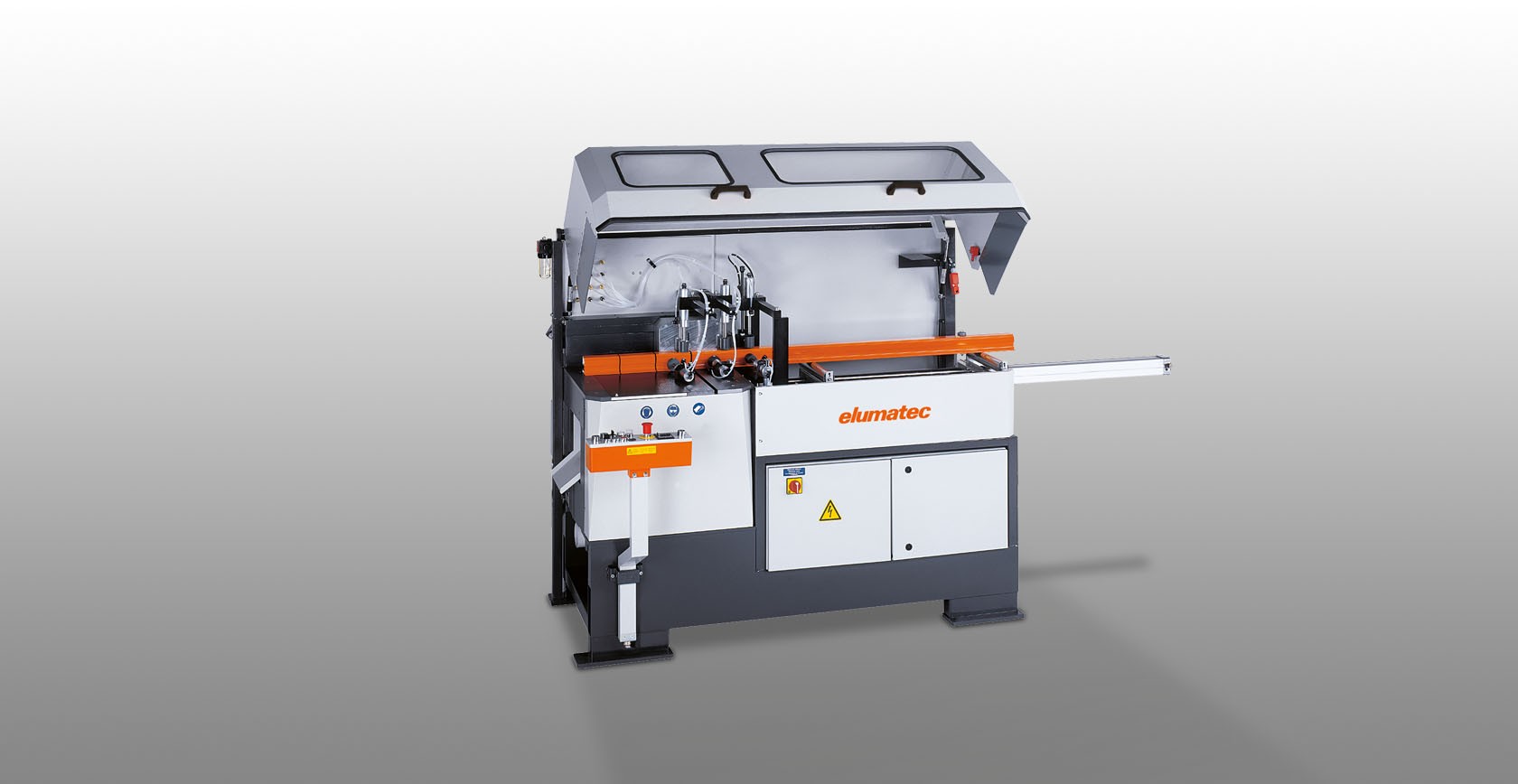

SA 142/37 Automatic saw

• Suitable for high-volume cutting of aluminium profiles for window manufacturing and industrial applications

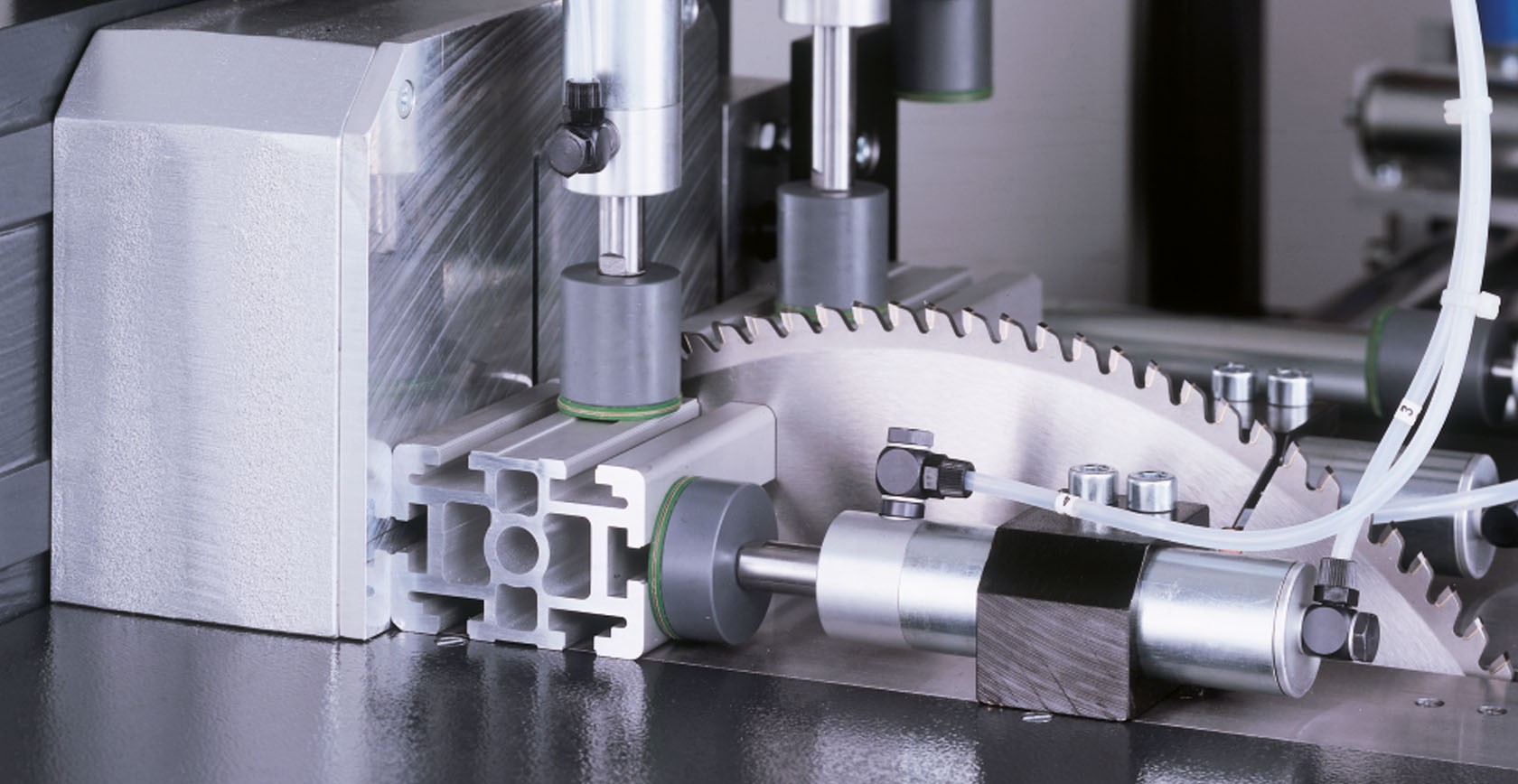

• Material infeed (cycling) protects the surface of the workpiece through a profile lifting system at the bearing and locating face
• One, two or three-stroke feed can be selected using a selector switch
• Angled cuts of up to 45° are possible by tilting the saw unit (option)

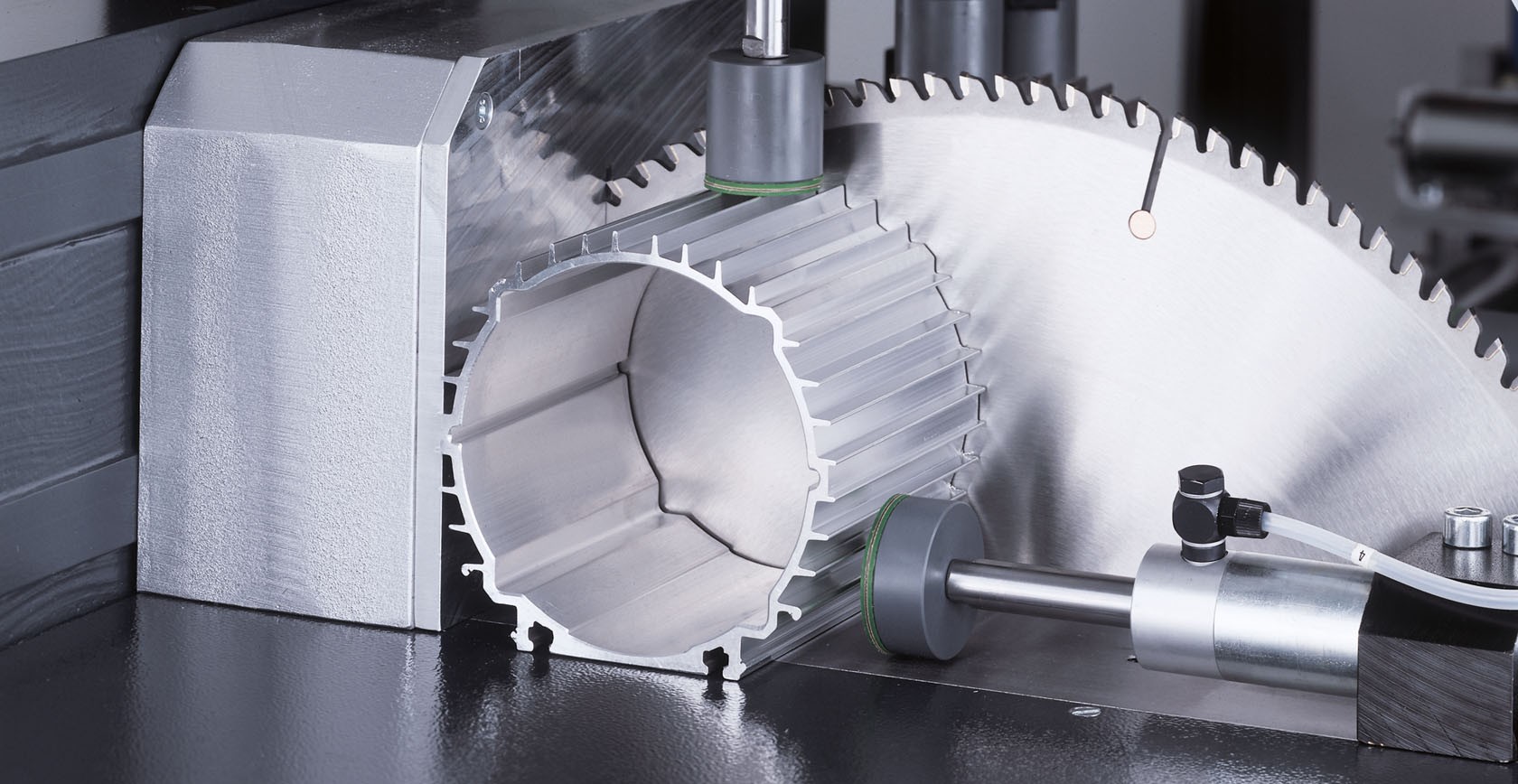

• Large cutting range for wide profiles
• Equipped with saw blade as standard

Options

• Manual cutting length adjustment with digital display E 111
• Hydro-pneumatic saw feed
• Extraction unit
• Roller conveyors
• Saw blades
• High performance cutting fluid
• Intermediate angle setting by hand wheel and digital display E 111

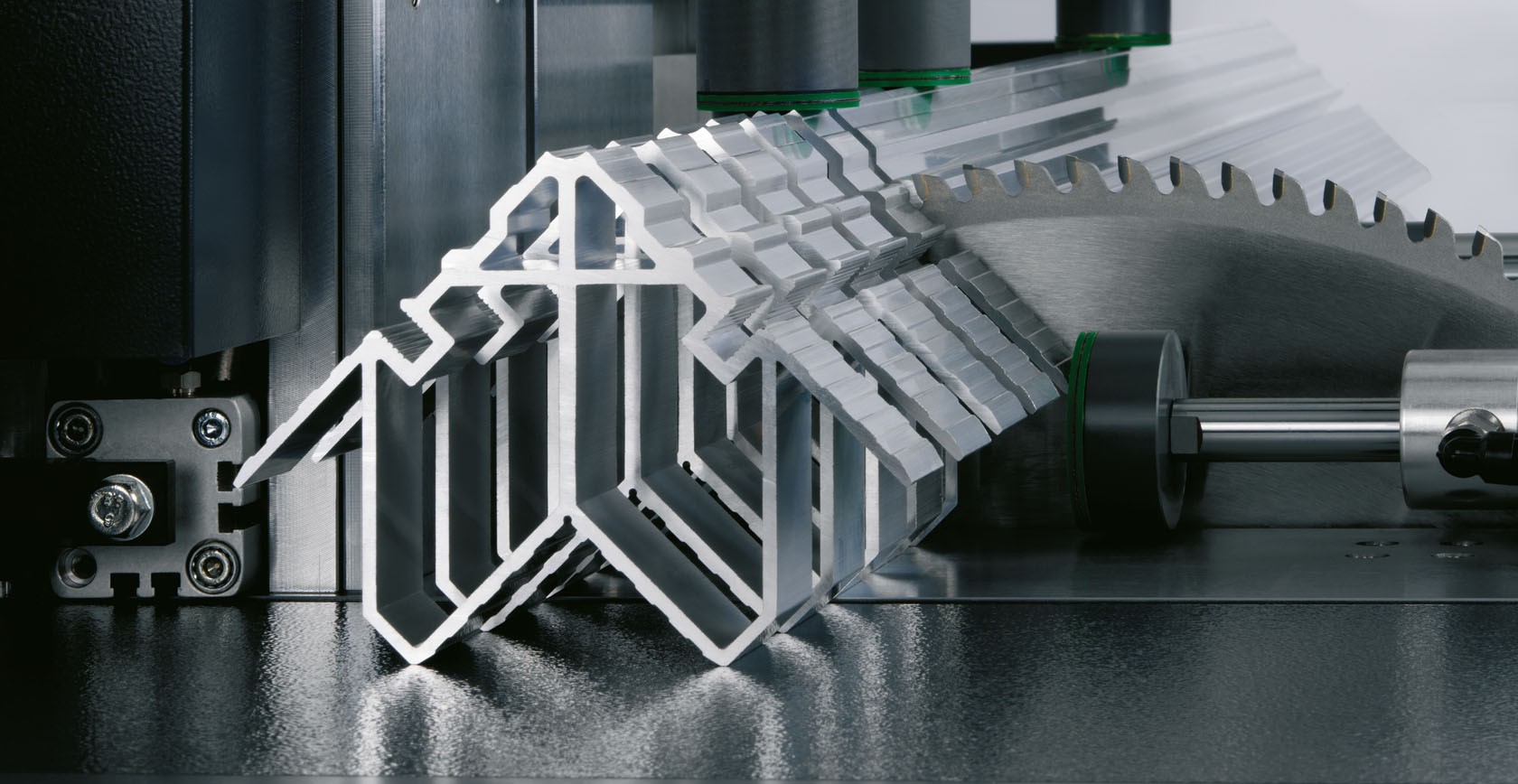

• Clamping method for multi-part clamping
• Clamping method for parts smaller than 5 mm

AUTOMATIC SAW SA 142/38
See SA 142/37, however:

• With kerf spreading (only for 90° cuts)
• For cutting range, see cutting diagram

• Pivoting range from 90° - 45° continuously adjustable (optional)
• For cutting range, see cutting diagram
• Saw blade diameter 500 mm
• Saw blade speed 2,800 rpm
• Power supply 230/400 V, 3~, 50 Hz
• Power output 5.5 kW
• Compressed air supply 7 bar
• Air consumption per working cycle 50 l without spraying, 64 l with spraying
• Length 2,850 mm, depth 1,400 mm, height 1,580 mm, weight 770 kg
• Feed distance per cycle 5 – 600 mm (up to three cycles possible)
