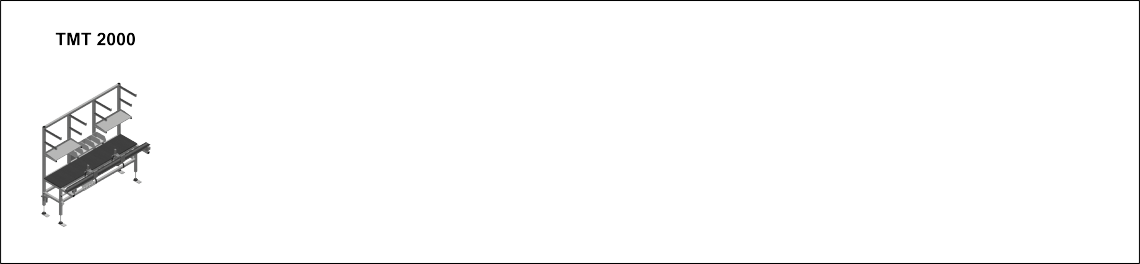

TMT 2000 Door bar assembly table

Assembly table for pre-assembly of hardware and gaskets

  • Stable steel construction
  • Work table for all pre-assembly tasks for hardware and gaskets on aluminium windows and doors
  • Equipped with two clamps
  • Clamping device for profiles with a depth of 45 - 120 mm and facing width of 50 - 150 mm
  • Clamping position can be adjusted
  • Clamping cylinder is activated by a foot switch
  • 180° pivoting feature for the clamped profiles in 30° steps via a foot switch, lockable
  • Support arms for long parts
  • Two storage areas for setting down tools and small parts
  • Drawers for tools
  • Rack for screw driving unit or drill
  • 4-fold compressed air supply
  • Double two-pin grounded socket
  • Length 2,000 mm
  • Width 850 mm
  • Height 1,970 mm
  • Weight 145 kg
  • Air consumption approx. 20 l/min.
  • Compressed air supply 7 bar

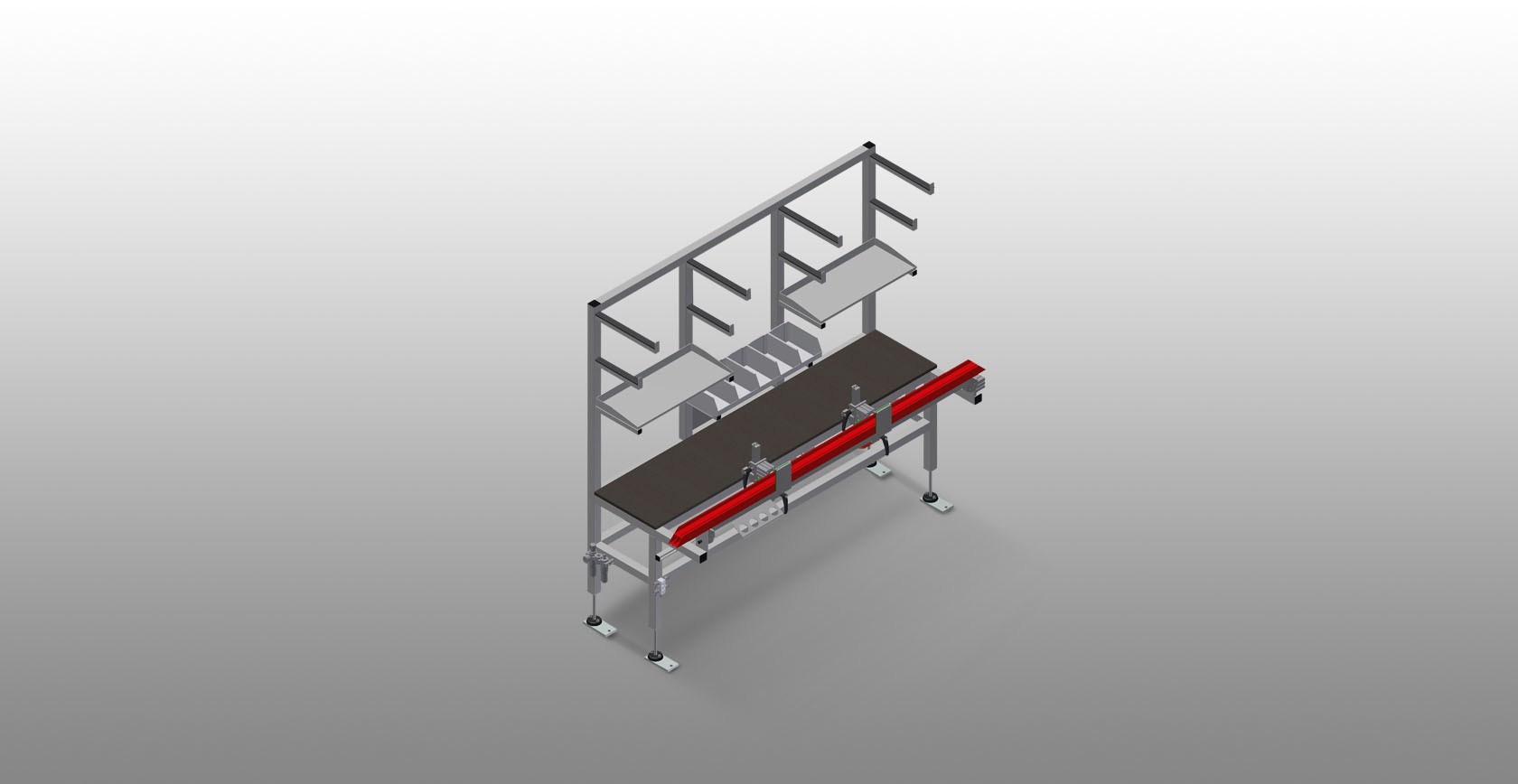

TMT 2000 Door bar assembly table Door bar assembly table TMT 2000 Elumatec

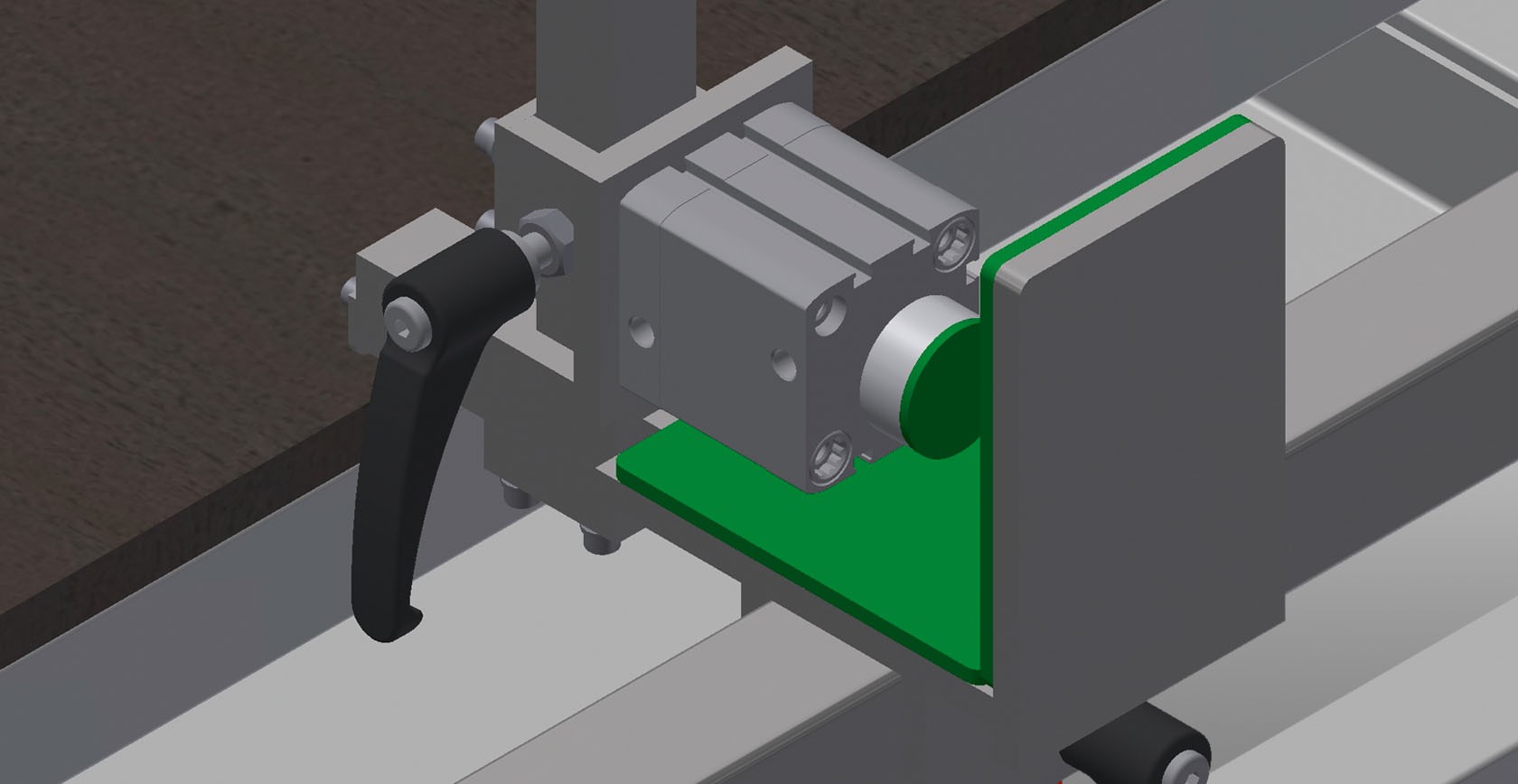

TMT 2000 Door bar assembly table Clamping device Elumatec
TMT 2000 Door bar assembly table Pivoting mechanism Elumatec
TMT 2000 Door bar assembly table Support arms Elumatec
TMT 2000 Door bar assembly table Storage area Elumatec

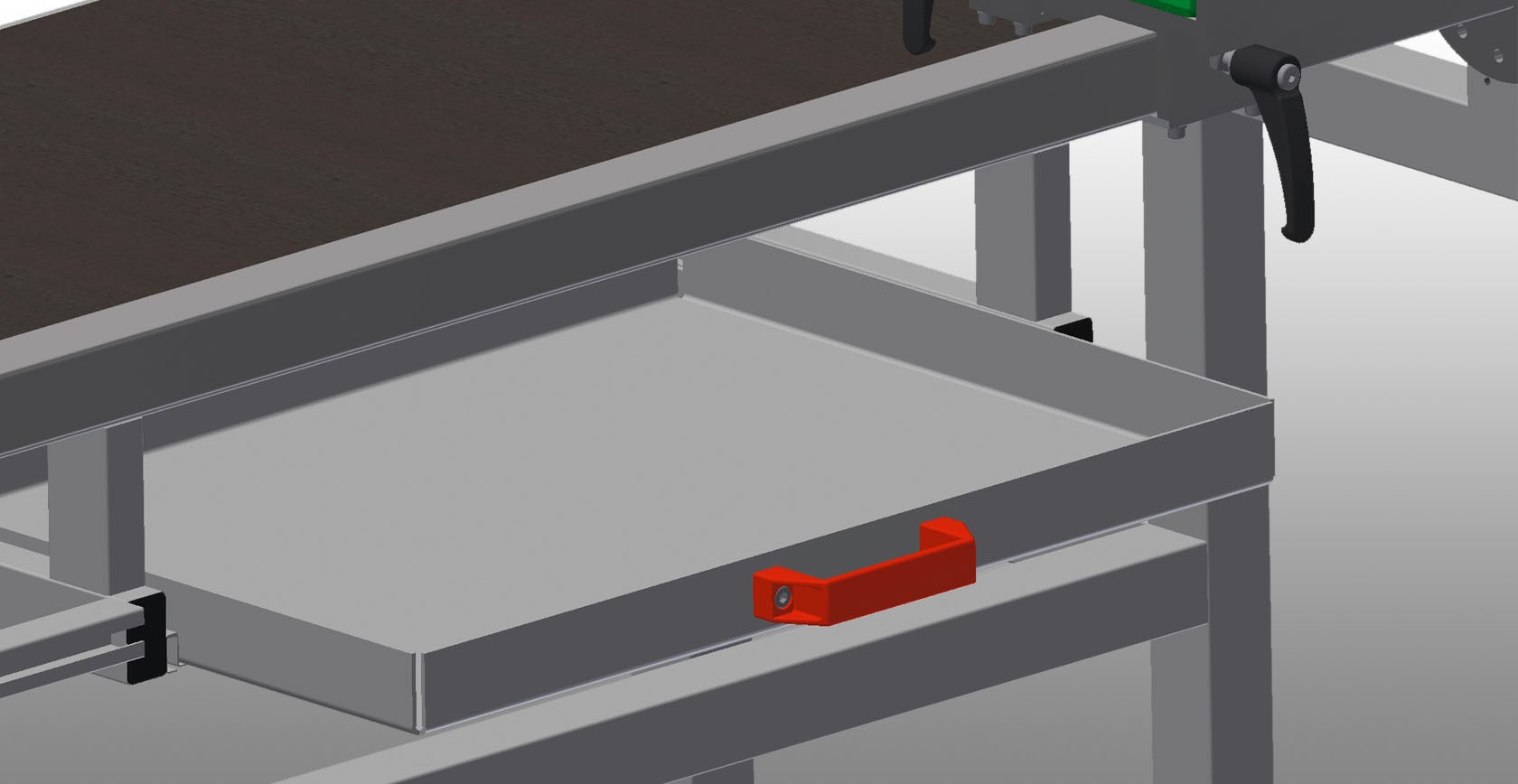

TMT 2000 Door bar assembly table Drawer Elumatec
TMT 2000 Door bar assembly table Maintenance unit Elumatec
TMT 2000 Door bar assembly table 4-fold compressed air connection Elumatec
TMT 2000 Door bar assembly table Articulated foot Elumatec
TMT 2000 Door bar assembly table Tool rack Elumatec
