MS
4000
Assembly stand
home
/
from a to z
/
M
Assembly table for vertical assembly
Stable steel construction
Ideal for vertical assembly
Suitable for lines
Infinitely variable intermediate positions for ergonomic working
Height adjustment by means of pneumatic cylinder
Roller support with steel rollers
Table supporting surface with plastic slide bars
Two horizontally adjustable profile clamps
4-fold compressed air supply
Options
Pull-out profile support for MS 4000
Positionable profile clamps
Holder plate for screw driving unit
Mobility unit
Rail
End stop
Profile protectors for support rollers
Request quote
picture_as_pdf
generate pdf
info_outline
ask information

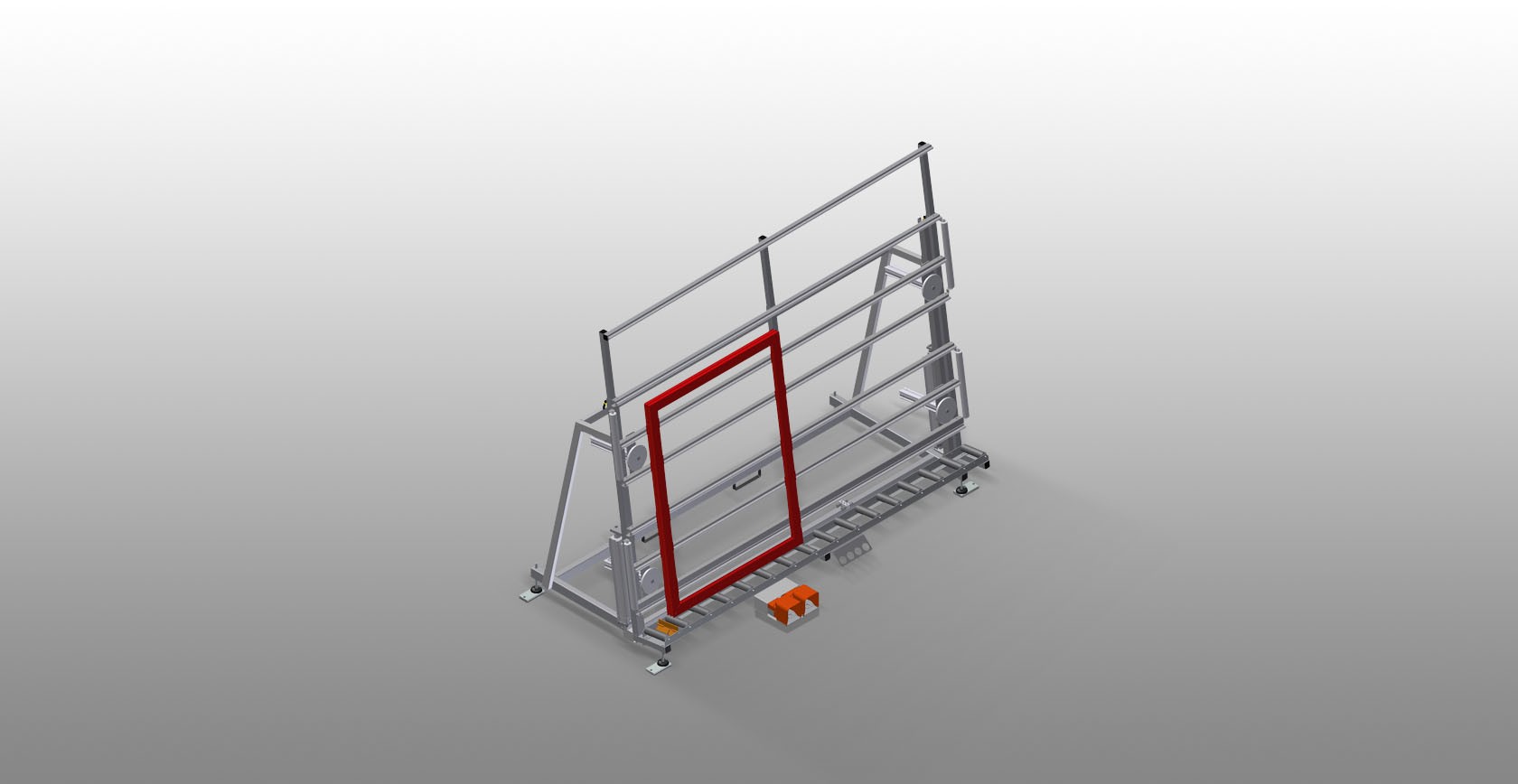

Assembly stand MS 4000
Supporting surfaces
Supporting surfaces with plastic slide bars
Roller support
Lower roller conveyor with support roller, L = 200 mm

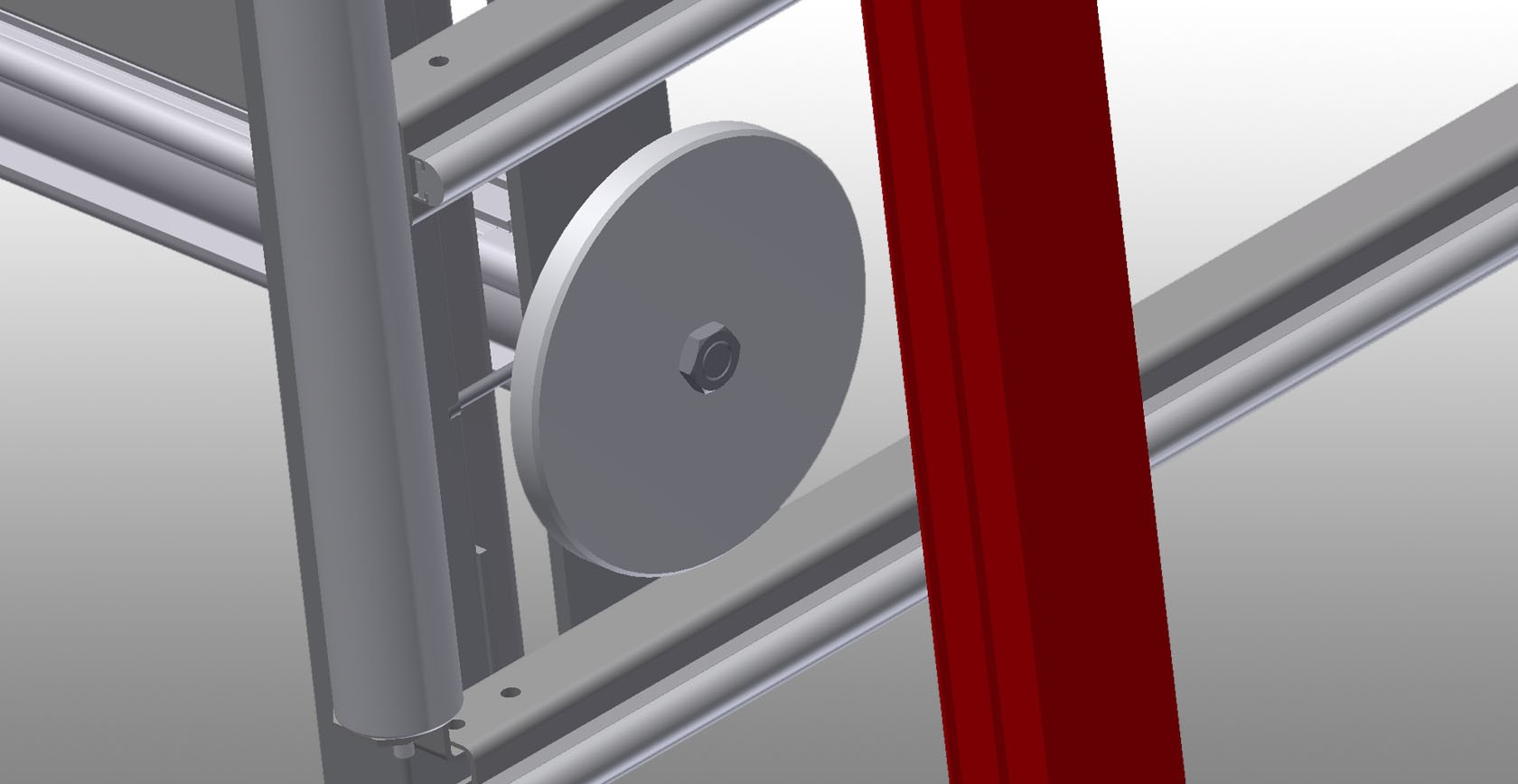

Clamps
Two material clamps at the side fix the profile while working, profile clamping height, max. 200 mm
Height adjustment
Adjustable height; working height can be set by means of adjustable feet
Foot switch
Control via foot valve. Height adjustable pneumatically by 500 mm in the vertical position, clamping is pneumatic
4-fold compressed air connection
4-fold connection for compressed-air tools
Lead-in rollers
Protective rollers for beginning or end of roller conveyor
Pull-out profile support (Optional)
The table support can be pulled out at the top for MS 3000 and MS 4000 by 800 mm and 500 mm to accommodate high frames
Holder plate for screw driving unit (Optional)
Tool rack for pneumatic tools
Positionable profile clamps (Optional)
Auxiliary clamps provide extra security when working
Profile protectors for support rollers (Optional)
Profile protectors for support rollers, 200 mm (Alum./16 x and Alum./21 x), roller conveyor with protective tubing over the rollers to protect the window element during infeed and outfeed.
End stop (Optional)
End stop Rb = 200 mm
Mobility unit (Optional)
Mobility unit for KT/KTH/MS/VE. Mobility unit with flanged rollers and fixing brake
Rails (Optional)
Rails, 2.0 m, left and right
Technical data
arrow_drop_down
Length 4,110 mm
Width 1,200 mm
Vertical height 2,050 mm
Pneum. height adjustment 500 mm
Roller conveyor width 200 mm
Weight 370 kg
Load 300 kg
Compressed air supply 7 bar
Air consumption approx. 35 l/min.
