ALU PVC STEEL

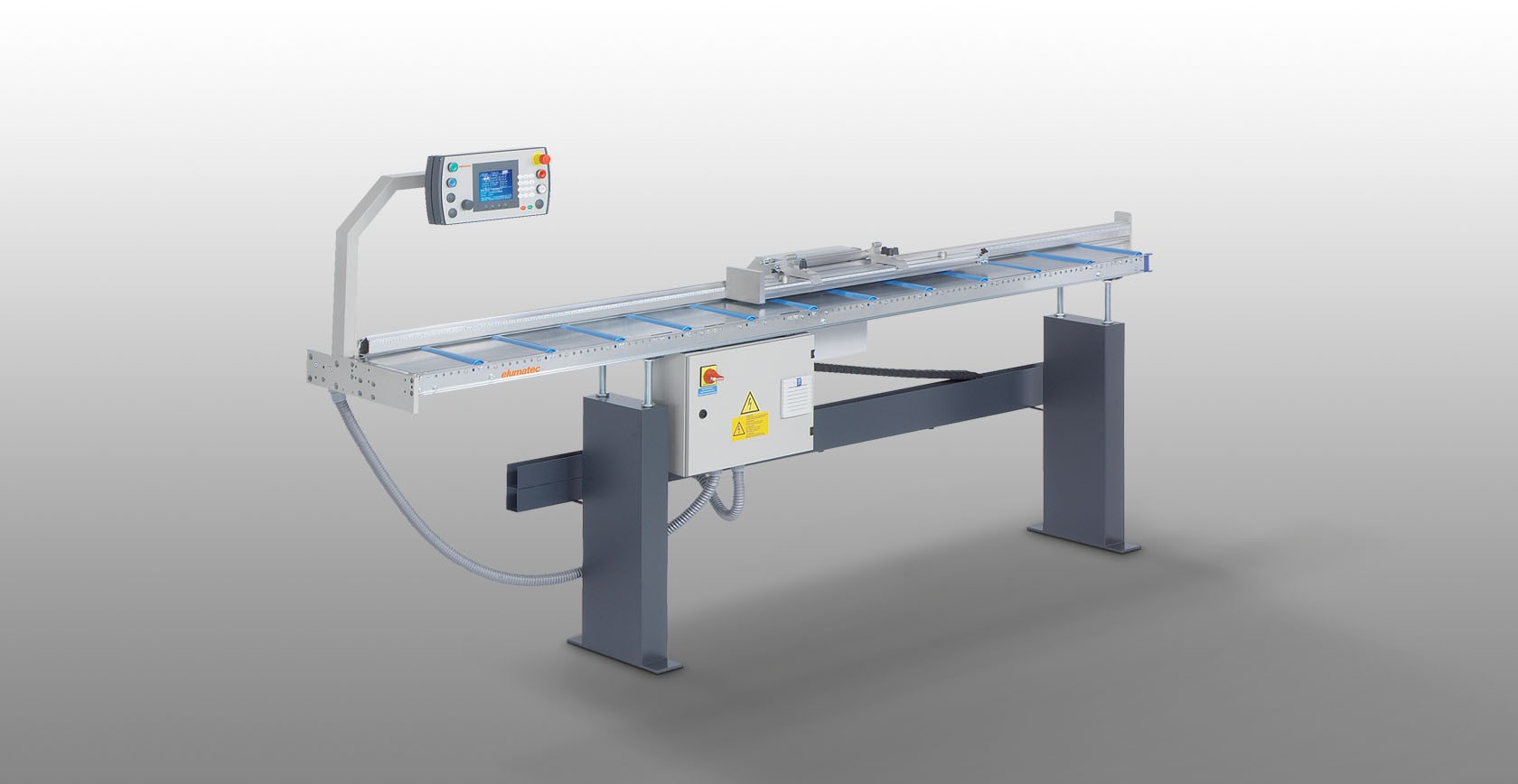

AMS 200 with E 355 Length stop and measuring system

Length stop and measuring system with automatic cutting length adjustment and E 355 positioning controller

  • For cutting aluminium profiles to length accurately
  • For mounting on all single-head saws (right-hand side)

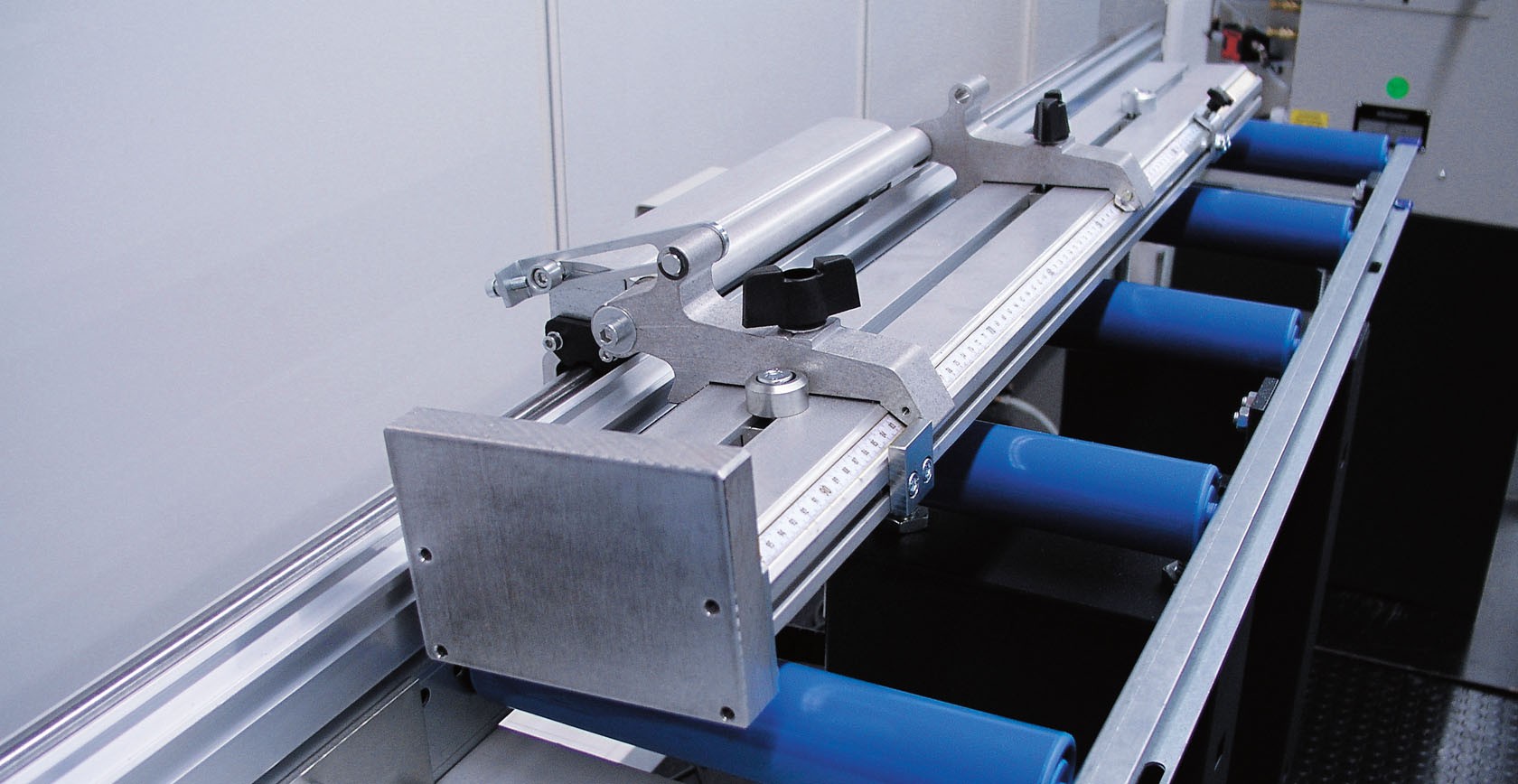

  • Stop carriage can be folded back for positioning of profiles
  • Automatic retraction unit: No re-cutting by the saw blade (option)
  • Patented rail and carriage system



Length variants

  • 3,000 mm
  • 4,500 mm
  • 6,000 mm



  • Special lengths on request
  • Variant for left-hand attachment on request



Optional

  • Label printer

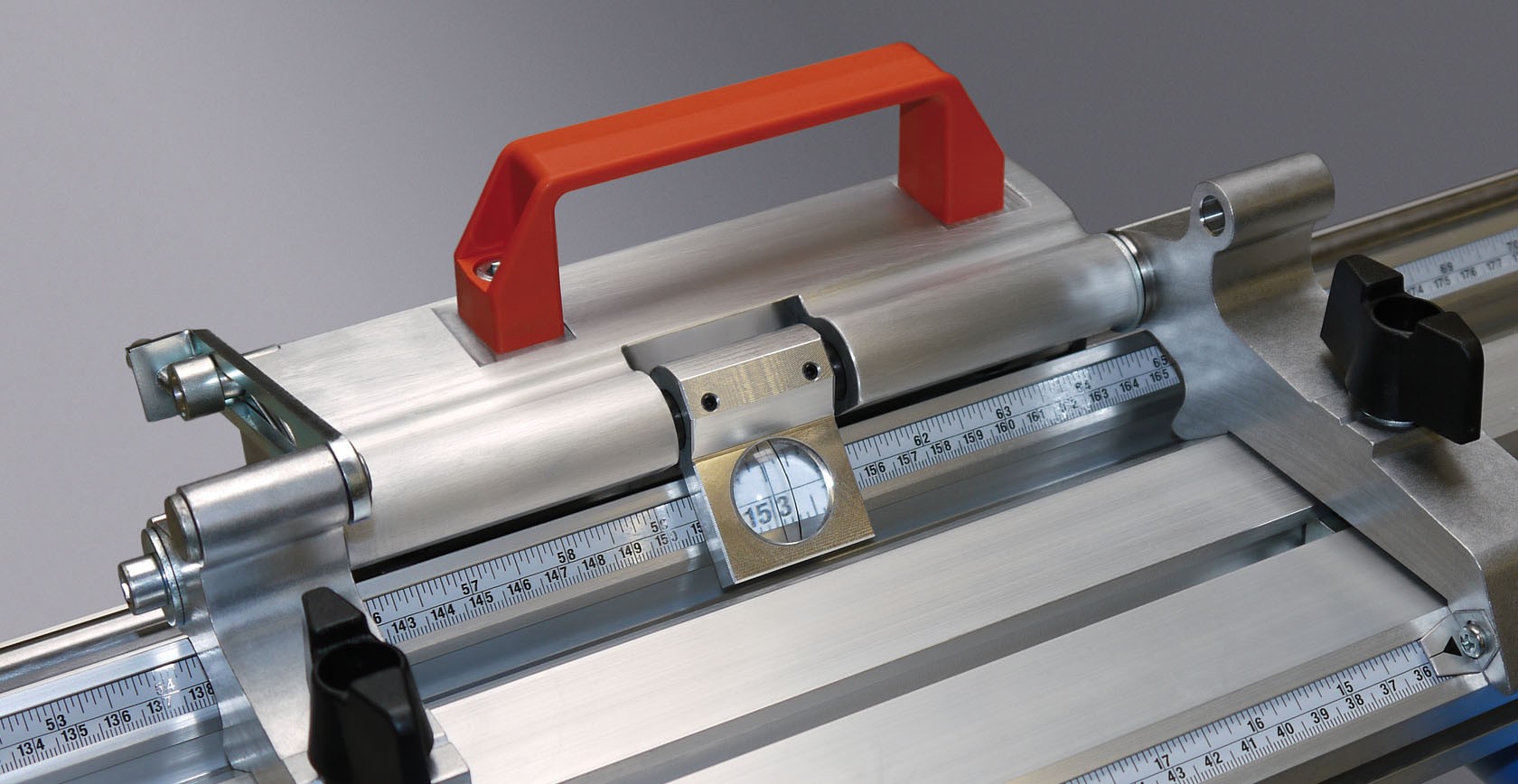

  • Measuring system is independent of drive
  • Positioning accuracy +/- 0.1 mm per metre
  • Power supply 230 V, 1~, 50/60 Hz
  • Pneumatic locking at position
  • 5.7" matrix display with membrane keyboard and hand wheel for navigation through the operation menus
  • Memory for 1,000 data records. Correction values for profiles
  • The block number, length dimension, profile number, angular position and quantity can be saved in the memory
  • USB port on the front
