AF 222/02 End milling machine
home
/
from a to z
/
A
Description
Technical data
For machining transoms and door profiles made of aluminium or plastic
Manual feed of the routing unit
Large cutting range of up to 400 mm
Continuously adjustable table height
Tool diameters of up to 280 mm can be used

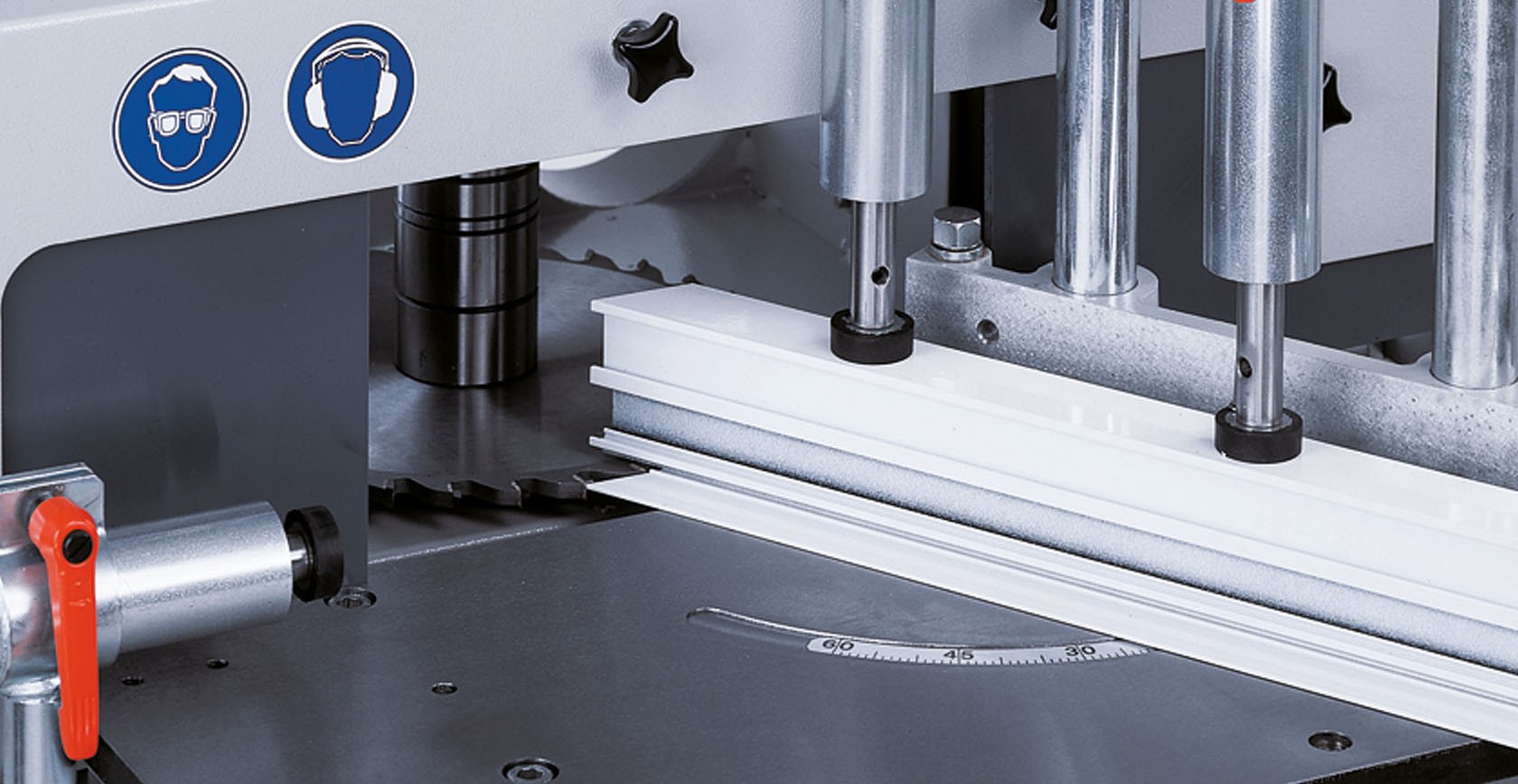

The material stop can be pivoted up to 60° to the left and right. Notching up to 30° (acute angles, left and right). Detent at 90° with index pin.
Two installation positions for the material stop
With quick tool change system and "Spindle Lock" for easy tool changing
Precise, smooth-action and low-wear recirculating ball guides

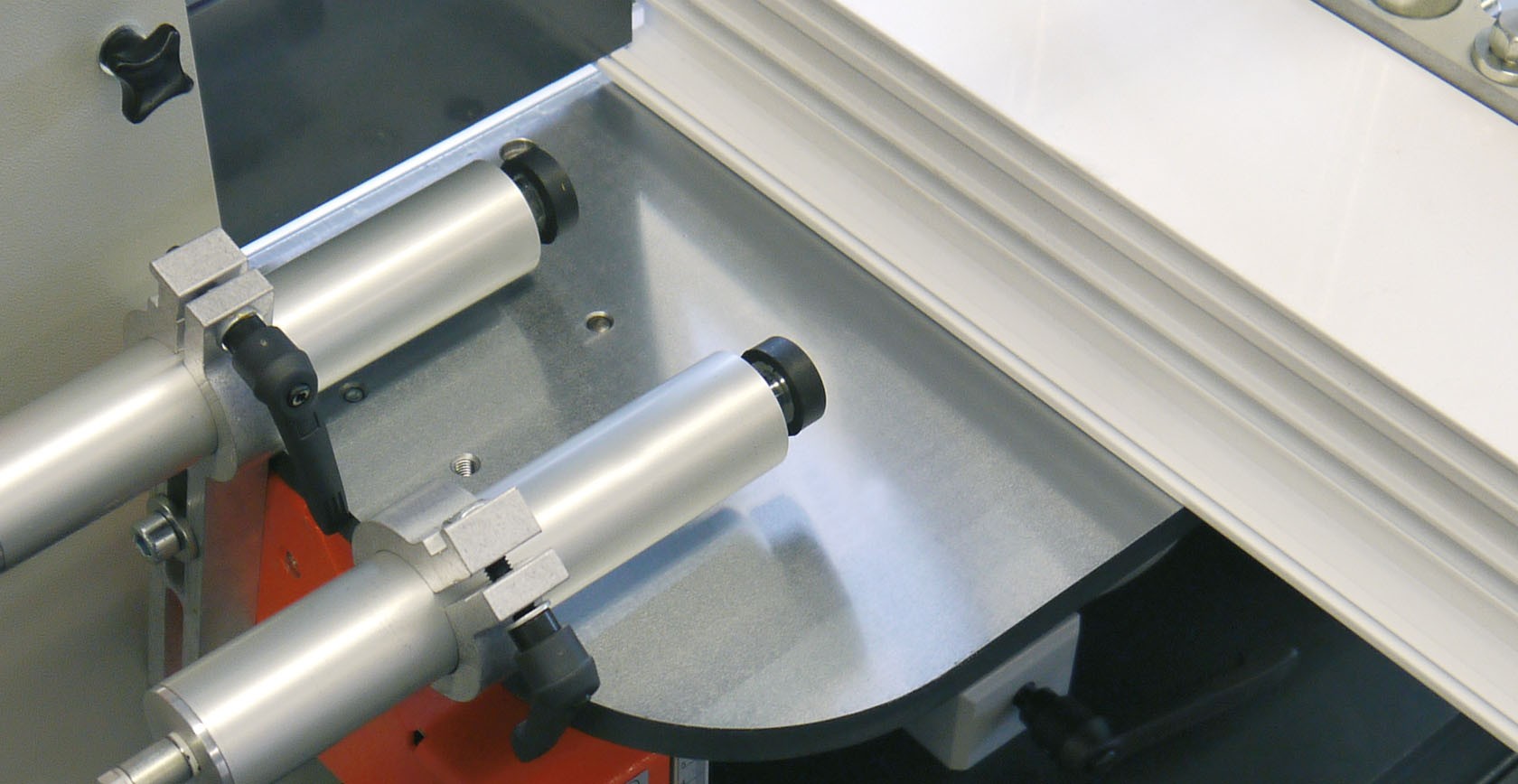

Horizontal and vertical pneumatic material clamping provides flexibility
Depth stop for four different notching depths
Integrated connecting piece with extractor hose for connection to an extraction system
Pulsed coolant system
Automatic safety curtain
Options
Extraction system
4-fold turret stop for table height
Digital display
Cutting tools
High performance cutting fluid
Cutting tool diameter max. 280 mm
Cutter bore 40 mm
Profile height max. 165 mm
Cutting height 145 mm
Cutting depth 110 mm
Cutting length 400 mm
Spindle speed 2,800 rpm
Travel 550 mm
2.5 kW of power at 400 V / 50 Hz
Compressed air supply 7 bar
Power output 2 kW
Air consumption 10 l per working cycle, 20 l with minimum-volume lubrication system
Length 1,540 mm, depth 905 mm, height 1,000 mm, weight 248 kg
Request quote
picture_as_pdf
generate pdf
info_outline
ask information

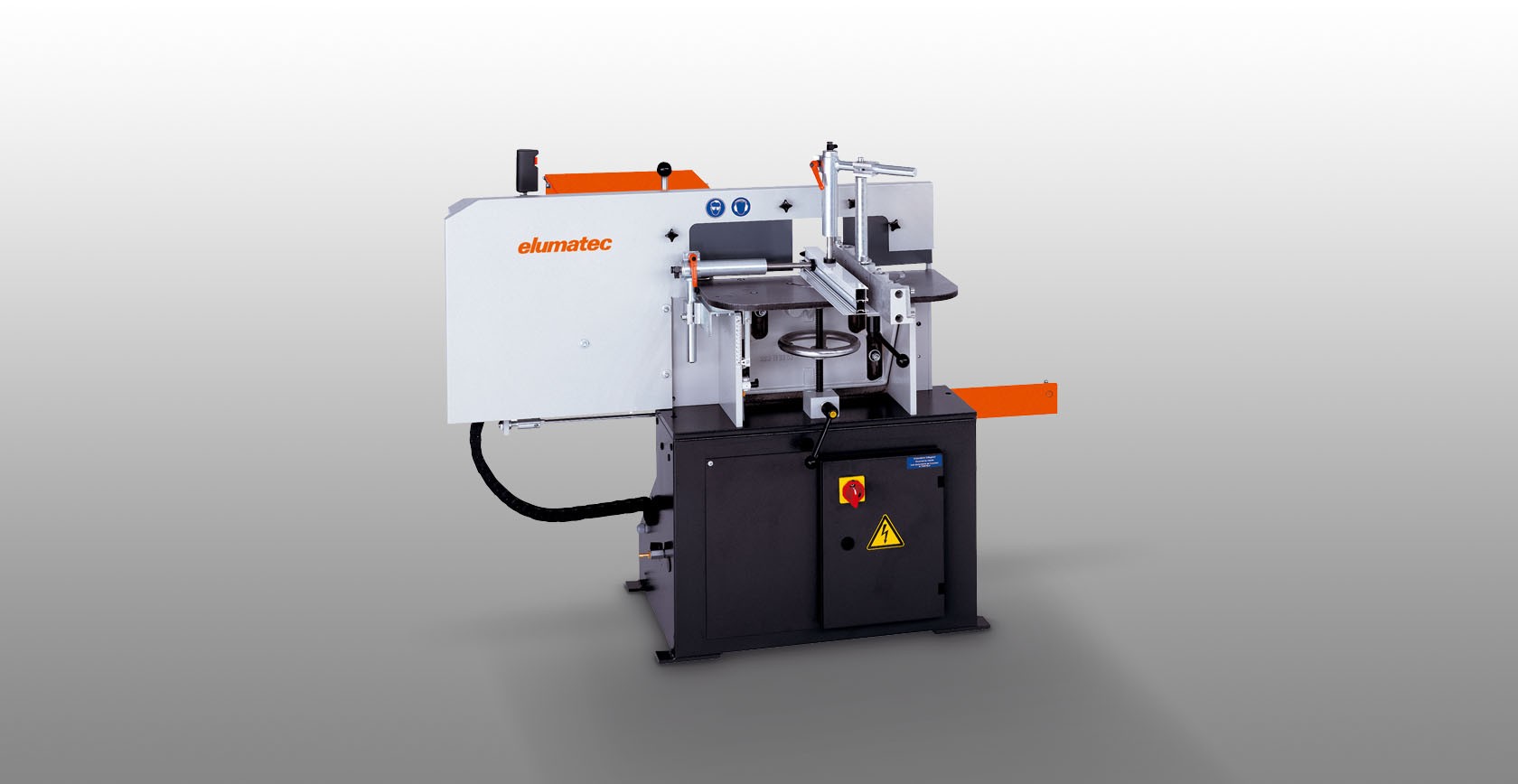

End milling machine AF 222/02
End milling machine AF 222/02
End milling machine AF 222/02
open video
Other Products
ADS 259/00 Reinforcement screwdriver system
keyboard_arrow_right
AF 223/01 End milling machine
keyboard_arrow_right
AKS 134/00 Notching saw
keyboard_arrow_right
AKS 134/64 Notching saw
keyboard_arrow_right
AKS V-550 Notching saw
keyboard_arrow_right
AMS 200 with E 570 Length stop and measuring system
keyboard_arrow_right
AS 170/00 1-spindle copy router
keyboard_arrow_right
AS 70/44 1-spindle copy router
keyboard_arrow_right

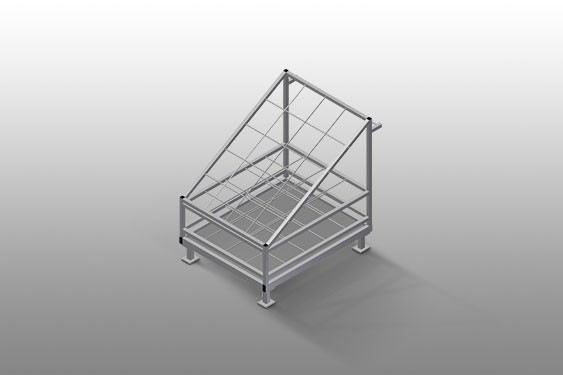

AW 1100 Reinforcement trolley
keyboard_arrow_right

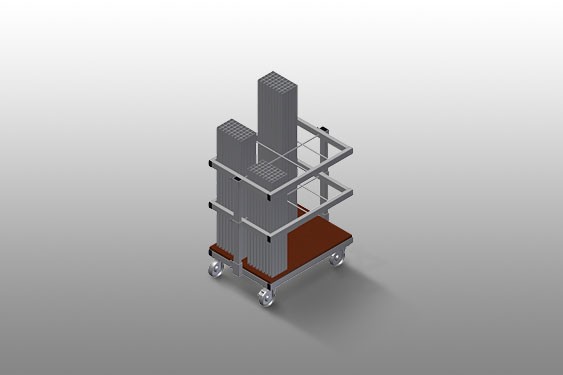

AW 800 Reinforcement trolley
