VE 3000 Inspection and glazing unit

Inspection and glazing unit for glazing and final inspection in individual and serial assembly line production

  • Stable steel construction
  • Quick and precise assembly of windows, doors and elements
  • Precision ensured through parallel clamping bar pressing technique
  • For glazing and functional checks
  • For connecting frames and sashes
  • Height continuously adjustable
  • Two pressing bars which fold down and can be moved pneumatically
  • Easy operation by means of foot switch
  • 4-fold compressed air supply



Options

  • Lead-in rollers, cmpl., right
  • Lead-in rollers, cmpl., left
  • Profile protectors for support rollers
  • Tilt adjustment of 0° – 8°
  • Length 4,410 mm
  • Width 1,180 mm
  • Height 2,600 mm
  • Max. clamping width 3,000 mm
  • Min. clamping width 400 mm
  • Height adjustment 500 mm
  • Clamping bar height 2,300 mm
  • Clamping bar width 120 mm
  • Lower roller conveyor width 200 mm
  • Weight 470 kg
  • Load 200 kg
  • Compressed air supply 7 bar
  • Air consumption 35 l/min.

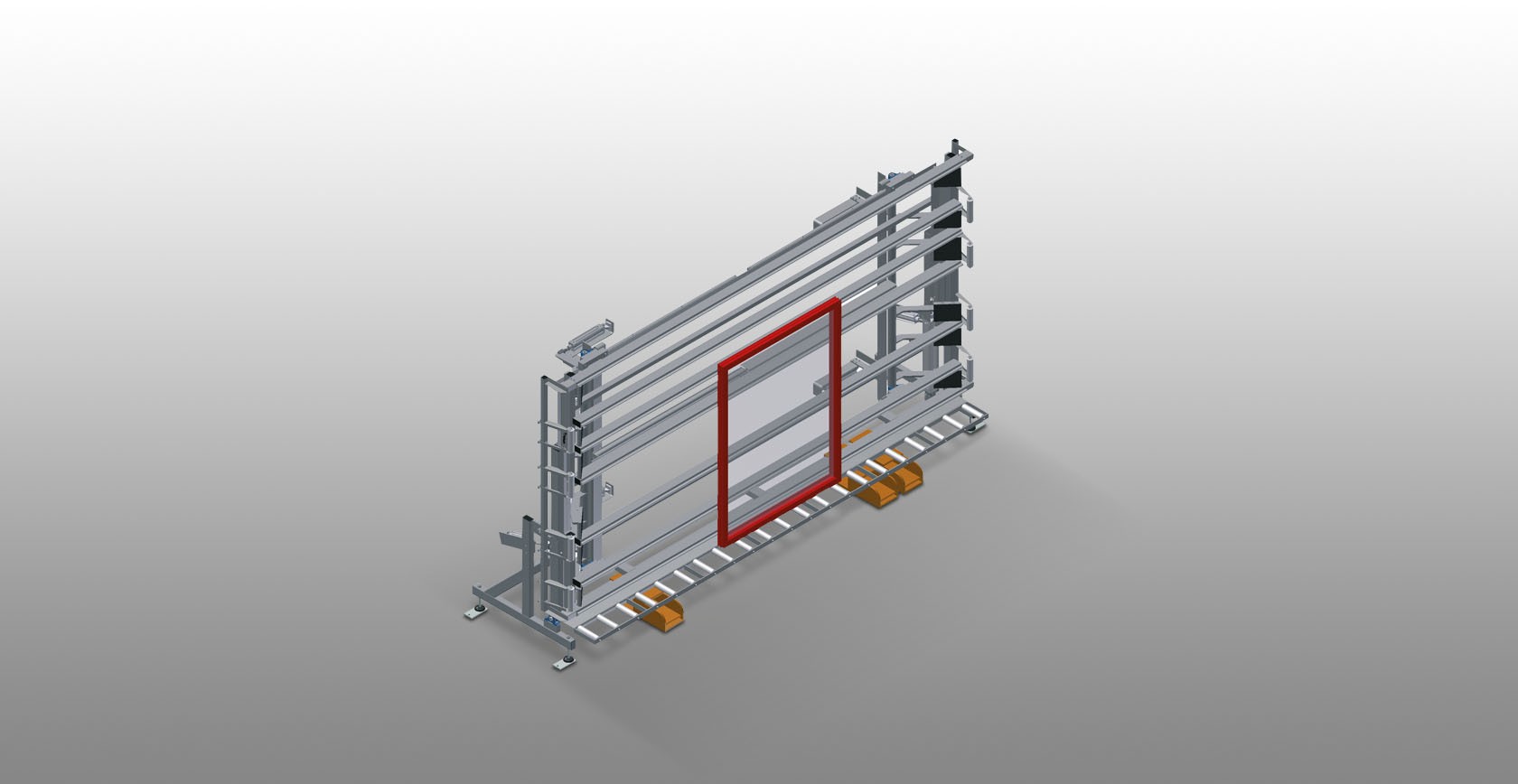

VE 3000 Inspection and glazing unit Inspection and glazing unit VE 3000 Elumatec

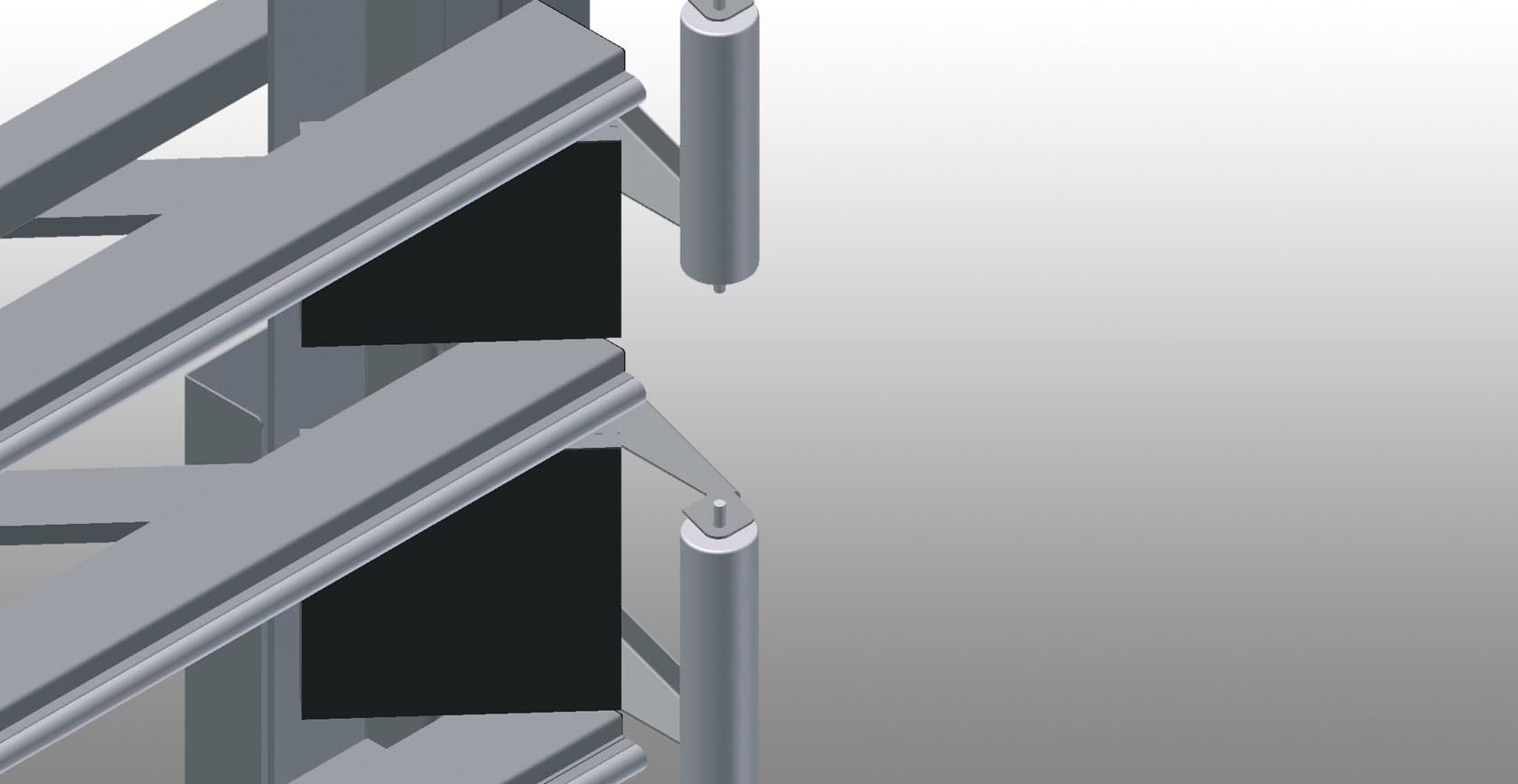

VE 3000 Inspection and glazing unit Pressing bar Elumatec
VE 3000 Inspection and glazing unit Back support Elumatec

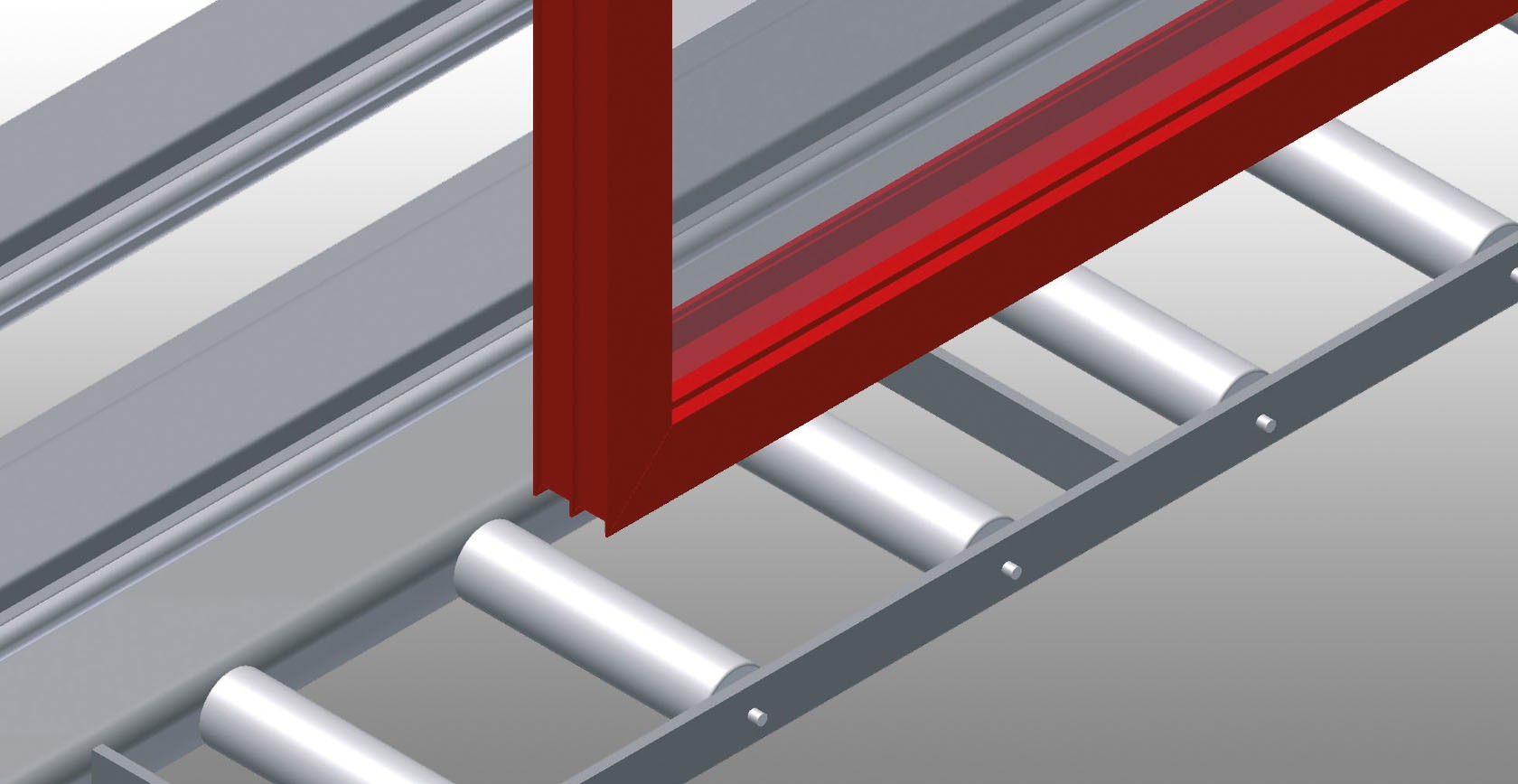

VE 3000 Inspection and glazing unit Supports Elumatec
VE 3000 Inspection and glazing unit Foot switch Elumatec
VE 3000 Inspection and glazing unit Profile protectors Elumatec
VE 3000 Inspection and glazing unit Tilt adjustment of 0° – 8° Elumatec
VE 3000 Inspection and glazing unit Lead-in rollers, cmpl., right Elumatec
VE 3000 Inspection and glazing unit Lead-in rollers, cmpl., left Elumatec
