SBZ628 XXL

Profile machining centre

home / from a to z / S

The SBZ 628 series offers ultimate flexibility in both machining and length cutting of aluminium profiles for metal construction and industrial applications. Its production reliability, speed, cost-effectiveness and impressive versatility make the flexible profile machining centre the perfect all-rounder. It allows fully automatic machining of various profile types, such as for windows, doors and curtain walls, using up to eight routing units that can operate freely on the profile cross-section in coordination with innovations such as combination clamping systems, travelling clamps and pivoting grippers.

SBZ 628 XXL: pass-through system for windows, doors and curtain walls

Up to eight spindles for routing or drilling
Different separating cut strategies from 22.5° to 157.5° (pivoting)
Additional saw unit from 45° to 135° (tilting)
Combined notching
Quick-change systems for tension rollers and clamping plates for atypical profiles
Mode for manual insertion and clamping of non-stationary profiles.

Machine configuration

Left loading magazine for automatic production processes
The routing spindles can be positioned continuously over 360° on the profile bar, and the cutting angle can be adjusted continuously over 360° for machining profiles in various clamping situations
A generously dimensioned noise abatement enclosure and the easy-access controls and maintenance elements simplify operation
Machined profiles are placed gently onto the unloading magazine
Versions customised to meet specific customer requirements can be designed upon request

Options

Bar lengths up to 10,500 mm
Expansion options for outfeed of up to 6,000 mm/8,000 mm
“Full bar" outfeed
Outfeed of short parts >150 mm
Cycling short parts (in single bar mode) >50 mm >150 mm
Round tube machining
Additional arms in the infeed
Label printer
Vapour extractor
Air conditioner, control cabinet for ambient temperature <35 °C
Tools
Saw blades

Request quote

Infeed loading magazine

For the SBZ 628 XXL, five to ten profiles with a length of 1,500-7,600 mm can be loaded depending on the profile cross-section. The SBZ 628 XXL is equipped as standard with five support swing arms and eight rollers. For all models, up to nine support swing arms and lifting rollers are available. For the SBZ 628 XXL, residual pieces are processed fully automatically using the loading magazine and residual piece measurement (optional).

Gripper system

The gripper system moves even complex profile cross-sections into position for machining with precision and speed using a linear servo drive. For the SBZ 628 XXL, the motorized gripper system can be automatically adjusted both vertically and horizontally using the profile-specific parameters. The SBZ 628 XXL also offers continuously adjustable 360° rotation.

Profile clamping

The roller tensioners secure the profile reliably and fully automatically. They can be moved over the entire length of the profile and can even be adjusted during the machining cycle. This allows them to compensate for profile tolerances and to ensure that a wide range of profiles are clamped exactly as required, including those with challenging geometries.

Machining module

The eight spindles for flexible application on the profile cross-section allow machining of profiles at any desired combination of angles between 0° and 360°. Generous dimensioning of the opening and the servo drive travelling ranges also allow larger cross-sections to be machined. Machining is performed either “on the fly” using a pusher X axis, or while stationary with a second X axis, for example with thicker profile walls. In this case, the profile is positioned using the pusher X axis and is secured using the plate clamps in the combination clamping system. The roller tensioner reduces the clamp spacing to achieve perfect routing results. The machining area is easily accessible from the front and, in combination with the HSK-C 40 tool holder, allows the machine to be converted quickly when required.

Profile outfeed with unloading magazine

For all models, an external gripper places the machined profiles gently onto the outfeed conveyor. The clamping system, which moves the external gripper into position during length cutting, ensures controlled transfer and a defined withdrawal of the good parts, even with very short lengths. If needed, profile guide rollers and clamping plates can be adapted quickly by means of a quick-change system to accommodate special profile shapes. In manual insertion mode, even profiles which are more complex can be machined and cut to length using customized automation.

Cutting unit

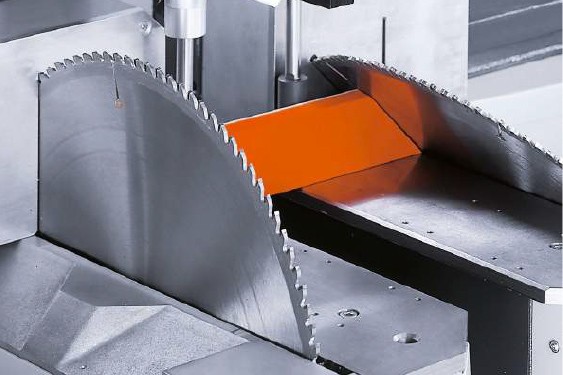

An additional saw unit expands the machine’s capability and enables separating tilted cuts between 45° and 135° and other horizontal cutting strategies.

Technical data

Other Products

SBZ 628 XXL
Max. profile cross-section (WxH)	320 x 160 / 160 x 320 mm
Min. profile cross-section (depending on gripper position)	30 x 10 mm
Blank bar length	7,600 mm
Finished part length	350-7,600 mm
Short parts (50-150 / 150-350)	Optional

Feed magazine
Shortest blank bar length	1,500 mm
Number of swing arms	5 (option for 9)
Mounting positions	10 (above 120 mm 3-5)

Infeed
Servo drive	linear
Motorized gripper adjustment	Y/Z
Gripper rotation	Standard
Residual piece measurement	Optional
Residual piece processing	fully automatic

Machining station
Axes	5
Router spindles	4 - 8 (servo-assisted)

Saw
Axes	3 + 3
Saw blades (diameter)	2 (550 mm), optional 650 + 550 mm
Sawing angles	22.5° - 157.5° (pivoting) 45° - 135° (tilting)
Notching	Standard (above and behind)

Outfeed clamping carriages
Axes	1
Cycle operation (short parts)	Optional

Outfeed conveyor
Lifting station	Yes
Number of swing arms	8
Outfeed conveyor width	4,000 mm (can be extended)
