DW

Gasket trolley

home / from a to z / D

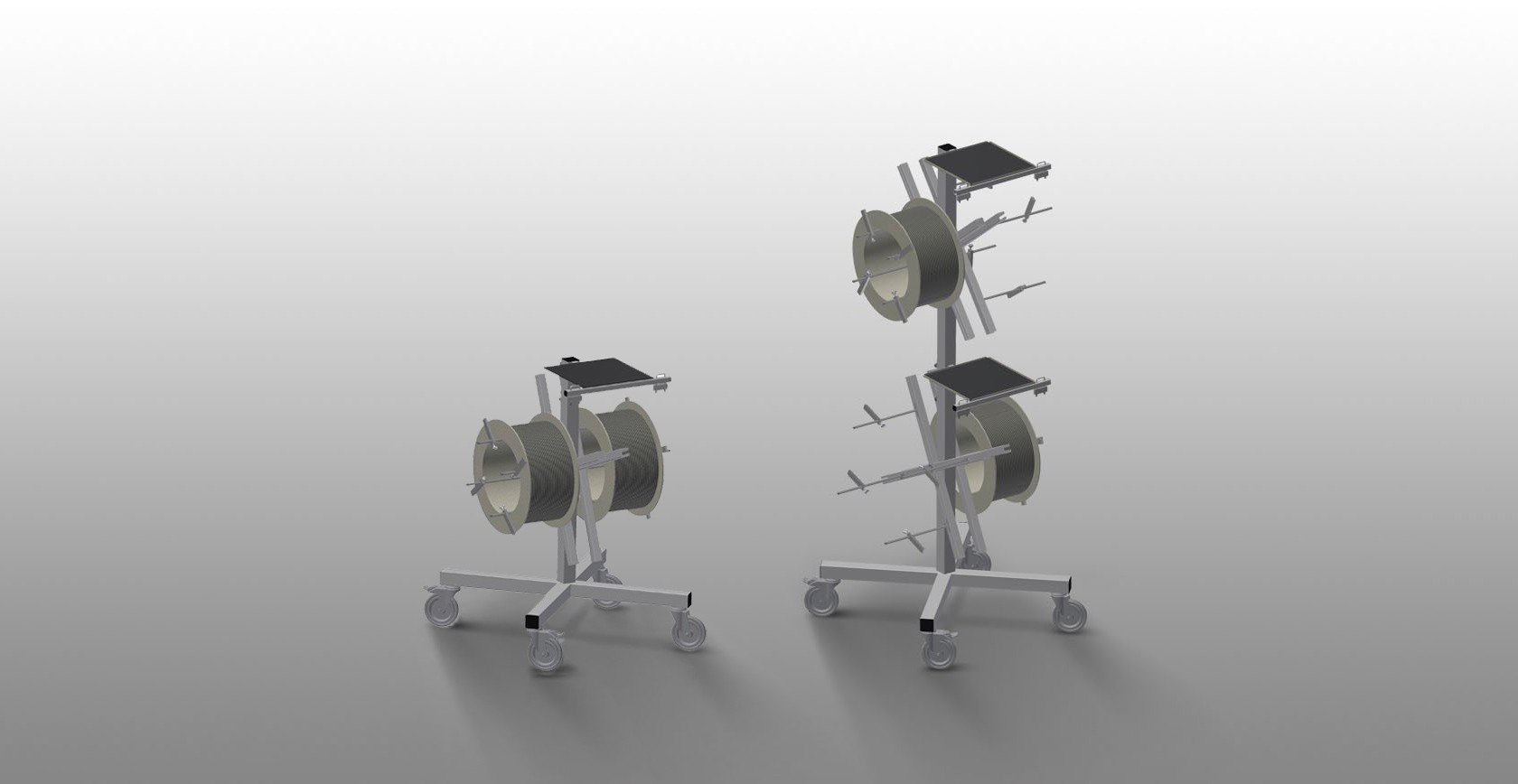

Gasket trolley for gasket reels. Stable steel construction. 2/4 reel mounts, according to model. Indispensable for gasket insertion. Adjustable for any reel diameter. Tool tray. Four swivel castors, two of which with locking stop.

Request quote

Casters

Four casters, two of which have a fixing brake, provide a high degree of mobility and easy, safe handling

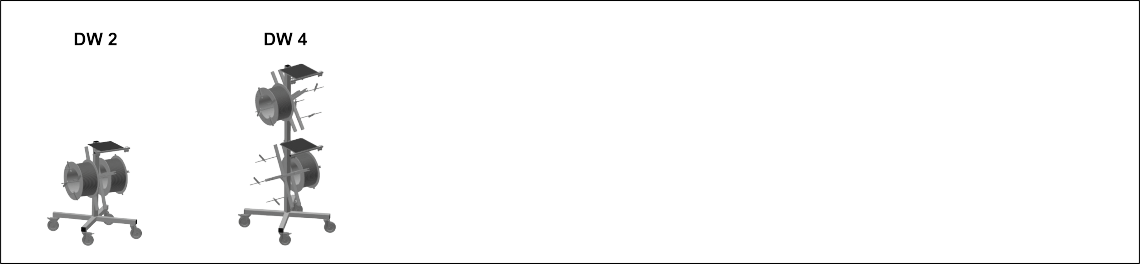

Reel mounts DW 2

For two gasket reels. Mounts adjustable for any reel size.

Reel mounts DW 4

For four gasket reels. Mounts adjustable for any reel size.

Storage area for tools

Practical tool tray located at working height

Unwinding brake

Unwinding brake for each reel

Technical data

MODELS

DIMENSION AND WEIGHT

DW 2 / DW 4

Length (mm)

700

Width (mm)

700

Height (mm)

1.005 / 1.870

Weight (kg)

25 / 40

CHARACTERISTICS

DW 2 / DW 4

Reel holder

2 / 4

Maximum reel diameter (mm)

750

Maximum reel width (mm)

250

Swivel castors

Swivel castors with locking stop

Swivel castors diameter (mm)

125

Included

Available
