ALU PVC STEEL

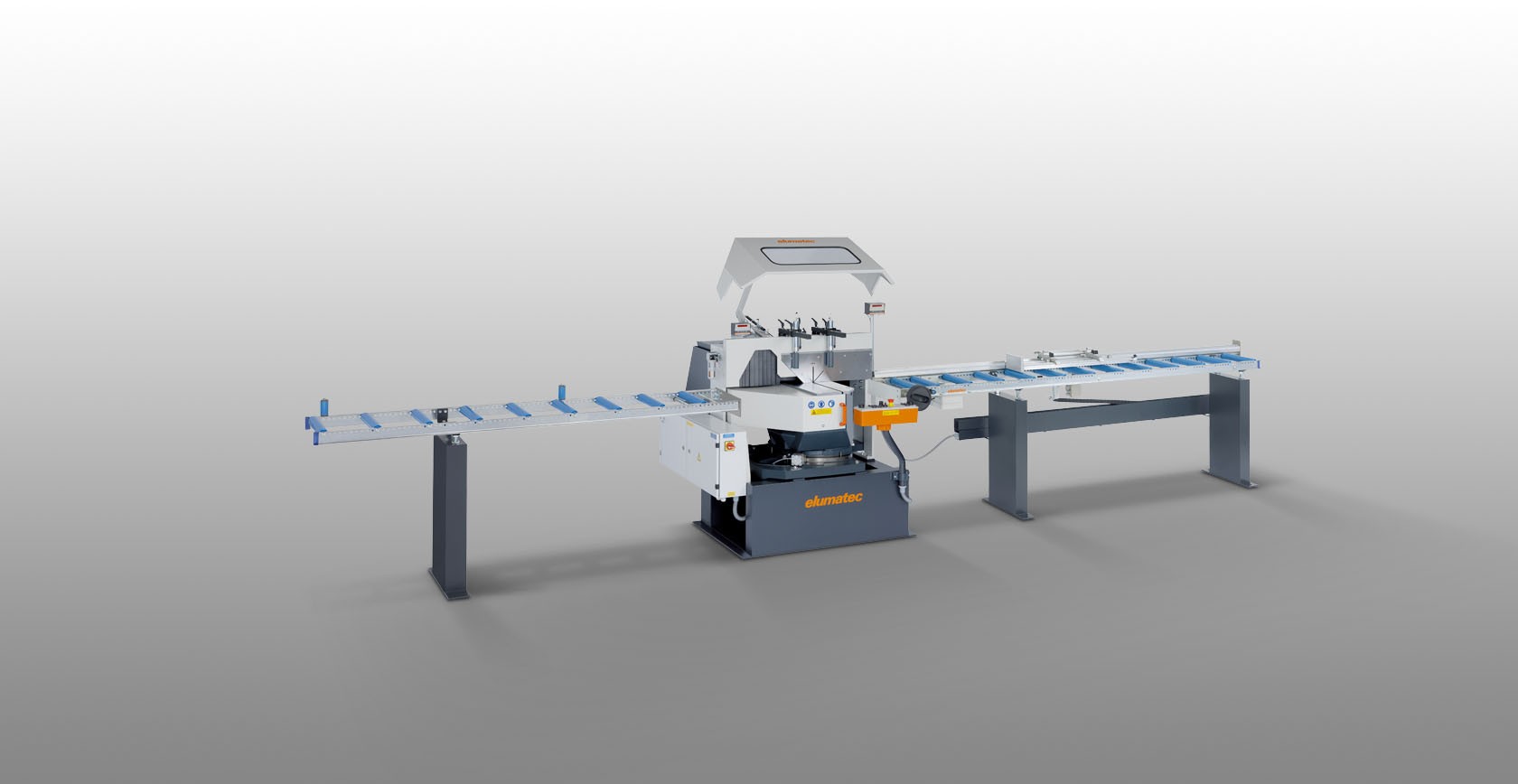

MGS 105 Mitre saw

The universal saw for special applications

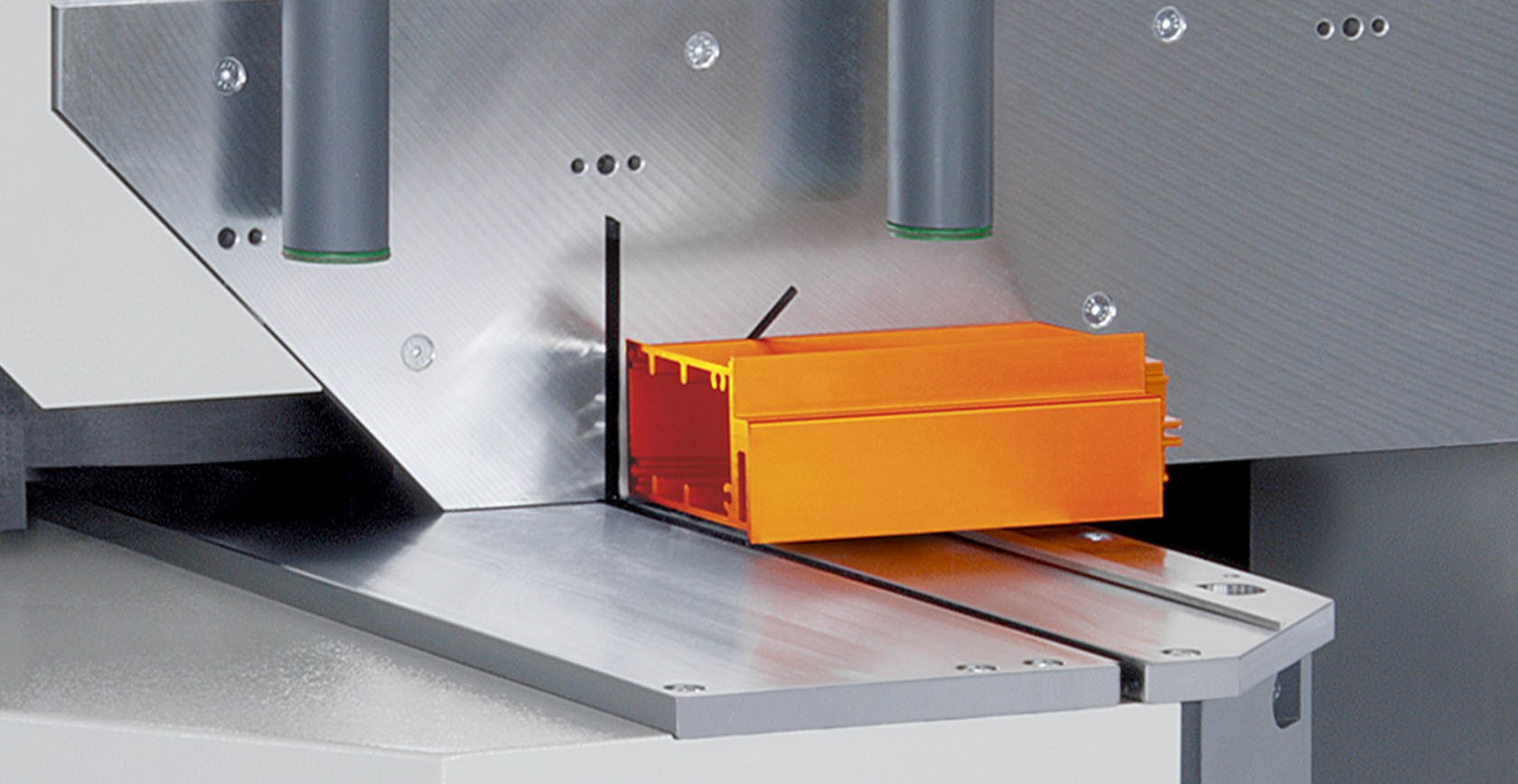

  • The reliable elumatec principle “Cutting from below”:
  • Free access to the table surface for optimal loading and unloading of profiles
  • The patented saw arm suspension creates a cutting pressure towards the back fence which ensures safe clamping of the workpiece
  • Safety hood opens automatically
  • Pulsed coolant system
  • Equipped with saw blade as standard



Options

  • Extraction system

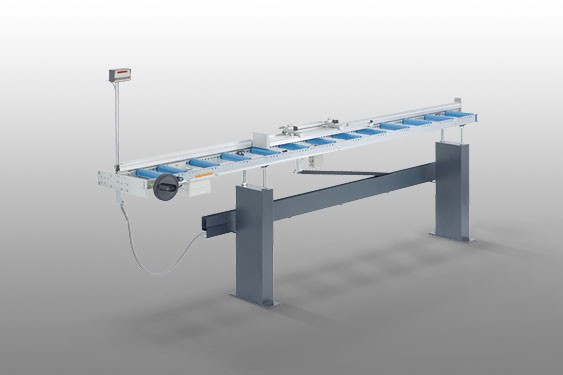

  • Length stop and measuring systems
  • Roller conveyors
  • Saw blades
  • High performance cutting fluid
  • Pivoting range manually 22.5° to the left and right with digital display E111

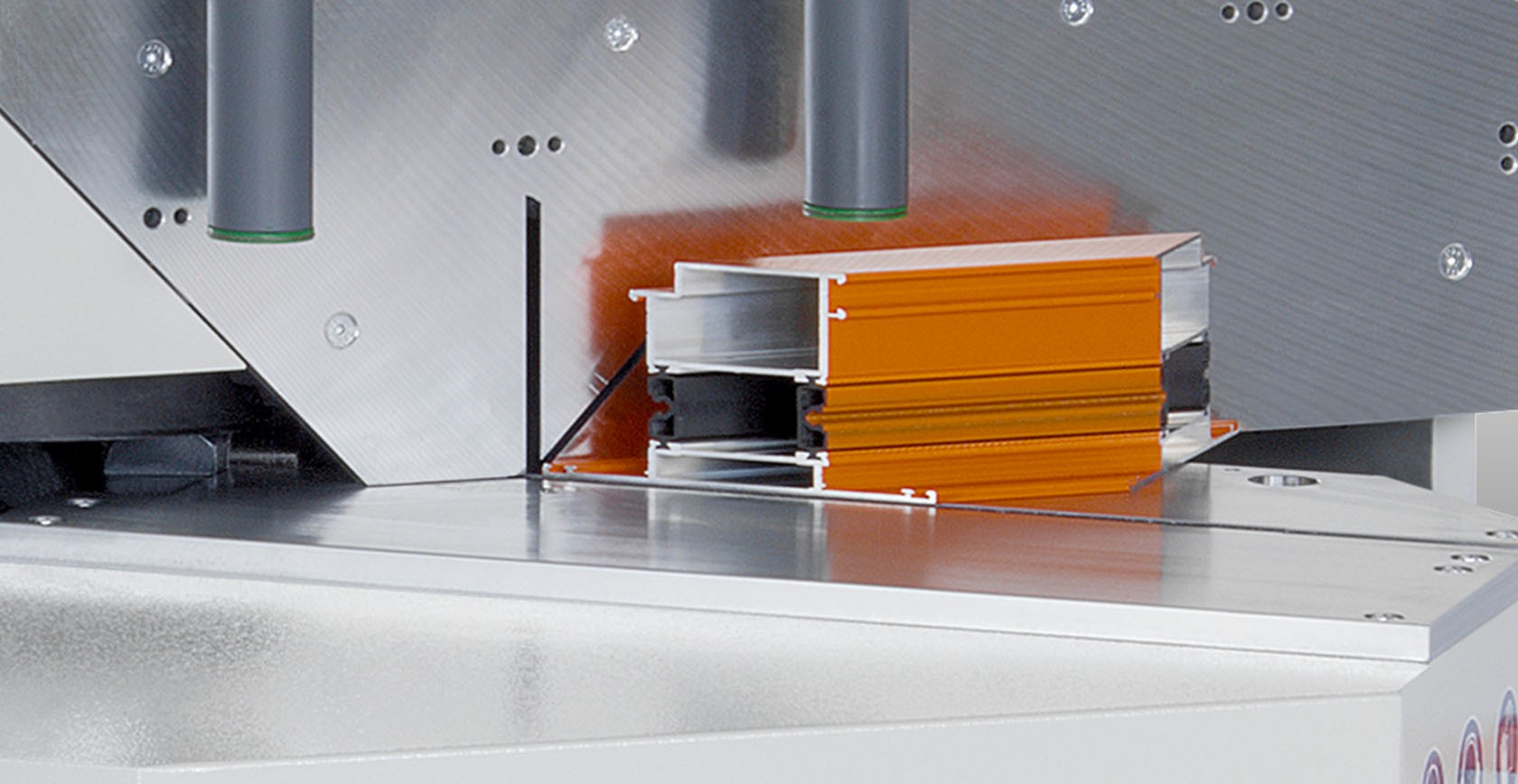

  • Tilting range pneumatically from 90° - 45°
  • For cutting range, see cutting diagram
  • Saw blade diameter 420 mm
  • Saw blade speed 2,800 rpm
  • Power supply 230/400 V, 3~, 50 Hz
  • Power output 4 kW
  • Compressed air supply 7 bar
  • Air consumption per working cycle 20 l without spraying, 32 l with spraying
  • Length 1,400 mm, depth 1,500 mm, height 1,880 mm, weight 750 kg
