ALU PVC STEEL

MS 3000 Assembly stand

Assembly table for vertical assembly

  • Stable steel construction
  • Ideal for vertical assembly
  • Suitable for lines
  • Infinitely variable intermediate positions for ergonomic working
  • Height adjustment by means of pneumatic cylinder
  • Roller support with steel rollers
  • Table supporting surface with plastic slide bars
  • Two horizontally adjustable profile clamps
  • 4-fold compressed air supply



Options

  • Pull-out profile support for MS 3000

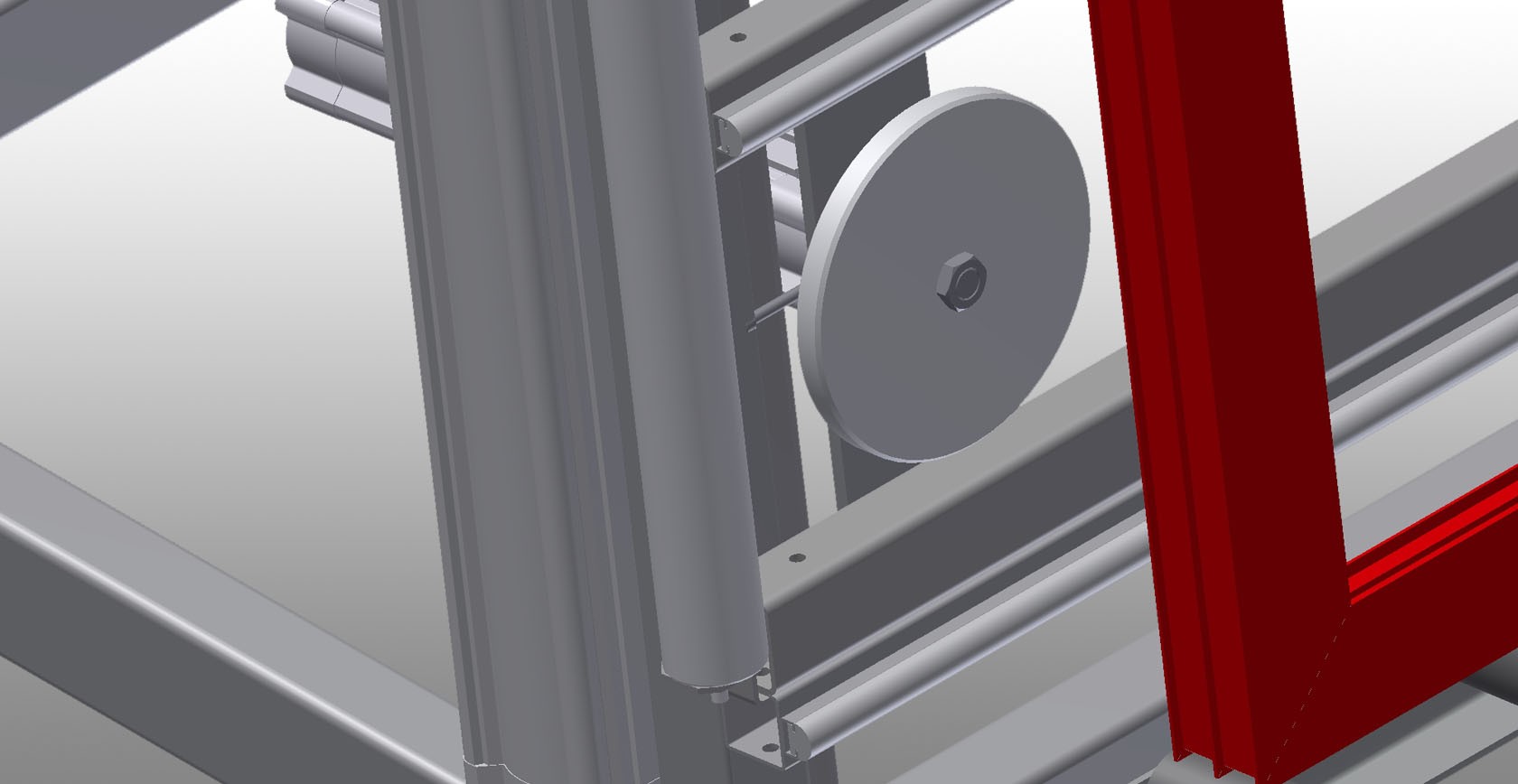

  • Positionable profile clamps
  • Holder plate for screw driving unit
  • Mobility unit
  • Rail

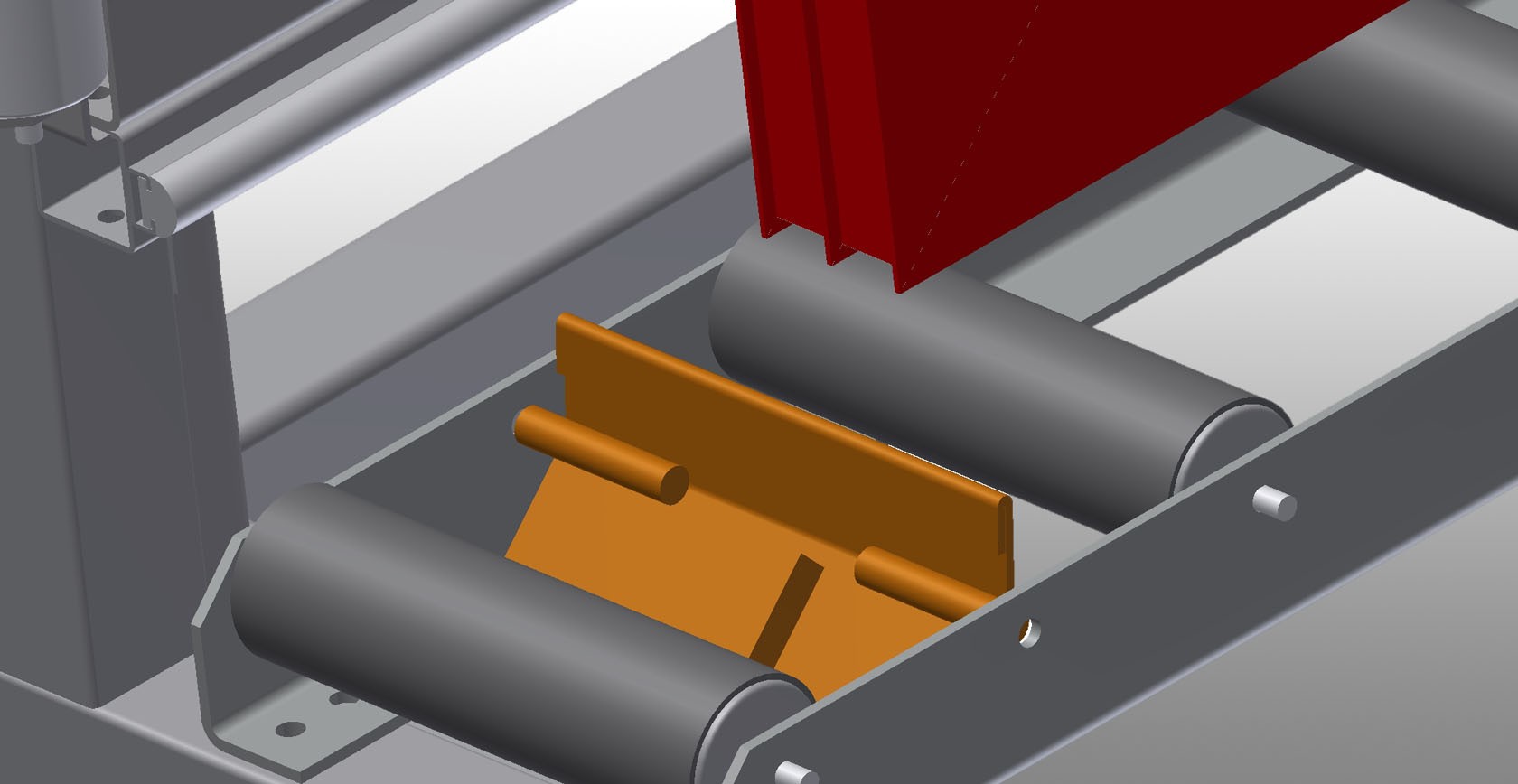

  • End stop
  • Profile protectors for support rollers
  • Length 3,110 mm
  • Width 1,200 mm
  • Vertical height 2,050 mm
  • Pneum. height adjustment 500 mm
  • Roller conveyor width 200 mm
  • Weight 330 kg
  • Load 300 kg
  • Compressed air supply 7 bar
  • Air consumption approx. 35 l/min.
MS 3000 Assembly stand Assembly stand MS 3000 Elumatec
MS 3000 Assembly stand Supporting surfaces Elumatec
MS 3000 Assembly stand Roller support Elumatec
MS 3000 Assembly stand Clamps Elumatec
MS 3000 Assembly stand Height adjustment Elumatec
MS 3000 Assembly stand Foot switch Elumatec
MS 3000 Assembly stand 4-fold compressed air connection Elumatec
MS 3000 Assembly stand Lead-in rollers Elumatec
MS 3000 Assembly stand Pull-out profile support Elumatec
MS 3000 Assembly stand Mobility unit Elumatec
MS 3000 Assembly stand Rails Elumatec
