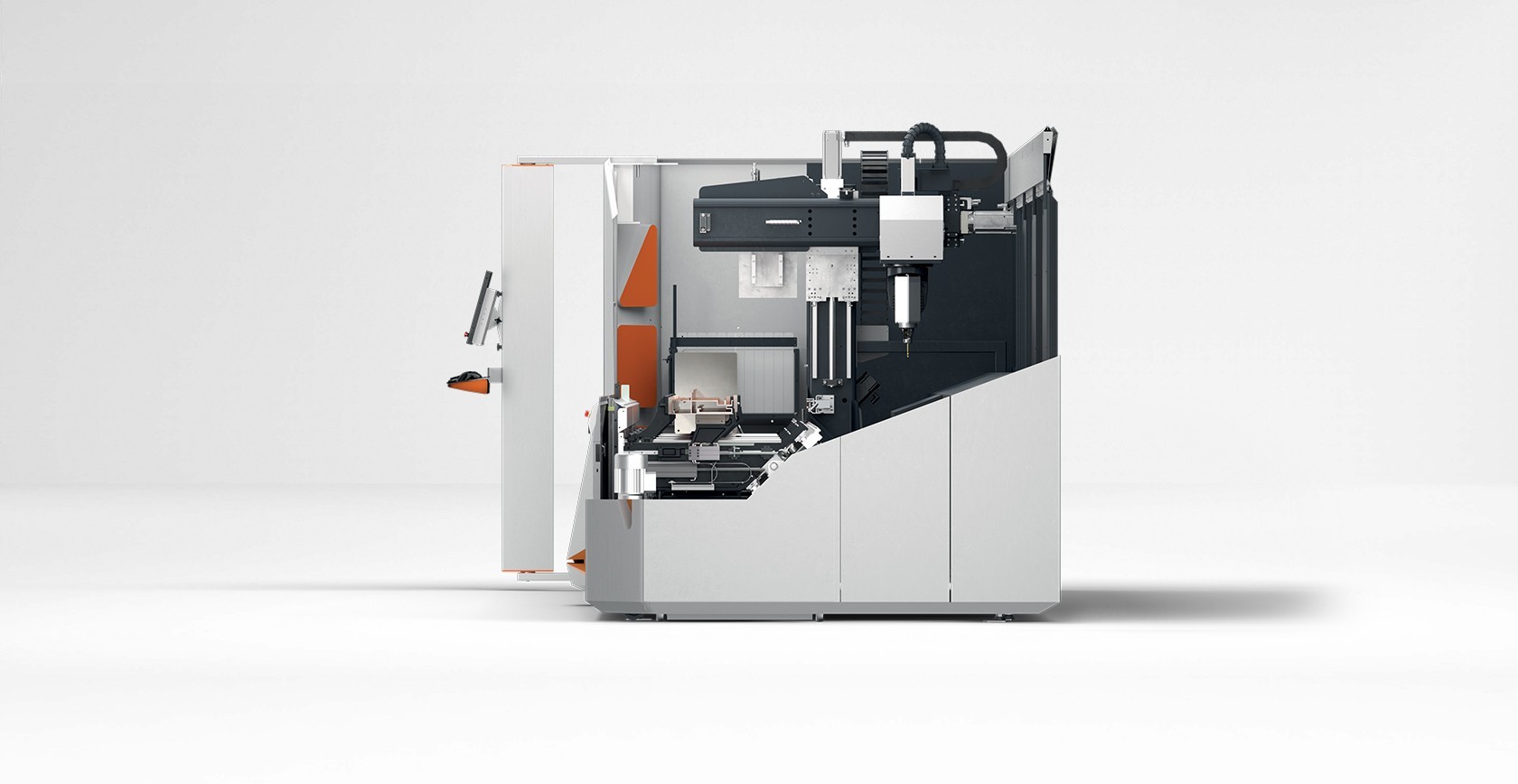

SBZ125/85


Profile machining centre

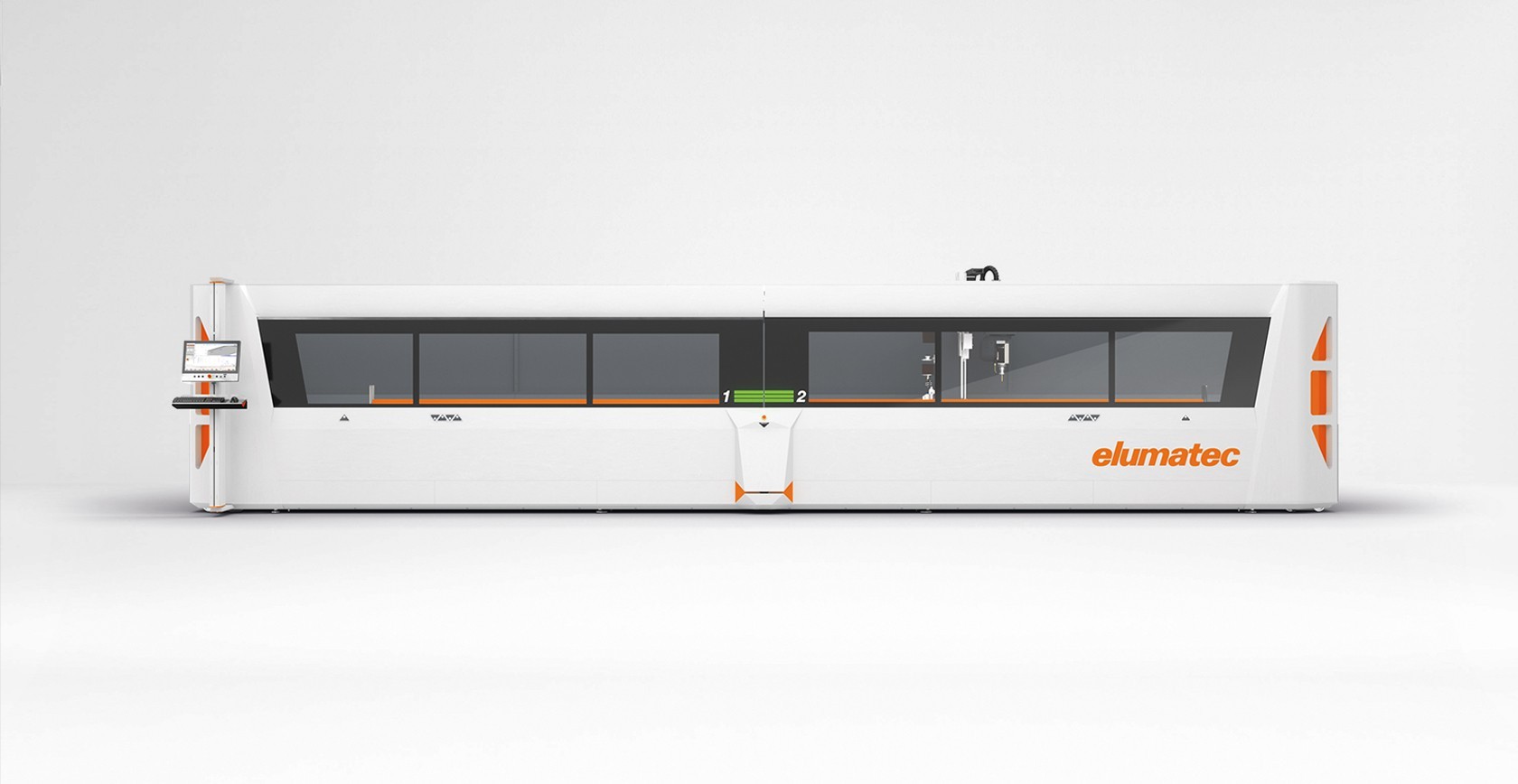

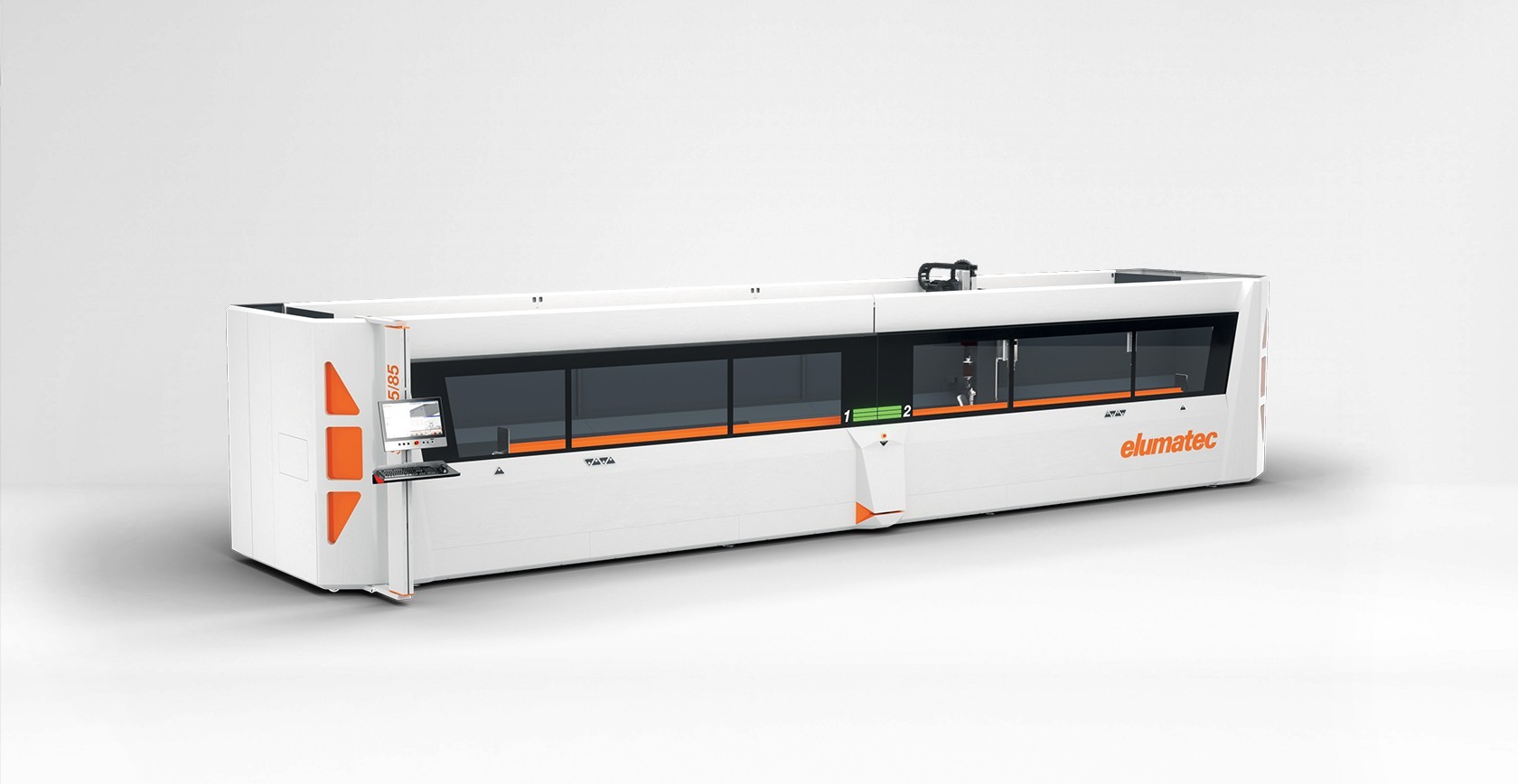

Save time, save space, save money: the SBZ 125/85 profile machining centre is supplied with an enclosed cabin machine with an eight-metre working length and five axes that can replace two smaller machines thanks to dynamic shuttle operation. When enhancing the successful SBZ 122 range, elumatec has used customer feedback to optimise ergonomics, access and set-up times. The new model makes machining aluminium, PVC and thin-walled steel profiles even more economical and efficient.



Cab machines are popular because they keep swarf contained and reduce noise, and elumatec has given the SBZ 125/85 integrated safety area monitoring with a fully programmable laser. The SBZ 125/85 is a major step forward for the elumatec range thanks to a new rotating control unit, extended functionality and new technology for faster tool changes, and more versions of the redesigned cabin machine are already in the pipeline. The SBZ 125/85 is also eluCloud ready in order to meet the requirements of Industry 4.0.

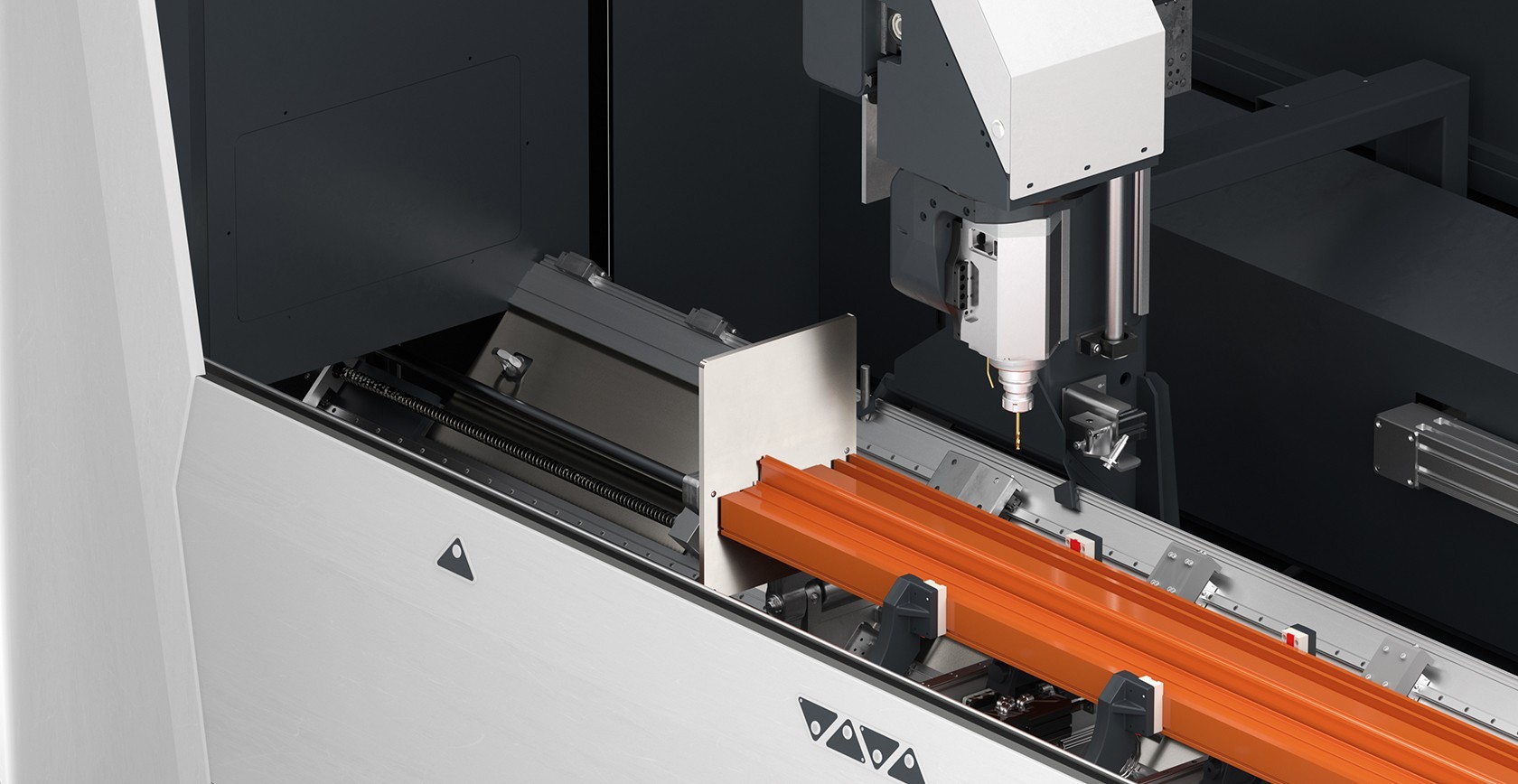

SBZ 125/85 Autonomus clamp positioning elumatec

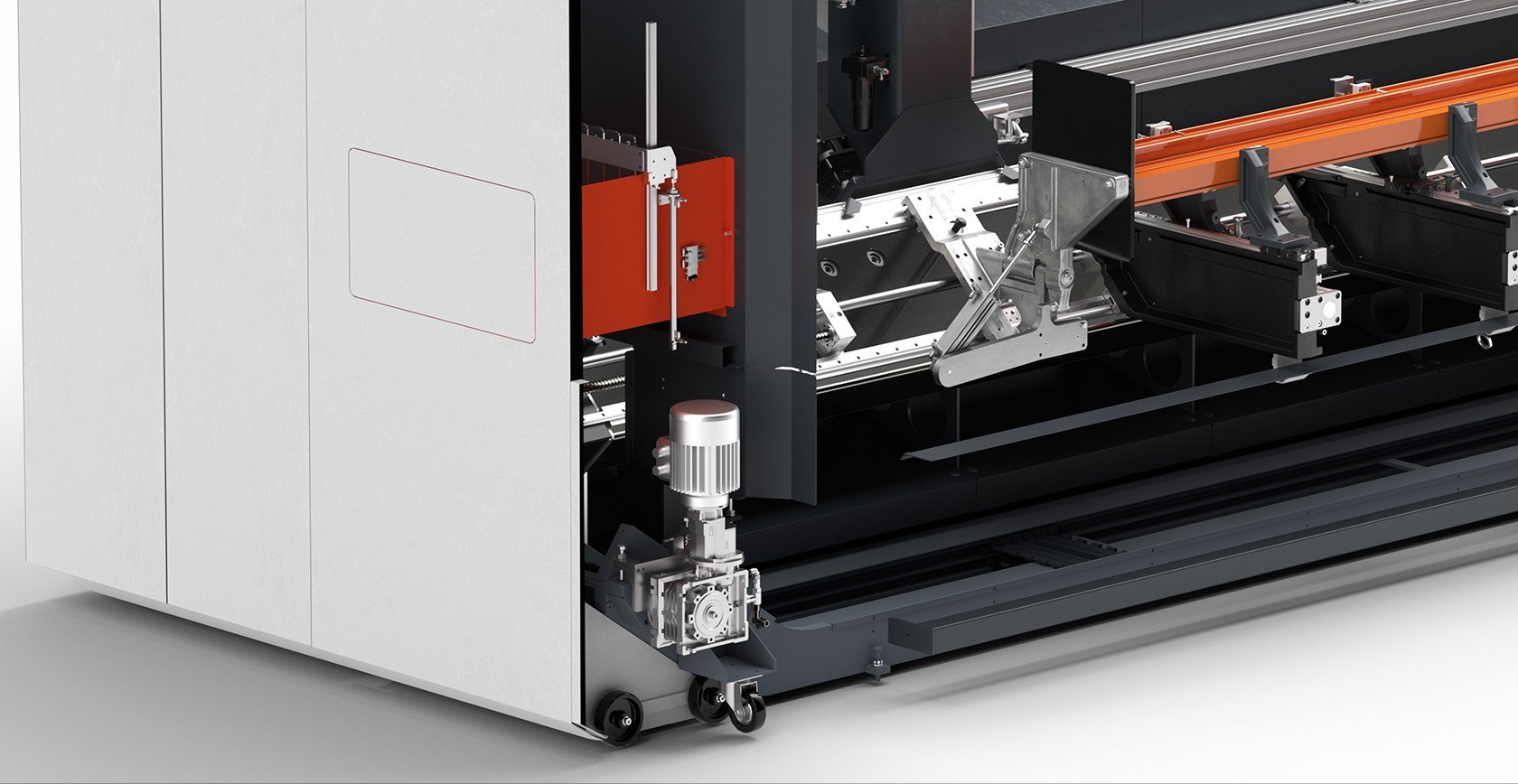

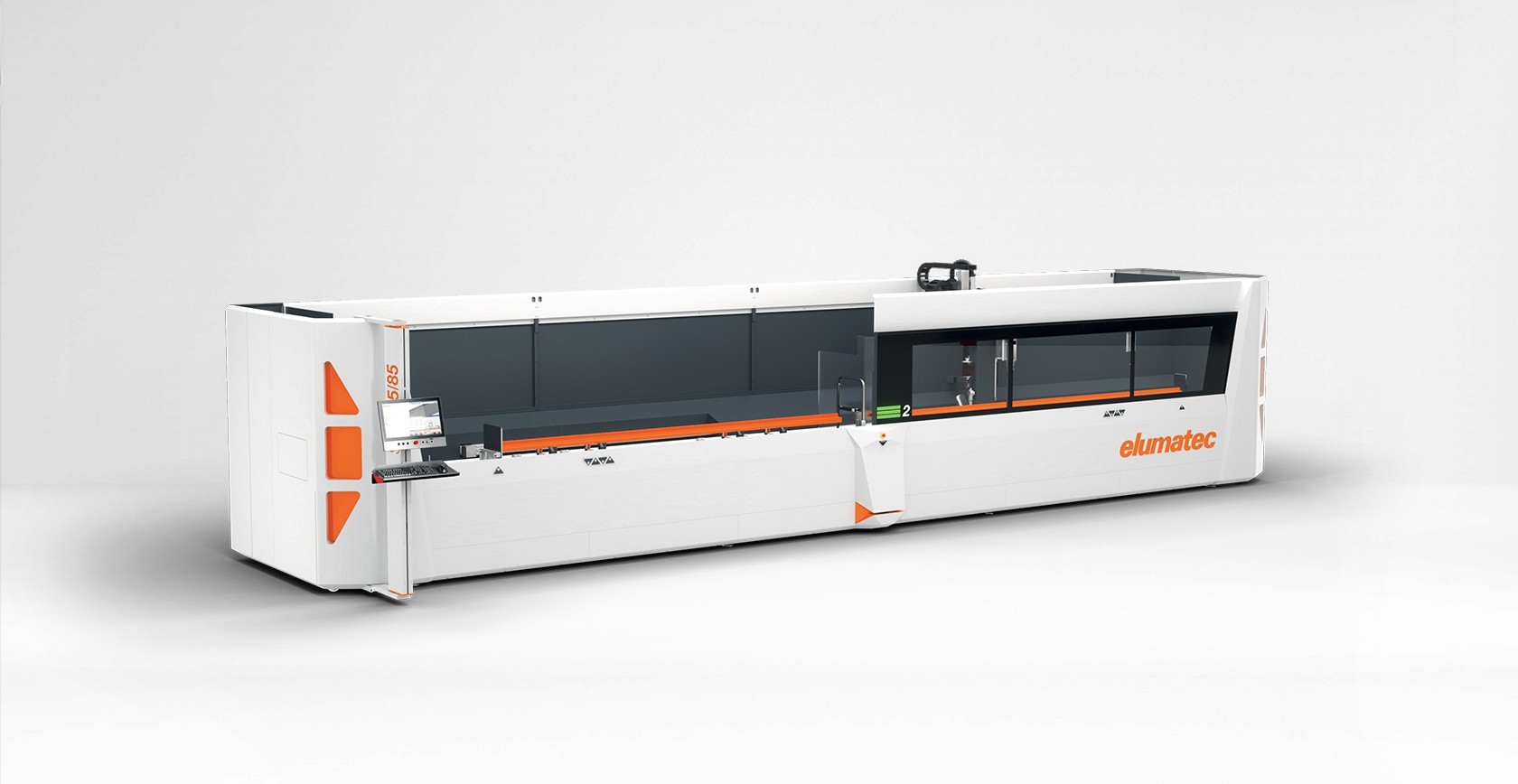

SBZ 125/85 Dynamic shuttle operation elumatec

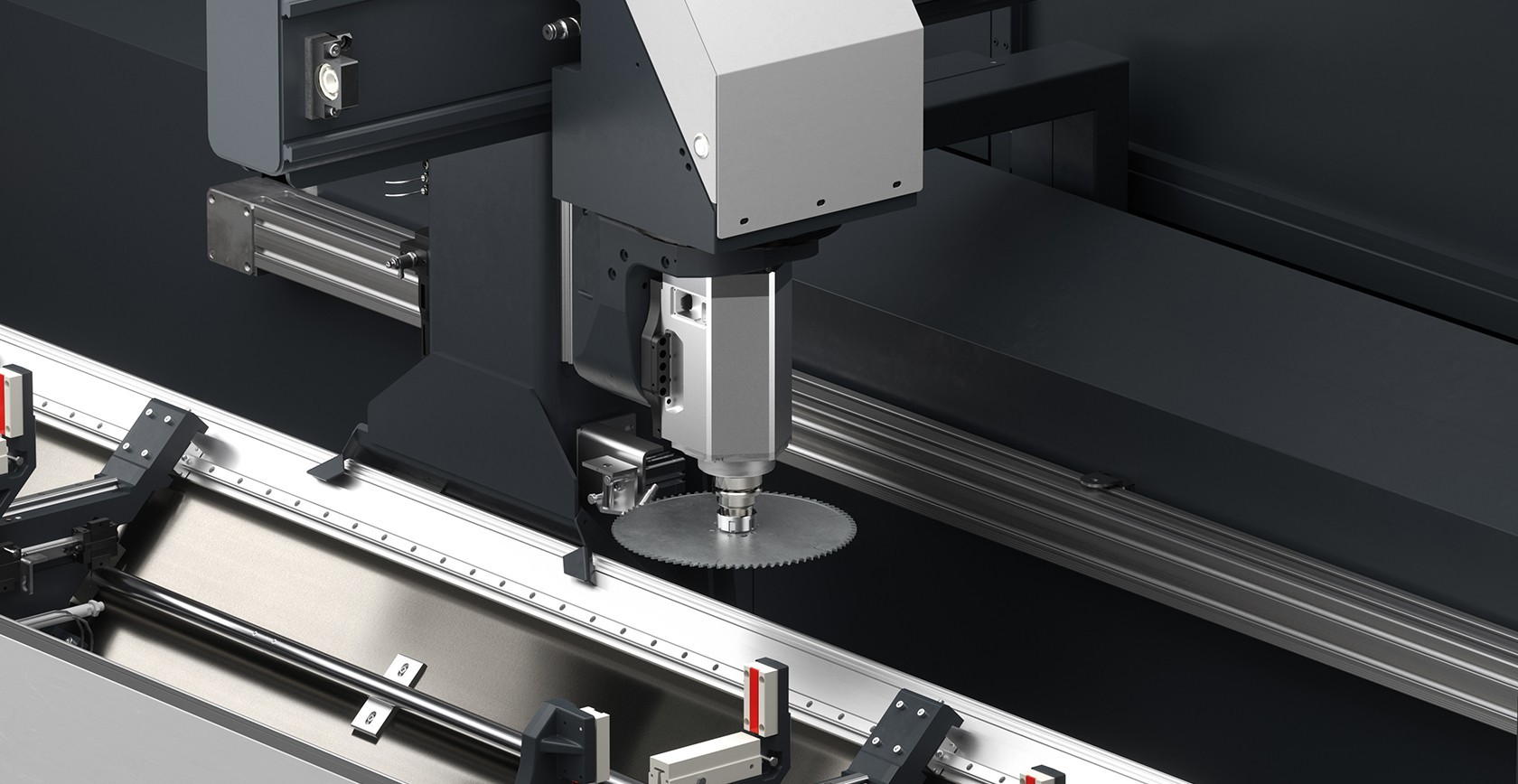

SBZ 125/85 New technology for tool changes elumatec
SBZ 125/85 Ergonomic optimized machining paths elumatec
SBZ 125/85 Optional chip conveyor elumatec
Technical data arrow_drop_down

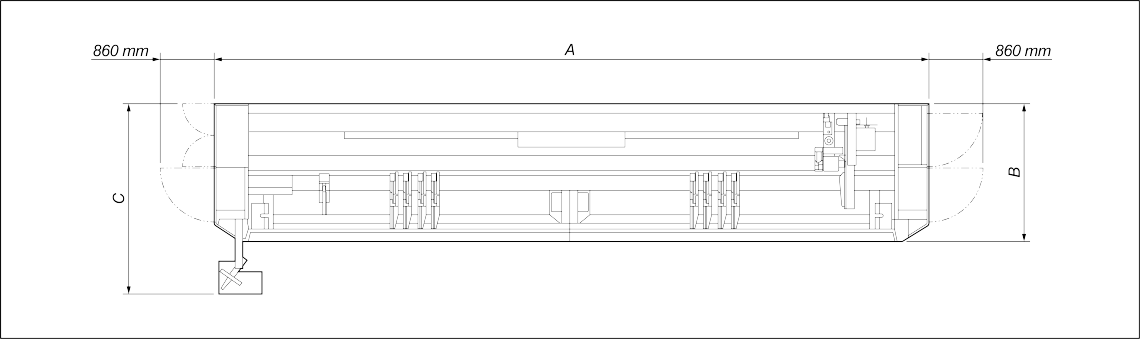

Dimensions
Depth
2,950 mm
Weight
approx. 6,400 kg
Height (with retracted Z-axis without optional roof)
2,500 mm
Total length
11,350 mm
Axis
Max. machining length without profile end machining
Shuttle operation 3.450 mm Combined operation 8.245 mm
Max. machining length with profile end machining
Shuttle operation 3.100 mm Combined operation 8.245 mm
Max. machining length for notching
Shuttle operation 3.300 mm Combined operation 8.245 mm
Positioning accuracy
+/- 0.1 mm
Direction of machining

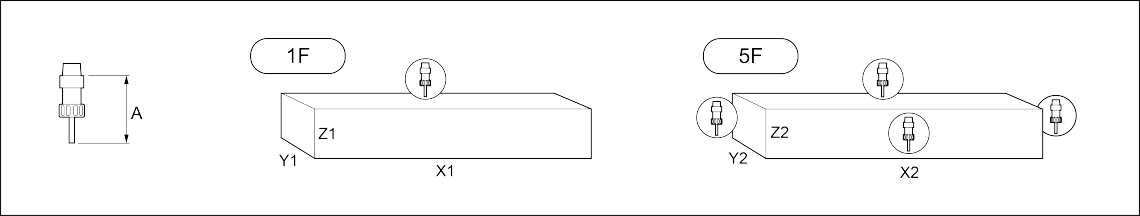

5 (above, behind, front, left, right)
X-axis traverse path
10,260 mm, Vmax. 100 m/min.
Y-axis traverse path
1,040 mm, Vmax. 60 m/min.
Z-axis traverse path
540 mm, Vmax. 30 m/min.
Spindle and tools
Disc milling cutter diameter
120 mm
Clamp positioning
autonomus
Clamps
8 standard (+ max. 4 optional)
Saw blade diameter
300 mm
Tool changing
automatic
Angle head
no
Routing spindle speed
max. 20,000 rpm
Routing spindle power
7 kW, S1 with feedback (air-cooled)
Tool holder
HSK-F63
Tool tray positions in the automatic magazine
12
Tool length
max. 150 mm (from extent of taper)
Software and connections
Software
eluCam
Compressed air supply
> 7 bar
CE power supply (UL optional)
400 V, 3~, 50 Hz, 35 A
