RFR 10 Frame rack

home / from a to z / R

Rack for storage of frame elements

  • Stable steel construction
  • Rack for storage of frames
  • The individual elements are available for direct access
  • Specially designed for integration in assembly lines
  • Access is possible from both sides
  • Floor support equipped with knob profile
  • Compartment separating bars covered with protective tubing



Optional

  • Rollers and grip for RFR 10/FFR 10
  • Length 1,650 mm
  • Width 1,000 mm
  • Height 2,965 mm
  • Ten compartments
  • Compartment width 130 mm
  • Compartment height 2,600 mm
  • Weight 230 kg
  • Load 800 kg

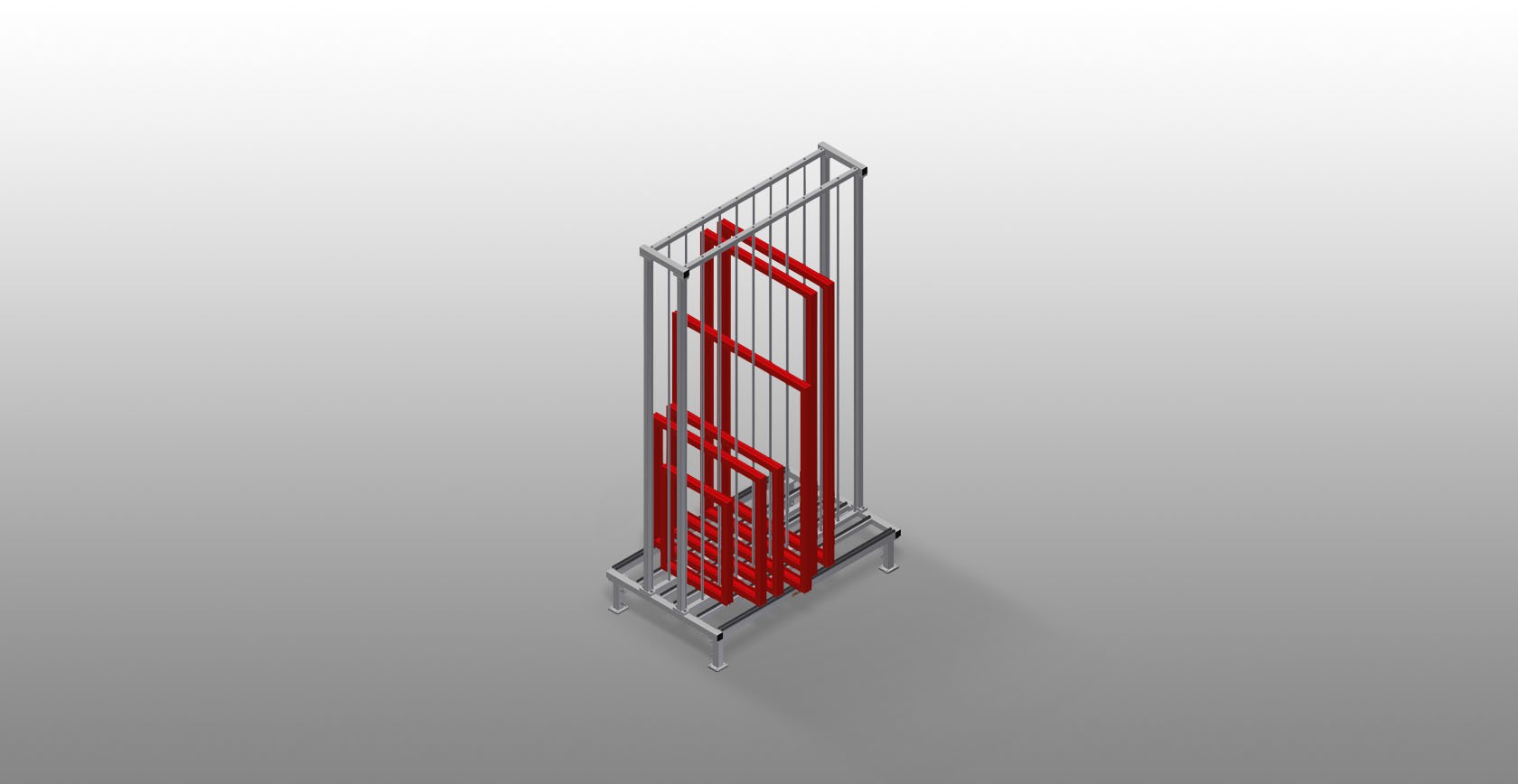

Frame rack RFR 10

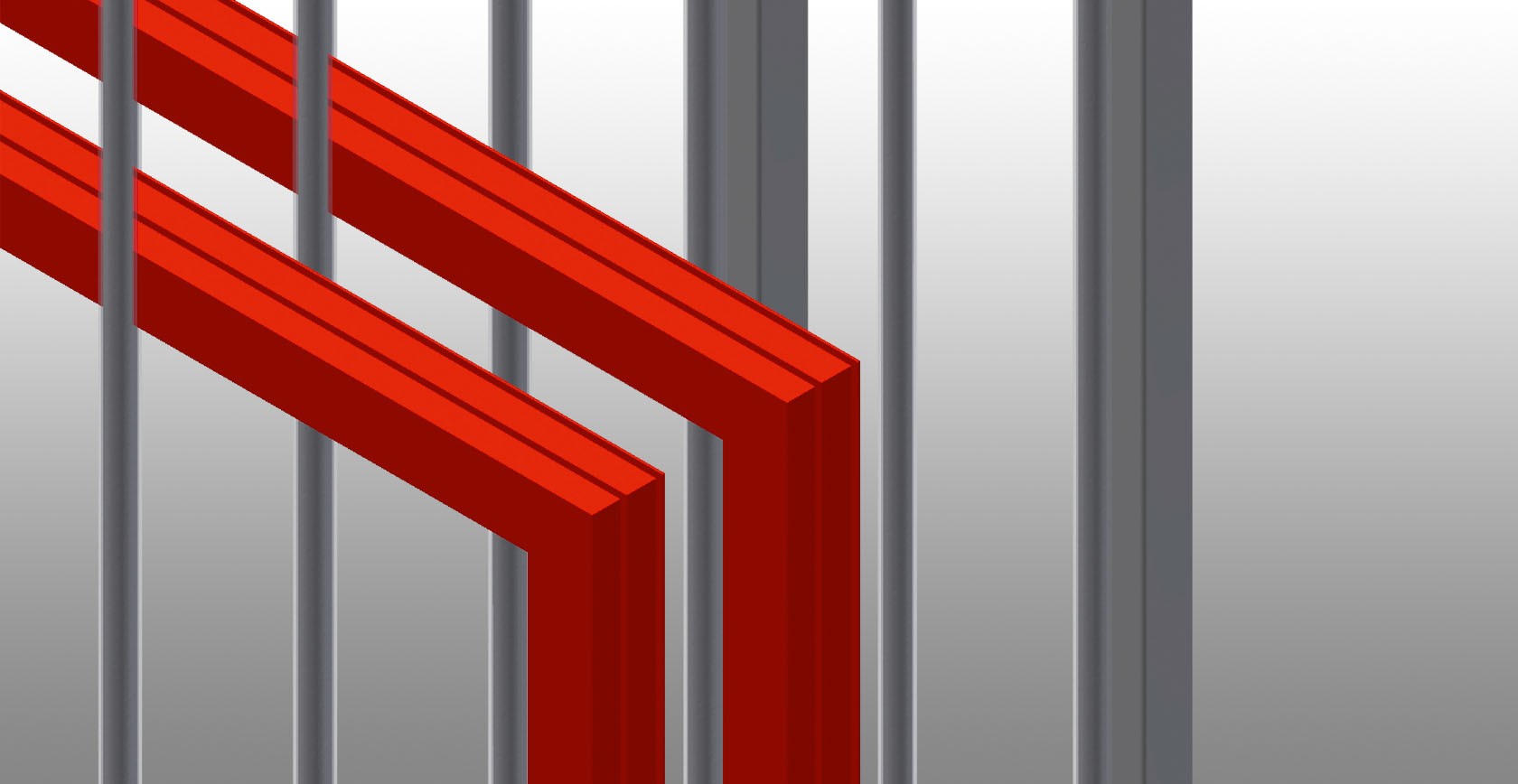

Compartments

All supporting surfaces have a non-slip PVC cladding which protects surfaces from damage during storage

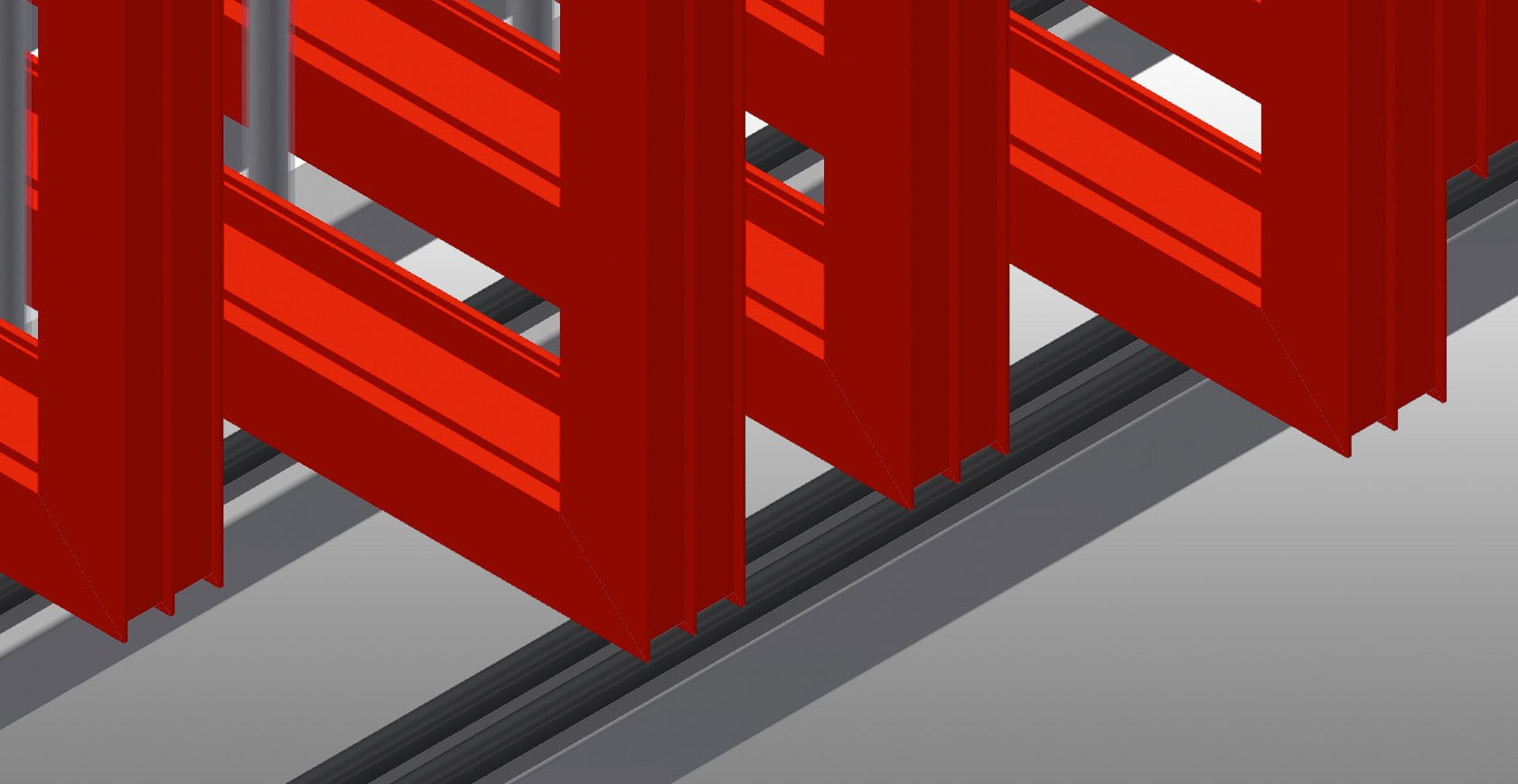

Supports

Lower supporting surfaces with knob profile to protect profiles from damage

Castors (optional)

Rollers and grip for RFR 10/FFR 10. Two castors with brake and two fixed rollers provide mobility in all directions, roller diameter 125 mm
