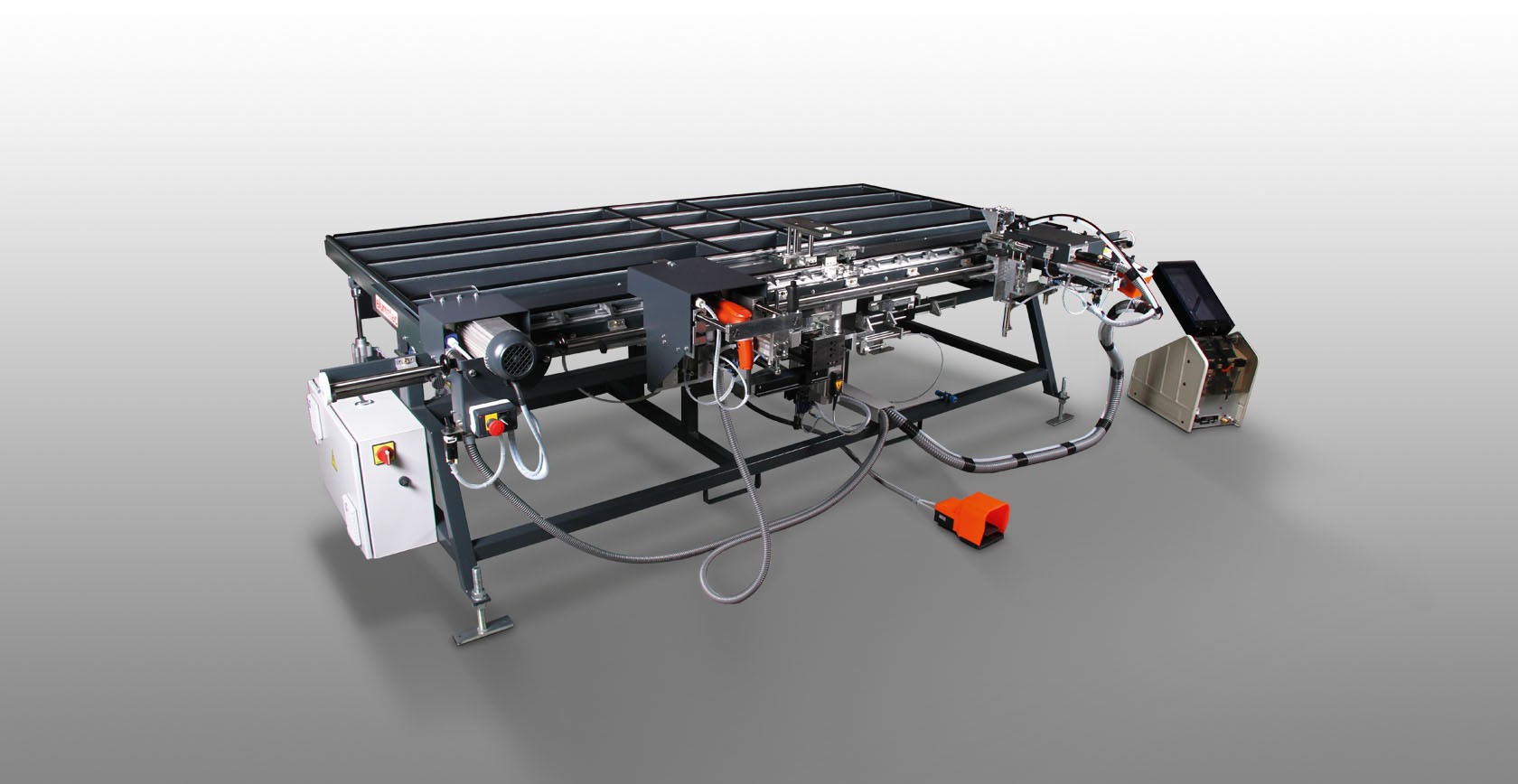

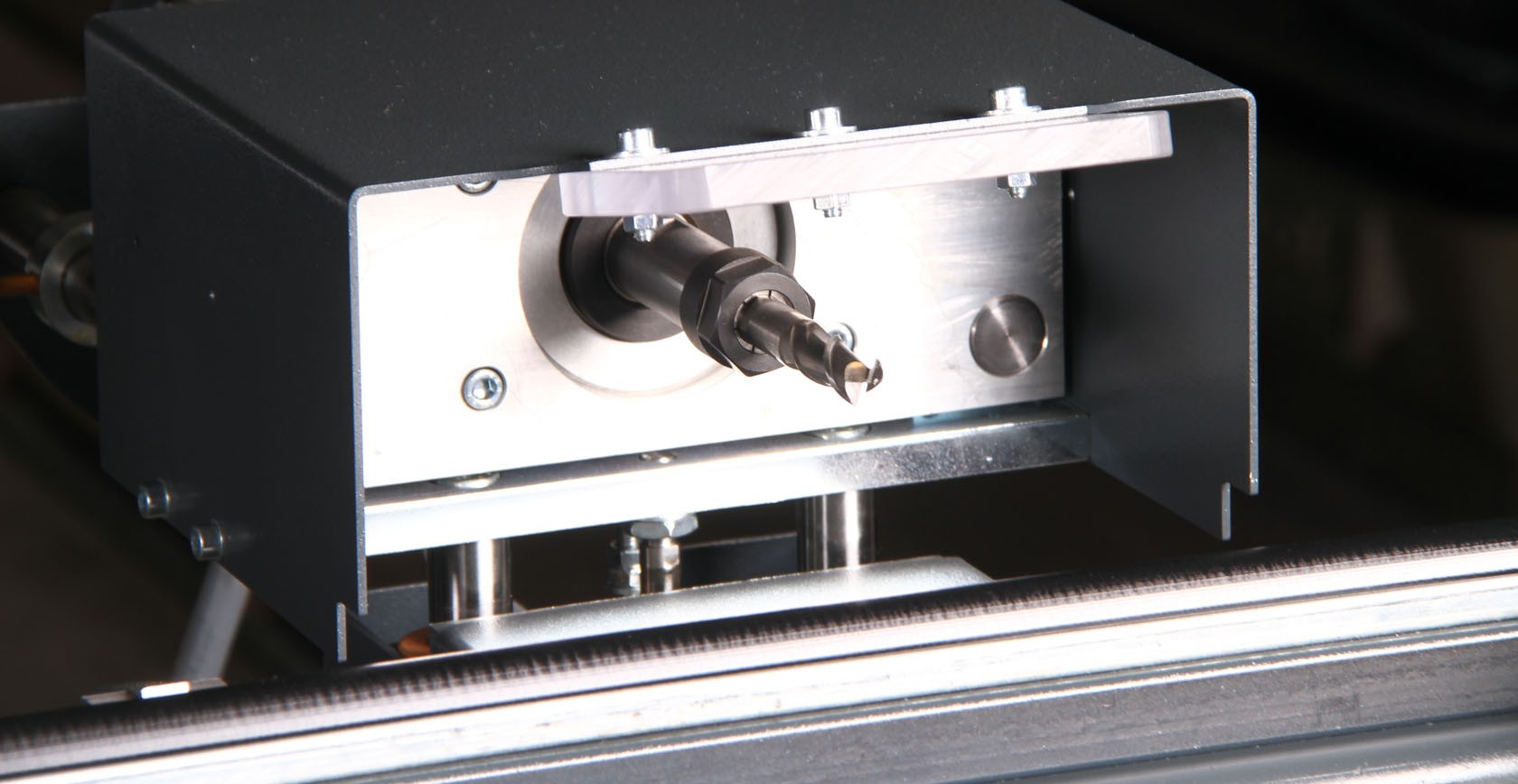

FAZ 2800 Sash assembly centre

Sash assembly centre for installing hardware on PVC and aluminium window sashes

  • Ergonomic fixing of hardware in a very short time
  • Sash assembly table for measuring and cutting to length of hardware components
  • Optimisation of sash processing by carrying out various work tasks at a single workstation
  • Assembly table can be tilted pneumatically
  • The sash, measurement and centring units can be moved pneumatically
  • Gear cropper with stops for a centred and consistent handle position
  • Two stop blocks for different sash widths
  • Mobile screwing unit with pneumatic height adjustment
  • Manual insertion funnel for second screw length
  • Automatic depth shutoff
  • Screw feed unit
  • Table supporting surface with plastic slide bars
  • Table length 2,800 mm
  • Table width 1,400 mm
  • Total length 3,400 mm
  • Total width 2,000 mm
  • Weight 450 kg
  • Table height adjustable 850 - 1,000 mm
  • Table inclination approx. 15°
  • Sash inside dimensions approx. 280 - 2,300 mm
  • Compressed air supply 7 bar
  • Air consumption:



    • Screw driving unit approx. 250 l/min.
    • Clamping unit approx. 35 l/min.



  • Screw dimensions:



    • Head diameters 5.0 - 9.0 mm
    • Shank diameters 3.5 - 4.5 mm
    • Length approx. 10.0 - 35.0 mm



  • Power supply 230/400 V, 3~, 50 Hz
  • Electrical connected load approx. 3 kW
