VR 4000 DF - Vertical roller conveyor with mobility and rotation mechanism

home / from a to z / V

Stable steel construction
Vertical roller conveyor for smooth transportation to the next work task as well as for transportation to storage and sorting of the finished windows
Easy handling of window elements
Every roller conveyor unit is 4,000 mm long
Plastic slide bars top and bottom
Three mini-roller conveyors with rubber rollers, diameter 50 mm
Basic unit with end rack
Vertical roller conveyor on rails with flanged rollers, mobile
Roller conveyor can be rotated 360°

Options

Rail, 2.0 m, left and right
End stop for VR
Lead-in roller for VR
Profile protectors for support rollers (Alum.)

Length 4,000 mm
Width 1,000 mm
Height 2,490 mm
Support roller width 200 mm
Unit height 2,100 mm
Load 200 kg
Weight 220 kg

Request quote

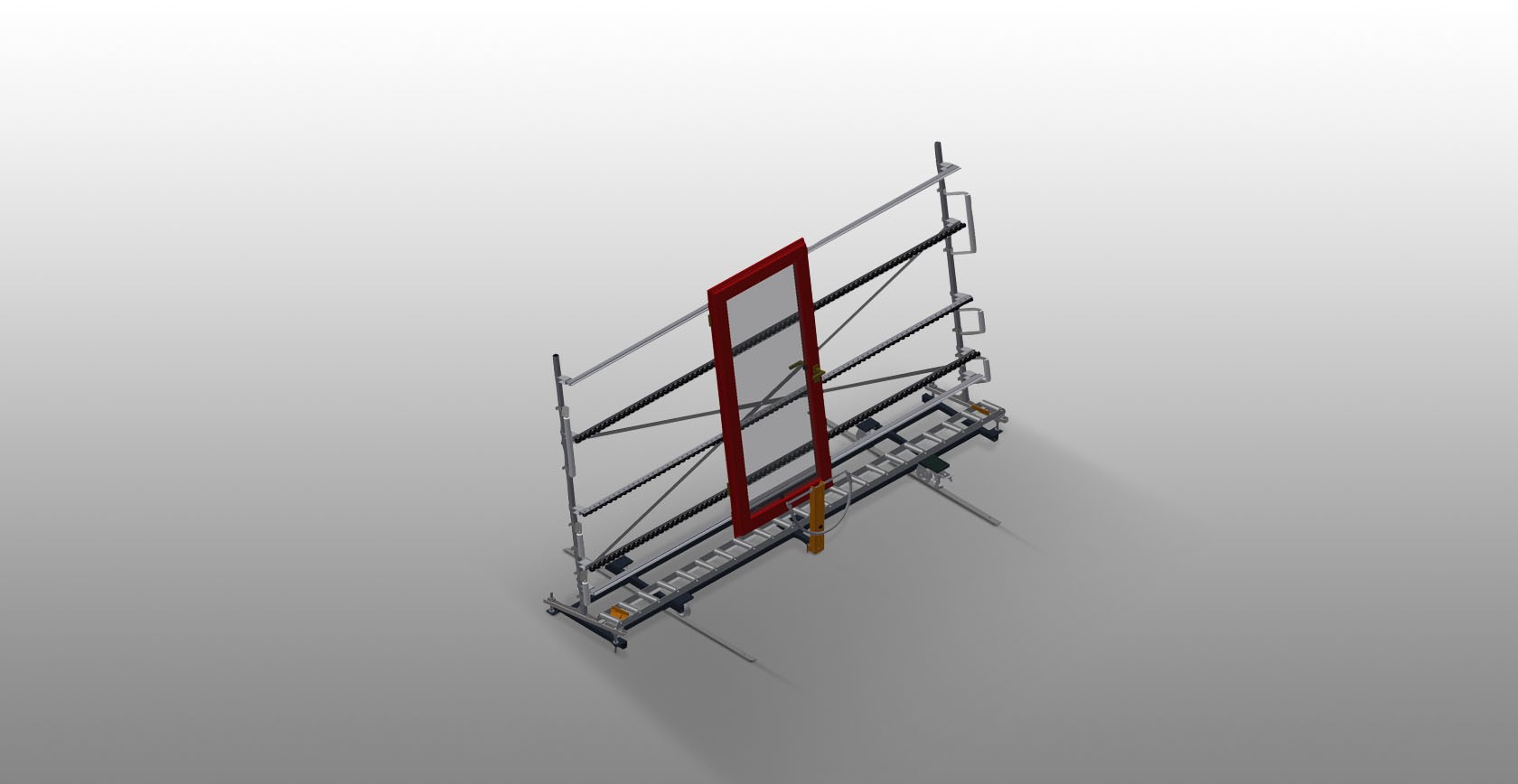

Vertical roller conveyor with mobility and rotation mechanism VR 4000 DF

Support rollers

Rollers throughout, support roller width, 200 mmRoller conveyor unit, 4,000 mm long

Mini-roller conveyor

Three mini-roller conveyors with rubber rollers, diameter 50 mm

Support

Rear support with plastic slide bars, top and bottom

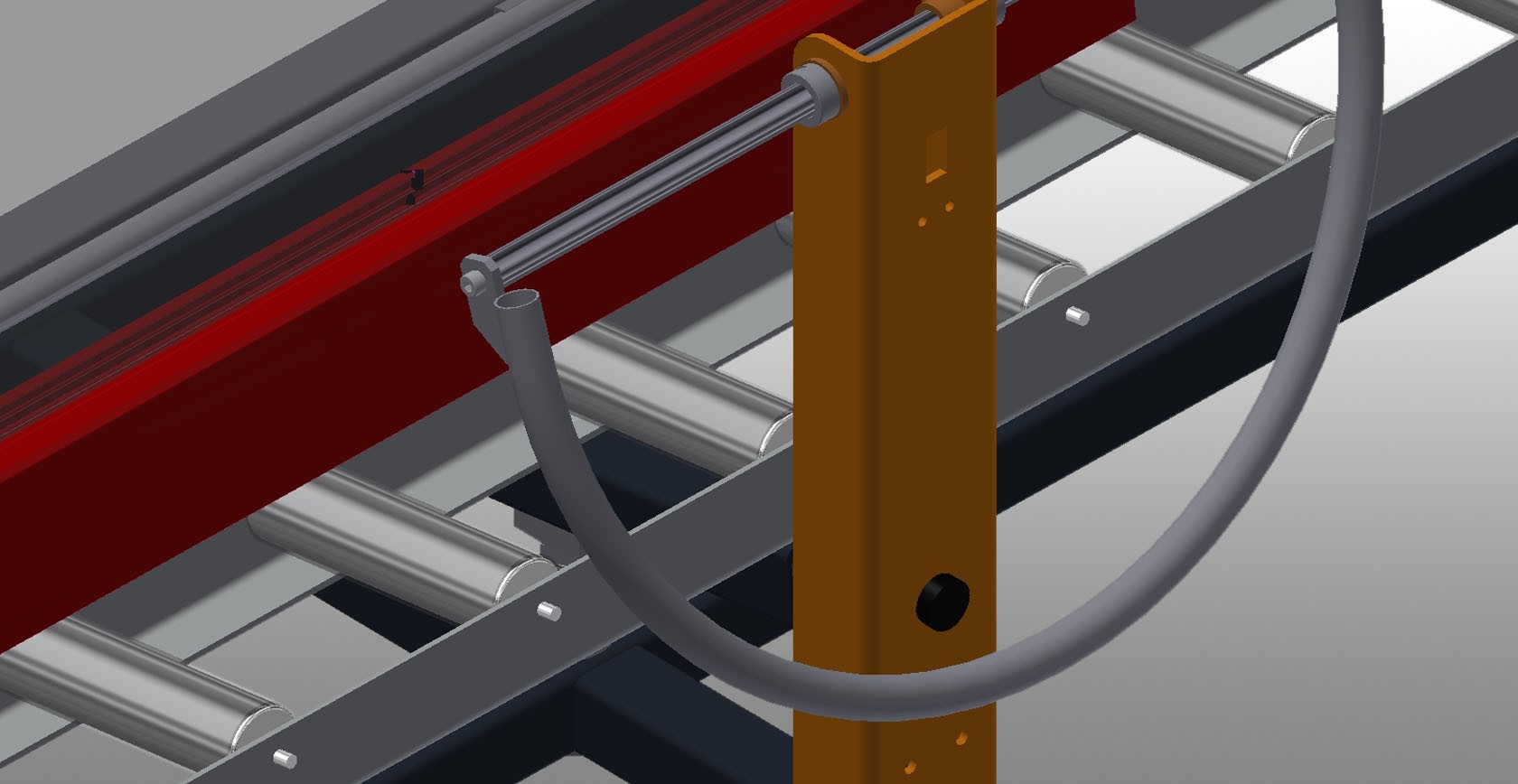

Grip

Grip makes pushing the roller conveyor on the rails easy

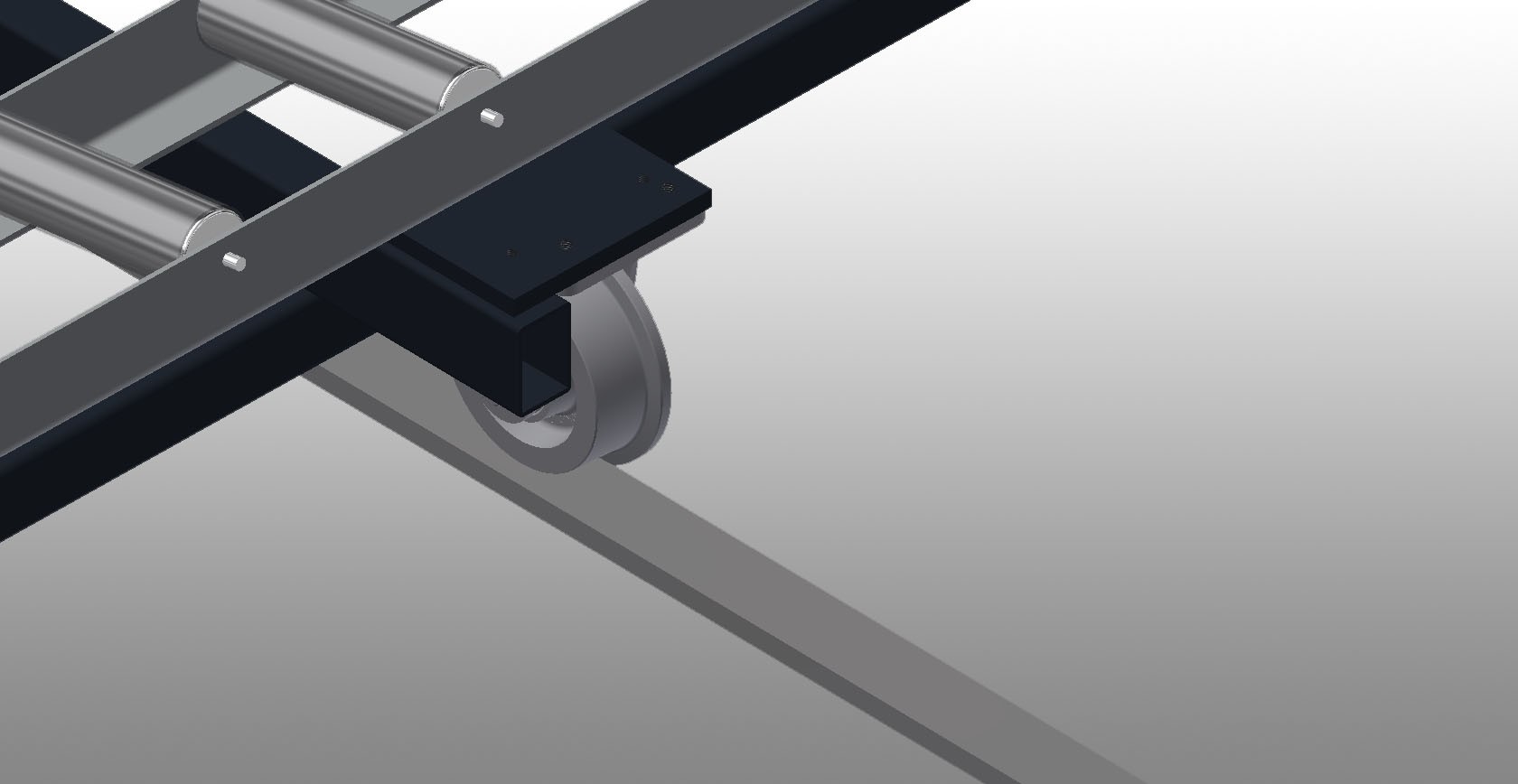

Mobility unit

Mobility unit with flanged rollers and fixing brake

Rails

Rails, 2.0 m, left and right

End stop

End stop Rb=200 mm for VR

Lead-in rollers

Protective rollers for beginning or end of roller conveyor

L = 500 mm (pair)

L = 250 mm (pair)

Additional mini-roller conveyors

Additional mini-roller conveyors with rubber rollers top/bottom

Profile protectors

Profile protectors for support rollers 200 mm (Alum./21 x). Support rollers covered with protective tubing
