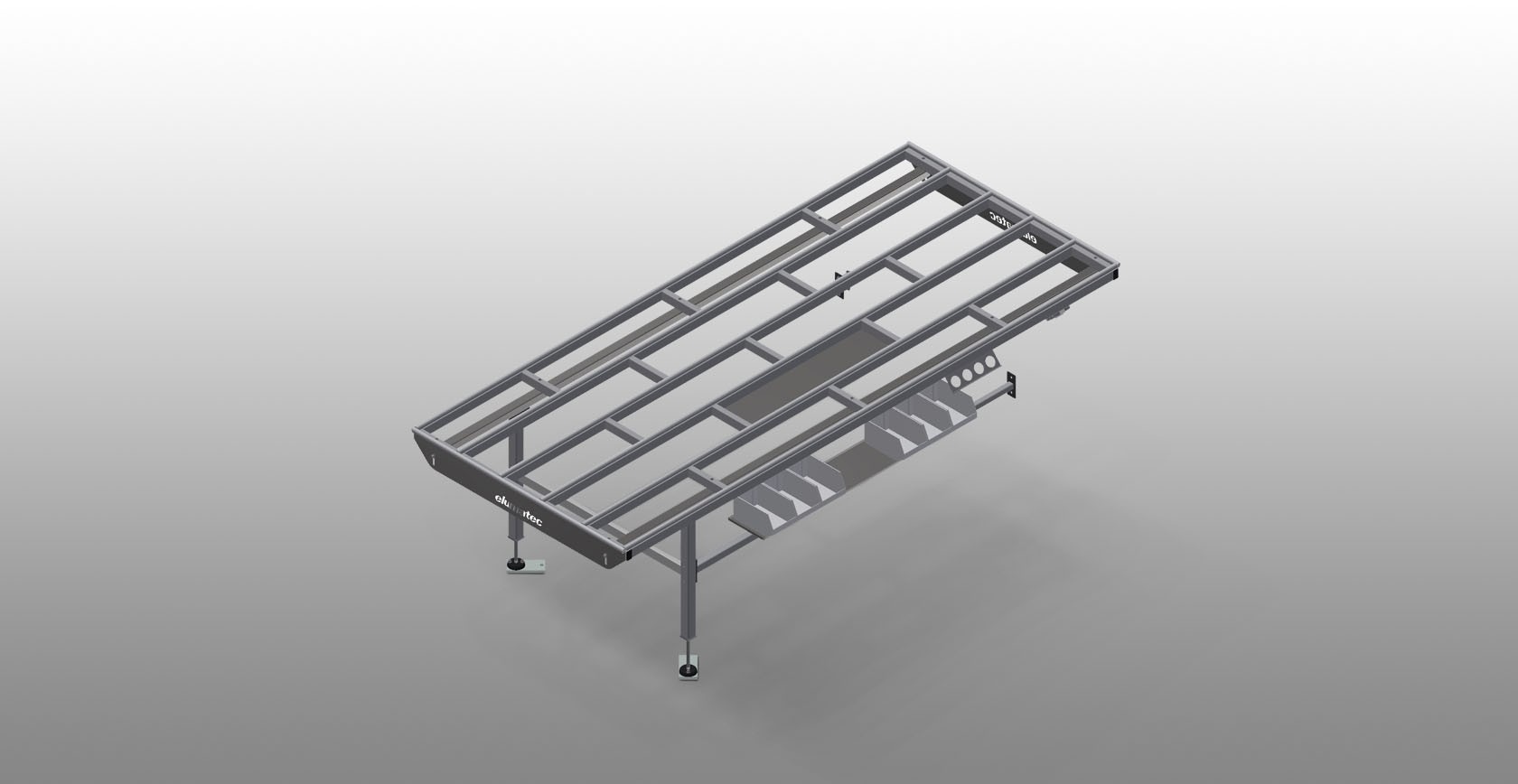

HT 3000 E Horizontal table – Expansion

home / from a to z / H

Modular work table for a production line (basic module)

Stable steel construction
Universal system of work tables for lines with a continuous production flow
Modular system – basic module + additional module
Add-on elements for individualised expansion
Additional modules are easy to install
Versatile work table for all applications: for example, as an individual table in the production flow, as an in-line workstation for assembly work, as a work table for gasket insertion, for the post-processing of special-order production items or as a buffer zone
Table supporting surface with plastic slide bars
Adjustable height
Simple installation with a modular system design

Supporting surfaces with plastic slide bars

Storage tray for setting down tools and accessories

Adjustable height. Working height can be set to 850 – 1,000 mm by means of adjustable feet

Supporting surfaces with brush strip

Supporting surfaces with felt strip

Tool rack for pneumatic or electrical tools

4-fold compressed air connection for connecting compressed-air tools

Storage area with six plastic trays for small accessories, hardware and screws

L = 3000 mm for HT 3000

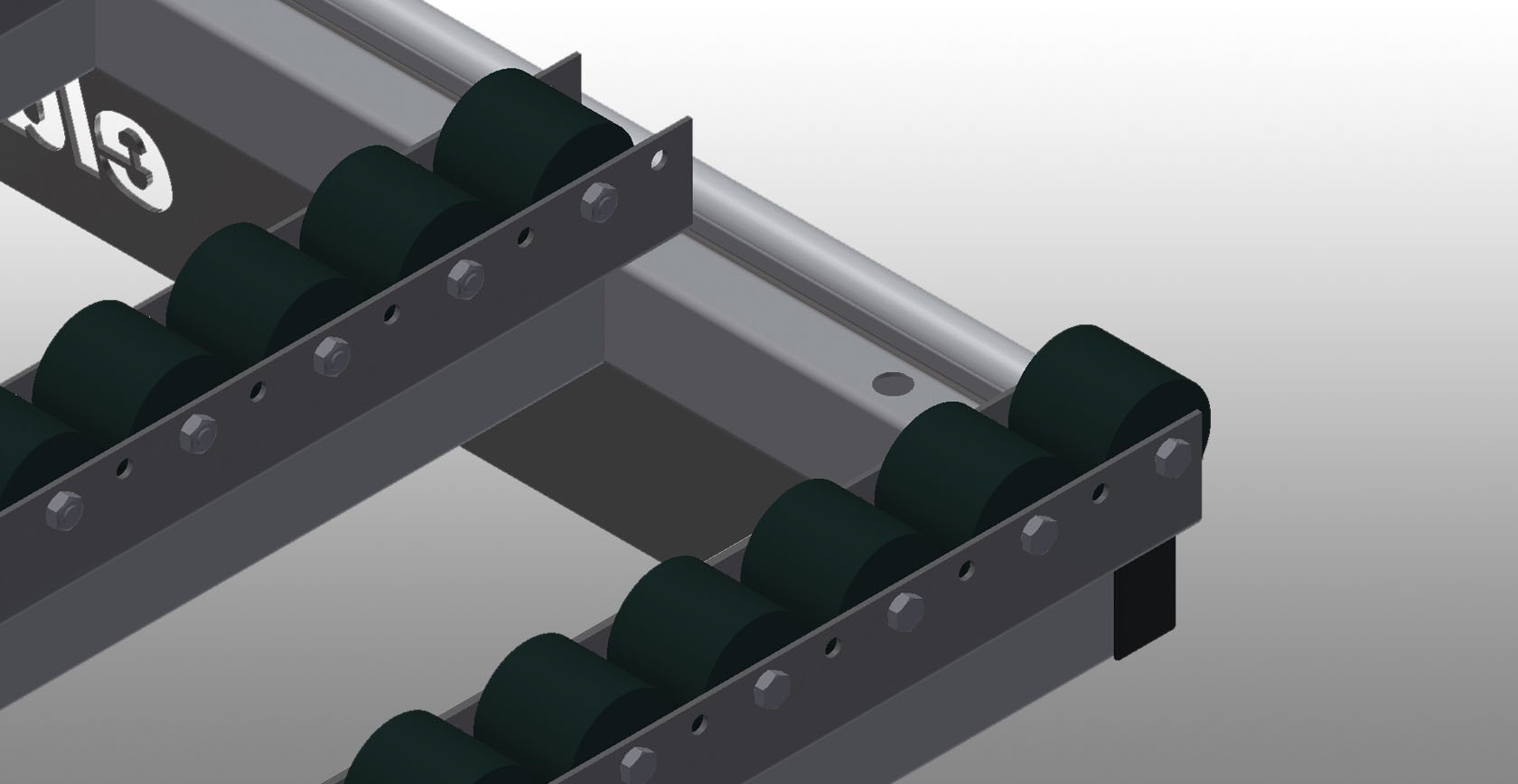

Hard plastic rollers with polyamide coating, on plain bearings, load per roller: 60 kg, convenient for transport and handling of PVC elements

Plastic rollers with polyurethane coating, on ball bearings, load per roller: 40 kg, convenient for transport and handling of aluminium elements

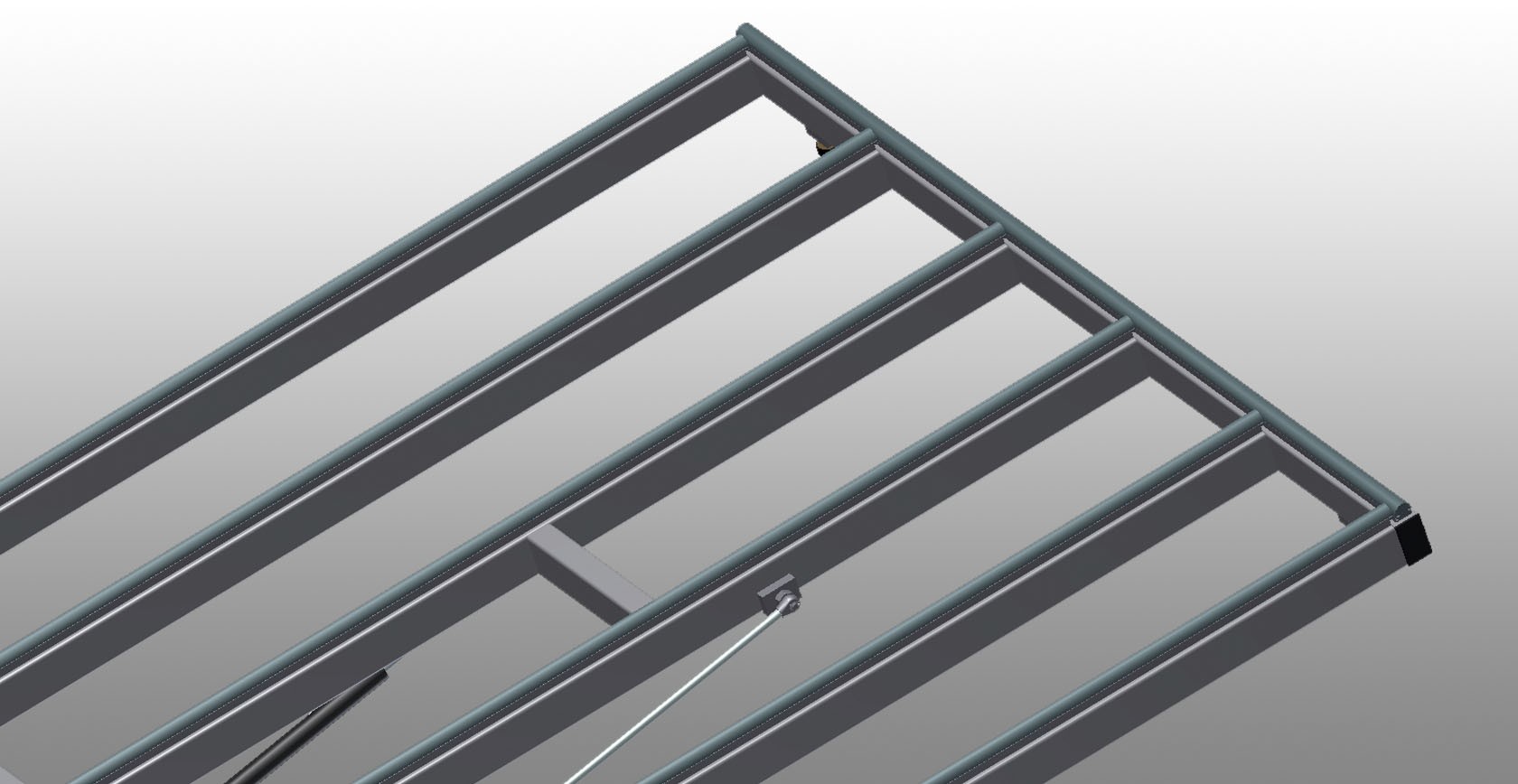

Supporting surfaces with rubber-knob profile for aluminium elements
