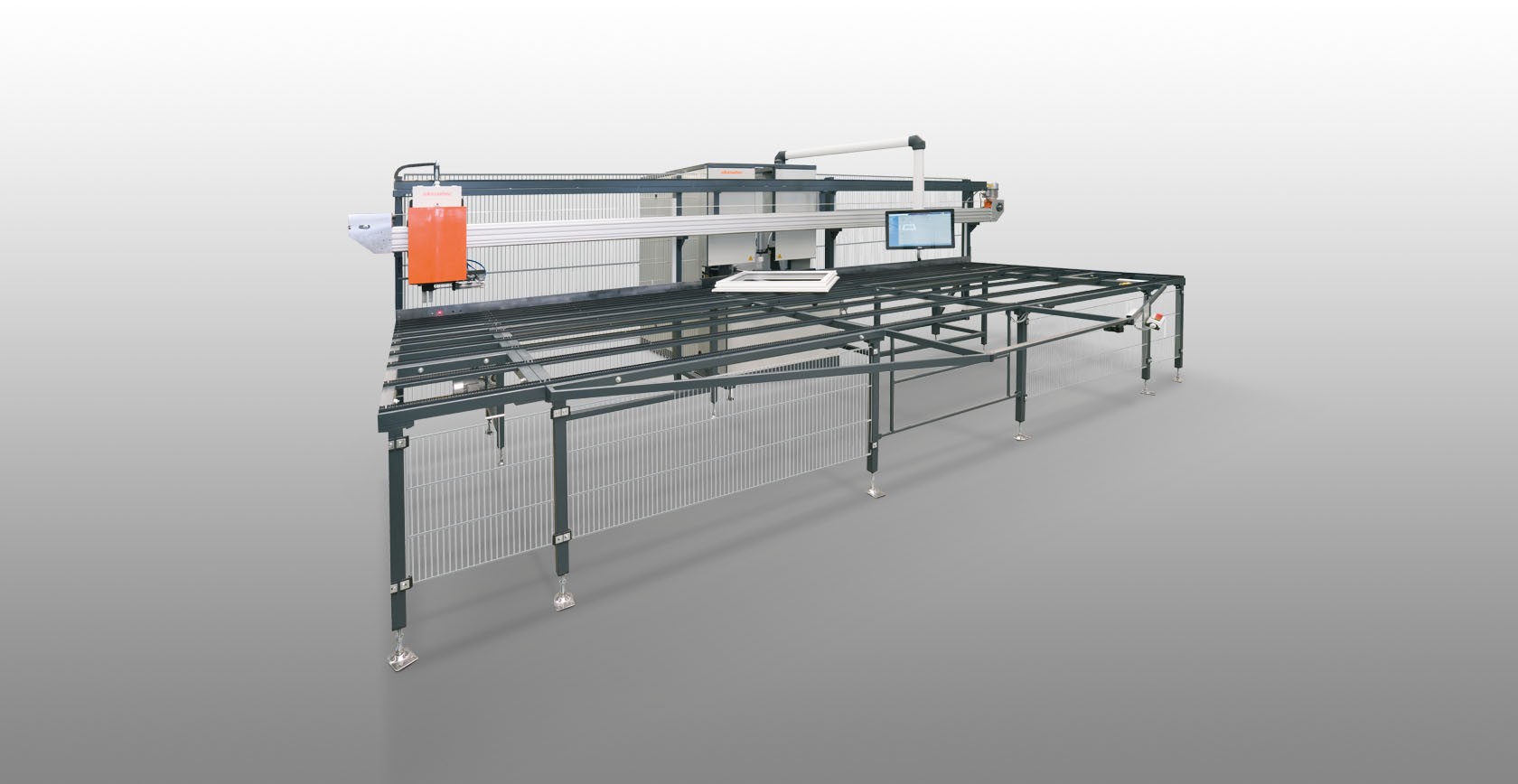

ES-4ABL Corner cleaning machine

home / from a to z / E

4-axis corner cleaning machine, basic

  • For machining of 90° inside and outside corners

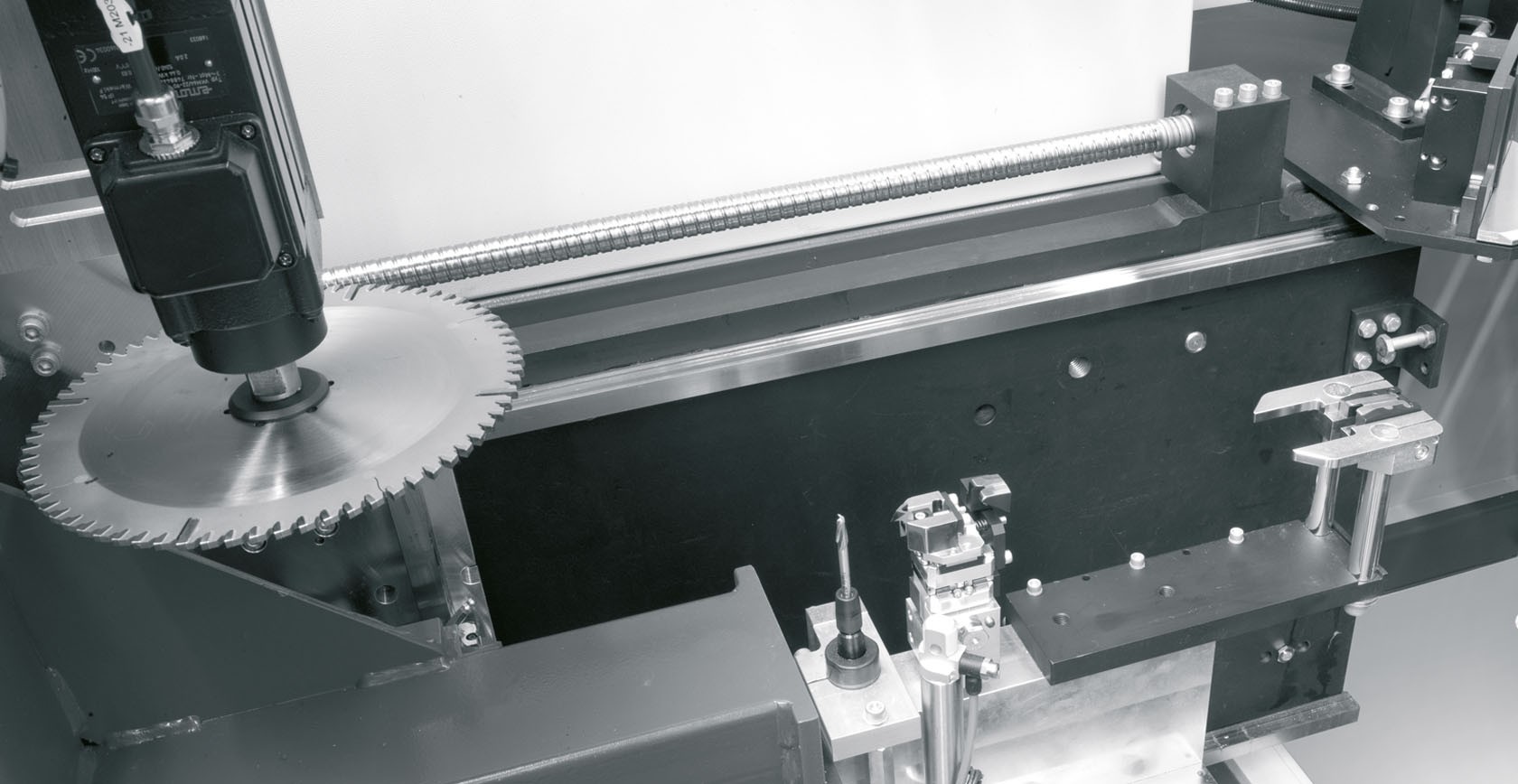

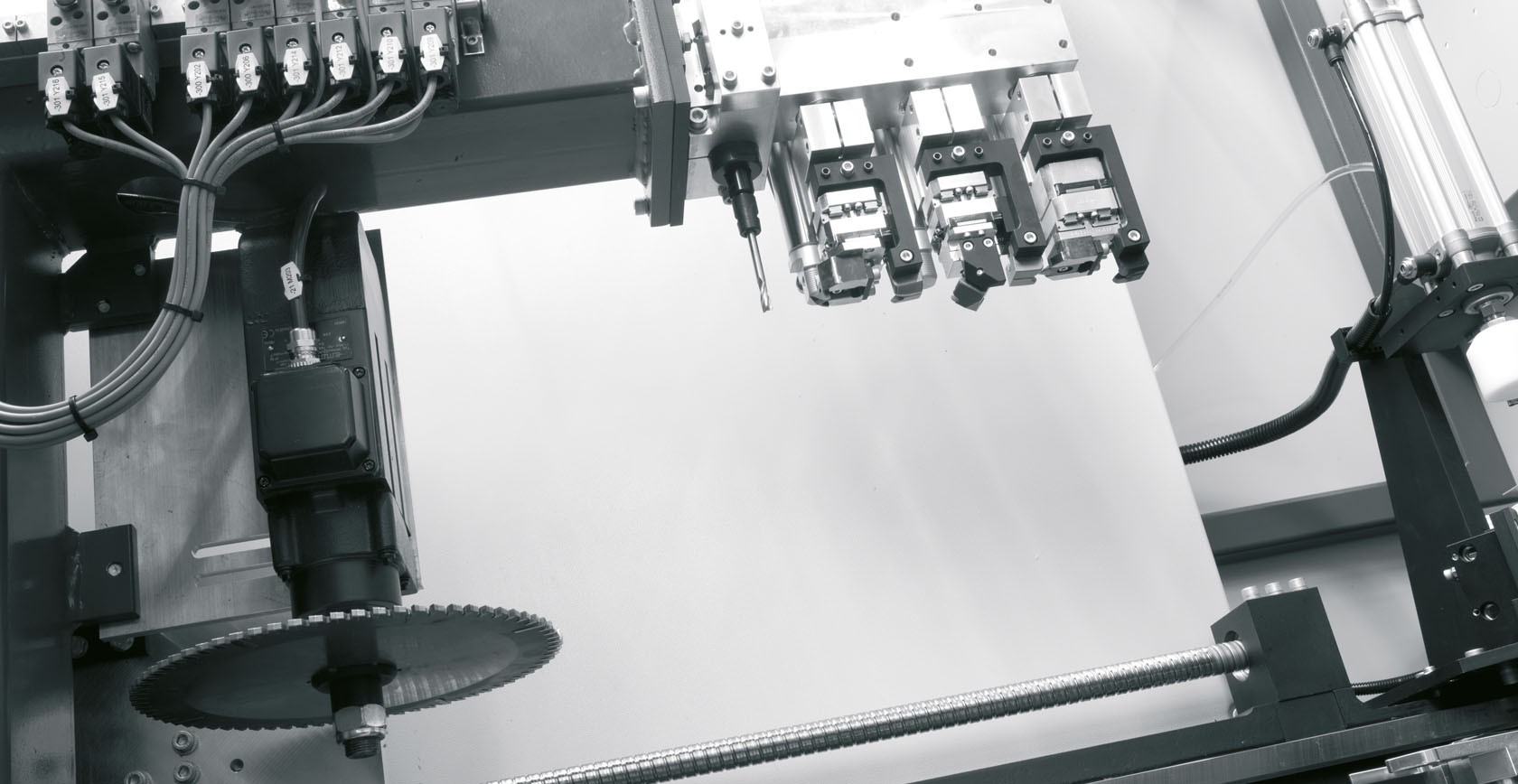

  • Flexible outer contour machining using a circular saw blade
  • Highly advanced control technology
  • User programmable under Window operating system
  • The 4ABL can be equipped with an automatic turning station
  • Min. depth, 30 mm (20 mm after technical inspection/evaluation)
  • Max. depth, 120 mm
  • Min. facing width, 30 mm
  • Max. facing width, 130 mm
  • Min. element size (clear inner dimension): 290 x 290 mm
  • Max. element size 3,000 x 3,000 mm (in turning mode)
Corner cleaning machine ES-4ABL
Corner cleaning machine ES-4ABL
