GFW

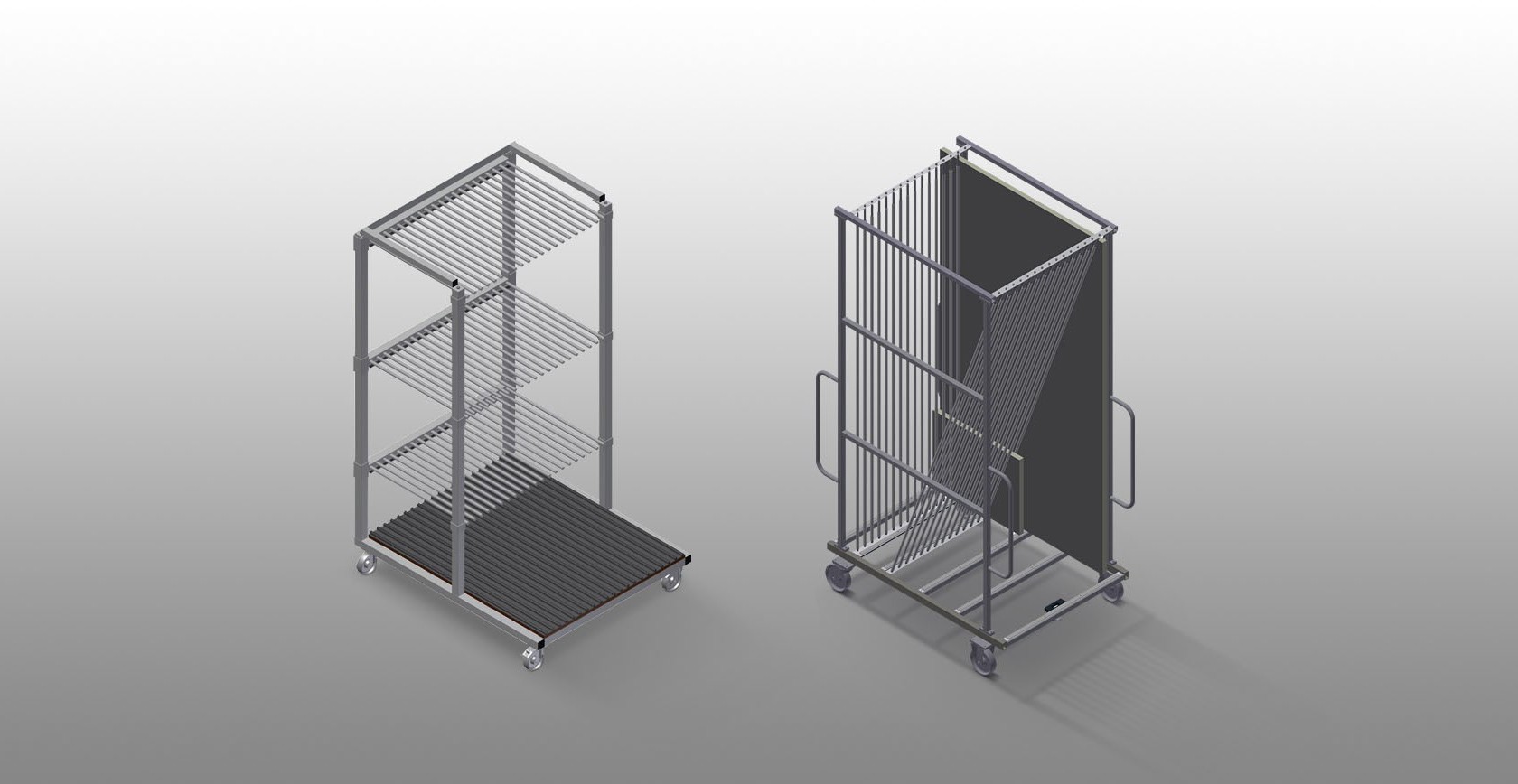

Glass transport trolley

Glass transport trolley ideal for sorting glass and for in-house transportation of sheets of glass. Stable steel construction.

GFW 1200: Hardwood supporting surface with felt. Compartment dividers for 20 sheets of glass. Compartment dividers height is adjustable. Four swivel castors, two of which with locking stop.

GFW 15: Compartment dividers for 15 sheets of glass. Access is possible from both sides. The glass supporting surface has a rubber profile. Compartment divider with plastic protector. Transport handle on both sides for mobility. Two swivel castors and two fixed rollers.

GFW Compartment divider with plastic protection GFW 1200 elumatec
GFW Compartment divider with plastic protector GFW 15 elumatec
GFW Easy loading and unloading GFW 1200 elumatec
GFW Rear support with rubber strips GFW 1200 elumatec
GFW Wooden supporting surface with felt GFW 1200 elumatec
GFW Supports GFW 15 elumatec
GFW Castors GFW 1200 elumatec
GFW Castors, cmpl. GFW 15 elumatec
Technical data arrow_drop_down

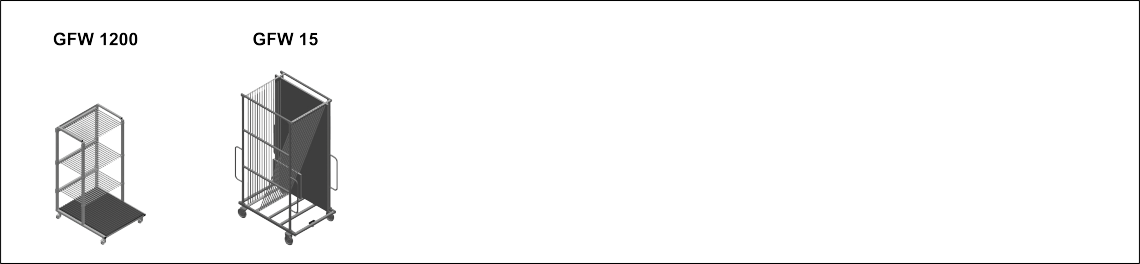

MODELS
DIMENSION AND WEIGHT

GFW 1200 / GFW 15

Length (mm)
1.200 / 1.810
Width (mm)
1.400 / 1.300
Height (mm)
2.270 / 3.020
Weight (kg)
210 / 255
STORAGE CAPACITY

GFW 1200 / GFW 15

Compartments
20 / 15
Load capacity (kg)
800 / 750

GFW 1200

Clearance (mm)
30

GFW 15

Compartment width (mm)
44
Compartment height (mm)
2.600
CHARACTERISTICS

GFW 1200 / GFW 15

Swivel castors diameter (mm)
120 / 200

GFW 1200

Swivel castors
4
Swivel castors with locking stop
2
Included
Available
