Tilting table with height adjustment

home / from a to z / K

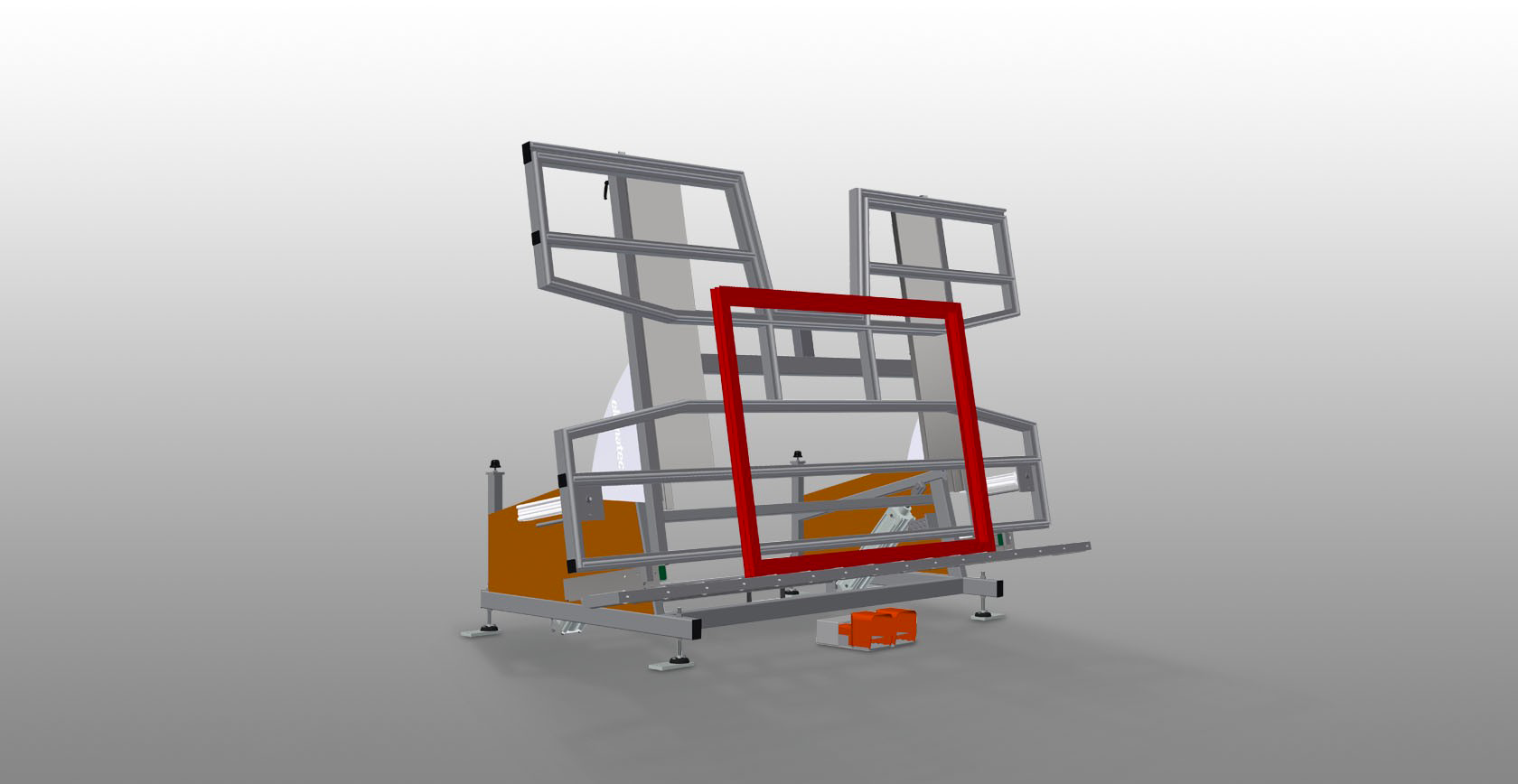

Assembly table for vertical and horizontal assembly. Stable steel construction. Important when switching from vertical to horizontal transportation and vice versa. Ideal for vertical and horizontal assembly. Infinitely variable intermediate positions for ergonomic working. Pneumatic tilting. Pneumatic vertical height adjustment. Table supporting surface with plastic slide bars. Roller support can be lowered pneumatically. Two lateral pneumatic clamps, (lowerable). 4-fold compressed air supply.

Request quote

Supporting surfaces

Supporting surfaces with plastic slide bars

Roller support

Roller conveyor can be lowered pneumatically to allow unhindered working in horizontal position; in vertical position, trouble-free onward transport is possible

Clamps

Two clamps at the side for fixing the window element in place. Laterally adjustable with hand lever valve. Max. profile clamping height 150 mm

Foot switch

Control via foot valve, Pneumatic horizontal/vertical tilting; height adjustable pneumatically by 500 mm in the vertical position

4-fold compressed air connection

4-fold compressed air connection for connecting compressed-air tools

Auxiliary clamps (Optional)

Auxiliary clamps for KTH 3000 and KTH 4000. Auxiliary clamps provide extra security when working

Profile protectors for support rollers (Optional)

Profile protectors for support rollers 200 mm (Alum./16 x and Alum./21 x). Roller conveyor with protective tubing over the rollers to protect the window element during infeed and outfeed

Pull-out profile support (Optional)

Pull-out table support at top for KTH 3000 and KTH 4000. The table support can be pulled out 500 mm at the top for high frames

Brush strip (Optional)

Supporting surfaces with brush strip

Felt strip (Optional)

Supporting surfaces with felt profile strip

Rubber strips (Optional)

Supporting surfaces with rubber-knob profile

Mobility unit (Optional)

Mobility unit for KT/KTH/MS/VE. Mobility unit with flanged rollers and fixing brake

Rails (Optional)

Rails, 2.0 m, left and right

Technical data

MODELS

DIMENSION AND WEIGHT

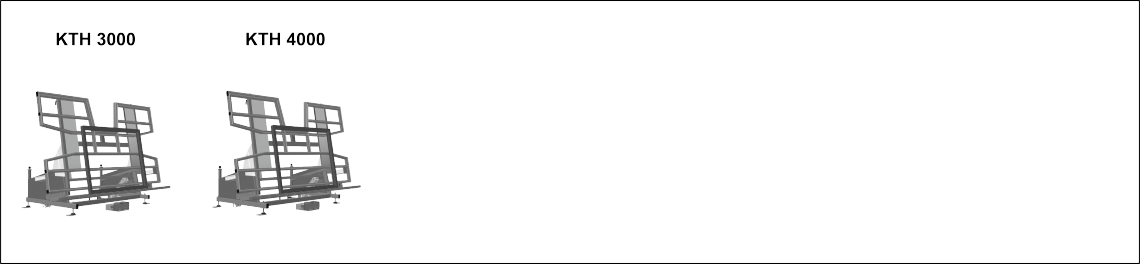

KTH 3000 / KTH 4000

Length (mm)

Width (mm)

Vertical height (mm)

Roller conveyor width (mm)

Weight (kg)

SUPPORTING SURFACE

Pneumatic height adjustment (mm)

Pneumatic vertical height adjustment

Pneumatic tilting

Extendable table support

Table brush strip supporting surface

Table felt profile strip supporting surface

Table rubber knob profile

Profile protectors for support rollers

Load capacity (kg)

CHARACTERISTICS

Pneumatically lowerable lateral clamps

Additional clamps

4-fold compressed air supply

Mobility unit

Rail 2,0 m left and right

Operating air pressure (bar)

Air consumption approx. (l/min)

Included

Available

Other Products

178/10

78/23

101/30
