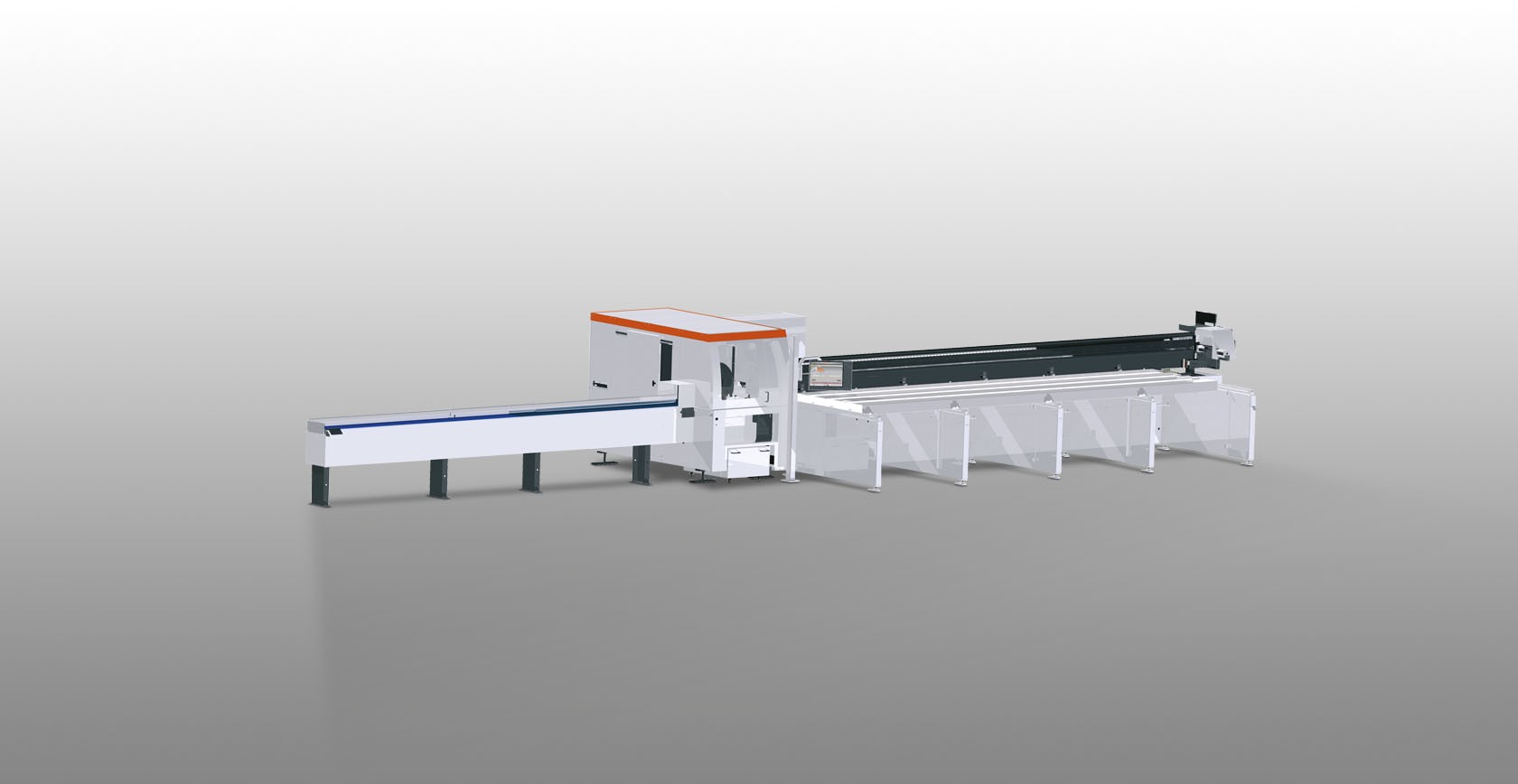

- Sawing centre with 3.5 m pusher
- Automatic sawing of aluminium profiles of various lengths

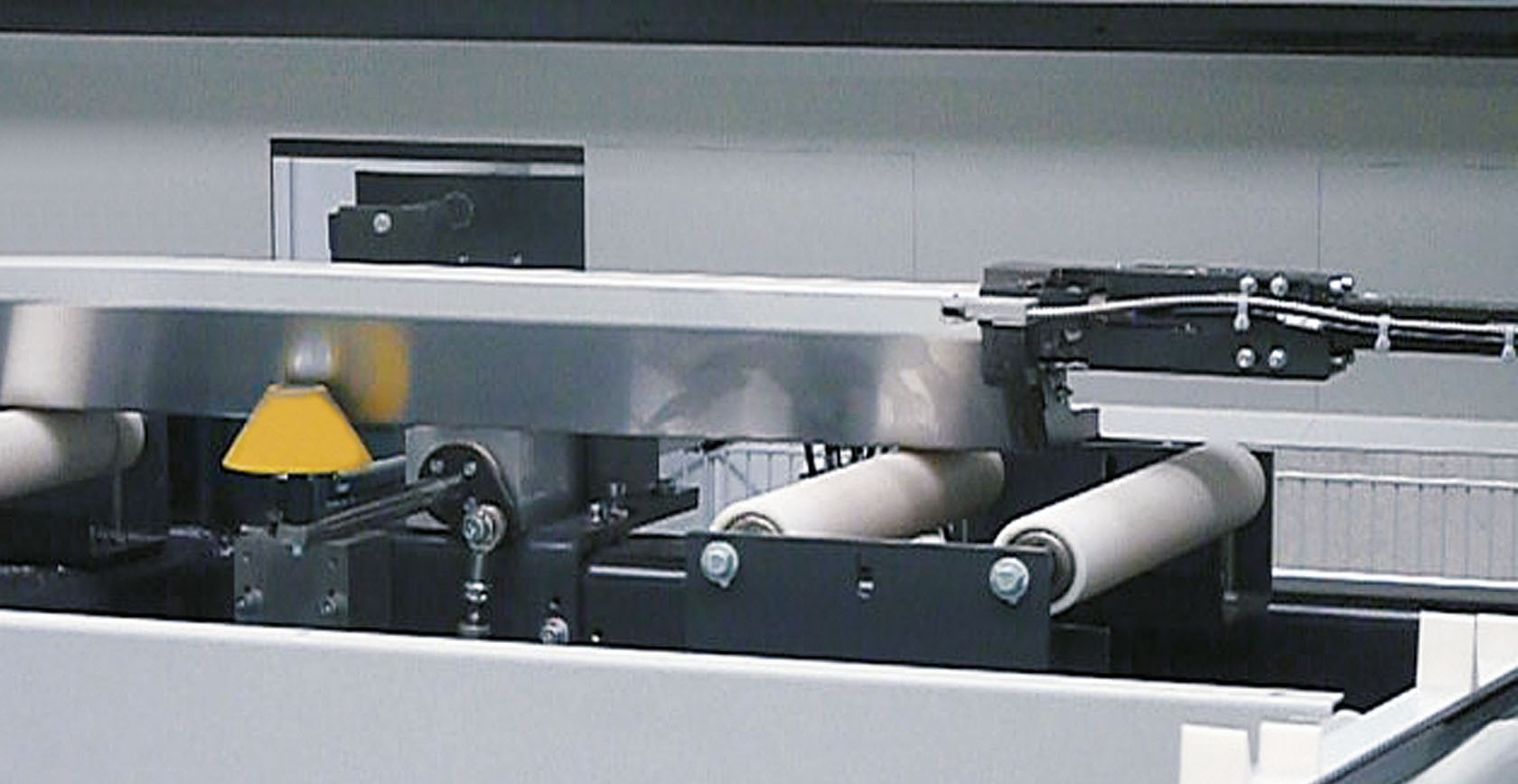

- Pusher carriage with precision drive on linear guides with integrated drive gear rack
- Pneumatic gripper jaw for a secure grip on the profile (parallel jaws)

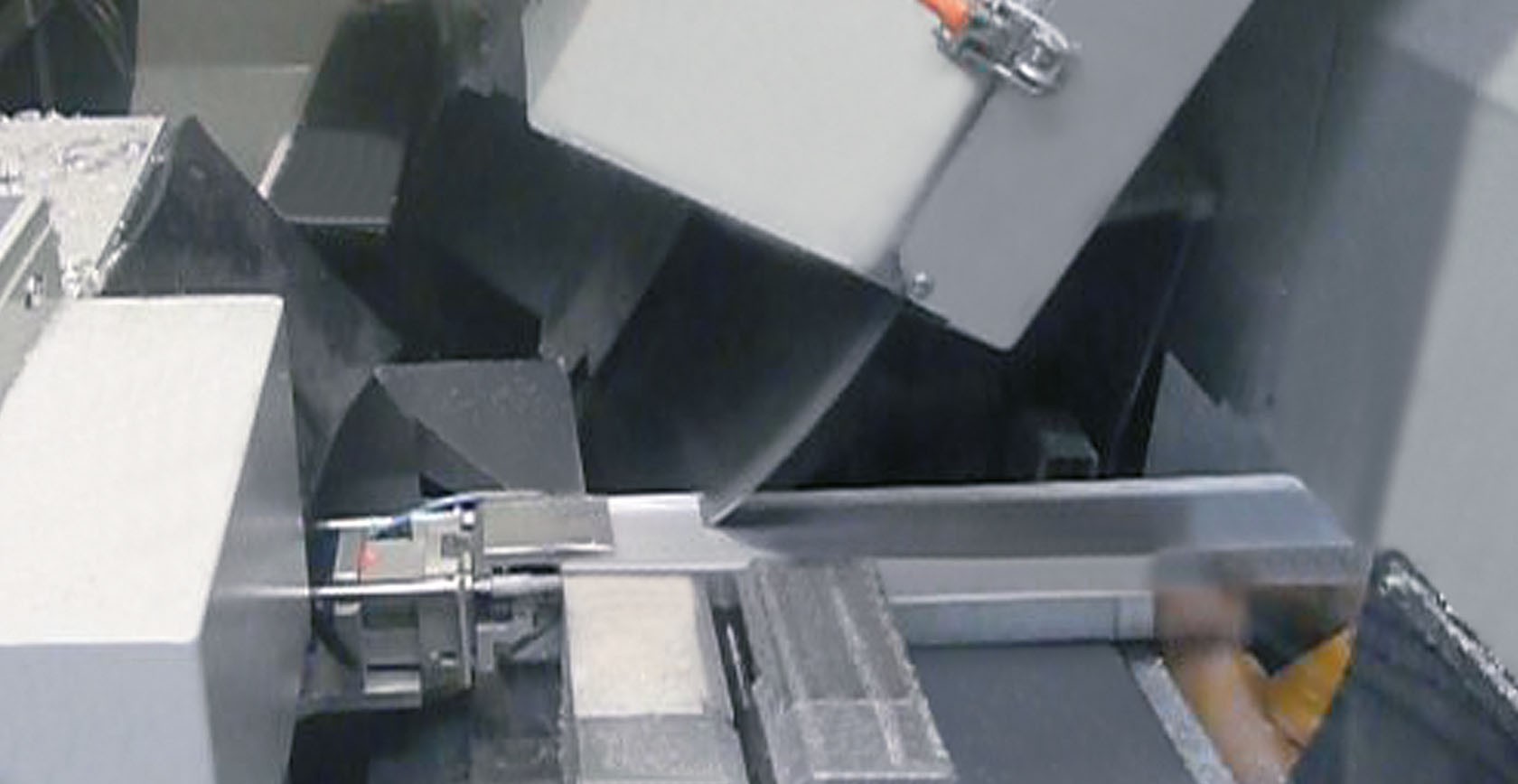

- Horizontal and vertical material clamping of the workpiece during the sawing operation
- Saw blade diameter 550 mm (optional, 650 mm)
- Servo-controlled movement of the saw axis (Z-axis)
- Saw feed with profile cross-section optimisation
- Saw motor, 11 kW / S6
- Outfeed via mini-roller conveyor
- Lighted soundproof enclosure
- Dual or multiple-bar processing possible with special accessories (optional)
- Gripper jaw, profile support blocks and clamping units must be adjusted to suit different profile types. (Optional)
- Safety fence at the back left and right (optional)
- Light barrier for the front
- 15" touchscreen control panel with one USB port and integrated Ethernet adapter, 10/100 Mbit, RJ 45
- Windows operating system
Options
- Roller conveyors
- Saw blades
- High performance cutting fluid
Pusher automatic saw SAP 629/12
See SAP 629/10, however:
- Sawing centre with 7.5 m pusher
Technical specifications
- Maximum profile bar section length 7,500 mm
Pusher automatic saw SAP 629/17
See SAP 629/10, however:
- Sawing centre with 7.5 m pusher and loading magazine for five bars
