S 320 Metal band saw
home
/
from a to z
/
S
Description
Technical data
For cutting reinforcing steel to length
Universal metal band saw with a large cutting range for non-standard mitre cuts
Conventional mitre cuts by adjusting the vice jaws to 90° – 45°
Coolant supply from both sides
Band saw blade guided by means of reversing pulleys and hard metal jaws
Hydraulic lowering mechanism
Automatic shutdown upon completion of cut
Roller conveyors
90° round 320 mm
90° flat 400 x 210 mm or 430 x 100 mm or 330 x 260 mm
45° round 240 mm
45° flat 220 x 200 mm
Cutting speeds 30, 60 m/min.
Band saw blade dimensions 3,660 x 27 x 0.9 mm
Band saw blade pulley diameter 400 mm
Power supply 230/400 V, 3~, 50 Hz
Drive motor 1.1/1.4 kW
Length 2,020 mm, depth 800 mm, height 1,300 mm, weight 390 kg
Request quote
picture_as_pdf
generate pdf
info_outline
ask information
Metal band saw S 320
Other Products
S 3000 Accessory steel column
keyboard_arrow_right
SA 142/37 Automatic saw
keyboard_arrow_right
SA 73/36 Automatic saw
keyboard_arrow_right
SAS 142/43 Automatic saw
keyboard_arrow_right
SAS 142/44 Automatic saw
keyboard_arrow_right

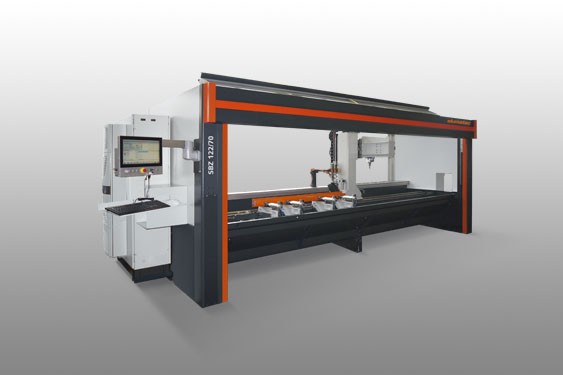

SBZ 122/70 Plus Profile machining centre
