GLS 192/031 Glazing bead saw
home
/
from a to z
/
G
Description
Technical data

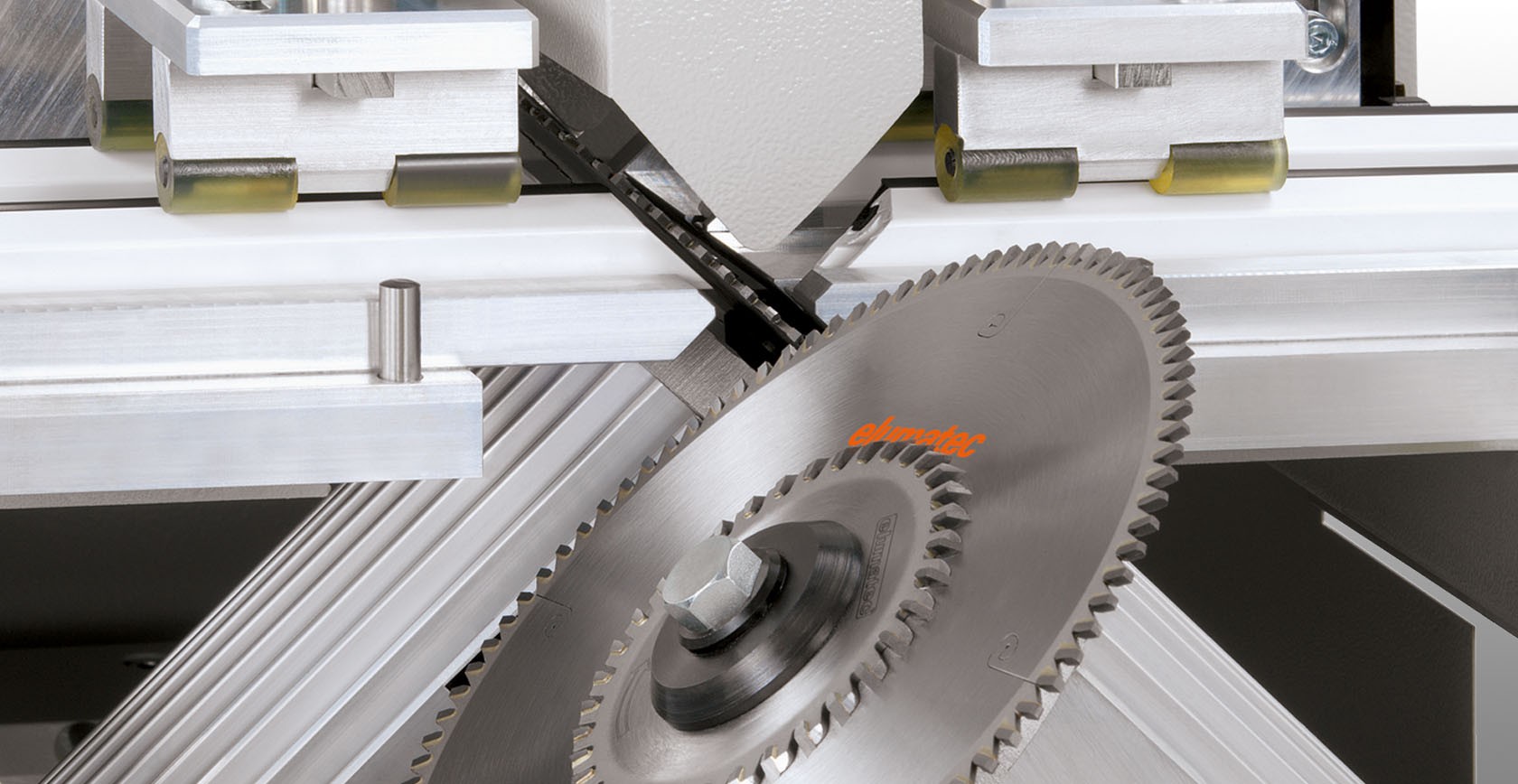

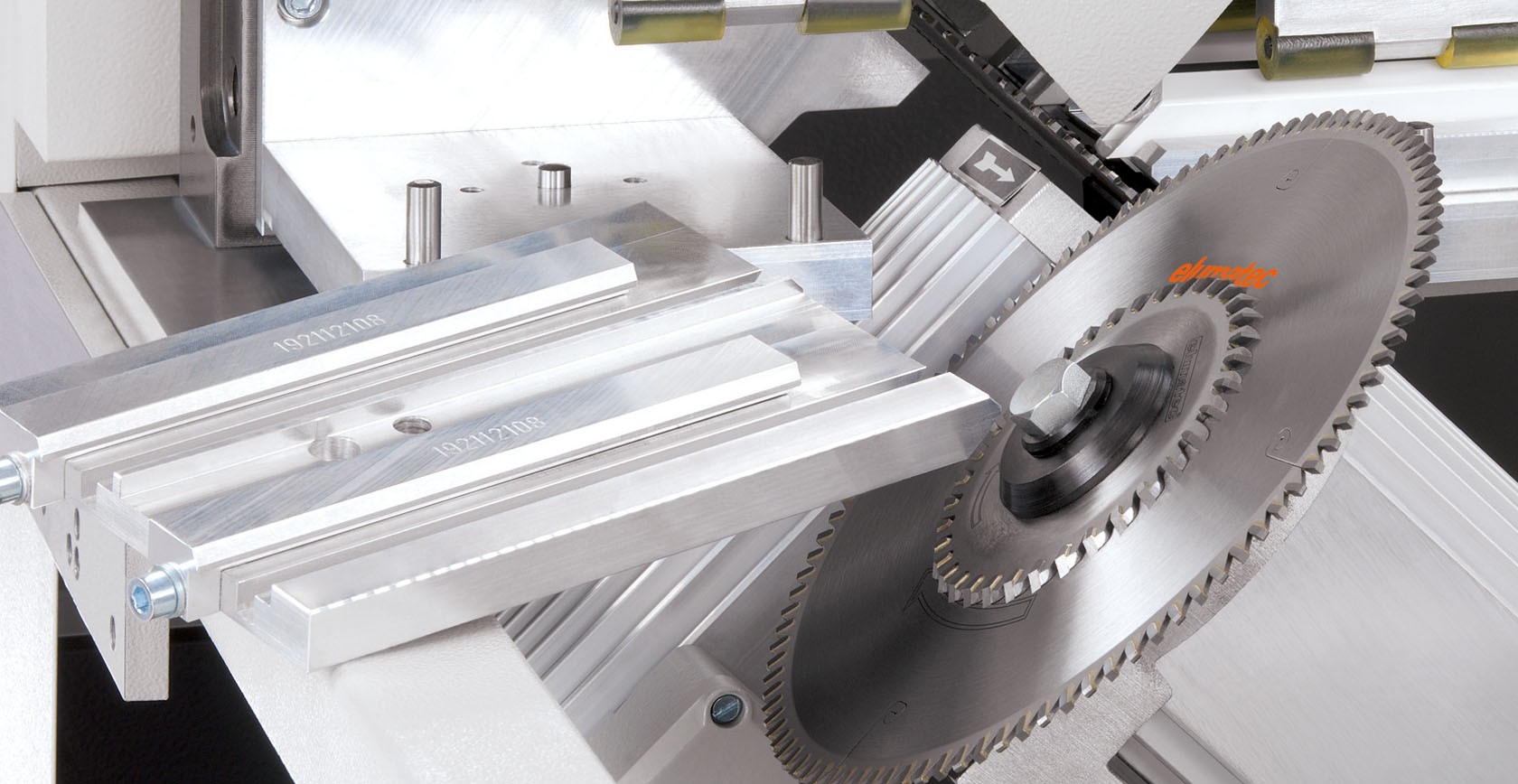

Pneumatic V-cutting saw with four special saw blades for simultaneous undercutting of the glazing bead profile

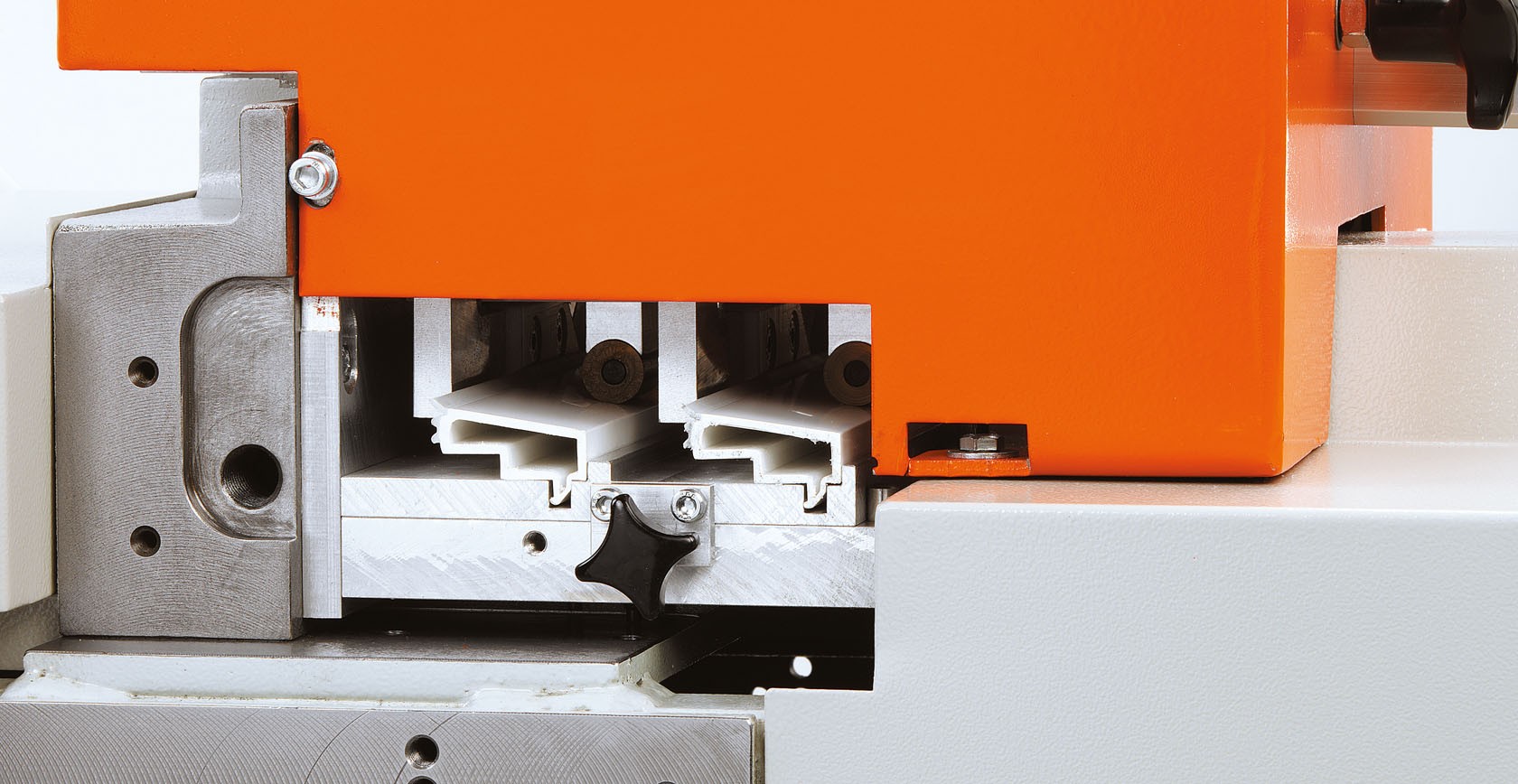

Pneumatic, special-purpose clamping device for glazing beads, as standard
Equipped with two (optionally four) vertical material clamps as standard
Simultaneous sawing of two or four glazing beads (double or four-fold cutting) made possible by wide saw table
Automatic saw feed with foot switch operation
Equipped with exhaust connector for connection to an extraction system
Options
Length variants
Saw blade diameter 200 mm and 98 mm
45° bevel
Saw blade speed 2,800 rpm
Power supply 230/400 V, 3~, 50 Hz
Power output 900 W
Compressed air supply 7 bar
Air consumption per working cycle: 20 l
Roller conveyor 3.0 m long, 300 mm wide with stand
Connector plate for roller conveyor 300 mm wide
Request quote
picture_as_pdf
generate pdf
info_outline
ask information

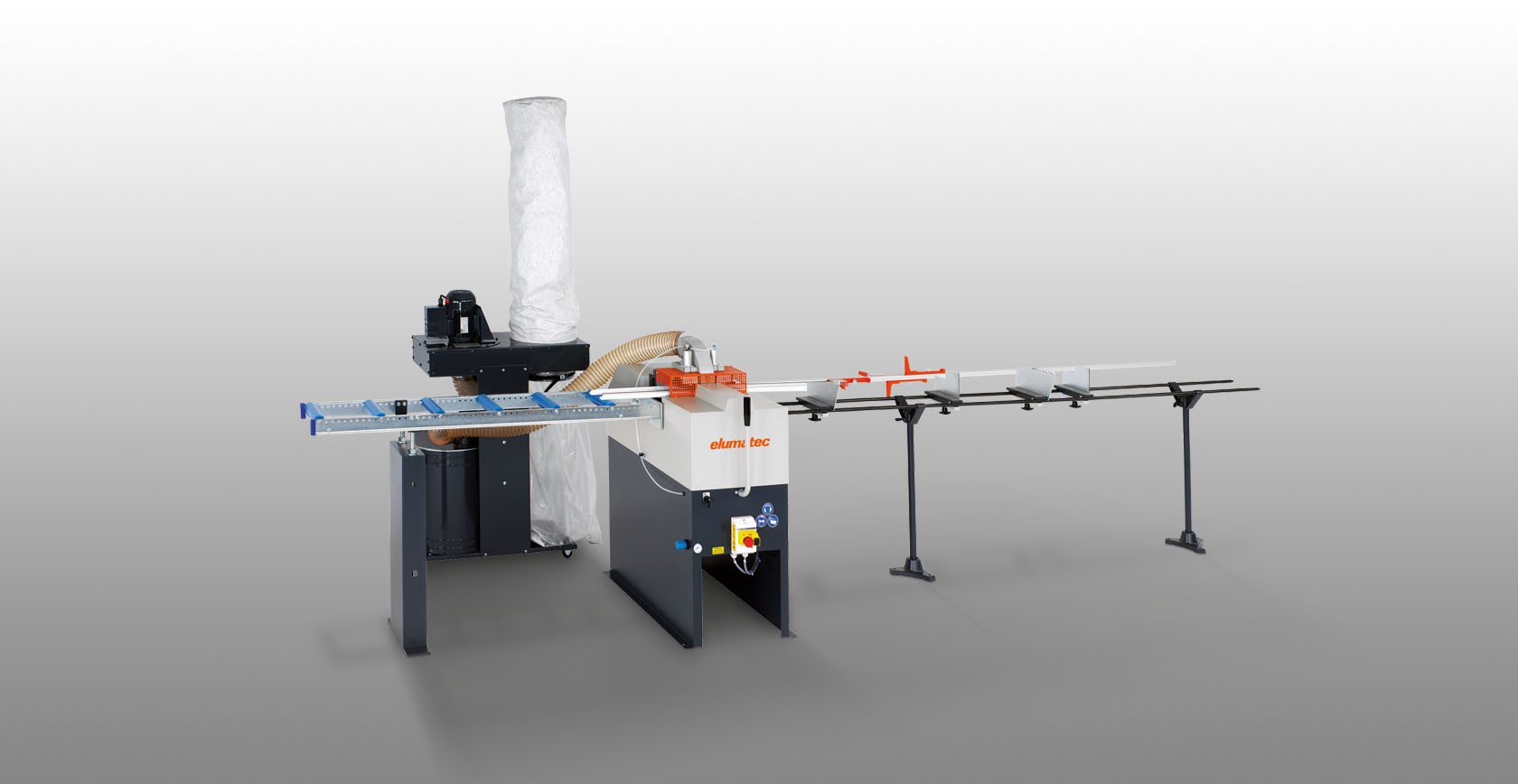

Glazing bead saw GLS 192/031
Glazing bead saw GLS 192/031
Glazing bead saw GLS 192/031
