ALU PVC STEEL

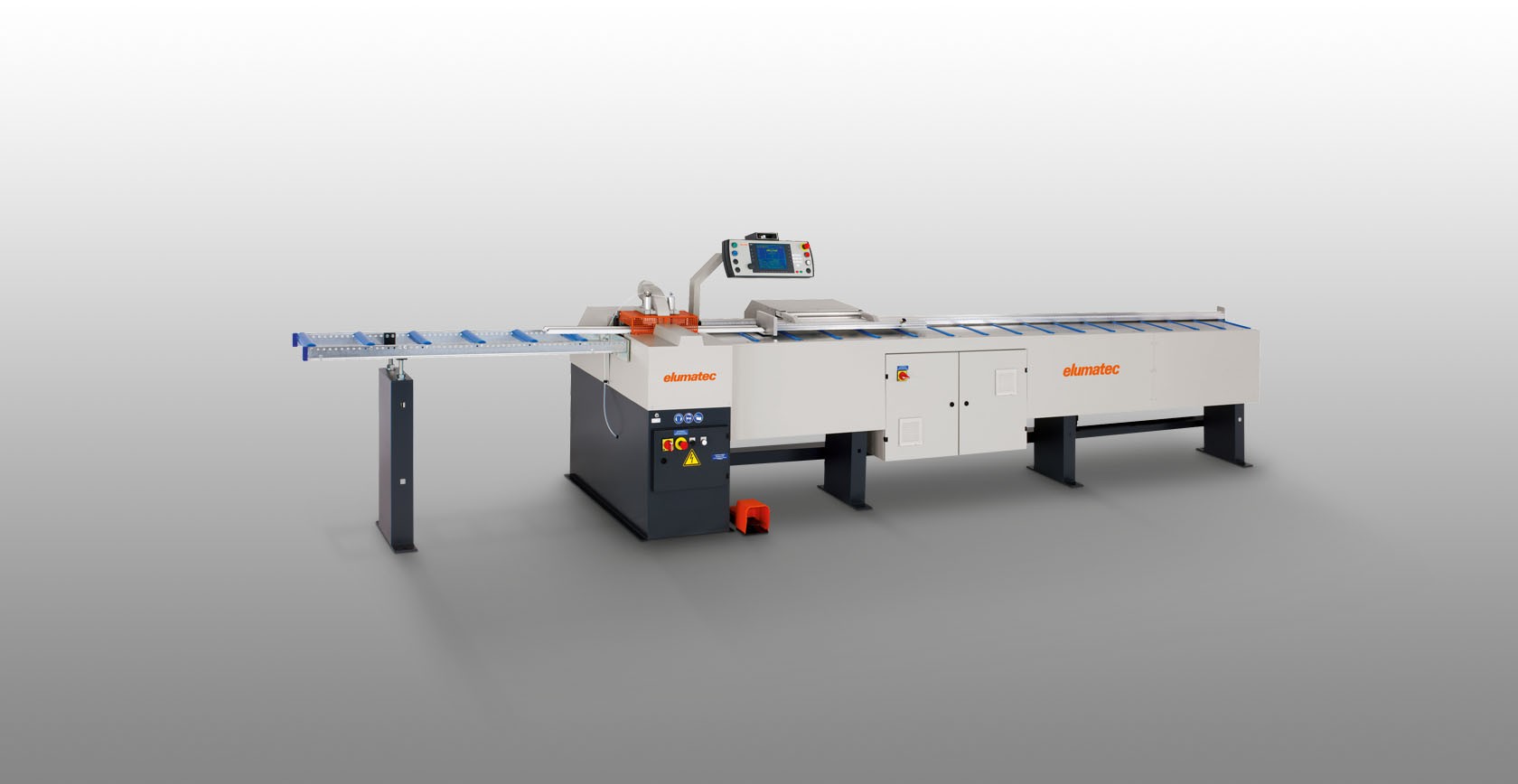

GLS 192 Glazing bead saw

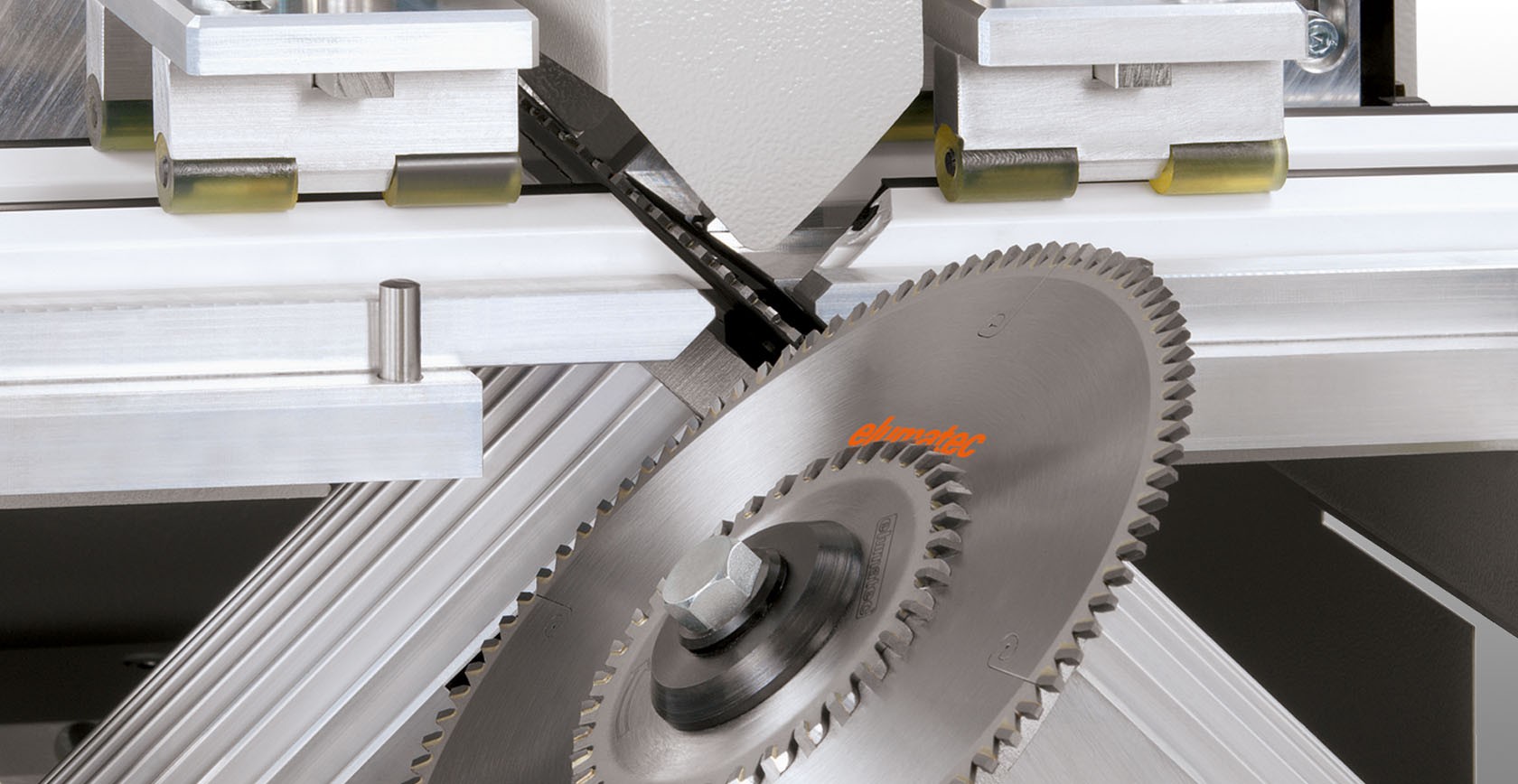

  • V-cutting saw with special saw blades for simultaneous undercutting of the glazing bead profile
  • Makes it easy to cut two glazing beads simultaneously (double cutting)
  • Equipped with two vertical material clamping units as standard
  • Equipped with exhaust connectors for connection to an extraction system
  • Automatic saw feed with foot switch operation



Options

  • Optimal cutting of glazing bead profiles with gasket. Our patented clamping unit simulates the position of the installed glass pane when cutting the glazing beads

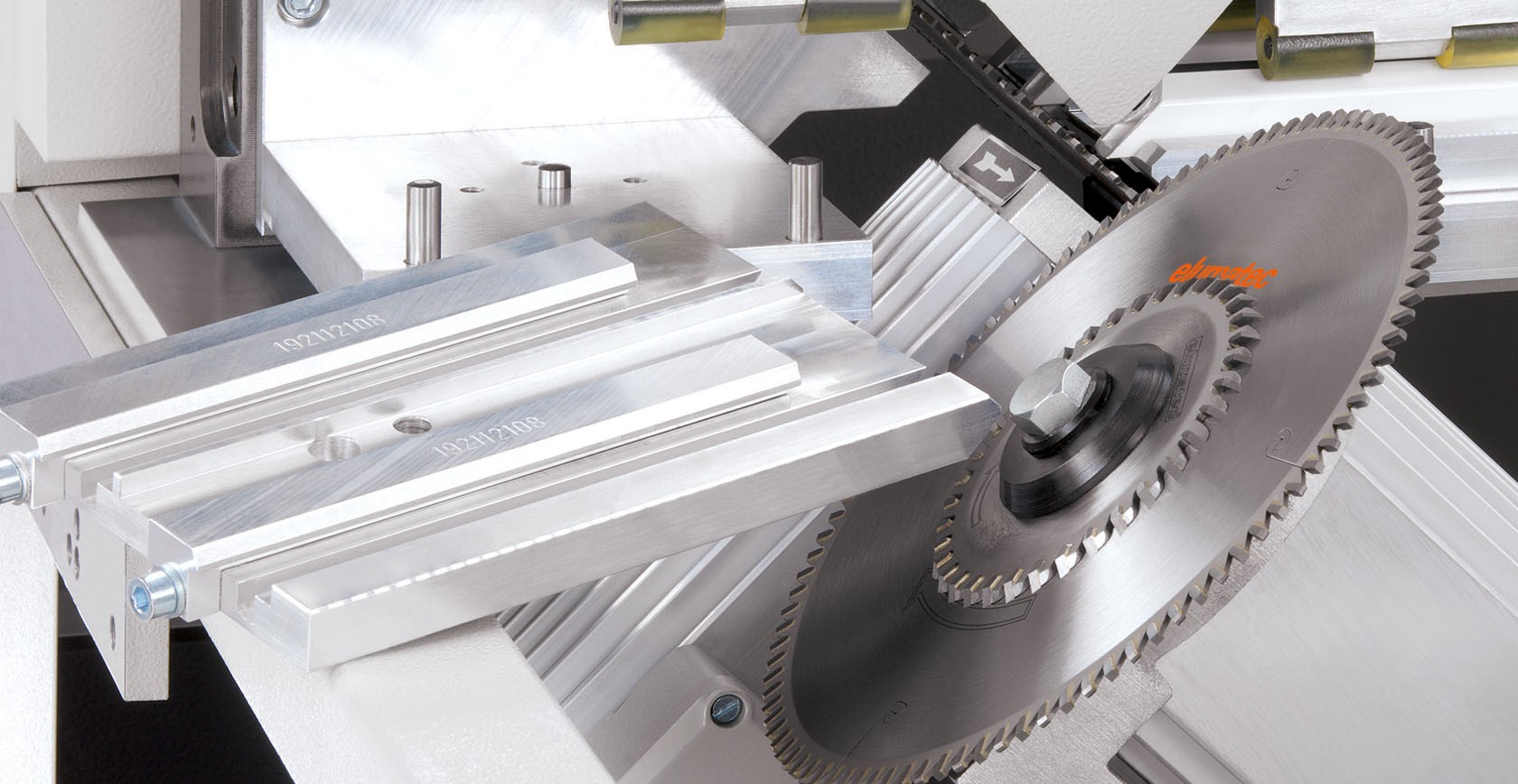

  • Profile clamping system for special glazing beads
  • Extraction system for residual pieces
  • Glass pane simulation with 12-fold depth stop
  • Roller conveyor with stand
  • Length stop and measuring systems
  • Profile support blocks
  • Saw blades
  • Saw blade diameter 200 mm, 98 mm (45° bevel)
  • Saw blade speed 2,800 rpm
  • Power supply 230/400 V, 3~, 50 Hz
  • Power output 0.9 kW
  • Compressed air supply 7 bar
  • Air consumption per working cycle 20 l
  • Length 510 mm, depth 1,200 mm, height 1,180 mm, weight 140 kg
