EV 834 Corner cleaning machine

home / from a to z / E
  • Simultaneous machining of outer contours and the welding beads on the top and bottom

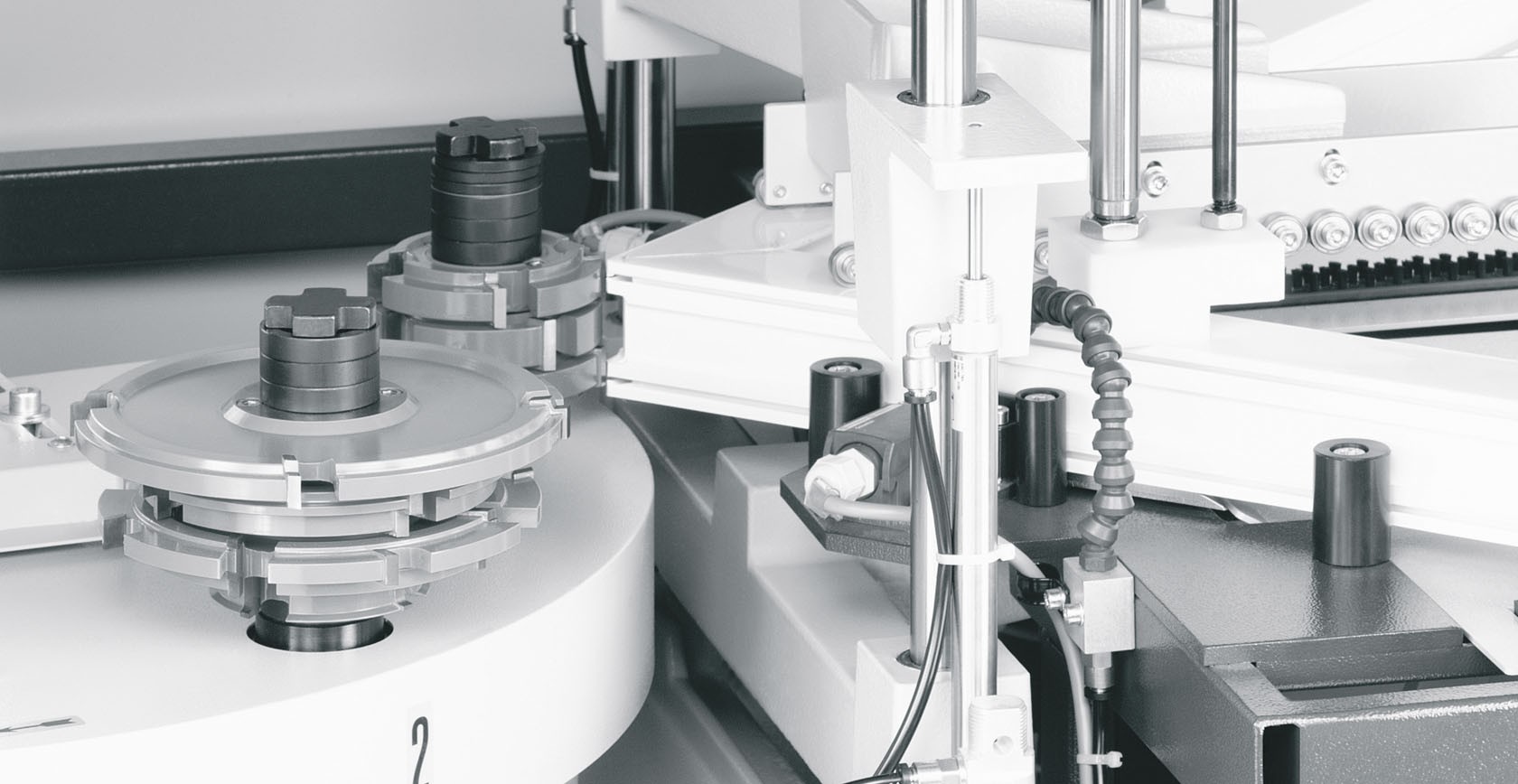

  • Four milling cutter positions for freely-configurable cutter sets
  • Optimal groove quality on convex and concave profile surfaces thanks to spring-loaded groove knives
  • Adjustable infeed draws even heavy and high profile elements (e.g. entry doors) in accurately and reliably
  • No twisting of the profiles thanks to horizontal and vertical profile clamping
  • Cutter diameters up to 260 mm possible for profiles with extreme depth dimensions
  • Equipped with a unit for blowing off chips as standard, which prevents inaccuracies due to chips becoming stuck
  • Versatile due to groove knives and milling cutters which can be switched on individually as well as cutter combinations that can be changed quickly
  • Four router spindles for cutter diameters up to a maximum of 260 mm
  • Error minimisation through intelligent, automatic profile distinction between frames and sashes at milling positions 1 and 2
  • Maximum frame size is theoretically unlimited
  • Min. frame size outer dimension 290 x 290 mm
  • Min. frame size inner dimension 160 x 160 mm
  • Max. profile height 200 mm
  • Profile height min. 25 mm
  • Cutting tool diameter 260 mm max.
  • Spindle speed 3,200 rpm
  • Router spindle diameter 32 mm
  • One router spindle for cutter packages up to a height of 200 mm
  • Power supply 230/400 V, 3~, 50 Hz
  • Power output 2.5 kW
  • Compressed air supply 7 bar
  • Air consumption per working cycle 100 l
  • Length 980 mm, depth 1,700 mm, height 1,670 mm, weight 590 kg
Corner cleaning machine EV 834
Corner cleaning machine EV 834
Corner cleaning machine EV 834
Corner cleaning machine EV 834
Corner cleaning machine EV 834
