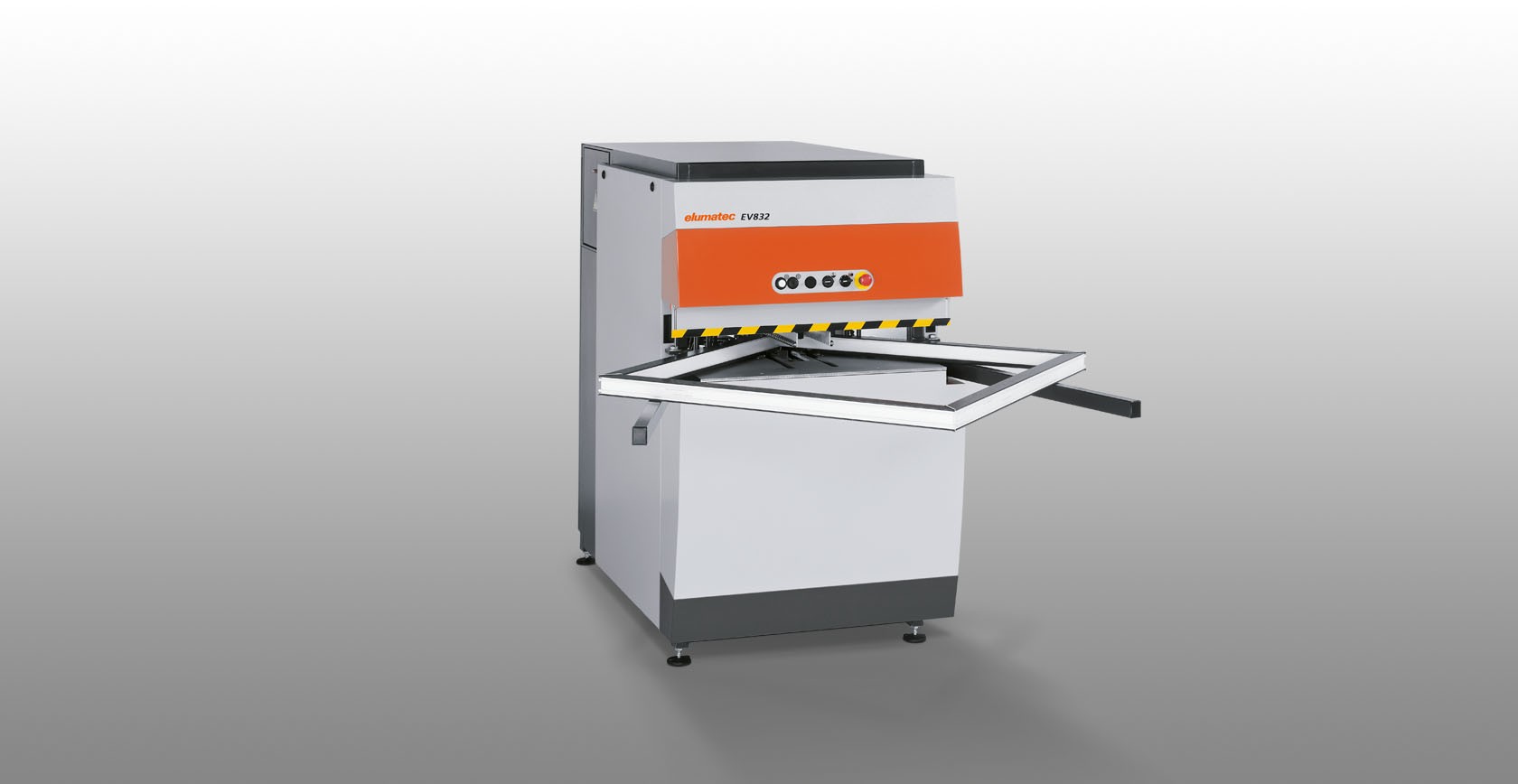

EV 832 Corner cleaning machine

home / from a to z / E

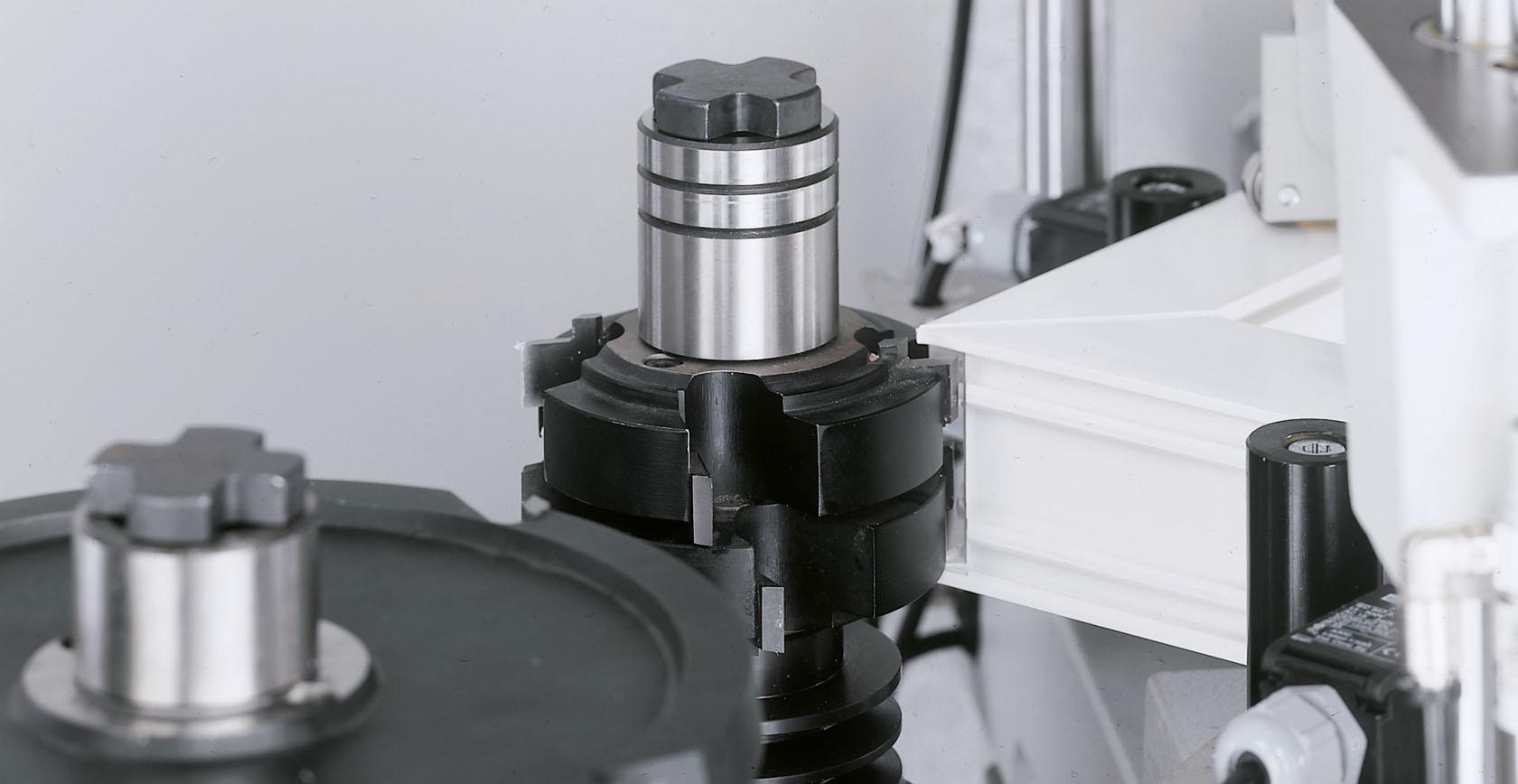

  • Simultaneous machining of outer contours and the welding beads on the top and bottom
  • Two milling cutter positions for freely-configurable cutter sets
  • Optimal groove quality on convex and concave profile surfaces thanks to spring-loaded groove knives
  • Adjustable infeed draws even heavy and high profile elements (e.g. entry doors) in accurately and reliably
  • No twisting of the profiles thanks to horizontal and vertical profile clamping
  • Cutter diameters up to 260 mm possible for profiles with extreme depth dimensions
  • Equipped with a unit for blowing off chips as standard, which prevents inaccuracies due to chips becoming stuck
  • Versatile due to groove knives and milling cutters which can be switched on individually as well as cutter combinations that can be changed quickly



Options

  • Router spindle 200 mm
  • Cleaning miller
  • Maximum frame size is theoretically unlimited
  • Min. frame size outer dimension 290 x 290 mm
  • Min. frame size inner dimension 160 x 160 mm
  • Max. profile height 200 mm
  • Profile height min. 25 mm
  • Cutting tool diameter 260 mm max.
  • Spindle speed 3,200 rpm
  • Router spindle diameter 32 mm
  • Power supply 230/400 V, 3~, 50 Hz
  • Power output 2.5 kW
  • Compressed air supply 7 bar
  • Air consumption per working cycle 100 l
  • Length 980 mm, depth 1,700 mm, height 1,670 mm, weight 495 kg
Corner cleaning machine EV 832
Corner cleaning machine EV 832
Corner cleaning machine EV 832
Corner cleaning machine EV 832
Corner cleaning machine EV 832

Other Products

E 111 Manual cutting length adjustment with digital display
E 111 Manual cutting length adjustment with digital display keyboard_arrow_right
E 355 Positioning control
E 355 Positioning control keyboard_arrow_right
E 580 PC Control
E 580 PC Control keyboard_arrow_right
eluCad
eluCad keyboard_arrow_right
eluCloud
eluCloud keyboard_arrow_right
EMA 201 Glazing bead measuring system
EMA 201 Glazing bead measuring system keyboard_arrow_right
EP 120 Corner crimper
EP 120 Corner crimper keyboard_arrow_right
EP 124 Corner crimper
EP 124 Corner crimper keyboard_arrow_right
EP 124/20 Corner crimper
EP 124/20 Corner crimper keyboard_arrow_right

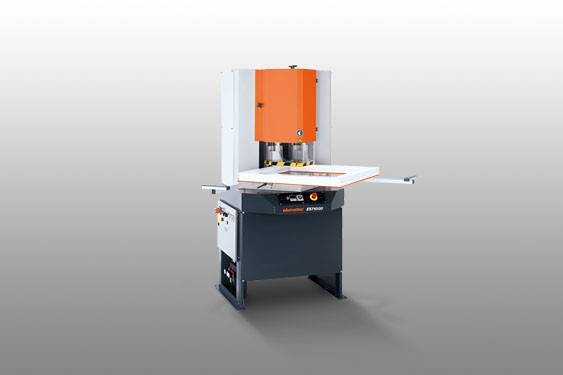

ES 710 LV 1-head welding machine
ES 710 LV 1-head welding machine keyboard_arrow_right

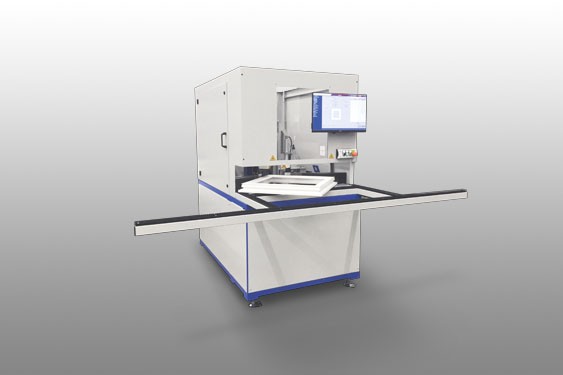

ES-2AC Corner cleaning machine
ES-2AC Corner cleaning machine keyboard_arrow_right
ES-2AFL Corner cleaning machine
ES-2AFL Corner cleaning machine keyboard_arrow_right

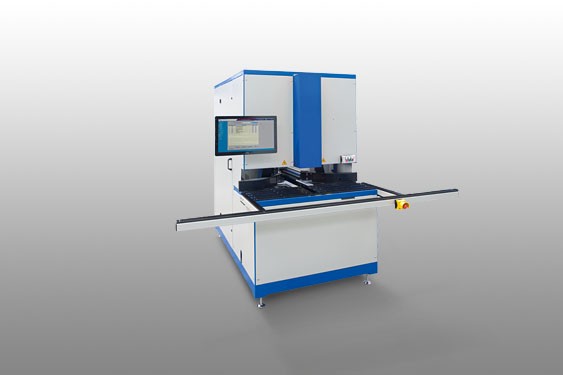

ES-2AM Corner cleaning machine
ES-2AM Corner cleaning machine keyboard_arrow_right
ES-2AML Corner cleaning machine
ES-2AML Corner cleaning machine keyboard_arrow_right

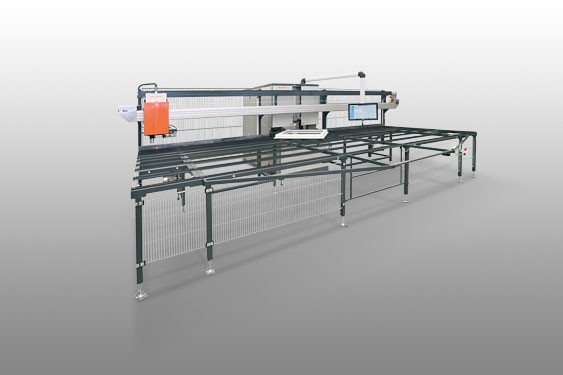

ES-4ABL Corner cleaning machine
ES-4ABL Corner cleaning machine keyboard_arrow_right
ES-4AML-O Corner cleaning machine
ES-4AML-O Corner cleaning machine keyboard_arrow_right
ES-4AML-X Corner cleaning machine
ES-4AML-X Corner cleaning machine keyboard_arrow_right

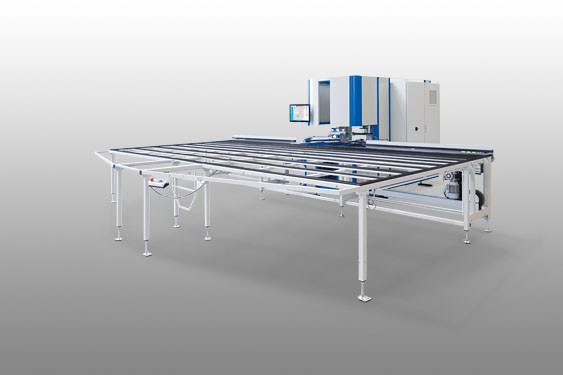

ES-4MXL Corner cleaning machine
ES-4MXL Corner cleaning machine keyboard_arrow_right
ES-CL-2ABL-HSM-30/26 - Welding and corner cleaning production line
ES-CL-2ABL-HSM-30/26 - Welding and corner cleaning production line keyboard_arrow_right
ES-CL-2AML-HSM-30/26 - Welding and corner cleaning production line
ES-CL-2AML-HSM-30/26 - Welding and corner cleaning production line keyboard_arrow_right
ES-CL-4ABL-HSM-30/26 - Welding and corner cleaning production line
ES-CL-4ABL-HSM-30/26 - Welding and corner cleaning production line keyboard_arrow_right
ES-CL-4AML-O-HSM-30/26 -Welding and corner cleaning production line
ES-CL-4AML-O-HSM-30/26 -Welding and corner cleaning production line keyboard_arrow_right
ES-CL-P-2ABL-HSM-30/26 - Welding and corner cleaning production line
ES-CL-P-2ABL-HSM-30/26 - Welding and corner cleaning production line keyboard_arrow_right
ES-CL-P-2AML-HSM-30/26 - Welding and corner cleaning production line
ES-CL-P-2AML-HSM-30/26 - Welding and corner cleaning production line keyboard_arrow_right
ES-CL-P-4ABL-HSM-30/26 - Welding and corner cleaning production line
ES-CL-P-4ABL-HSM-30/26 - Welding and corner cleaning production line keyboard_arrow_right

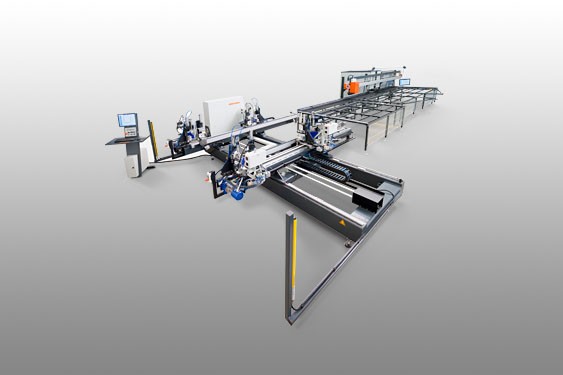

ES-CL-P-4AML-O-HSM-30/26 - Welding and corner cleaning production line
ES-CL-P-4AML-O-HSM-30/26 - Welding and corner cleaning production line keyboard_arrow_right
ES-HSM-4-T-30/26 TURBO - 4-head welding machine
ES-HSM-4-T-30/26 TURBO - 4-head welding machine keyboard_arrow_right
ES-HSM-4-T-40/26 TURBO - 4-head welding machine
ES-HSM-4-T-40/26 TURBO - 4-head welding machine keyboard_arrow_right

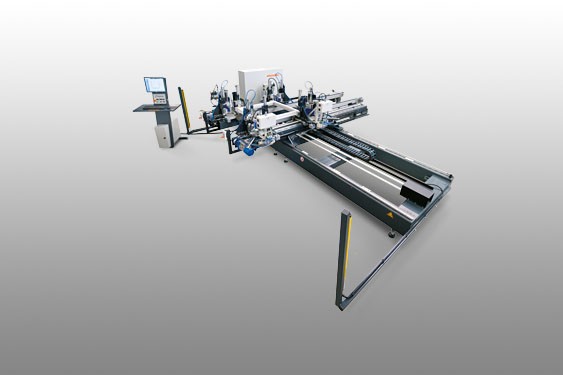

ES-HSM-40/26 - 4-head welding machine
ES-HSM-40/26 - 4-head welding machine keyboard_arrow_right
ES-HSM-40/26-P - 4-head welding machine
ES-HSM-40/26-P - 4-head welding machine keyboard_arrow_right

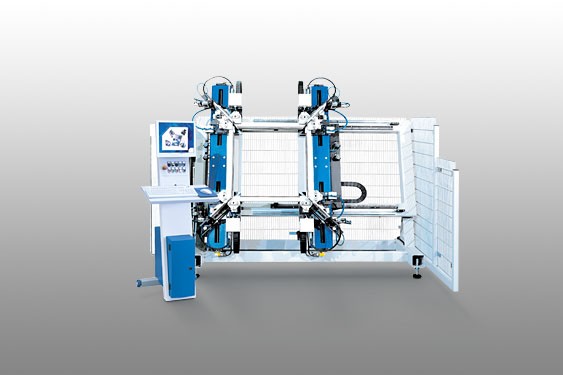

ES-VSM-30/19-C-S - 4-head welding machine
ES-VSM-30/19-C-S - 4-head welding machine keyboard_arrow_right

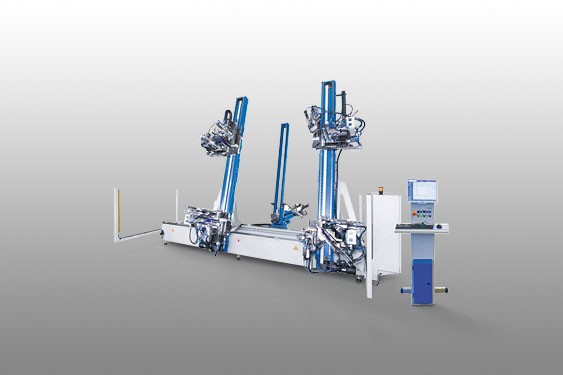

ES-VSM-40/26-P - 4-head welding machine
ES-VSM-40/26-P - 4-head welding machine keyboard_arrow_right

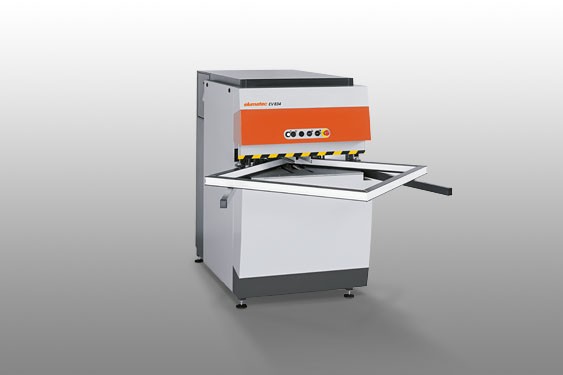

EV 834 Corner cleaning machine
