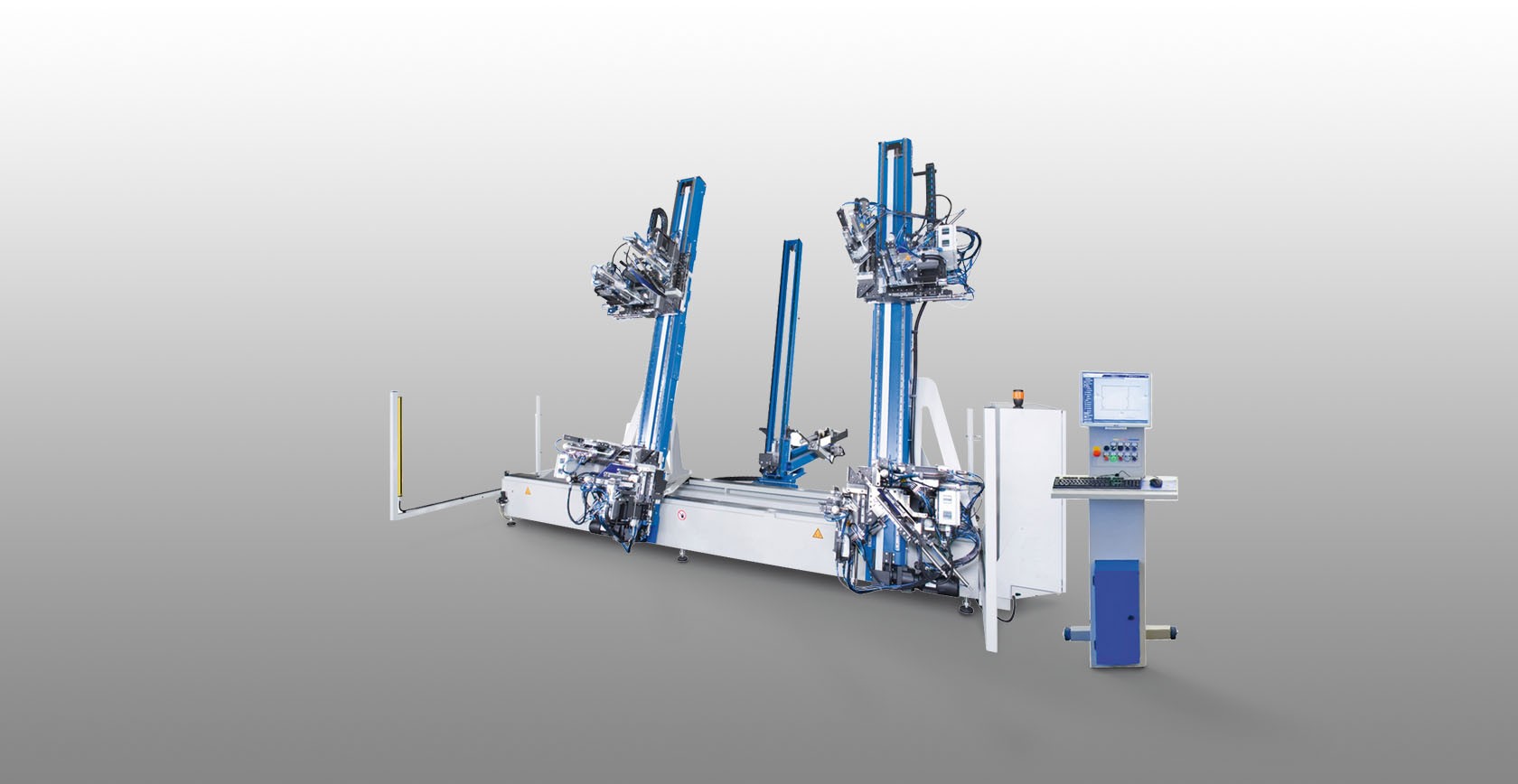

ES-VSM-40/26-P - 4-head welding machine

Consisting of:

• Vertical 4-head welding machine
• Diagonal and parallel joining process
• Parallel welding process
• Suitable for production lines
• Screen dialogue system under Windows
• Data management via a database
• Heated welding bead limitation
• Welding parameters can be programmed individually
• Integration in a welding/cleaning line possible

Options

• Unloading handling system
• Automatic welding bead limitation
• Gasket limitation with blades
• Gasket limitation with plungers
• House entry door welding (with or without pre-mounted threshold)
• Barcode scanner
• Alternating welding of frames and sashes within a profile series
• Welding of oversizes

4-head welding machine ES-VSM-30/26-P

See 4-head welding machine ES-VSM-40/26-P, however:

• Max. element size 3,000 x 2,600 mm

• Min. depth, 30 mm (clamping path, 120 mm)
• Max. depth, 120 mm (clamping path, 120 mm)
• Max. facing width, 130 mm
• Min. element size (clear inner dimension): 325 x 320 mm
• Max. element size 4,000 x 2,600 mm
• Further welding dimensions on request
