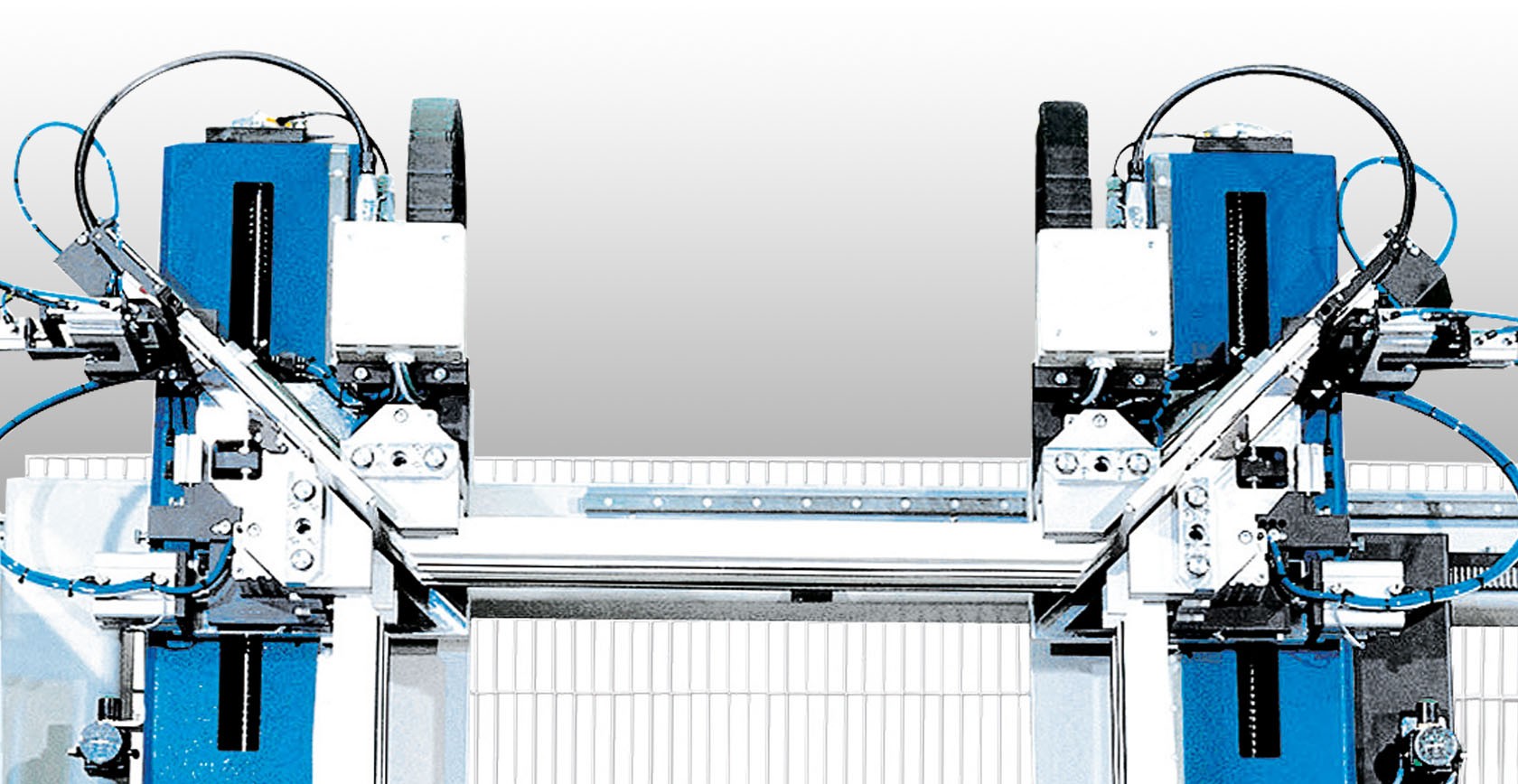

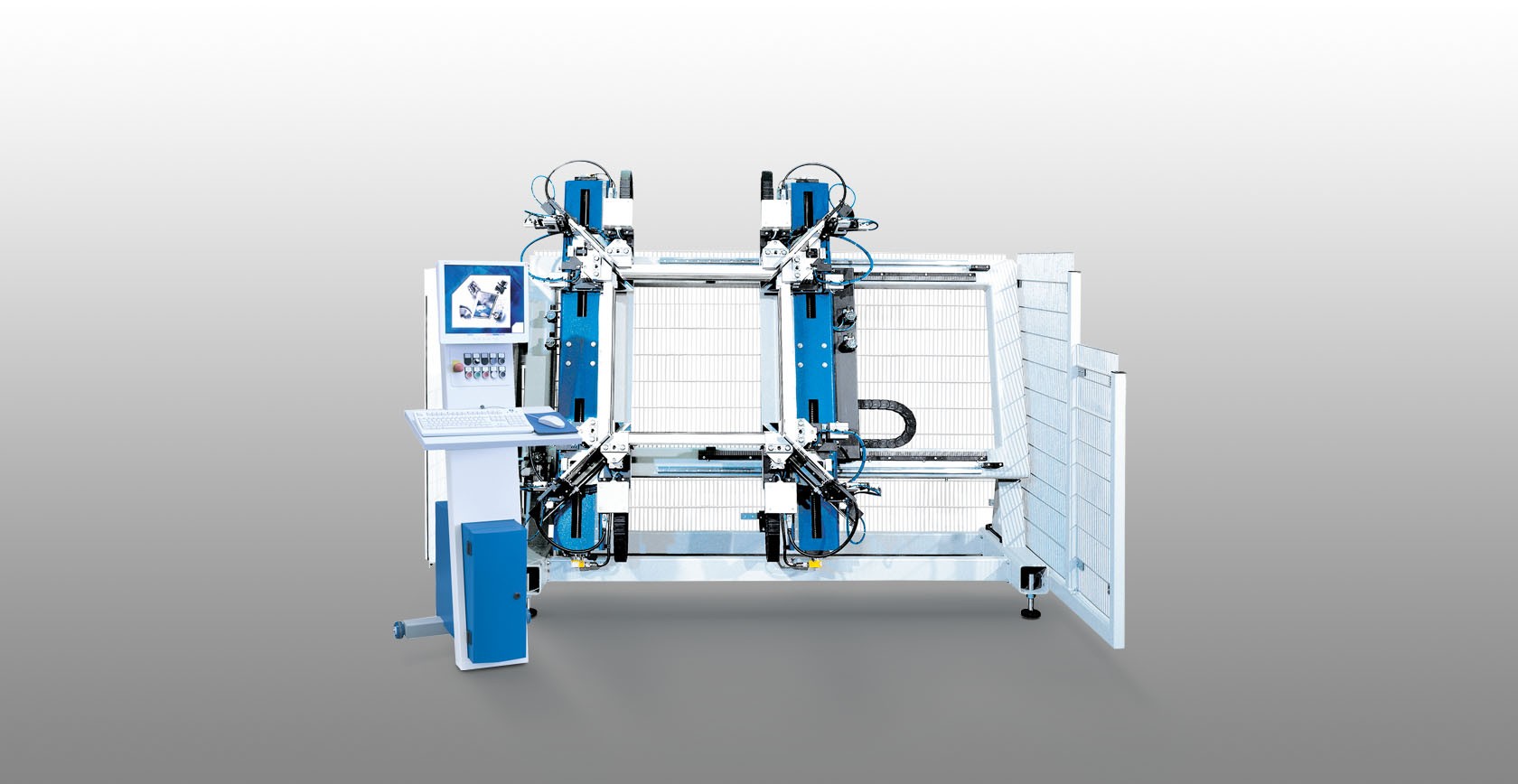

ES-VSM-30/19-C-S - 4-head welding machine

home / from a to z / E

Consisting of:

  • Vertical 4-head welding machine
  • Compact stand-alone solution (plug & play)
  • Diagonal joining process
  • Diagonal welding process
  • Not suitable for production lines
  • Double stack on request
  • Screen dialogue system under Windows
  • Data management via a database
  • Welding parameters can be programmed individually



4-head welding machine ES-VSM-20/19-C-S

See 4-head welding machine ES-VSM-30/19-C-S, however:

  • Max. element size 2,000 x 1,900 mm
  • Min. depth, 40 mm (clamping path, 85 mm)
  • Max. depth, 130 mm (clamping path, 85 mm)
  • Max. facing width, 130 mm
  • Min. element size (clear inner dimension): 305 x 300 mm
  • Max. element size 3,000 x 1,900 mm
4-head welding machine ES-VSM-30/19-C-S
