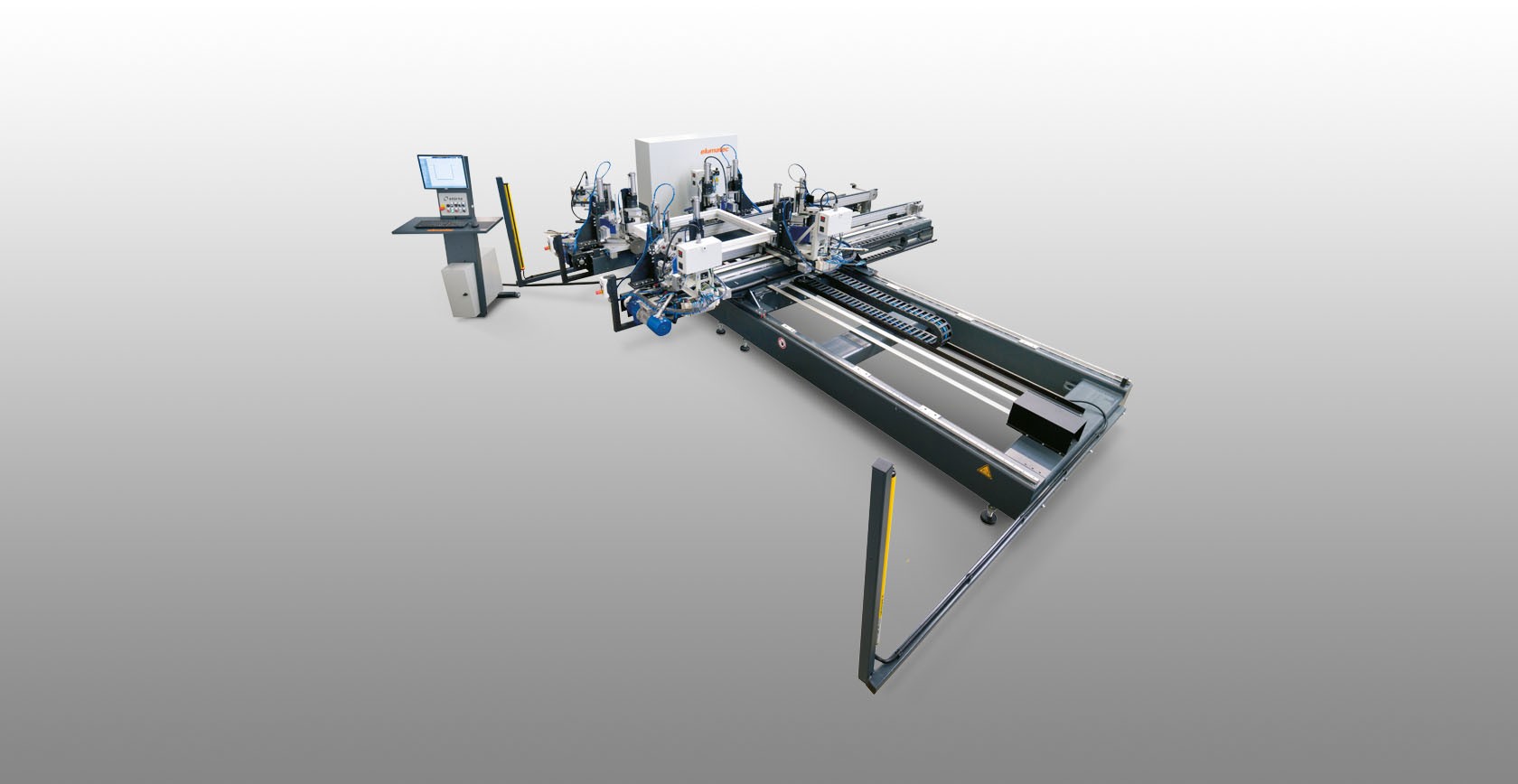

ES-HSM-40/26-P - 4-head welding machine

Consisting of:

  • Horizontal 4-head welding machine
  • Diagonal and parallel joining process
  • Screen dialogue system under Windows
  • Data management via a database
  • Outfeed unit operates in production flow direction or laterally
  • Welding parameters can be programmed individually
  • Heated welding bead limitation
  • Integration in a welding/cleaning line possible



  • Transom machining on request
  • Automatic welding bead limitation
  • Gasket limitation with blades

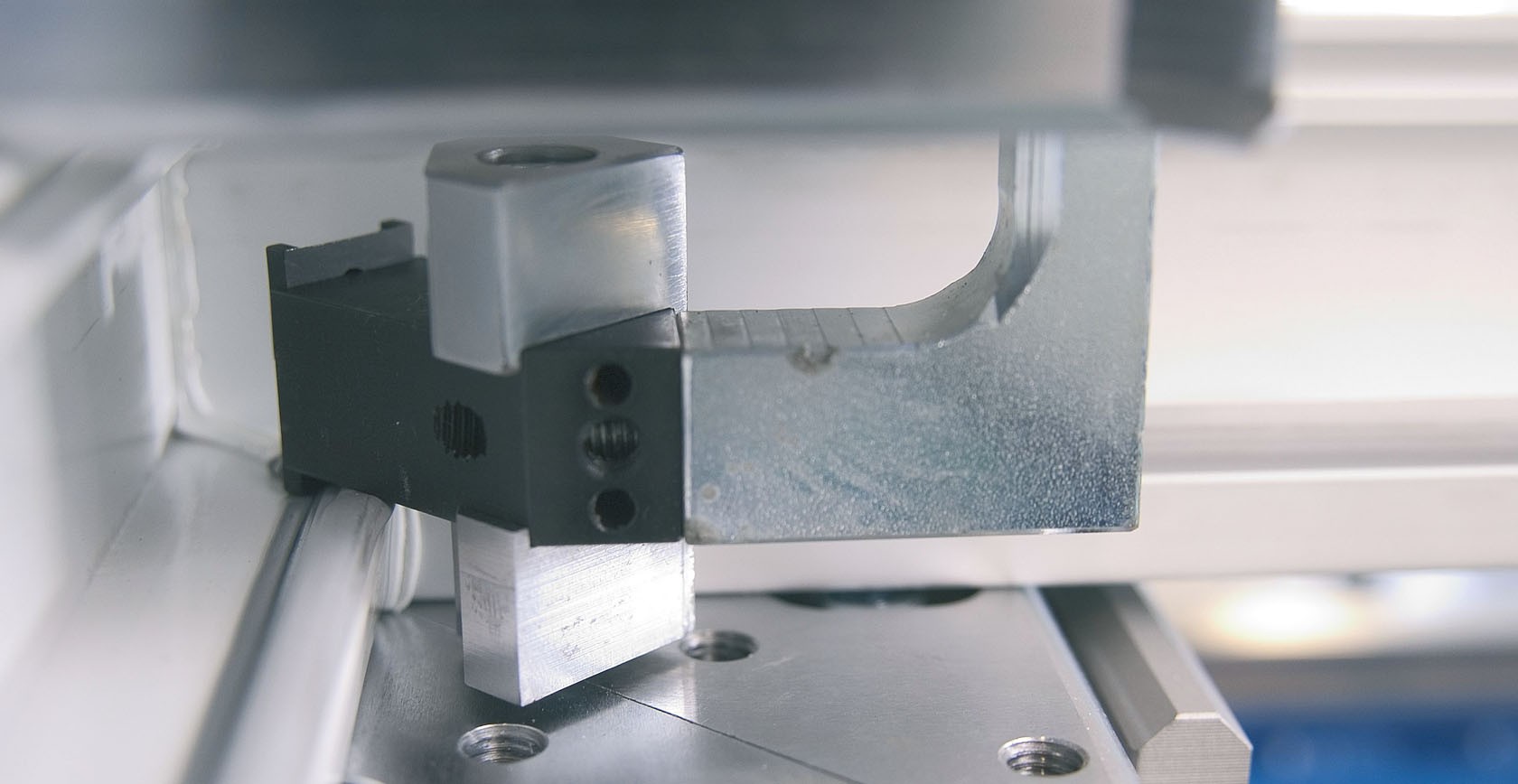

  • Gasket limitation with plungers
  • House entry door welding (with or without pre-mounted threshold)
  • Barcode scanner
  • Alternating welding of frames and sashes within a profile series
  • Welding of oversizes


4-head welding machine ES-HSM-30/26-P

See 4-head welding machine ES-HSM-40/26-P, however:

  • Max. element size 3,000 x 2,600 mm
  • Min. depth, 40 mm (clamping path, 145 mm)
  • Max. depth, 120 mm (clamping path, 145 mm)
  • Max. facing width, 130 mm
  • Min. element size 330 x 320 mm (330 x 340 mm with lateral outfeed)
  • Max. element size 4,000 x 2,600 mm
  • Further welding dimensions on request
  • Double stack on request
  • Multi-head welding machines on request
