ES-HSM-40/26 - 4-head welding machine

home / from a to z / E

Consisting of:

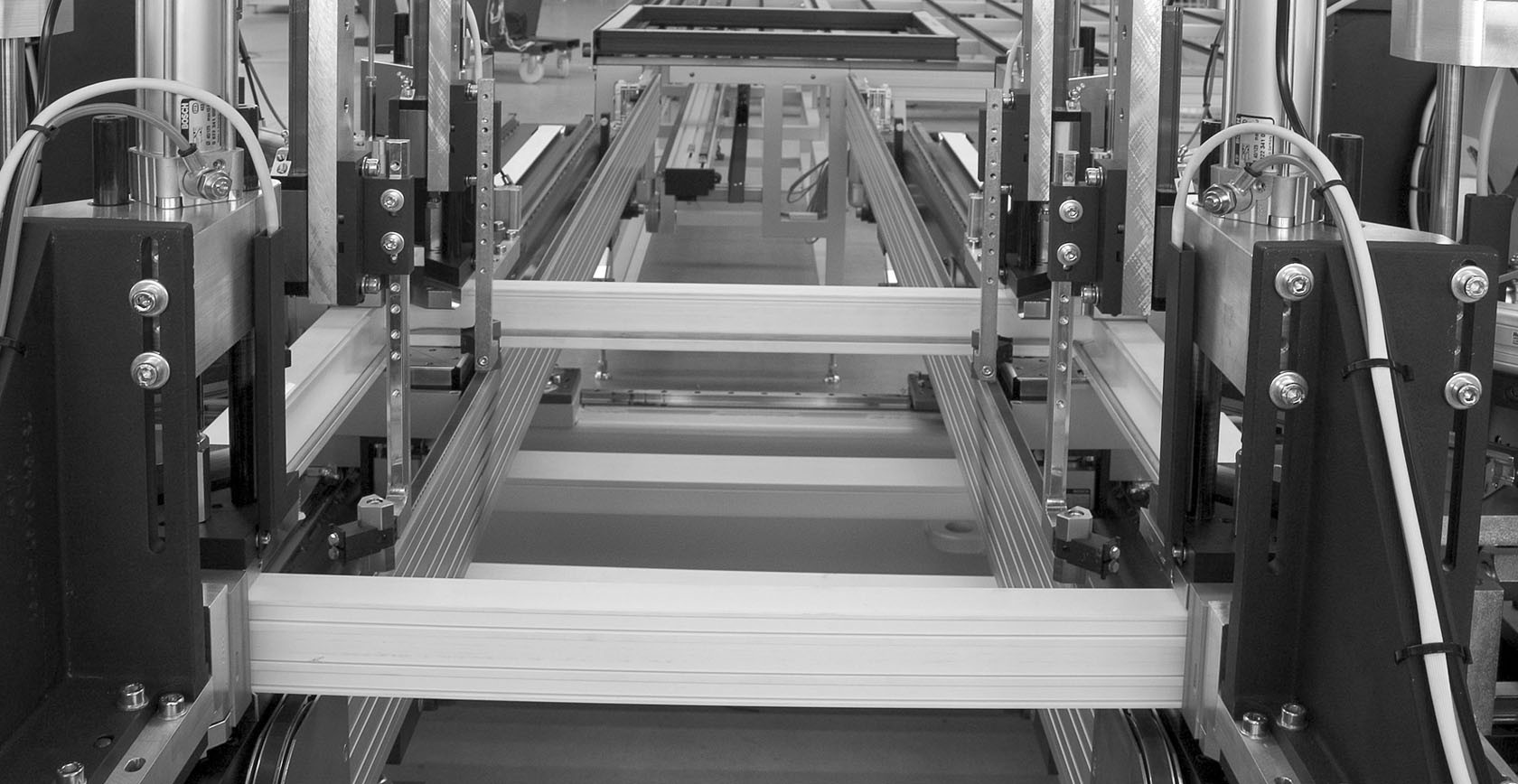

  • Horizontal 4-head welding machine
  • Diagonal joining process
  • Screen dialogue system under Windows
  • Data management via a database
  • Outfeed unit
  • Welding parameters can be programmed individually
  • Integration in a welding/cleaning line possible



Options

  • Heated welding bead limitation

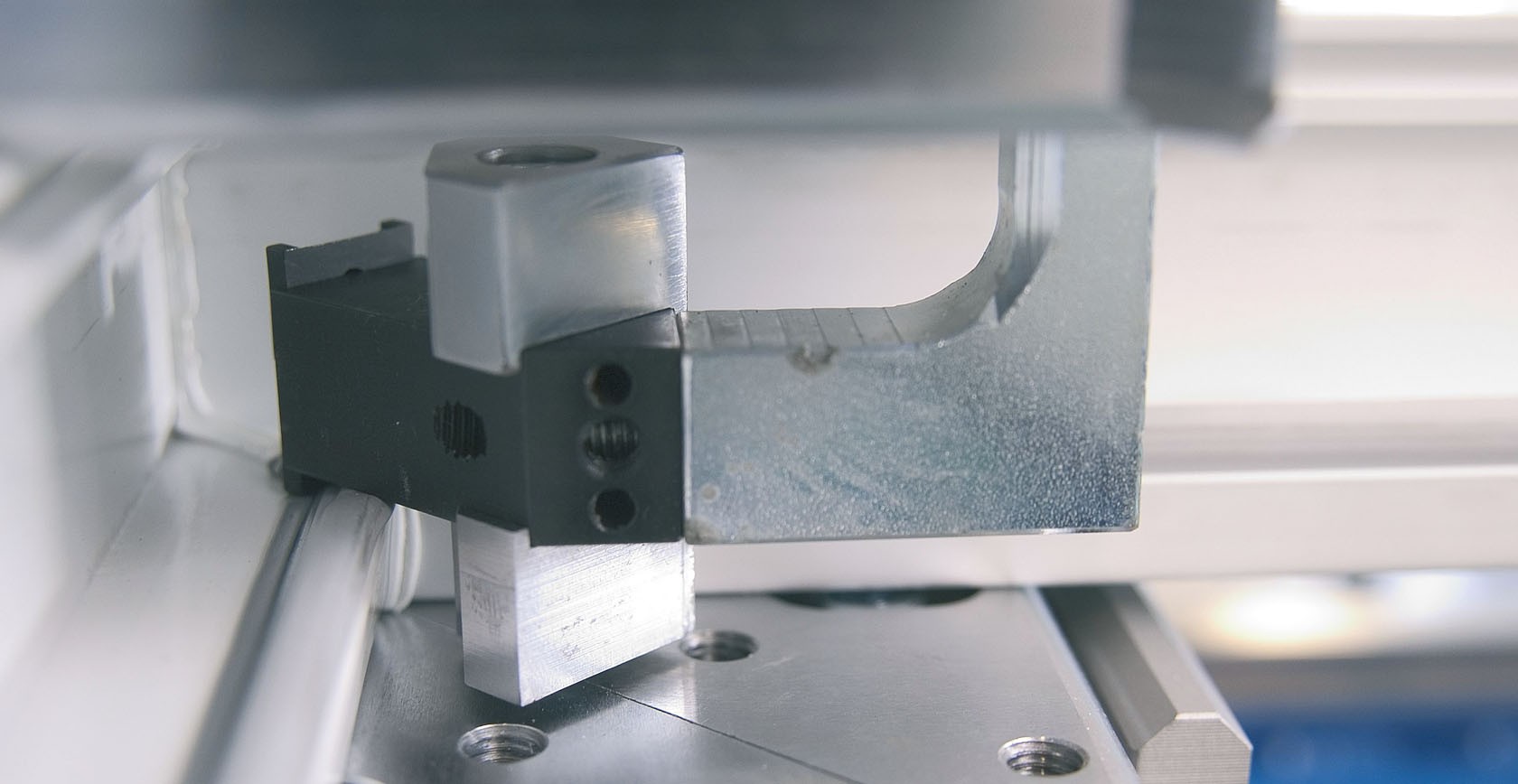

  • Gasket limitation with plungers
  • Automatic welding bead limitation



4-head welding machine ES-HSM-30/26
See 4-head welding machine ES-HSM-40/26, however:

  • Max. element size 3,000 x 2,600 mm
  • Min. depth, 40 mm (clamping path, 145 mm)
  • Max. depth, 120 mm (clamping path, 145 mm)
  • Max. facing width, 130 mm
  • Min. element size (clear inner dimension): 330 x 320 mm
  • Max. element size 4,000 x 2,600 mm
  • Further welding dimensions on request

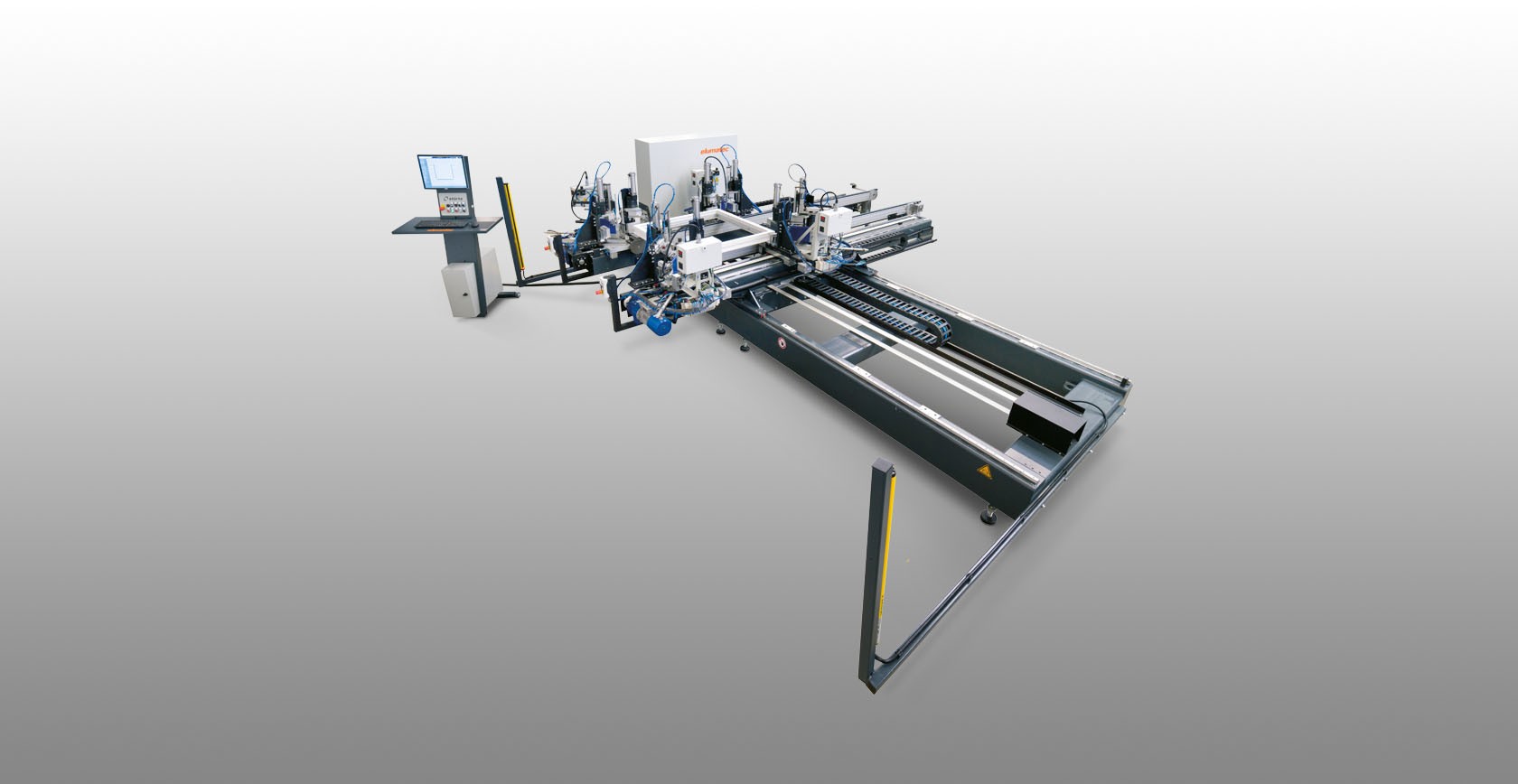

4-head welding machine ES-HSM-40/26
4-head welding machine ES-HSM-40/26
