ALU PVC STEEL

ES 710 LV 1-head welding machine

home / from a to z / E
  • Suitable for welding large-volume profiles (monobloc profiles)

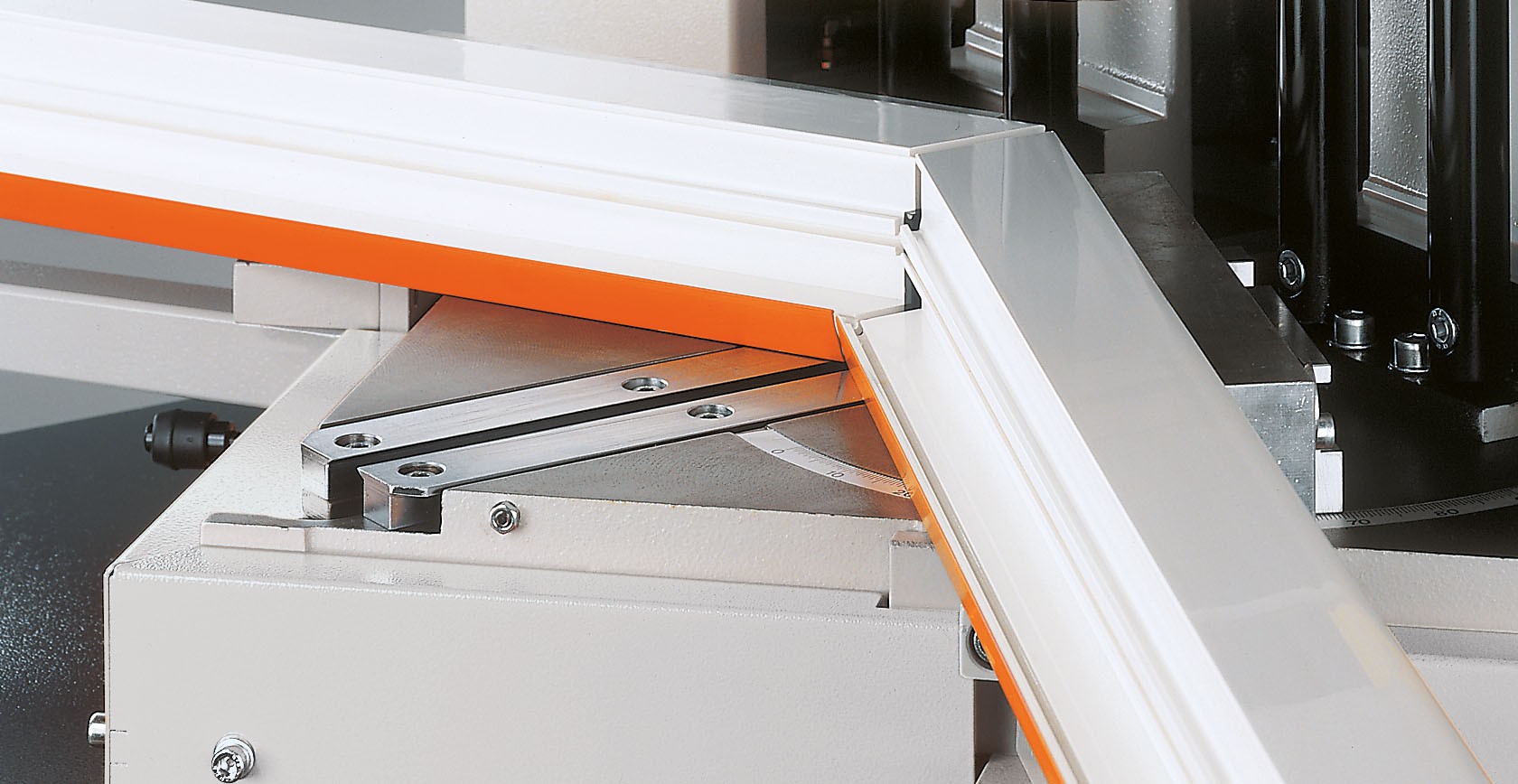

  • Heated welding bead limiting blade, configurable for a welding bead limitation of 0.2 to 2.0 mm, for welding profiles covered with a film or acrylic coating



Options

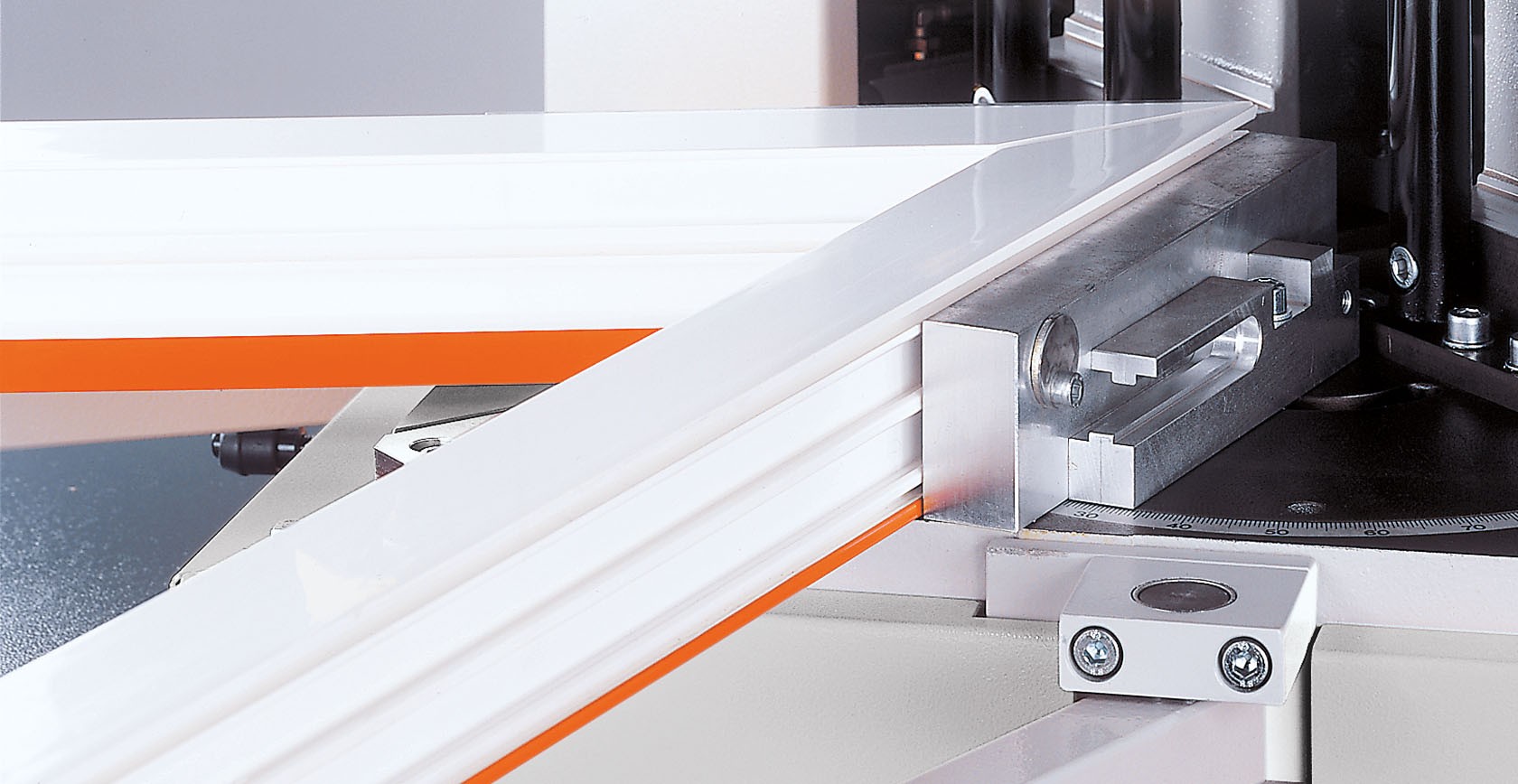

  • Welding supports
  • Welding supports for profiles with gasket already installed
  • Gasket downholder for the inside corner area
  • Welding bead limitation 0.2 - 2.0 mm
  • Welding bead temperature control 0° – 70°C
  • Profile height max. 210 mm
  • Power supply 230 V, 1~, 50/60 Hz
  • Power output 2.7 kW
  • Air consumption per weld 60 l
  • Length 920 mm, depth 950 mm, height 1,875 mm, weight 320 kg

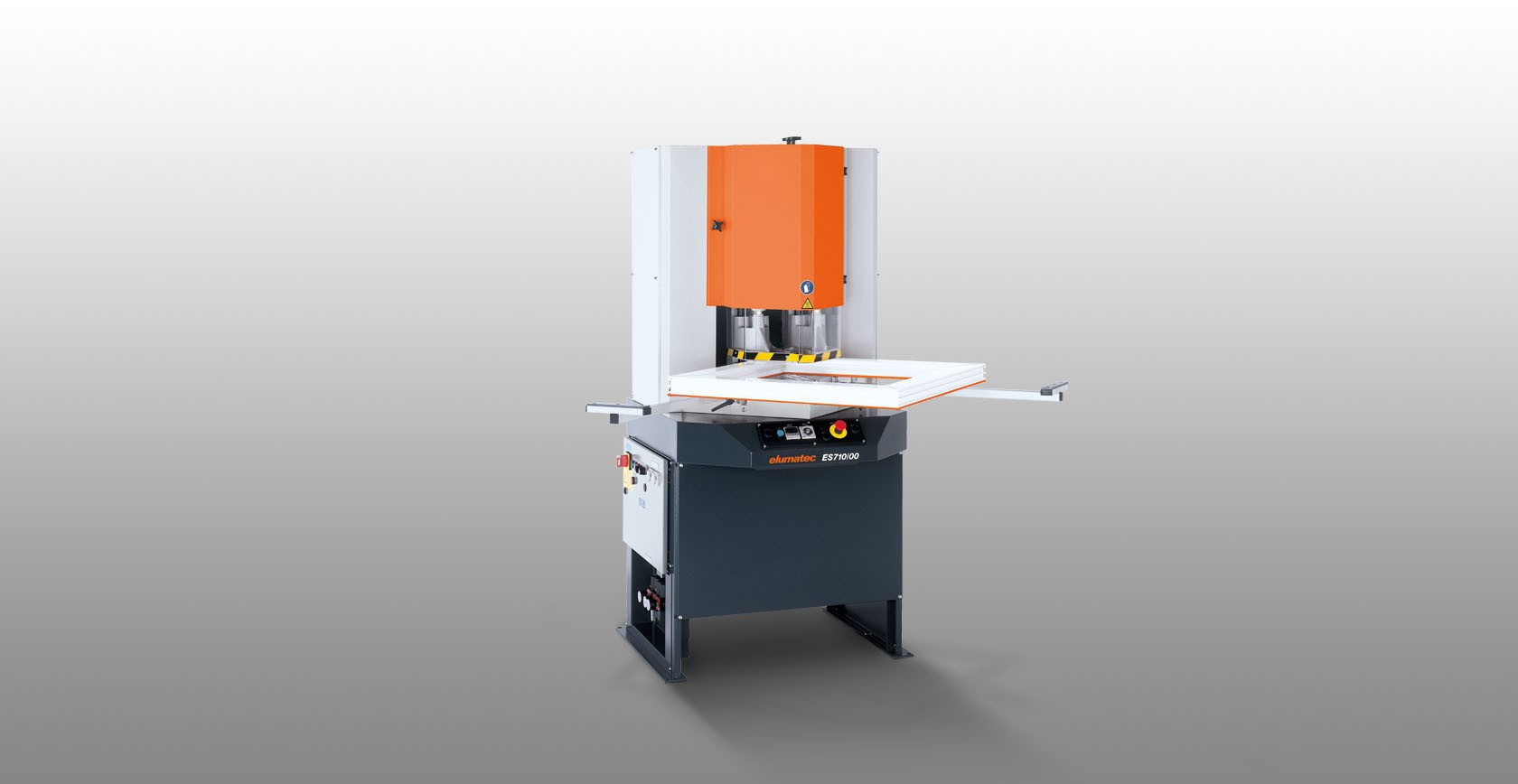

1-head welding machine ES 710 LV
1-head welding machine ES 710 LV
1-head welding machine ES 710 LV
1-head welding machine ES 710 LV
1-head welding machine ES 710 LV
1-head welding machine ES 710 LV
