ES-4AML-X Corner cleaning machine

home / from a to z / E

4-axis corner cleaning machine, medium

  • For multi-functional machining of 90° inside and outside corners
  • MotionControl ensures a work sequence with optimised cycle times
  • Highly-dynamic axis drive
  • User programmable under Window operating system

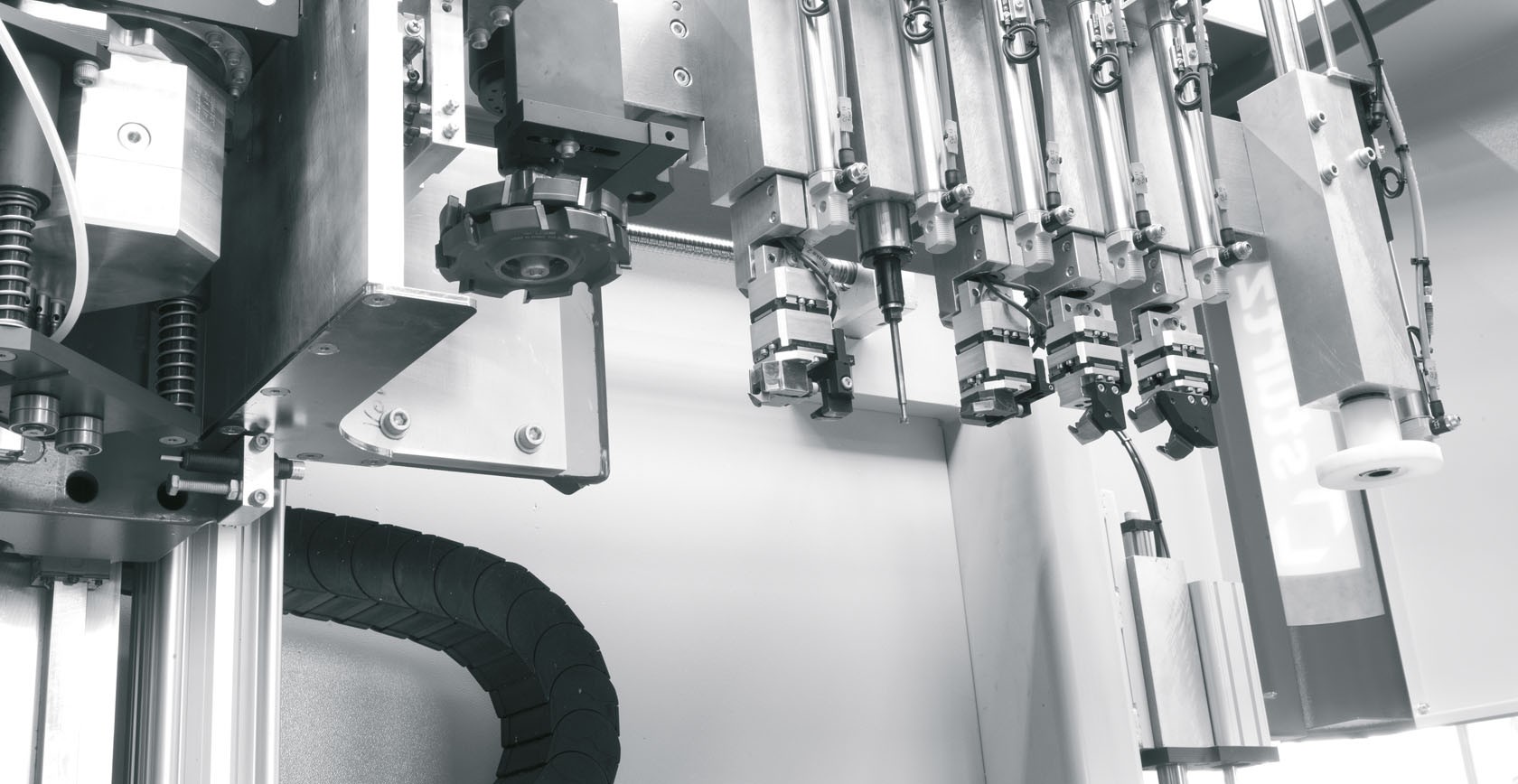

  • Modular tooling with up to 17 tool positions
  • Customer-specific machining solutions are possible, such as arrowhead routing, sash overlap routing, tilt/turn hinge drilling, disk milling cutter units, etc.
  • The 4AML can be equipped with an automatic turning station



Options

  • Table supporting surfaces ready for nail fins
  • Tilt/turn hinge drilling
  • Mullion or arrowhead routing
  • Min. depth, 40 mm (20 mm after technical inspection/evaluation)
  • Max. depth, 160 mm
  • Min. facing width, 40 mm
  • Max. facing width, 130 mm
  • Min. element size (clear inner dimension): 190 x 190 mm
Corner cleaning machine ES-4AML-X
Corner cleaning machine ES-4AML-X
